Page 3337 of 3419
WT-12
TROUBLE DIAGNOSES
Revision: October 20052005 QX56

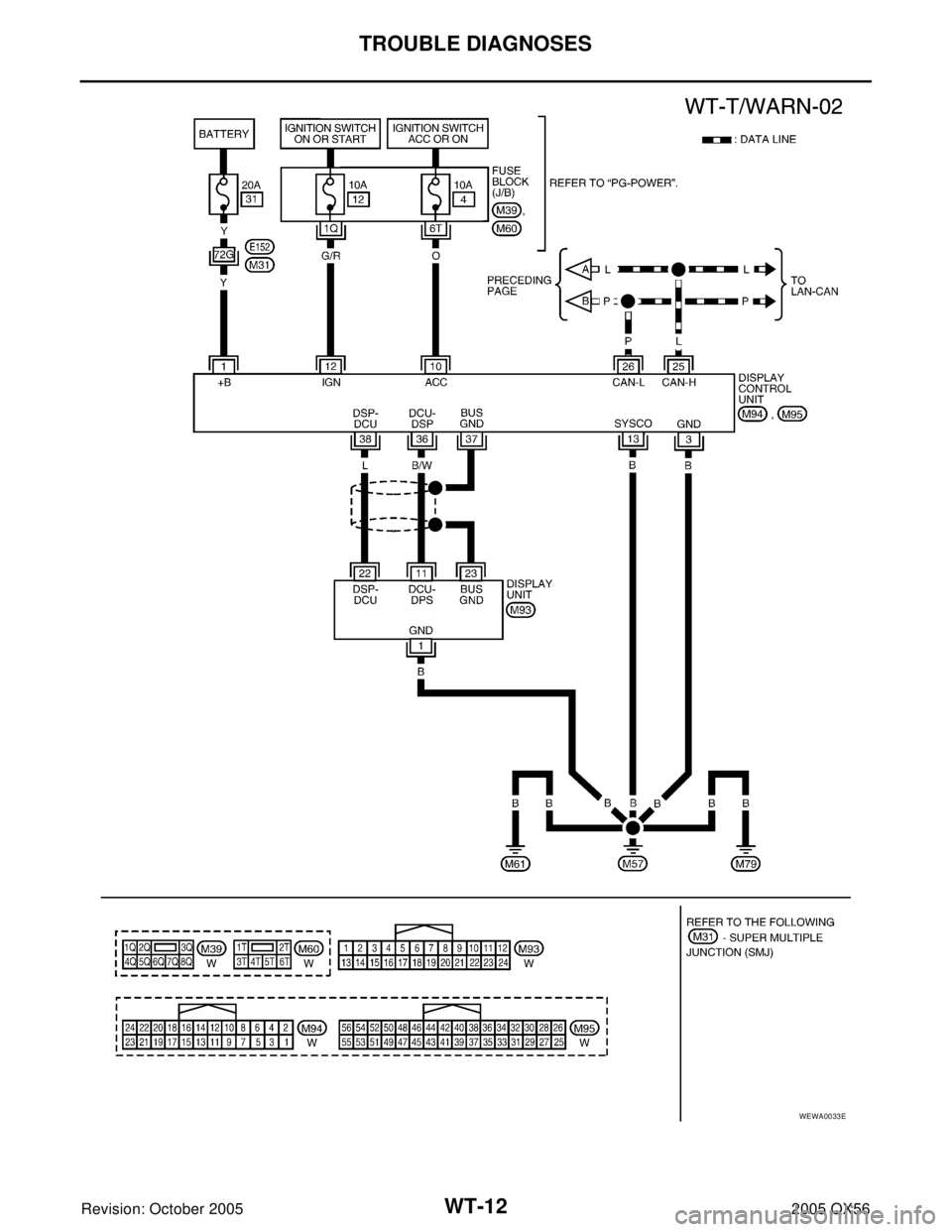

WEWA0033E
Page 3338 of 3419
TROUBLE DIAGNOSES
WT-13
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: October 20052005 QX56
BCM Input/Output Signal StandardEES001I6
( ) : Wire colorTe r m i n a l
Item ConditionVoltage (V)
(Approx.)
+–
15 (L/W)
GroundTire pressure warning check
connector—5V
18 (P)Remote keyless entry receiver
(Ground)—0V
19 (V/W)Remote keyless entry receiver
(Power supply)Stand-by
Press any of the electronic
switches
20 (G/W)Remote keyless entry receiver
(Signal) Stand-by
Press any of the electronic
switches
38 (W/L) Ignition switch Ignition switch ON or START Battery voltage
39 (L) Data line (CAN-H) — —
40 (P) Data line (CAN-L) — —
67 (B) GND — 0V
70 (W/B) Battery power supply — Battery voltage
OCC3879D
OCC3882D
OCC3881D
OCC3880D
Page 3339 of 3419

WT-14
TROUBLE DIAGNOSES
Revision: October 20052005 QX56
ID Registration ProcedureEES001I7
ID REGISTRATION WITH TRANSMITTER ACTIVATION TOOL
This procedure must be done after replacement of a low tire pressure warning sensor or BCM. New
replacement transmitters are provided "asleep" and must be "woken up" using Transmitter Activation Tool J-
45295 before ID registration can be performed.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunction might be detected
during self-diagnosis depending on control unit which carry out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link con-
nector, then turn the ignition switch ON.
2. Select "START (NISSAN BASED VHCL)".
3. Touch “BCM” on "SELECT SYSTEM" screen.
NOTE:
If "BCM" is not indicated, go to LAN-5, "
CAN COMMUNICATION" .
4. Select “AIR PRESSURE MONITOR” on "SELECT WORK ITEM" screen.
5. Select “WORK SUPPORT” on "SELECT DIAG MODE" screen, and select "ID REGIST".
6. With the transmitter activation tool (J-45295) pushed against the
front left transmitter position of the tire air valve, press the button
for 5 seconds.
7. Register the IDs in order from FR LH, FR RH, RR RH and RR LH. When ID registration of each wheel has
been completed, a buzzer sounds and the warning lamp flashes.
8. After completing all ID registrations, press “END” to complete the procedure.
NOTE:
Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results dis-
play will not function properly.Tool number — (J-45295)
LEIA0036E
Activation tire position Buzzer Hazard warning lamp CONSULT-II
1 Front LH Once
2 times flashing“YET”
↓
“DONE” 2 Front RH 2 times
3Rear RH 3 times
4 Rear LH 4 times
Page 3340 of 3419

TROUBLE DIAGNOSES
WT-15
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: October 20052005 QX56
ID REGISTRATION WITHOUT TRANSMITTER ACTIVATION TOOL
This procedure must be done after replacement of a low tire pressure warning sensor or BCM. New
replacement transmitters are provided "asleep" and must be "woken up" using Transmitter Activation
Tool J-45295 before ID registration can be performed.
1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link con-
nector, then turn the ignition switch ON.
2. Select "START (NISSAN BASED VHCL)".
3. Touch “BCM” on "SELECT SYSTEM" screen.
NOTE:
If "BCM" is not indicated, go to LAN-5, "
CAN COMMUNICATION" .
4. Select “AIR PRESSURE MONITOR” on “SELECT WORK ITEM" screen.
5. Select “WORK SUPPORT” on “SELECT DIAG MODE" screen, and select "ID REGIST".
6. Adjust the tire pressure to the values shown in the table below for ID registration, and drive the vehicle at
15 km/h (9.4 MPH) or more for a few minutes.
7. After completing all ID registrations, press “END” to complete the procedure.
8. Inflate all tires to proper pressure. Refer to WT-34, "
Tire"
Tire position
Tire pressure kPa (kg/cm2 , psi)
Front – Left 250 (2.5, 36)
Front – Right 230 (2.3, 33)
Rear – Right 210 (2.1, 30)
Rear – Left 190 (1.9, 27)
Activation tire position CONSULT-II
Front LH
“YET”
↓
“DONE” Front RH
Rear RH
Rear LH
Page 3341 of 3419

WT-16
TROUBLE DIAGNOSES
Revision: October 20052005 QX56
Transmitter Wake Up OperationEES001I8
NOTE:
This procedure must be done after replacement of a low tire pressure warning sensor or BCM. New
replacement transmitters are provided "asleep" and must first be "woken up" using Transmitter Acti-
vation Tool J-45295 before ID registration can be performed.
WITH TRANSMITTER ACTIVATION TOOL
1. With the transmitter activation tool (J-45295) pushed against the
front left transmitter, press the button for 5 seconds.
With ignition switch ON, as the hazard warning lamp flashes
per the following diagram, the respective transmitter then
must be woken up.
2. When the BCM finishes assigning each tire ID, the BCM flashes the hazard warning lamps and trailer
flasher lamps (if equipped) and sends flashing indicator status by CAN according to the following time
chart. Please see trailer flasher specification details of trailer flashing lamps since the BCM controls trailer
flasher lamps as brake lamps. Refer to LT- 1 2 3 , "
TRAILER TOW"
3. After completing wake up of all transmitters, make sure low tire pressure warning lamp goes out.Tool number — (J-45295)
LEIA0036E
LEIA0059E
Page 3342 of 3419
TROUBLE DIAGNOSES
WT-17
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: October 20052005 QX56
CONSULT-II Function (BCM)EES001Q2
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
BCM
diagnostic test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmit-
ted to the BCM for setting the status suitable for required opera-
tion, input/output signals are received from the BCM and received
data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TESTOperation of electrical loads can be checked by sending drive sig-
nal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTRThe result of transmit/receive diagnosis of CAN communication
can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
Page 3343 of 3419

WT-18
TROUBLE DIAGNOSES
Revision: October 20052005 QX56
Self-DiagnosisEES001I9
DESCRIPTION
During driving, the low tire pressure warning system receives the signal transmitted from the transmitter
installed in each wheel, and gives alarms when the tire pressure becomes low. The control unit (BCM) for this
system has pressure judgement and trouble diagnosis functions.
FUNCTION
When the low tire pressure warning system detects low inflation pressure or another unusual symptom, the
warning lamp in the combination meter comes on. To start the self-diagnostic results mode, ground the tire
pressure warning check terminal. The malfunction location is indicated by the warning lamp flashing and the
buzzer sounds.
CONSULT-II
CONSULT-II Application to Low Tire Pressure Warning System
× : Applicable
– : Not applicable
Self-Diagnostic Results Mode
NOTE:
Before performing the self-diagnosis, be sure to register the ID or the actual malfunction location may be different from that displayed on
CONSULT-II.ITEM SELF-DIAGNOSTIC RESULTS DATA MONITOR
Front - Left transmitter××
Front - Right transmitter××
Rear - Left transmitter××
Rear - Right transmitter××
Warning lamp —×
Vehicle speed××
Buzzer (in combination meter) —×
CAN Communication××
Diagnostic item Diagnostic item is detected when ···
FLAT - TIRE - FL
FLAT - TIRE - FR
FLAT - TIRE - RR
FLAT - TIRE - RLFront-left tire pressure drops to 193 kPa (2.0 kg/cm
2 , 28 psi) or less
Front-right tire pressure drops to 193 kPa (2.0 kg/cm2 , 28 psi) or less
Rear-right tire pressure drops to 193 kPa (2.0 kg/cm2 , 28 psi) or less
Rear-left tire pressure drops to 193 kPa (2.0 kg/cm2 , 28 psi) or less
[NO-DATA] - FL
[NO-DATA] - FR
[NO-DATA] - RR
[NO-DATA] - RLData from front-left transmitter cannot be received.
Data from front-right transmitter cannot be received.
Data from rear-right transmitter cannot be received.
Data from rear-left transmitter cannot be received.
[CHECKSUM- ERR] - FL
[CHECKSUM- ERR] - FR
[CHECKSUM- ERR] - RR
[CHECKSUM- ERR] - RLChecksum data from front-left transmitter is malfunctioning.
Checksum data from front-right transmitter is malfunctioning.
Checksum data from rear-right transmitter is malfunctioning.
Checksum data from rear-left transmitter is malfunctioning.
[PRESSDATA- ERR] - FL
[PRESSDATA- ERR] - FR
[PRESSDATA- ERR] - RR
[PRESSDATA- ERR] - RLAir pressure data from front-left transmitter is malfunctioning.
Air pressure data from front-right transmitter is malfunctioning.
Air pressure data from rear-right transmitter is malfunctioning.
Air pressure data from rear-left transmitter is malfunctioning.
[CODE- ERR] - FL
[CODE- ERR] - FR
[CODE- ERR] - RR
[CODE- ERR] - RLFunction code data from front-left transmitter is malfunctioning.
Function code data from front-right transmitter is malfunctioning.
Function code data from rear-right transmitter is malfunctioning.
Function code data from rear-left transmitter is malfunctioning.
[BATT - VOLT - LOW] - FL
[BATT - VOLT - LOW] - FR
[BATT - VOLT - LOW] - RR
[BATT - VOLT - LOW] - RLBattery voltage of front-left transmitter drops.
Battery voltage of front-right transmitter drops.
Battery voltage of rear-right transmitter drops.
Battery voltage of rear-left transmitter drops.
VHCL_SPEED_SIG_ERR Vehicle speed signal is in error.
Page 3344 of 3419
TROUBLE DIAGNOSES
WT-19
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: October 20052005 QX56
Data Monitor Mode
NOTE:
Before performing the self-diagnosis, be sure to register the ID, or the actual malfunction location may be different from that displayed on
CONSULT-II.MONITOR CONDITION SPECIFICATION
VHCL SPEED Drive vehicle. Vehicle speed (km/h or MPH)
AIR PRESS FL
AIR PRESS FR
AIR PRESS RR
AIR PRESS RL
Drive vehicle for a few minutes.
Tire pressure (kPa or psi) or
Ignition switch ON and activation tool
is transmitting activation signals.
ID REGST FL1
ID REGST FR1
ID REGST RR1
ID REGST RL1
Ignition switch ONRegistration ID: DONE
No registration ID: YET
WARN ING LAM PLow tire pressure warning lamp on: ON
Low tire pressure warning lamp off: OFF
BUZZERBuzzer in combination meter on: ON
Buzzer in combination meter off : OFF
