INFINITI QX4 2005 Factory Service Manual LT-90 TURN SIGNAL AND HAZARD WARNING LAMPS Revision: October 20052005 QX56 Turn Signal Lamp Does Not OperateEKS00B9X 1. CHECK COMBINATION SWITCH INPUT SIGNAL With CONSULT-II Select "BCM" on CONSULT-I

Page 2538 of 3419

INFINITI QX4 2005 Factory Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS LT-91 C D E F G H I J L MA B LT Revision: October 20052005 QX56 4. CHECK GROUND 1. Check continuity between front turn/fog lamp LH harness con- nector E101 termina

Page 2539 of 3419

INFINITI QX4 2005 Factory Service Manual LT-92 TURN SIGNAL AND HAZARD WARNING LAMPS Revision: October 20052005 QX56 3. CHECK GROUND CIRCUIT Check continuity between rear turn signal lamp harness connector B35 LH and B105 RH terminal 3 (B) an

Page 2540 of 3419

INFINITI QX4 2005 Factory Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS LT-93 C D E F G H I J L MA B LT Revision: October 20052005 QX56 3. CHECK HAZARD SWITCH CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect BCM connector and hazard

Page 2541 of 3419

INFINITI QX4 2005 Factory Service Manual LT-94 TURN SIGNAL AND HAZARD WARNING LAMPS Revision: October 20052005 QX56 Bulb Replacement (Front Turn Signal Lamp)EKS00BA1 1. Remove turn/fog lamp assembly. Refer to LT- 7 9 , "Removal and Installa

Page 2542 of 3419

INFINITI QX4 2005 Factory Service Manual LIGHTING AND TURN SIGNAL SWITCH LT-95 C D E F G H I J L MA B LT Revision: October 20052005 QX56 LIGHTING AND TURN SIGNAL SWITCHPFP:25540 Removal and InstallationEKS00BA5 REMOVAL 1. Remove steering col

Page 2543 of 3419

INFINITI QX4 2005 Factory Service Manual LT-96 HAZARD SWITCH Revision: October 20052005 QX56 HAZARD SWITCHPFP:25290 Removal and InstallationEKS00BA6 REMOVAL 1. Remove cluster lid C. Refer to IP-12, "Cluster Lid C" . 2. Remove screws and remo

Page 2544 of 3419

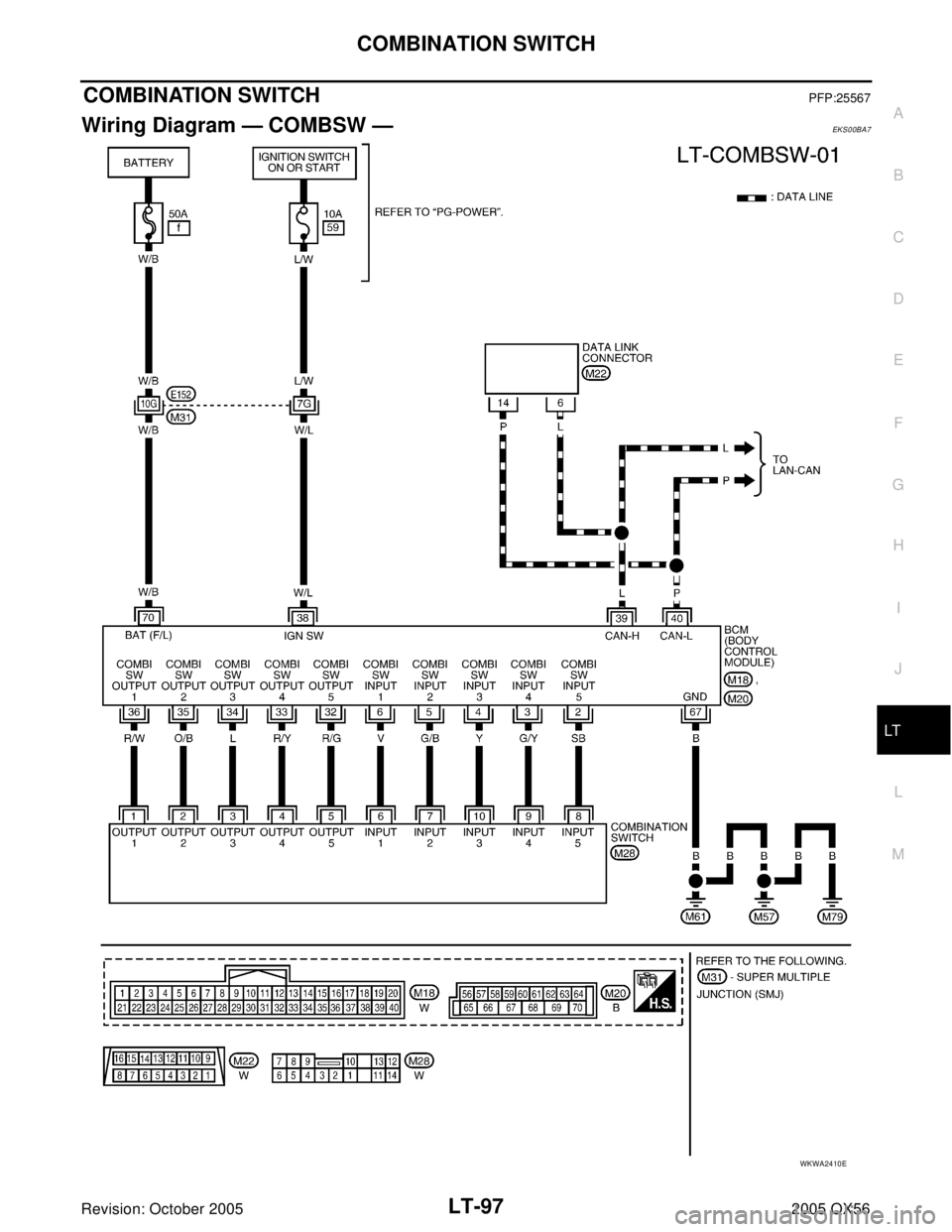

INFINITI QX4 2005 Factory Service Manual COMBINATION SWITCH LT-97 C D E F G H I J L MA B LT Revision: October 20052005 QX56 COMBINATION SWITCHPFP:25567 Wiring Diagram — COMBSW —EKS00BA7 WKWA2410E
