Page 1513 of 3419

INFINITI QX4 2005 Factory Service Manual EC-322Revision: October 2005 DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE 2005 QX56 Diagnostic ProcedureUBS00H4W 1. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER

Page 1514 of 3419

INFINITI QX4 2005 Factory Service Manual DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE EC-323 C D E F G H I J K L MA EC Revision: October 20052005 QX56 4. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATIO

Page 1515 of 3419

INFINITI QX4 2005 Factory Service Manual EC-324Revision: October 2005 DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE 2005 QX56 Removal and InstallationUBS00H4Y EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE Refer to E

Page 1516 of 3419

INFINITI QX4 2005 Factory Service Manual DTC P0447 EVAP CANISTER VENT CONTROL VALVE EC-325 C D E F G H I J K L MA EC Revision: October 20052005 QX56 DTC P0447 EVAP CANISTER VENT CONTROL VALVEPFP:14935 Component DescriptionUBS00H4Z The EVAP c

Page 1517 of 3419

INFINITI QX4 2005 Factory Service Manual EC-326Revision: October 2005 DTC P0447 EVAP CANISTER VENT CONTROL VALVE 2005 QX56 DTC Confirmation ProcedureUBS00H52 NOTE: If DTC Confirmation Procedure has been previously conducted, always turn igni

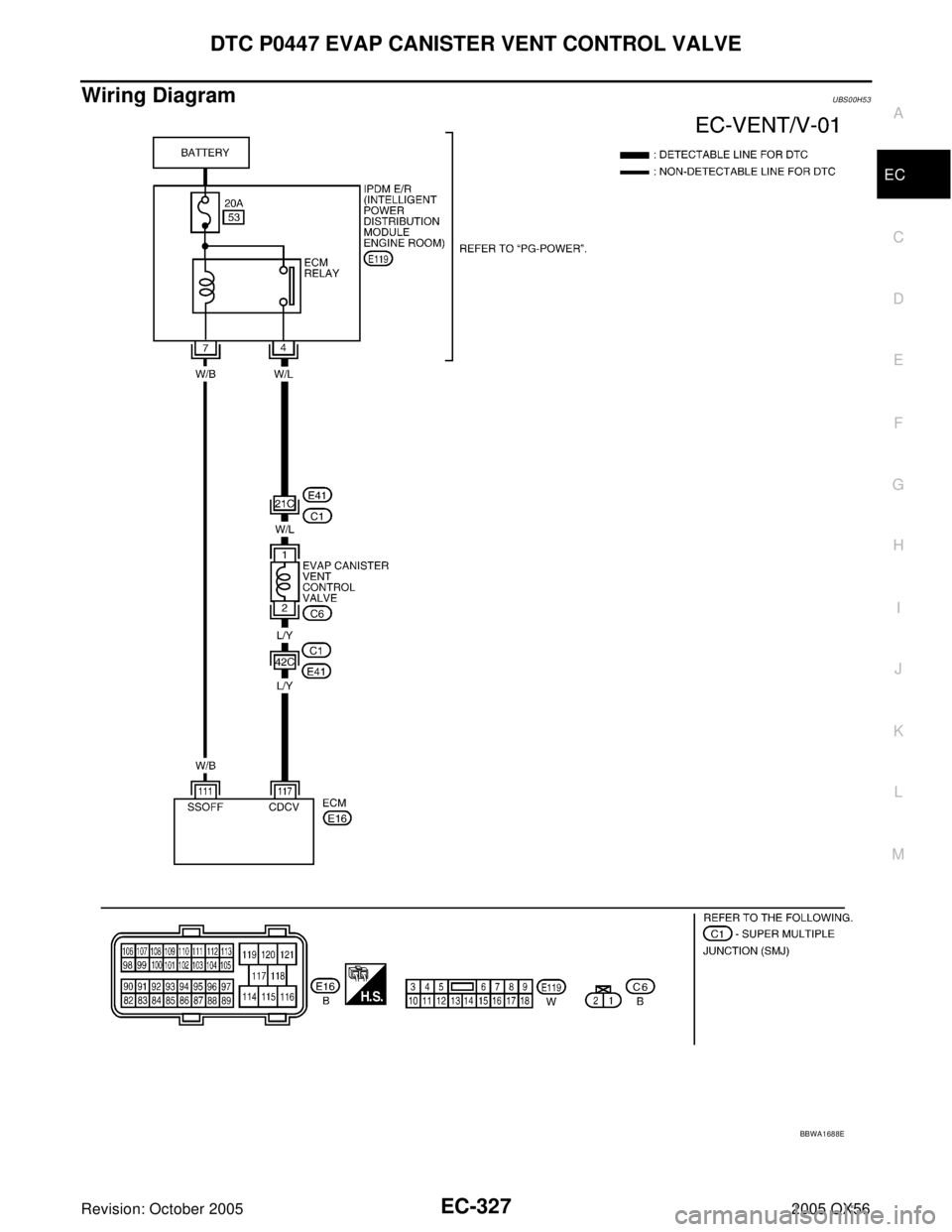

Page 1518 of 3419

INFINITI QX4 2005 Factory Service Manual DTC P0447 EVAP CANISTER VENT CONTROL VALVE EC-327 C D E F G H I J K L MA EC Revision: October 20052005 QX56 Wiring DiagramUBS00H53 BBWA1688E

Page 1519 of 3419

INFINITI QX4 2005 Factory Service Manual EC-328Revision: October 2005 DTC P0447 EVAP CANISTER VENT CONTROL VALVE 2005 QX56 Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM gro

Page 1520 of 3419

INFINITI QX4 2005 Factory Service Manual DTC P0447 EVAP CANISTER VENT CONTROL VALVE EC-329 C D E F G H I J K L MA EC Revision: October 20052005 QX56 3. CHECK EVAP CANISTER VENT CONTROL VALVE POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF.
