2005 INFINITI QX4 Factory Service Manual

USB parking sensors air filter adblue reset seat adjustment snow chains

Load previous 8 pages

Page 1369 of 3419

INFINITI QX4 2005 Factory Service Manual EC-178Revision: October 2005
DTC P0101 MAF SENSOR
2005 QX56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when mea

Page 1370 of 3419

INFINITI QX4 2005 Factory Service Manual DTC P0101 MAF SENSOR
EC-179
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56

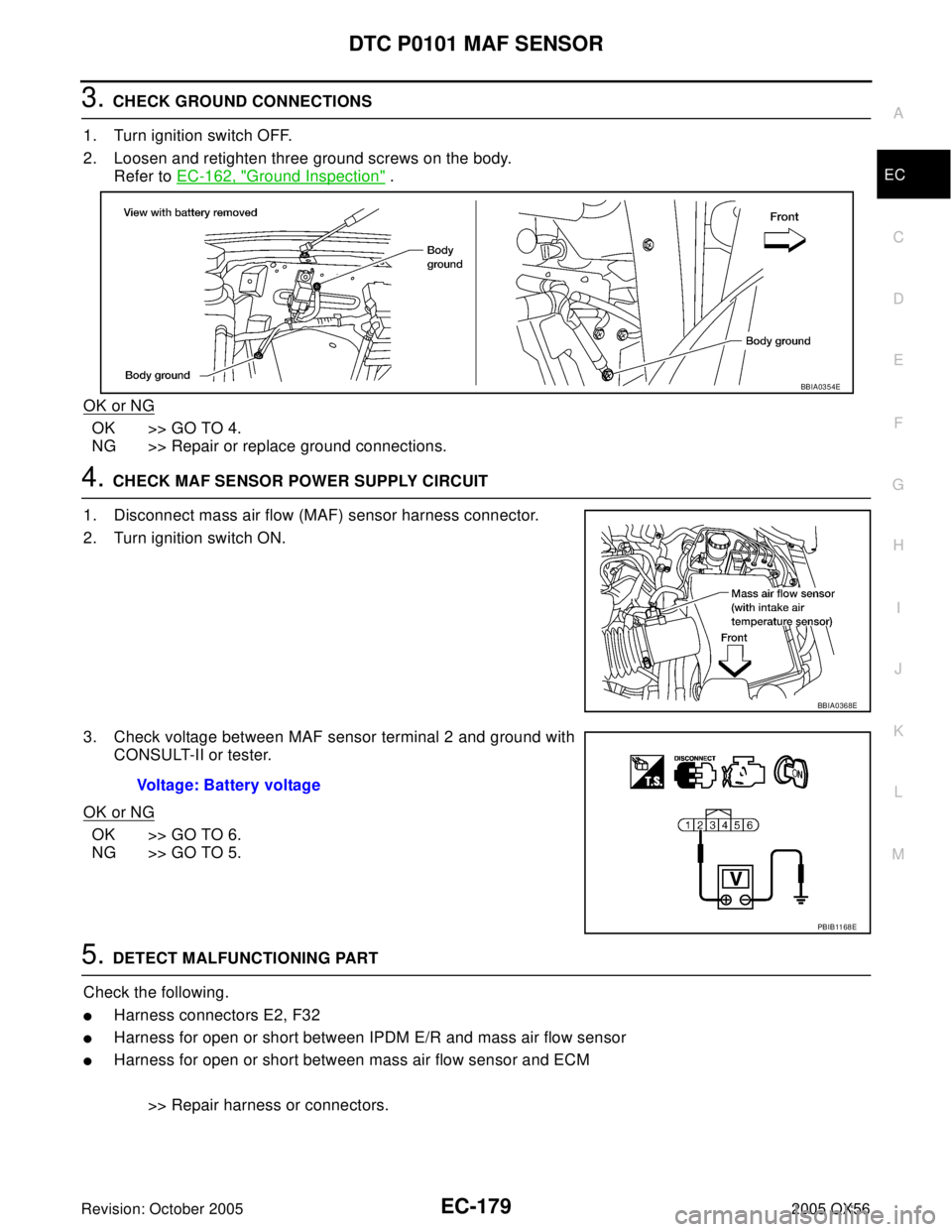

3. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.

Page 1371 of 3419

INFINITI QX4 2005 Factory Service Manual EC-180Revision: October 2005
DTC P0101 MAF SENSOR
2005 QX56
6. CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness con

Page 1372 of 3419

INFINITI QX4 2005 Factory Service Manual DTC P0101 MAF SENSOR
EC-181
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
Component InspectionUBS00H12
MASS AIR FLOW SENSOR
With CONSULT-II
1. Reconnect all harness connectors disconnecte

DTC P0101 MAF SENSOR
EC-181
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
Component InspectionUBS00H12
MASS AIR FLOW SENSOR
With CONSULT-II
1. Reconnect all harness connectors disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Connect CONSULT-II and select “DATA MONITOR” mode.
4. Select “MAS A/F SE-B1” and check indication under the follow-
ing conditions.
*: Check for linear voltage rise in response to engine being increased to about
4,000 rpm.
5. If the voltage is out of specification, proceed the following.
a. Check for the cause of uneven air flow through mass air flow sensor. Refer to following.
Crushed air ducts
Malfunctioning seal of air cleaner element
Uneven dirt of air cleaner element
Improper specification of intake air system parts
b. If NG, repair or replace malfunctioning part and perform step 2 to 4 again.
If OK, go to next step.
6. Turn ignition switch OFF.
7. Disconnect mass air flow sensor harness connector and reconnect it again.
8. Perform step 2 to 4 again.
9. If NG, clean or replace mass air flow sensor.
Without CONSULT-II
1. Reconnect all harness connectors disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminal 51 (Mass air flow sensor
signal) and ground.
*: Check for linear voltage rise in response to engine being increased to about
4,000 rpm.
4. If the voltage is out of specification, proceed the following.
a. Check for the cause of uneven air flow through mass air flow sensor. Refer to following.
Crushed air ducts
Malfunctioning seal of air cleaner element
Uneven dirt of air cleaner element
Improper specification of intake air system parts
Condition MAS A/F SE-B1 (V)
Ignition switch ON (Engine stopped.) Approx. 0.4
Idle (Engine is warmed-up to normal
operating temperature.)1.0 - 1.3
2,500 rpm (Engine is warmed-up to
normal operating temperature.)1.7 - 2.1
Idle to about 4,000 rpm* 1.0 - 1.3 to Approx. 2.4
PBIB2371E
Condition MAS A/F SE-B1 (V)
Ignition switch ON (Engine stopped.) Approx. 0.4
Idle (Engine is warmed-up to normal
operating temperature.)1.0 - 1.3
2,500 rpm (Engine is warmed-up to
normal operating temperature.)1.7 - 2.1
Idle to about 4,000 rpm* 1.0 - 1.3 to Approx. 2.4
PBIB11 06 E

Page 1373 of 3419

INFINITI QX4 2005 Factory Service Manual EC-182Revision: October 2005
DTC P0101 MAF SENSOR
2005 QX56
b. If NG, repair or replace malfunctioning part and perform step 2 to 3 again.
If OK, go to next step.
5. Turn ignition switch OFF.
6. Disco

Page 1374 of 3419

INFINITI QX4 2005 Factory Service Manual DTC P0102, P0103 MAF SENSOR
EC-183
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
DTC P0102, P0103 MAF SENSORPFP:22680
Component DescriptionUBS00H14
The mass air flow sensor is placed in th

DTC P0102, P0103 MAF SENSOR
EC-183
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
DTC P0102, P0103 MAF SENSORPFP:22680
Component DescriptionUBS00H14
The mass air flow sensor is placed in the stream of intake air. It mea-
sures the intake flow rate by measuring a part of the entire intake
flow. The mass air flow sensor controls the temperature of the hot
wire to a certain amount. The heat generated by the hot wire is
reduced as the intake air flows around it. The more air, the greater
the heat loss.
Therefore, the electric current supplied to the hot wire is changed to
maintain the temperature of the hot wire as air flow increases. The
ECM detects the air flow by means of this current change.
CONSULT-II Reference Value in Data Monitor ModeUBS00H15
Specification data are reference values.
On Board Diagnosis LogicUBS00H16
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
BBIA0355E
MONITOR ITEM CONDITION SPECIFICATION
MAS A/F SE-B1 See EC-146, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
CAL/LD VALUE
Engine: After warming up
Air conditioner switch: OFF
Selector lever: P or N
No loadIdle 14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW
Engine: After warming up
Air conditioner switch: OFF
Selector lever: P or N
No loadIdle 3.0 - 9.0 g·m/s
2,500 rpm 9.0 - 28.0 g·m/s
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0102
0102Mass air flow sensor circuit
low inputAn excessively low voltage from the sensor is
sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted.)
Intake air leaks
Mass air flow sensor
P0103
0103Mass air flow sensor circuit
high inputAn excessively high voltage from the sensor is
sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted.)
Mass air flow sensor
Detected items Engine operating condition in fail-safe mode
Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.

Page 1375 of 3419

INFINITI QX4 2005 Factory Service Manual EC-184Revision: October 2005
DTC P0102, P0103 MAF SENSOR
2005 QX56
DTC Confirmation ProcedureUBS00H17
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF

Page 1376 of 3419

INFINITI QX4 2005 Factory Service Manual DTC P0102, P0103 MAF SENSOR
EC-185
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56

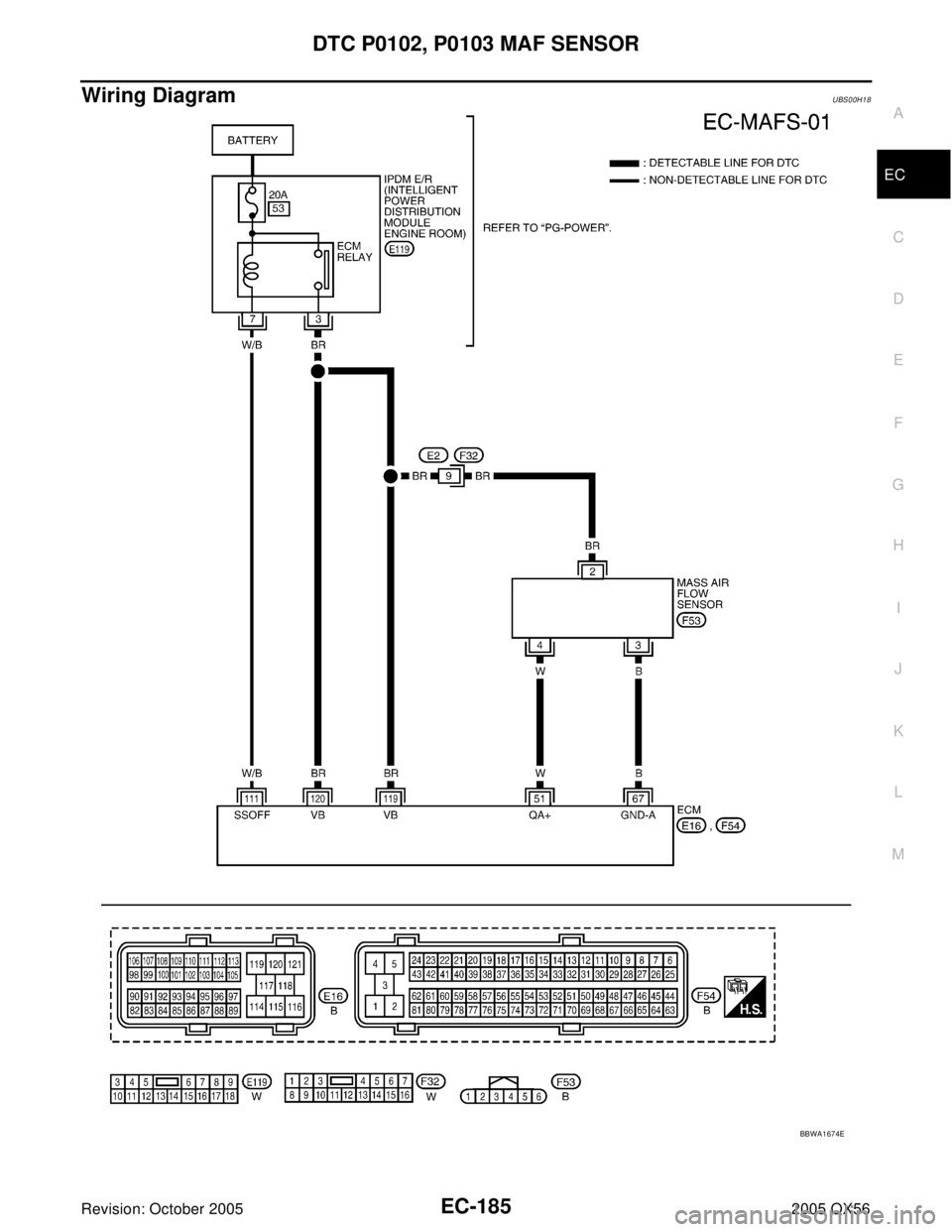

Wiring DiagramUBS00H18
BBWA1674E
