Page 2705 of 3419

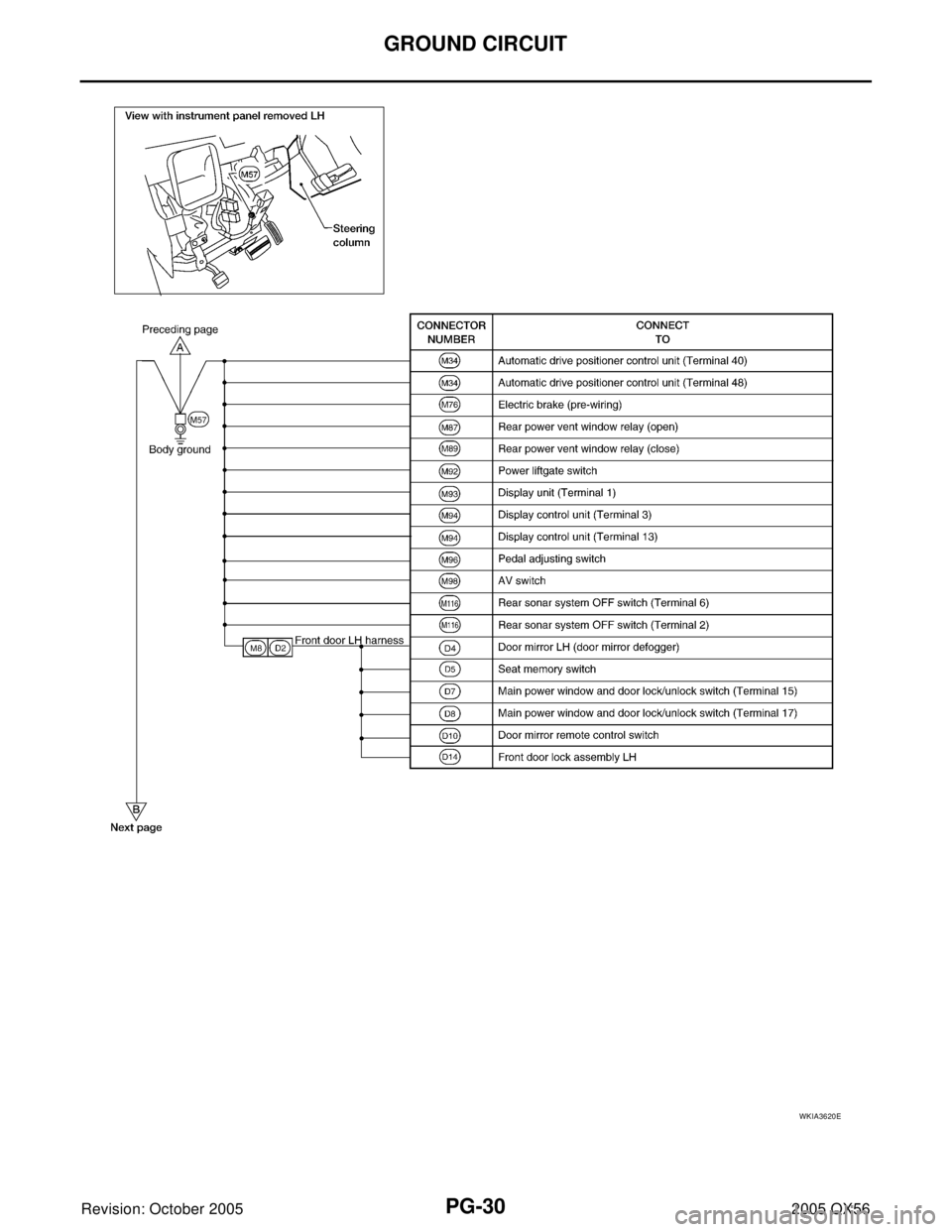

INFINITI QX4 2005 Factory Service Manual PG-30 GROUND CIRCUIT Revision: October 20052005 QX56 WKIA3620E

Page 2706 of 3419

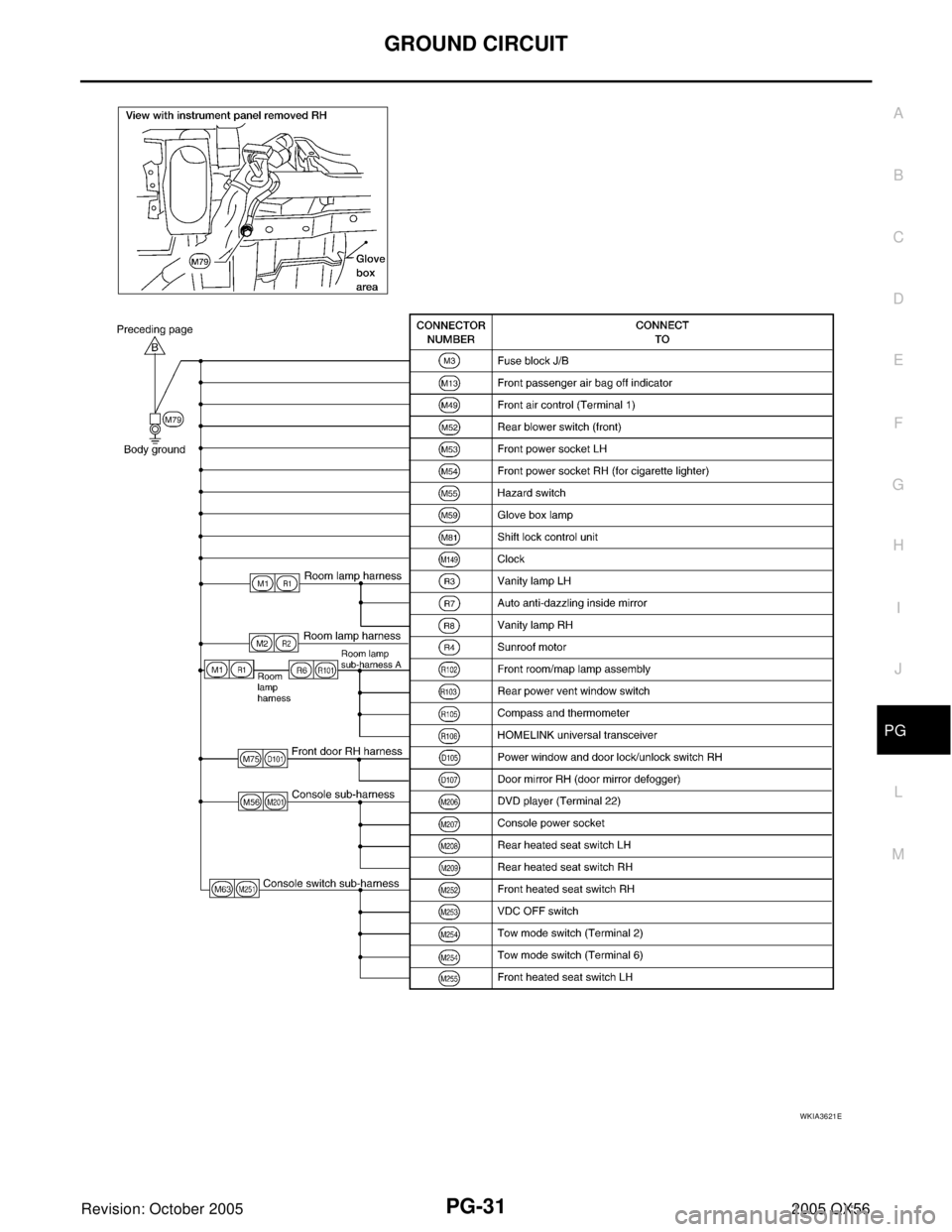

INFINITI QX4 2005 Factory Service Manual GROUND CIRCUIT PG-31 C D E F G H I J L MA B PG Revision: October 20052005 QX56 WKIA3621E

Page 2707 of 3419

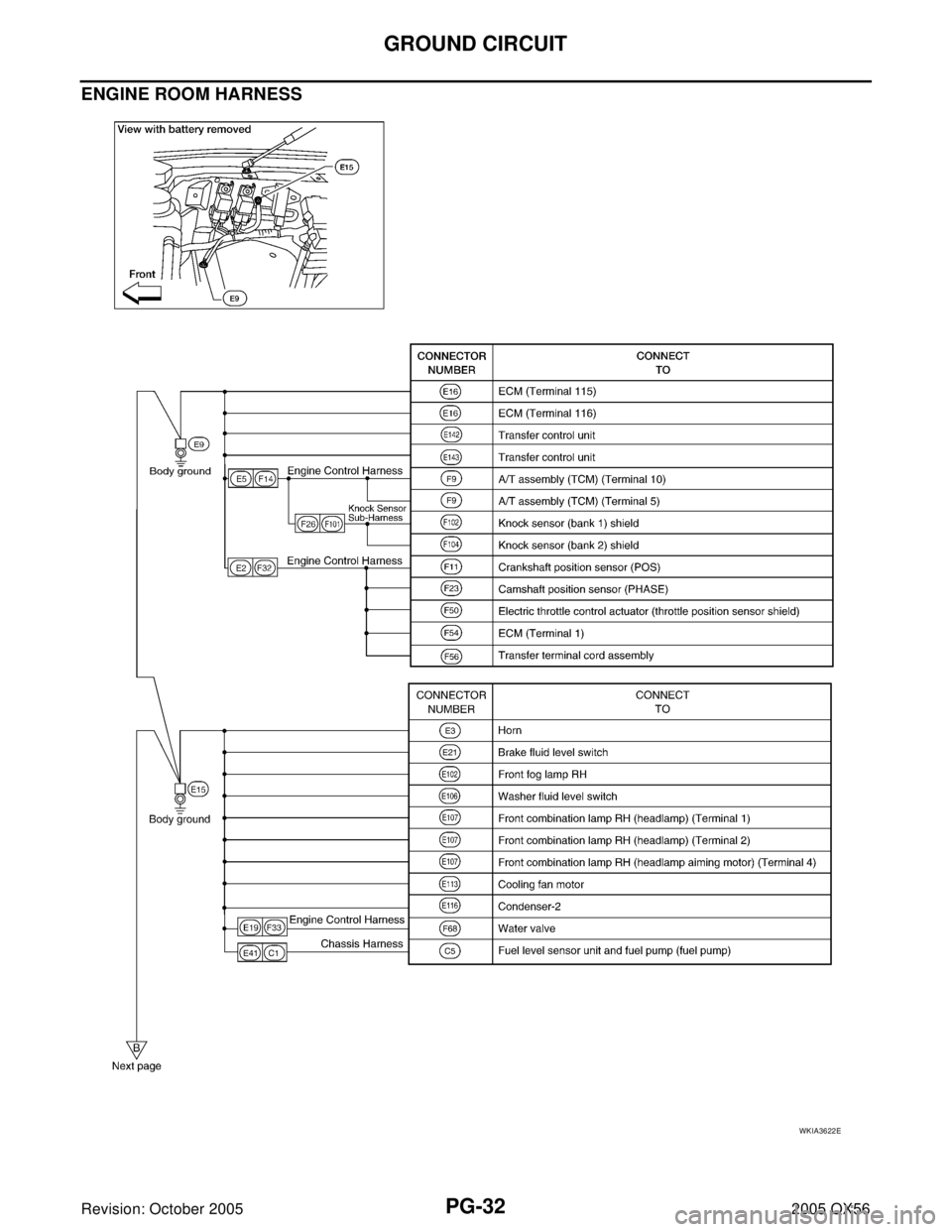

INFINITI QX4 2005 Factory Service Manual PG-32 GROUND CIRCUIT Revision: October 20052005 QX56 ENGINE ROOM HARNESS WKIA3622E

Page 2708 of 3419

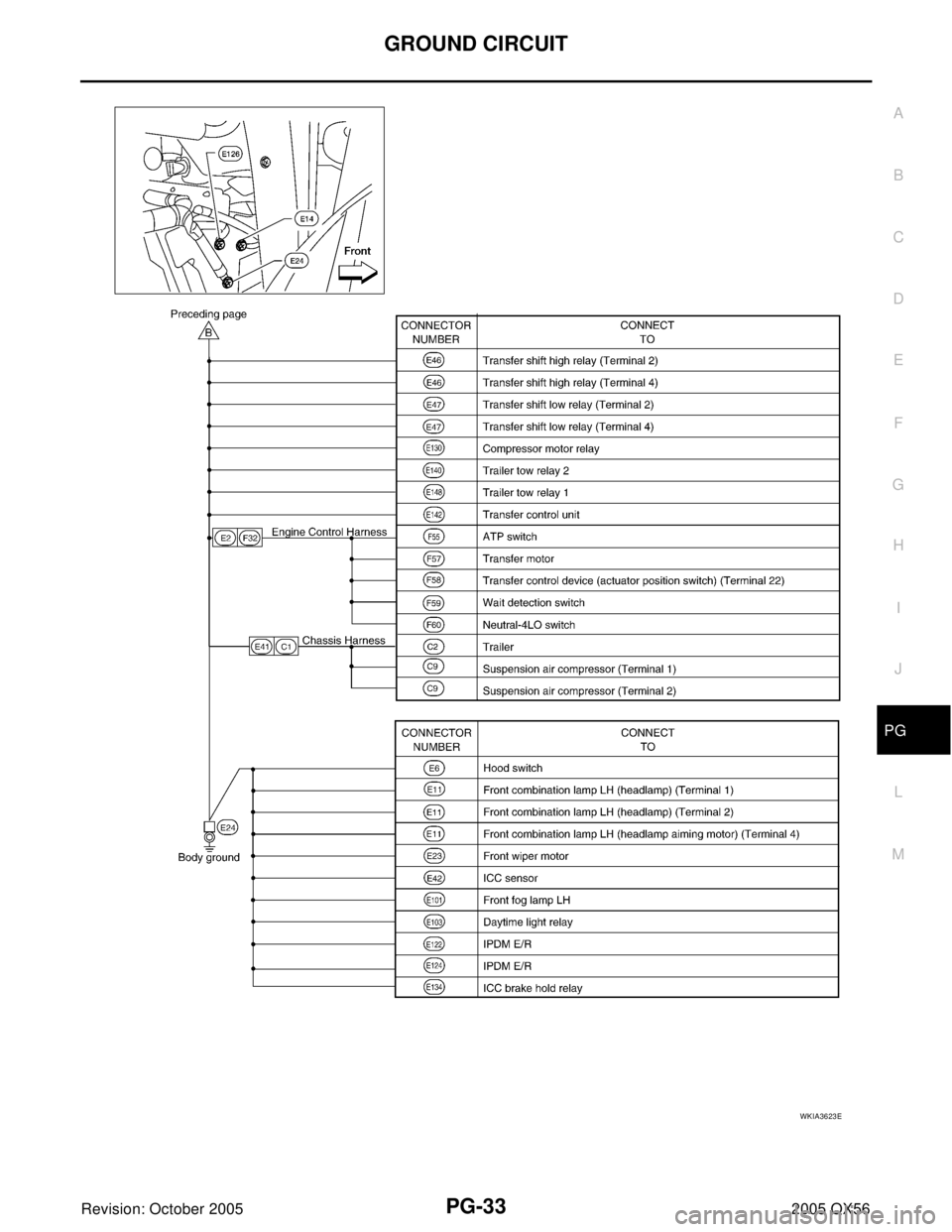

INFINITI QX4 2005 Factory Service Manual GROUND CIRCUIT PG-33 C D E F G H I J L MA B PG Revision: October 20052005 QX56 WKIA3623E

Page 2709 of 3419

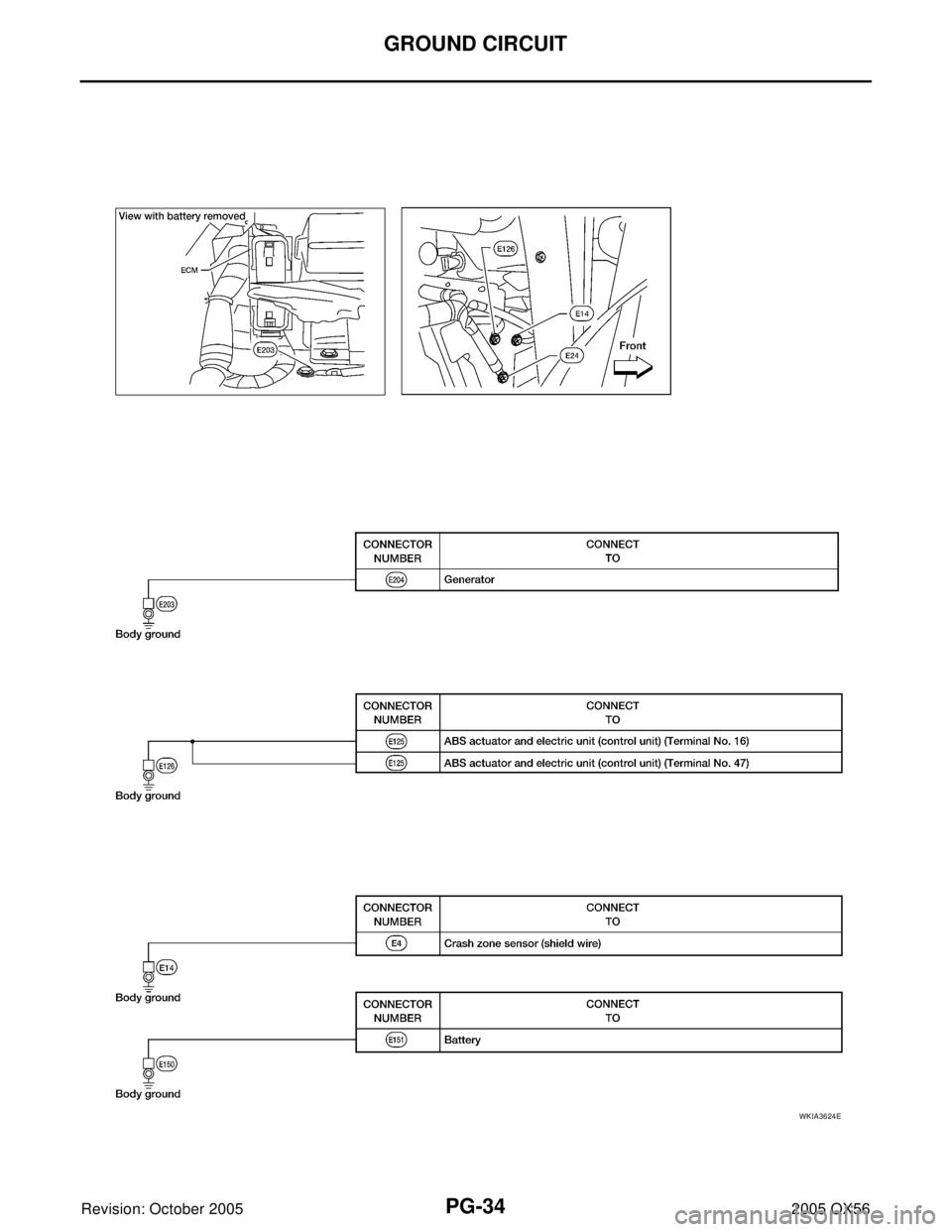

INFINITI QX4 2005 Factory Service Manual PG-34 GROUND CIRCUIT Revision: October 20052005 QX56 WKIA3624E

Page 2710 of 3419

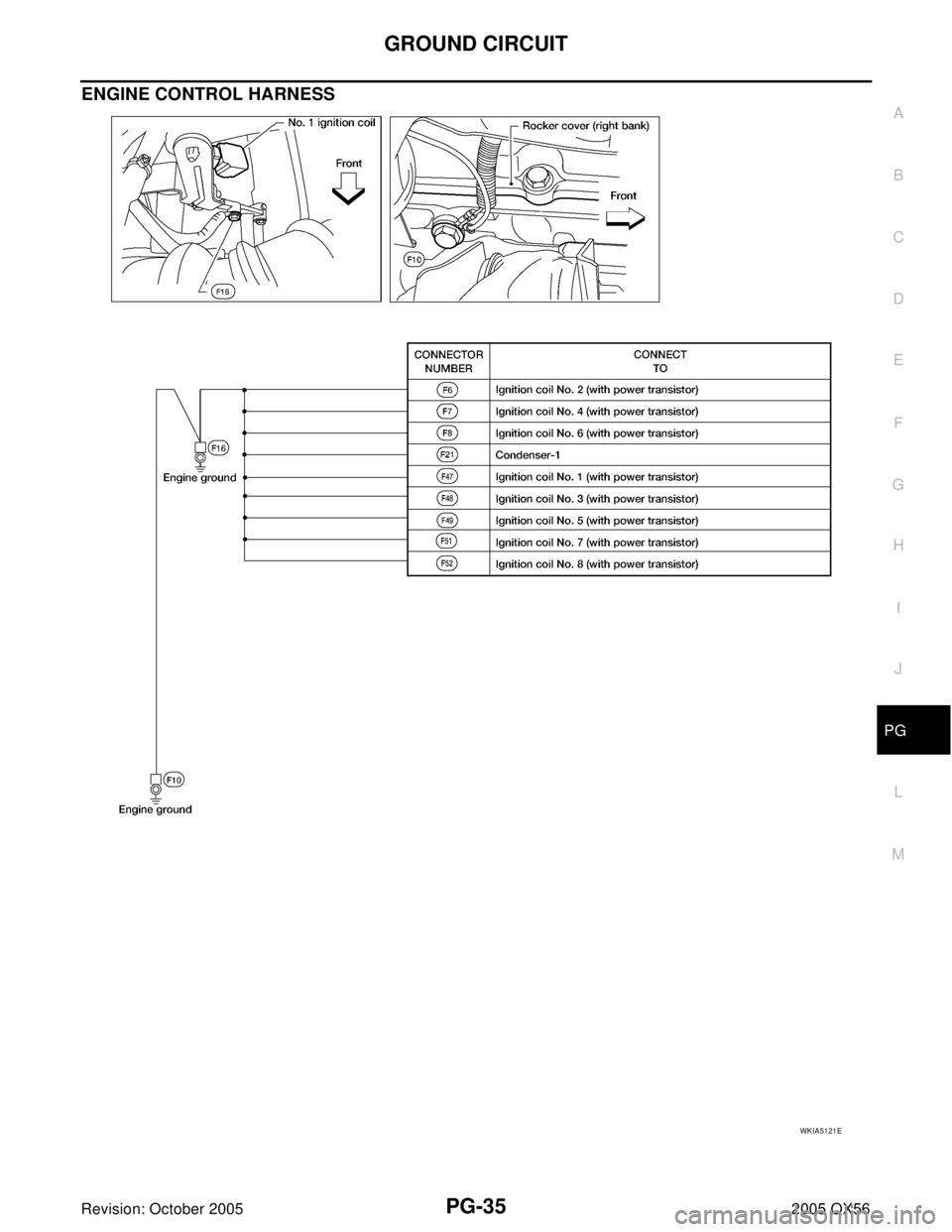

INFINITI QX4 2005 Factory Service Manual GROUND CIRCUIT PG-35 C D E F G H I J L MA B PG Revision: October 20052005 QX56 ENGINE CONTROL HARNESS WKIA5121E

Page 2711 of 3419

INFINITI QX4 2005 Factory Service Manual PG-36 GROUND CIRCUIT Revision: October 20052005 QX56 BODY HARNESS WKIA3625E

Page 2712 of 3419

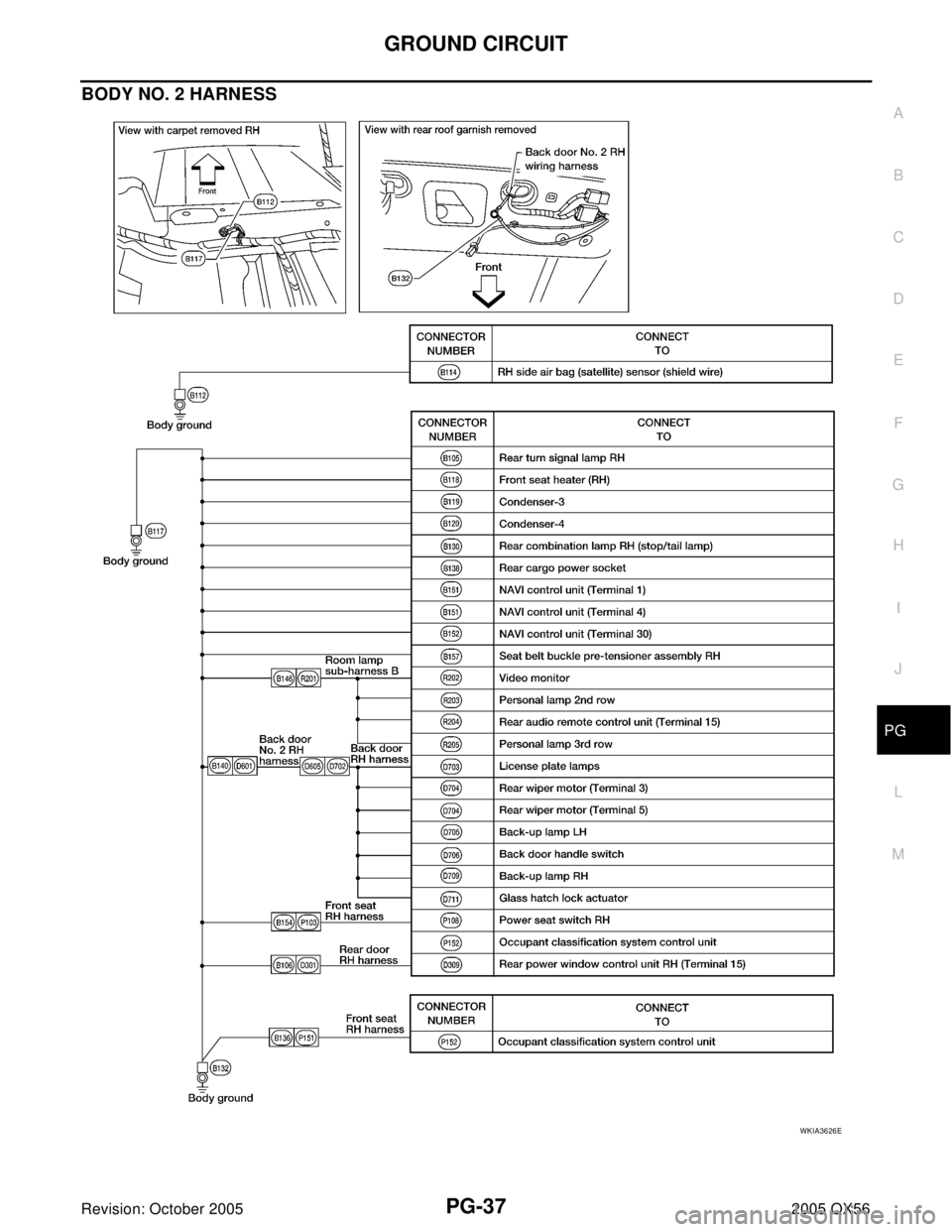

INFINITI QX4 2005 Factory Service Manual GROUND CIRCUIT PG-37 C D E F G H I J L MA B PG Revision: October 20052005 QX56 BODY NO. 2 HARNESS WKIA3626E
