Page 2673 of 3419

INFINITI QX4 2005 Factory Service Manual PB-8
PARKING BRAKE SHOE
Revision: October 20052005 QX56
CAUTION:
To prevent lining from getting too hot, allow a cool off period of approximately 5 minutes after
every break-in operation.
Do not per

Page 2674 of 3419

INFINITI QX4 2005 Factory Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
PB-9
C
D
E
G
H
I
J
K
L
MA
B
PB
Revision: October 20052005 QX56
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Parking Drum Brake EFS004X1
Unit: mm (in)
Parking Br

Page 2675 of 3419

INFINITI QX4 2005 Factory Service Manual PB-10
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: October 20052005 QX56

Page 2676 of 3419

INFINITI QX4 2005 Factory Service Manual PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG
Revision: October 20052005 QX56 PRECAUTIONS ..................................................

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG
Revision: October 20052005 QX56 PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Wiring Diagrams and Trouble Diagnosis .................. 3
POWER SUPPLY ROUTING CIRCUIT ...................... 4
Schematic ................................................................ 4
Wiring Diagram — POWER — ................................. 6
BATTERY POWER SUPPLY — IGNITION SW.
IN ANY POSITION ................................................ 6
ACCESSORY POWER SUPPLY — IGNITION
SW. IN ACC OR ON .............................................11
IGNITION POWER SUPPLY — IGNITION SW.
IN ON .................................................................. 12
IGNITION POWER SUPPLY — IGNITION SW.
IN ON AND/OR START ....................................... 13
IPDM E/R (INTELLIGENT POWER DISTRIBUTION
MODULE ENGINE ROOM) ...................................... 17
System Description ................................................ 17
SYSTEMS CONTROLLED BY IPDM E/R ........... 17
CAN COMMUNICATION LINE CONTROL ......... 17
IPDM E/R STATUS CONTROL ........................... 18
CAN Communication System Description .............. 18
Function of Detecting Ignition Relay Malfunction ... 18
CONSULT-II Function IPDM E/R ............................ 19
CONSULT-II BASIC OPERATION ...................... 19
SELF-DIAGNOSTIC RESULTS .......................... 20
DATA MONITOR ................................................. 20
ACTIVE TEST ..................................................... 21
Auto Active Test ..................................................... 22
DESCRIPTION .................................................... 22
OPERATION PROCEDURE ............................... 22
INSPECTION IN AUTO ACTIVE TEST MODE ... 22
Schematic .............................................................. 24
IPDM E/R Terminal Arrangement ........................... 25
IPDM E/R Power/Ground Circuit Inspection .......... 26
Inspection with CONSULT-II (Self-Diagnosis) ........ 27
Removal and Installation of IPDM E/R ................... 28
REMOVAL ........................................................... 28
INSTALLATION ................................................... 28GROUND CIRCUIT ................................................... 29
Ground Distribution ................................................. 29
MAIN HARNESS ................................................. 29
ENGINE ROOM HARNESS ................................ 32
ENGINE CONTROL HARNESS .......................... 35
BODY HARNESS ................................................ 36
BODY NO. 2 HARNESS ..................................... 37
BACK DOOR NO. 2 RH HARNESS .................... 38
HARNESS ................................................................. 39
Harness Layout ...................................................... 39
HOW TO READ HARNESS LAYOUT ................. 39
OUTLINE ............................................................. 40
MAIN HARNESS ................................................. 41
ENGINE ROOM HARNESS (LH VIEW) .............. 43
ENGINE ROOM HARNESS (RH VIEW) ............. 46
ENGINE CONTROL HARNESS .......................... 48
CHASSIS HARNESS .......................................... 50
BODY HARNESS ................................................ 52
BODY NO. 2 HARNESS ..................................... 54
ROOM LAMP HARNESS .................................... 56
FRONT DOOR LH HARNESS ............................ 57
FRONT DOOR RH HARNESS ............................ 57
REAR DOOR LH HARNESS ............................... 58
REAR DOOR RH HARNESS .............................. 58
BACK DOOR HARNESS .................................... 59
Wiring Diagram Codes (Cell Codes) ...................... 60
ELECTRICAL UNITS LOCATION ............................ 63
Electrical Units Location ......................................... 63
ENGINE COMPARTMENT .................................. 63
PASSENGER COMPARTMENT ......................... 64
Fuse ........................................................................ 66
Fusible Link ............................................................ 66
Circuit Breaker (Built Into BCM) ............................. 66
HARNESS CONNECTOR ......................................... 67
Description .............................................................. 67
HARNESS CONNECTOR (TAB-LOCKING
TYPE) .................................................................. 67
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) .................................................................. 68
HARNESS CONNECTOR (LEVER LOCKING

Page 2677 of 3419

INFINITI QX4 2005 Factory Service Manual PG-2Revision: October 20052005 QX56 TYPE) .................................................................. 69
HARNESS CONNECTOR (DIRECT-CONNECT
SRS COMPONENT TYPE) ................................

Page 2678 of 3419

INFINITI QX4 2005 Factory Service Manual PRECAUTIONS
PG-3
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: October 20052005 QX56
PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EK

PRECAUTIONS
PG-3
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: October 20052005 QX56
PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS00BMY
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WA RN ING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Wiring Diagrams and Trouble DiagnosisEKS00BMZ
When you read wiring diagrams, refer to the following:
Refer to GI-15, "How to Read Wiring Diagrams" in GI section.
Refer to PG-4, "POWER SUPPLY ROUTING CIRCUIT" for power distribution.
When you perform trouble diagnosis, refer to the following:
Refer to GI-11, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES" in GI section.
Refer to GI-27, "How to Perform Efficient Diagnosis for an Electrical Incident" in GI section.

Page 2679 of 3419

INFINITI QX4 2005 Factory Service Manual PG-4
POWER SUPPLY ROUTING CIRCUIT
Revision: October 20052005 QX56
POWER SUPPLY ROUTING CIRCUITPFP:24110

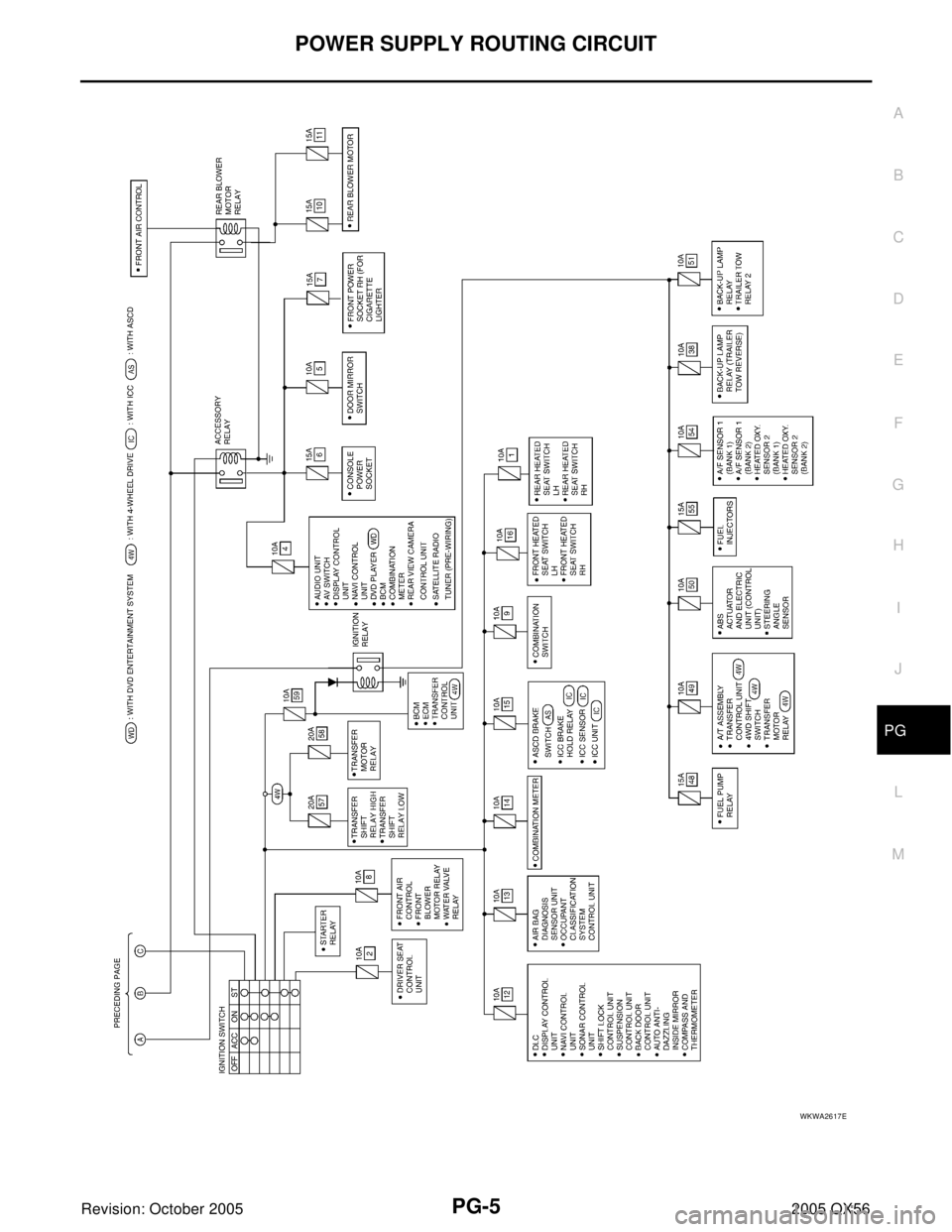

SchematicEKS00BN0
For detailed ground distribution, refer to PG-29, "Ground Distribution" .
WKWA

Page 2680 of 3419

INFINITI QX4 2005 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT
PG-5
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: October 20052005 QX56
WKWA2617E
