SUNROOF
Revision: October 20052005 QX56
CONSULT-II Function (BCM)EIS004VW
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.
2. Touch "START (NISSAN BASED VHCL)".
3. Touch "BCM".
If "BCM" is not indicated, go to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
BCM diagnostic
test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
BCIA0030E
Page 2834 of 3419

SUNROOF
RF-17
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: October 20052005 QX56
4. Touch "RETAINED PWR".
5. Select diagnosis mode. "DATA MONITOR", "ACTIVE TEST" and
"WORK SUPPORT" are available.
Work Support EIS004VZ
Active TestEIS004VY
Data MonitorEIS004VX
Trouble Diagnosis Chart by SymptomEIS004W0
LIIA0163E
BCIA0031E
Work item Description
RETAINED PWR SETRAP signal’s power supply period can be changed by mode setting. Selects RAP sig-
nal’s power supply period between two steps.
MODE 1 (45 sec.) / MODE 2 (OFF) / MODE 3 (2 min.)
Test item Description
RETAINED PWRThis test is able to supply RAP signal (power) from BCM to power window system,
power sunroof system. Those systems can be operated when turning on "RETAINED
PWR" on CONSULT-II screen even if the ignition switch is turned OFF.
NOTE:
During this test, CONSULT-II can be operated with ignition switch in "OFF"
position. "RETAINED PWR" should be turned "ON" or "OFF" on CONSULT-II
screen when ignition switch ON. Then turn ignition switch OFF for checking
retained power operation. CONSULT-II might be stuck if "RETAINED PWR" is
turned "ON" or "OFF" on CONSULT-II screen when ignition switch is OFF.
Monitored item Description
IGN ON SW Indicates [ON/OFF] condition of ignition switch.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch driver side.
DOOR SW-AS Indicates [ON/OFF] condition of front door switch passenger side.
Symptom Diagnostic procedure and repair order Refer to page
Sunroof does not operate.1. Sunroof motor assembly power supply and ground
circuit checkRF-20
2. Sunroof switch system checkRF-19
3. BCM power supply and ground circuit checkRF-18
4. Replace sunroof motor assemblyRF-27
Page 2835 of 3419

RF-18
SUNROOF
Revision: October 20052005 QX56
BCM Power Supply and Ground Circuit CheckEIS004W1
1. CHECK FUSE
Check the following BCM fuse and fusible link.
NOTE:
Refer to RF-10, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of blown fuse before installing new fuse. Refer to PG-
4, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connectors.
3. Check voltage between BCM connectors M18 and M20 termi-
nals 38, 70 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK GROUND CIRCUIT
Check continuity between BCM connector M20 terminal 67 and
ground.
OK or NG
OK >> Power supply and ground circuit is OK.
NG >> Repair or replace harness.
Retained power operation does not operate properly.1. Check the retained power operation mode settingRF-112. BCM power supply and ground circuit checkRF-18
3. Door switch checkRF-21
4. Replace sunroof motor assemblyRF-27
Motor does not stop at the sunroof fully-open or fully-
closed position.1. Initialization procedure checkRF-11
2. Replace sunroof motor assemblyRF-27
Sunroof does not do the interruption detection. 1. Replace sunroof motor assemblyRF-27
Symptom Diagnostic procedure and repair order Refer to page
Component Parts Terminal No. (SIGNAL) Ampere No. Location
BCM38 (IGN power supply) 10A 59 Fuse and relay box
70 (BAT power supply) 50A f Fuse and fusible link box
ConnectorTerminals
(Wire color)
ConditionVo l ta g e
(Approx.)
(+) (–)
M18 38 (W/L)
GroundIgnition switch ON
Battery voltage
M20 70 (W/B) Igniting switch OFF
WIIA0229E
Connector Terminals (Wire color) Continuity
M20 67 (B) Ground YES
LIIA0915E
Page 2836 of 3419

SUNROOF
RF-19
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: October 20052005 QX56
Sunroof Switch System CheckEIS004W2
1. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect sunroof motor assembly connector and sunroof switch connector.
3. Check continuity between sunroof motor assembly connector R4 terminals 3, 4, 8, 9 and 10 and sunroof
switch connector R104 terminals 1, 2, 3, 4 and 6.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness between sunroof motor
assembly and sunroof switch.
2. CHECK SUNROOF SWITCH
Operate sunroof switch, and check continuity of the sunroof switch
as follows.
OK or NG
OK >> Sunroof switch and harness are OK. Refer to RF-17, "Trouble Diagnosis Chart by Symptom" .
NG >> Replace sunroof switch.3 (P/W) - 1 (P/W) : Continuity should exist.
4 (O) - 4 (O) : Continuity should exist.
8 (Y) - 2 (Y) : Continuity should exist.
9 (P) - 3 (P) : Continuity should exist.
10 (L/R) - 6 (L/R) : Continuity should exist.
LIIA1245E
Terminals Condition Continuity
1
2Sunroof switch in CLOSE position Yes
Other than above No
3Sunroof switch in OPEN position Yes
Other than above No
4Sunroof switch in TILT UP position Yes
Other than above No
6Sunroof switch in TILT DOWN position Yes
Other than above No
WIIA0232E
Page 2837 of 3419

RF-20
SUNROOF
Revision: October 20052005 QX56
Sunroof Motor Assembly Power Supply and Ground Circuit CheckEIS004W3
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the sunroof motor assembly connector.
3. Turn ignition switch ON.

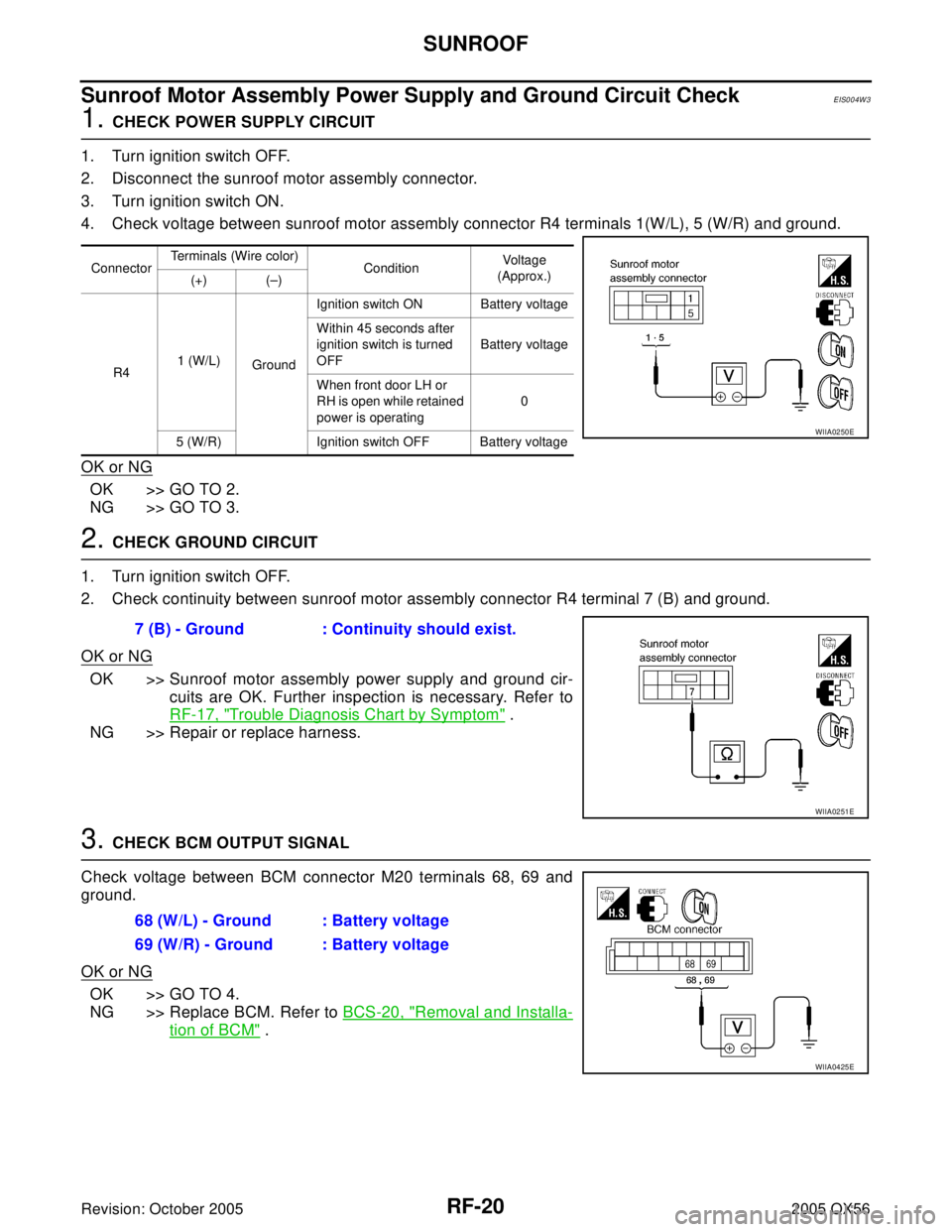

4. Check voltage between sunroof motor assembly connector R4 terminals 1(W/L), 5 (W/R) and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between sunroof motor assembly connector R4 terminal 7 (B) and ground.
OK or NG
OK >> Sunroof motor assembly power supply and ground cir-
cuits are OK. Further inspection is necessary. Refer to
RF-17, "
Trouble Diagnosis Chart by Symptom" .
NG >> Repair or replace harness.
3. CHECK BCM OUTPUT SIGNAL
Check voltage between BCM connector M20 terminals 68, 69 and
ground.
OK or NG
OK >> GO TO 4.
NG >> Replace BCM. Refer to BCS-20, "
Removal and Installa-
tion of BCM" .
ConnectorTerminals (Wire color)
Condition Voltage
(Approx.)
(+) (–)
R41 (W/L)
GroundIgnition switch ON Battery voltage
Within 45 seconds after
ignition switch is turned
OFFBattery voltage
When front door LH or
RH is open while retained
power is operating0
5 (W/R) Ignition switch OFF Battery voltage
WIIA0250E
7 (B) - Ground : Continuity should exist.
WIIA0251E
68 (W/L) - Ground : Battery voltage
69 (W/R) - Ground : Battery voltage
WIIA0425E
Page 2838 of 3419

SUNROOF
RF-21
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: October 20052005 QX56
4. CHECK SUNROOF MOTOR CIRCUIT HARNESS
1. Turn ignition switch OFF.
2. Disconnect BCM connector.

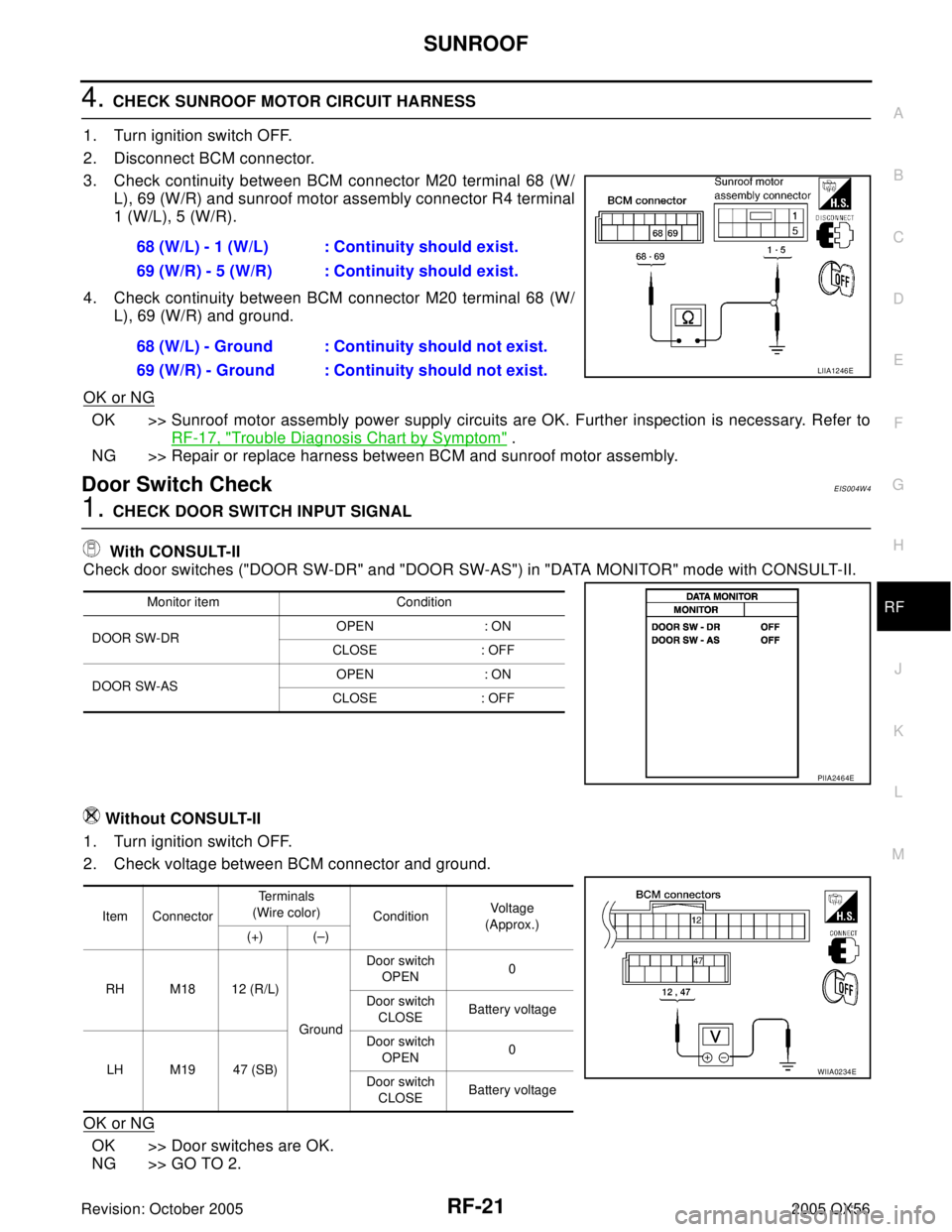

3. Check continuity between BCM connector M20 terminal 68 (W/
L), 69 (W/R) and sunroof motor assembly connector R4 terminal
1 (W/L), 5 (W/R).
4. Check continuity between BCM connector M20 terminal 68 (W/
L), 69 (W/R) and ground.
OK or NG
OK >> Sunroof motor assembly power supply circuits are OK. Further inspection is necessary. Refer to
RF-17, "
Trouble Diagnosis Chart by Symptom" .
NG >> Repair or replace harness between BCM and sunroof motor assembly.
Door Switch CheckEIS004W4
1. CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check door switches ("DOOR SW-DR" and "DOOR SW-AS") in "DATA MONITOR" mode with CONSULT-II.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between BCM connector and ground.
OK or NG
OK >> Door switches are OK.
NG >> GO TO 2.68 (W/L) - 1 (W/L) : Continuity should exist.
69 (W/R) - 5 (W/R) : Continuity should exist.
68 (W/L) - Ground : Continuity should not exist.
69 (W/R) - Ground : Continuity should not exist.
LIIA1246E
Monitor item Condition
DOOR SW-DROPEN : ON
CLOSE : OFF
DOOR SW-ASOPEN : ON
CLOSE : OFF
PIIA2464E
Item ConnectorTe r m i n a l s
(Wire color)
ConditionVoltag e
(Approx.)
(+) (–)
RH M18 12 (R/L)
GroundDoor switch
OPEN0
Door switch
CLOSEBattery voltage
LH M19 47 (SB)Door switch
OPEN0
Door switch
CLOSEBattery voltage
WIIA0234E
Page 2839 of 3419

RF-22
SUNROOF
Revision: October 20052005 QX56
2. CHECK DOOR SWITCH CIRCUIT
1. Disconnect front door switches and BCM connectors.

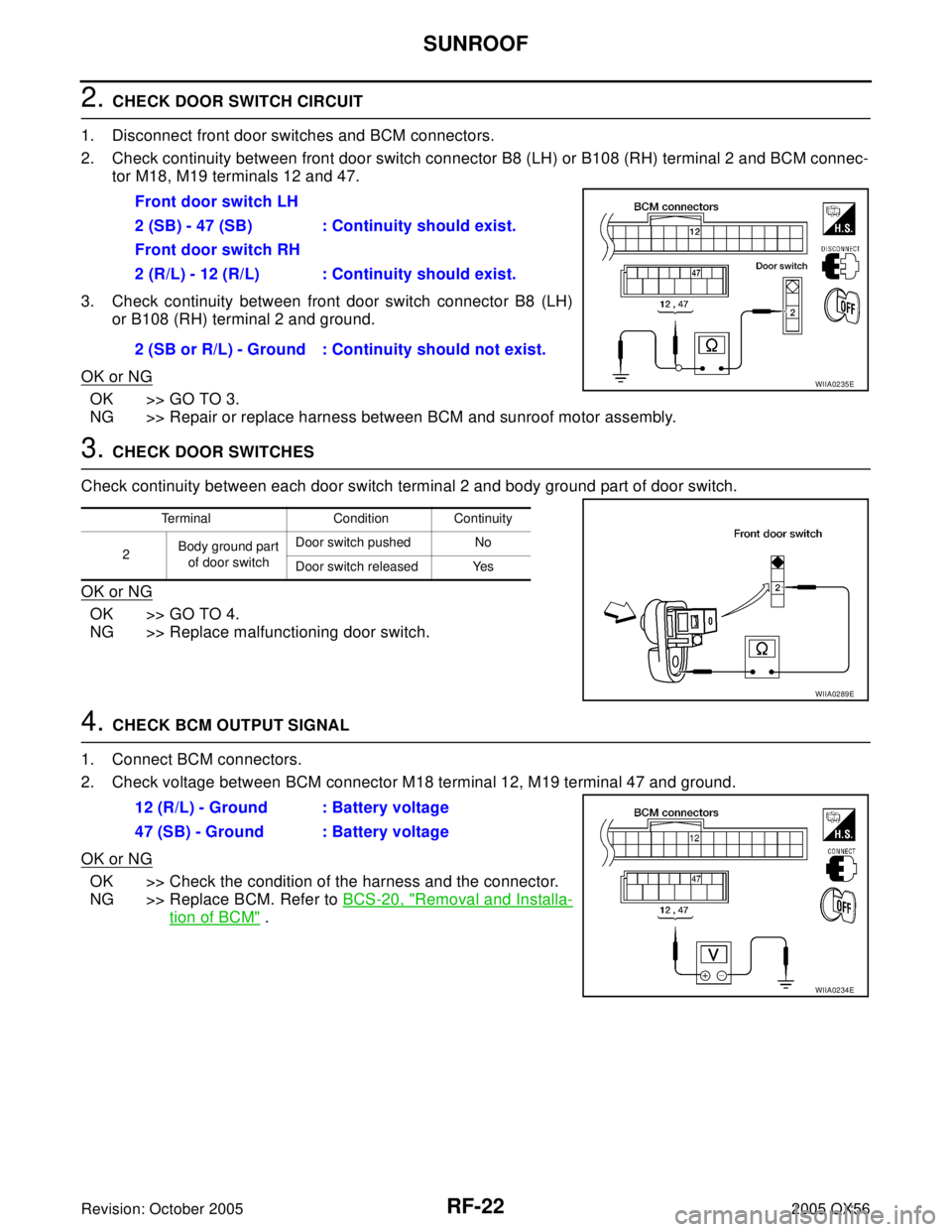

2. Check continuity between front door switch connector B8 (LH) or B108 (RH) terminal 2 and BCM connec-
tor M18, M19 terminals 12 and 47.
3. Check continuity between front door switch connector B8 (LH)
or B108 (RH) terminal 2 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between BCM and sunroof motor assembly.
3. CHECK DOOR SWITCHES
Check continuity between each door switch terminal 2 and body ground part of door switch.
OK or NG
OK >> GO TO 4.
NG >> Replace malfunctioning door switch.
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connectors.
2. Check voltage between BCM connector M18 terminal 12, M19 terminal 47 and ground.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace BCM. Refer to BCS-20, "
Removal and Installa-
tion of BCM" . Front door switch LH
2 (SB) - 47 (SB) : Continuity should exist.
Front door switch RH
2 (R/L) - 12 (R/L) : Continuity should exist.
2 (SB or R/L) - Ground : Continuity should not exist.
WIIA0235E
Terminal Condition Continuity
2Body ground part
of door switchDoor switch pushed No
Door switch released Yes
WIIA0289E
12 (R/L) - Ground : Battery voltage
47 (SB) - Ground : Battery voltage
WIIA0234E
Page 2840 of 3419

SUNROOF
RF-23
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: October 20052005 QX56
Fitting AdjustmentEIS004W5
GAP ADJUSTMENT
NOTE:
If any gap or height difference between glass lid and roof panel is found, check glass lid fit and adjust as fol-
lows:
1. Open sunshade assembly.
2. Loosen glass lid securing screws (2 each on left and right sides), then tilt glass lid down.
3. Manually adjust glass lid from outside of vehicle so it resembles "A-A" as shown in the figure.
4. After adjusting glass lid tilt glass lid up and tighten screws.
5. Tilt glass lid up and down several times to check that it moves smoothly.
HEIGHT DIFFERENCE ADJUSTMENT

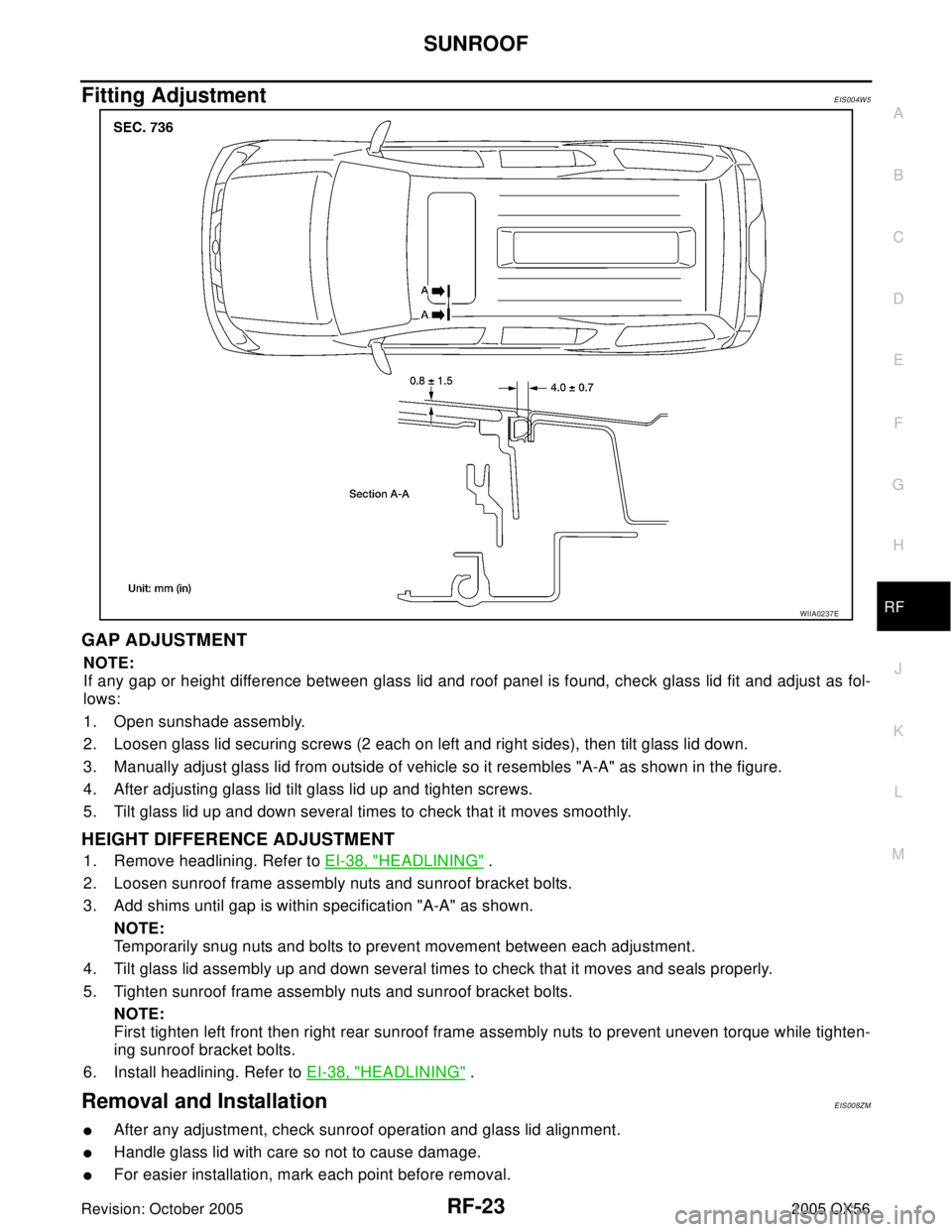

1. Remove headlining. Refer to EI-38, "HEADLINING" .
2. Loosen sunroof frame assembly nuts and sunroof bracket bolts.
3. Add shims until gap is within specification "A-A" as shown.
NOTE:
Temporarily snug nuts and bolts to prevent movement between each adjustment.
4. Tilt glass lid assembly up and down several times to check that it moves and seals properly.
5. Tighten sunroof frame assembly nuts and sunroof bracket bolts.
NOTE:
First tighten left front then right rear sunroof frame assembly nuts to prevent uneven torque while tighten-
ing sunroof bracket bolts.
6. Install headlining. Refer to EI-38, "
HEADLINING" .
Removal and InstallationEIS008ZM
After any adjustment, check sunroof operation and glass lid alignment.
Handle glass lid with care so not to cause damage.
For easier installation, mark each point before removal.
WIIA0237E
