Page 3049 of 3419

SE-84
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56
3. CHECK ADP STEERING WHEEL TILT SWITCH
Check continuity between ADP steering wheel tilt switch as follows.
OK or NG
OK >> GO TO 4.
NG >> Replace ADP steering wheel tilt switch.
4. CHECK ADP STEERING WHEEL TILT SWITCH GROUND CIRCUIT
Check continuity between ADP steering wheel tilt switch connector
M16 terminal 1 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace or replace harness.
Front Door Switch LH Circuit InspectionEIS004YL
1. CHECK FUNCTION
With CONSULT-II
Touch "BCM" with “DOOR SW-DR” on the DATA MONITOR, check
ON/OFF operation when the front door is open and closed.
*:Refer to SE-41, "DATA MONITOR" .
Without CONSULT-II
GO TO 2.
OK or NG
OK >> Front door switch LH circuit is OK.
NG >> GO TO 2.
ConnectorTe r m i n a l s
Condition Continuity
(+) (–)
M162
1Tilt switch ON (UP operation) Yes
Other than above No
3Tilt switch ON (DOWN opera-
tion)Ye s
Other than above No
LIIA1435E
1 (B) - Ground : Continuity should exist.
LIIA0490E
Monitor item [OPERA-
TION or UNIT]Contents
DOOR SW
DR*“ON/
OFF”Door open (ON)/door closed (OFF) status judged from
the front door switch is displayed.
PIIA0291E
Page 3050 of 3419
AUTOMATIC DRIVE POSITIONER
SE-85
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56

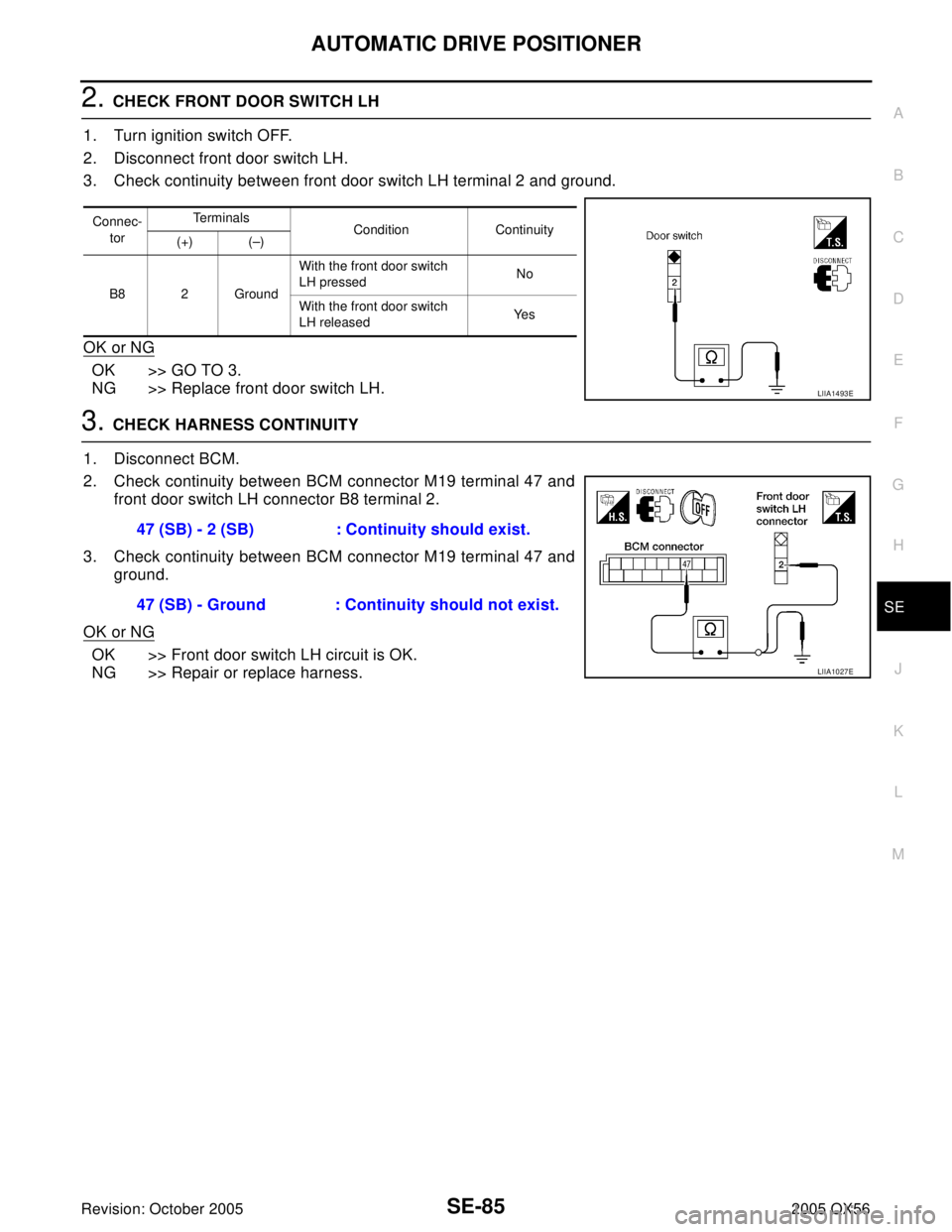

2. CHECK FRONT DOOR SWITCH LH
1. Turn ignition switch OFF.
2. Disconnect front door switch LH.
3. Check continuity between front door switch LH terminal 2 and ground.
OK or NG
OK >> GO TO 3.
NG >> Replace front door switch LH.
3. CHECK HARNESS CONTINUITY
1. Disconnect BCM.
2. Check continuity between BCM connector M19 terminal 47 and
front door switch LH connector B8 terminal 2.
3. Check continuity between BCM connector M19 terminal 47 and
ground.
OK or NG
OK >> Front door switch LH circuit is OK.
NG >> Repair or replace harness.
Connec-
torTe r m i n a l s
Condition Continuity
(+) (–)
B8 2 GroundWith the front door switch
LH pressedNo
With the front door switch
LH releasedYe s
LIIA1493E
47 (SB) - 2 (SB) : Continuity should exist.
47 (SB) - Ground : Continuity should not exist.
LIIA1027E
Page 3051 of 3419

SE-86
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56

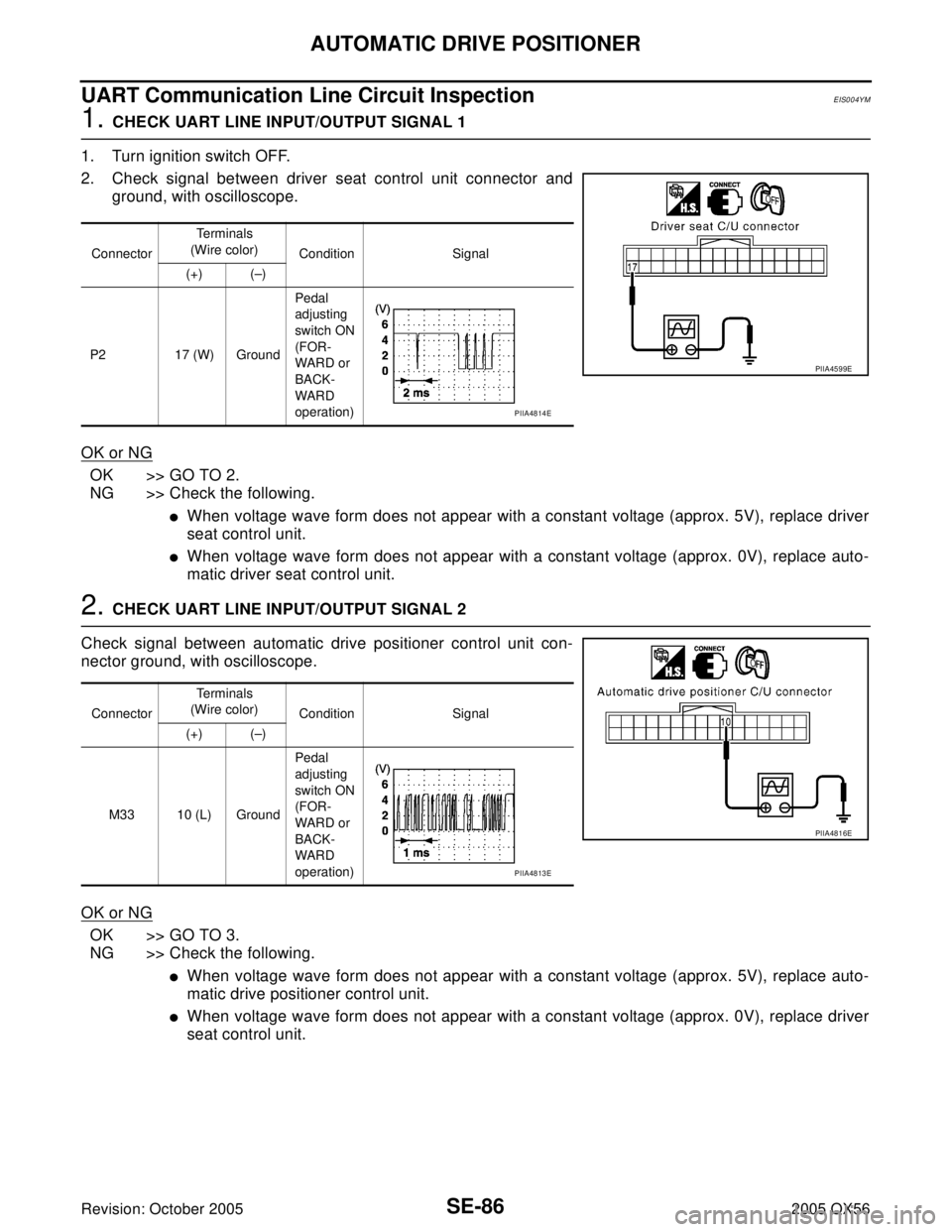

UART Communication Line Circuit InspectionEIS004YM
1. CHECK UART LINE INPUT/OUTPUT SIGNAL 1
1. Turn ignition switch OFF.
2. Check signal between driver seat control unit connector and
ground, with oscilloscope.
OK or NG
OK >> GO TO 2.
NG >> Check the following.
When voltage wave form does not appear with a constant voltage (approx. 5V), replace driver
seat control unit.
When voltage wave form does not appear with a constant voltage (approx. 0V), replace auto-
matic driver seat control unit.
2. CHECK UART LINE INPUT/OUTPUT SIGNAL 2
Check signal between automatic drive positioner control unit con-
nector ground, with oscilloscope.
OK or NG
OK >> GO TO 3.
NG >> Check the following.
When voltage wave form does not appear with a constant voltage (approx. 5V), replace auto-
matic drive positioner control unit.
When voltage wave form does not appear with a constant voltage (approx. 0V), replace driver
seat control unit.
ConnectorTe r m i n a l s
(Wire color)
Condition Signal
(+) (–)
P2 17 (W) GroundPedal
adjusting
switch ON
(FOR-
WAR D or
BACK-
WAR D
operation)
PIIA4599E
PIIA4814E
ConnectorTe r m i n a l s
(Wire color)
Condition Signal
(+) (–)
M33 10 (L) GroundPedal
adjusting
switch ON
(FOR-
WAR D or
BACK-
WAR D
operation)
PIIA4816E
PIIA4813E
Page 3052 of 3419
AUTOMATIC DRIVE POSITIONER
SE-87
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56
3. CHECK UART LINE HARNESS
1. Disconnect driver seat control unit and automatic drive posi-
tioner control unit.
2. Check continuity between driver seat control unit connector P2
terminals 1, 17, and automatic drive positioner connector M33
terminals 10, 26.
3. Check continuity between driver seat control unit connector P2
terminals 1, 17 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK DRIVER SEAT CONTROL UNIT
Does the automatic drive positioner operate when the driver seat control unit is exchanged?
OK or NG
OK >> Replace driver seat control unit.
NG >> Replace automatic drive positioner control unit.1 (L) - 10 (L) : Continuity should exist.
17 (W) - 26 (W) : Continuity should exist.
1 (L) - Ground : Continuity should not exist.
17 (W) - Ground : Continuity should not exist.
PIIA4598E
Page 3053 of 3419
SE-88
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56
Removal and InstallationEIS004YN
Refer to ACC-2, "ACCELERATOR CONTROL SYSTEM" and BR-6, "BRAKE PEDAL" .
Page 3054 of 3419
POWER SEAT
SE-89
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56
POWER SEATPFP:87016
Wiring Diagram — SEAT — for Passenger SeatEIS004YO
WIWA0585E
Page 3055 of 3419
SE-90
HEATED SEAT
Revision: October 20052005 QX56

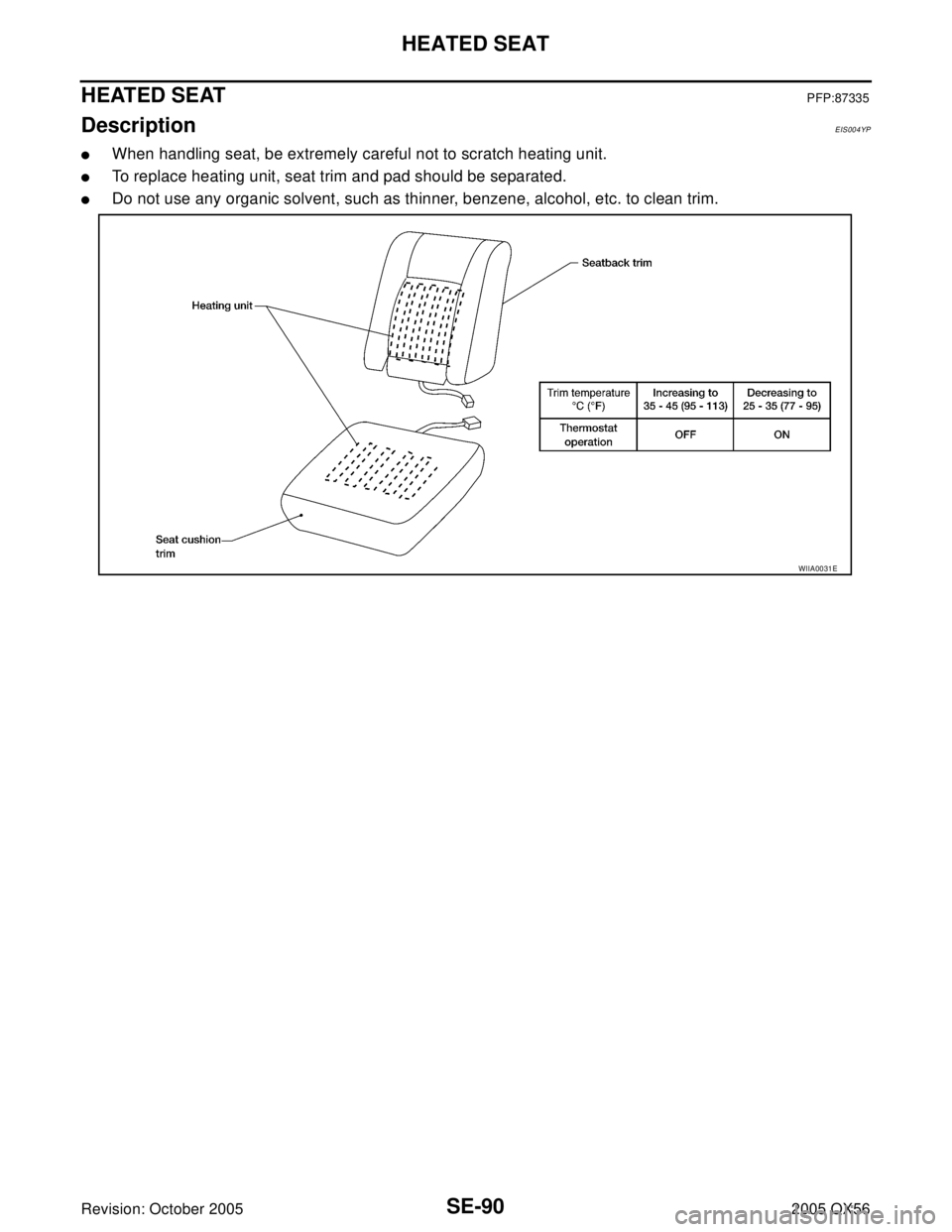

HEATED SEATPFP:87335
Description EIS004YP
When handling seat, be extremely careful not to scratch heating unit.
To replace heating unit, seat trim and pad should be separated.
Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trim.
WIIA0031E
Page 3056 of 3419
HEATED SEAT
SE-91
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56

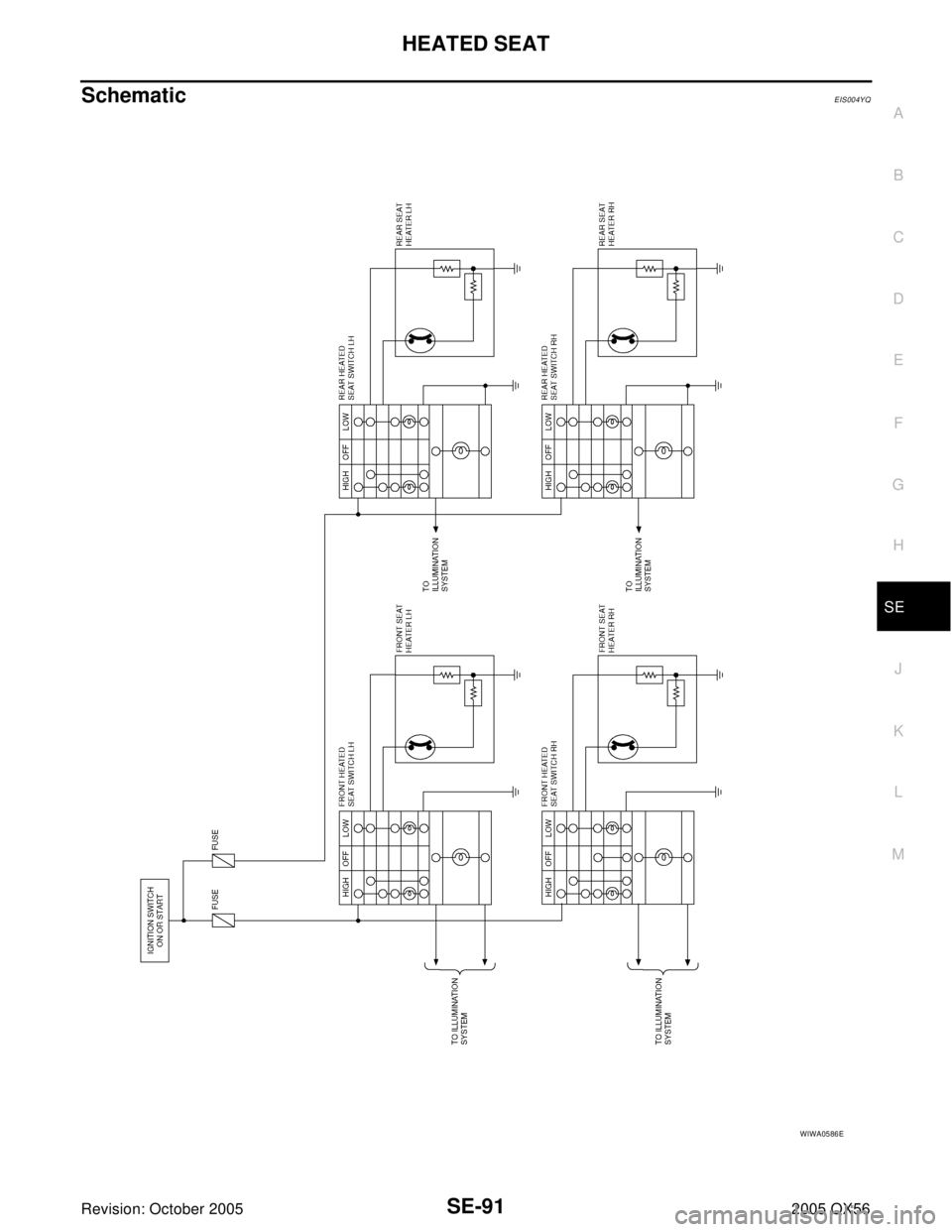

SchematicEIS004YQ
WIWA0586E
