Page 2113 of 3419

INFINITI QX4 2005 Factory Service Manual GI-12
HOW TO USE THIS MANUAL
Revision: October 20052005 QX56

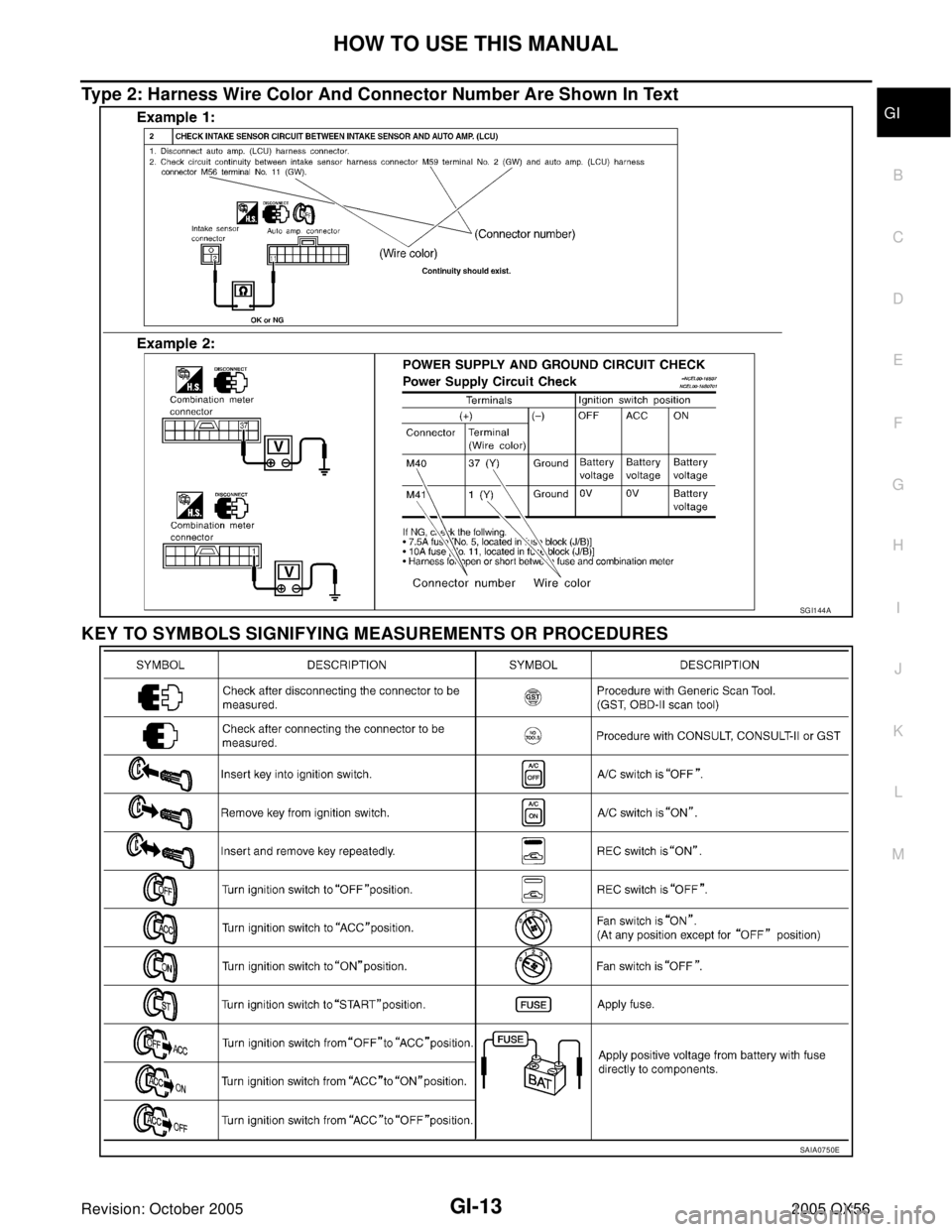

3.Symbol used in illustration
Symbols included in illustrations refer to measurements or procedures. Before diagnosing a problem,
familiari

Page 2114 of 3419

INFINITI QX4 2005 Factory Service Manual HOW TO USE THIS MANUAL
GI-13
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: October 20052005 QX56
Type 2: Harness Wire Color And Connector Number Are Shown In Text

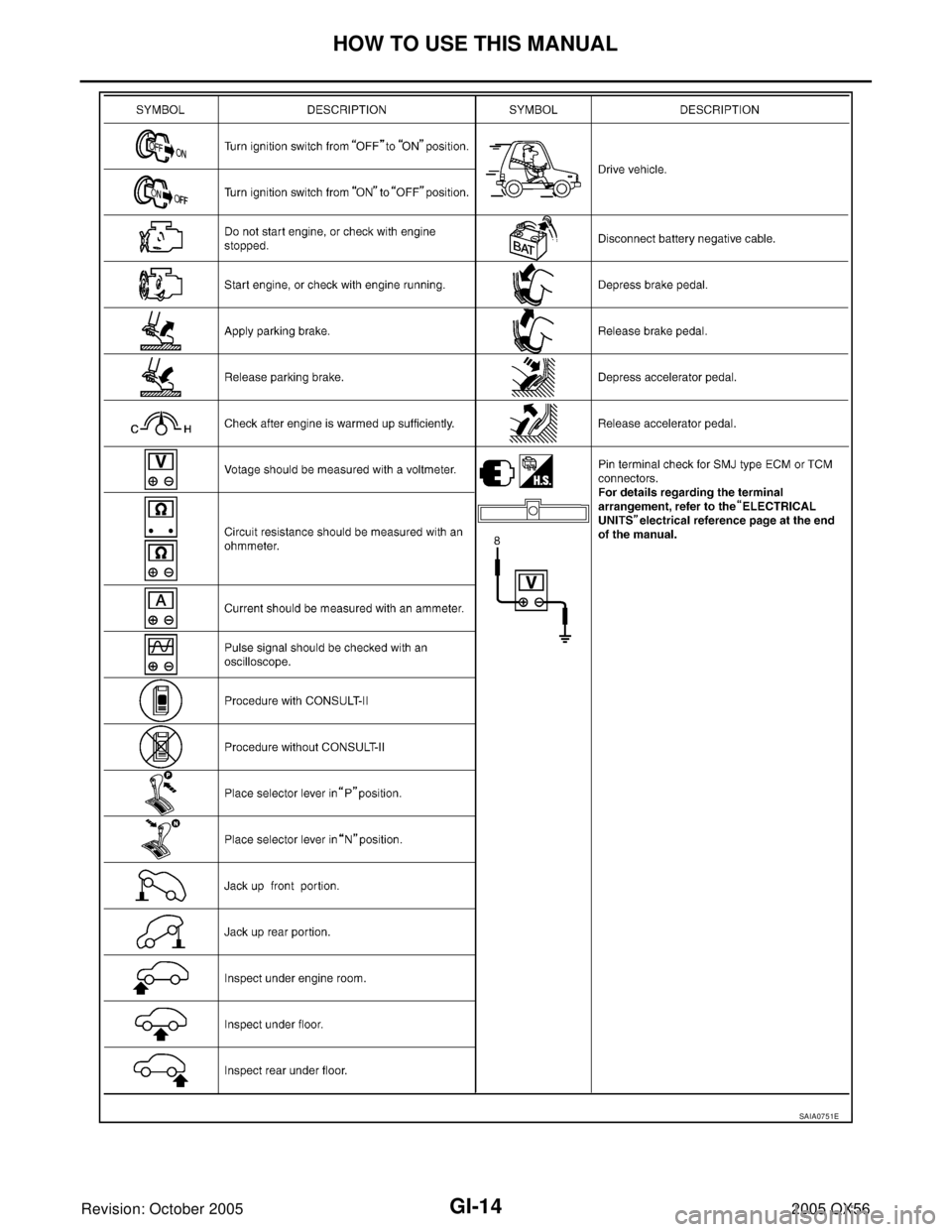

KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCE

Page 2115 of 3419

INFINITI QX4 2005 Factory Service Manual GI-14
HOW TO USE THIS MANUAL
Revision: October 20052005 QX56
SAIA0751E

Page 2116 of 3419

INFINITI QX4 2005 Factory Service Manual HOW TO USE THIS MANUAL
GI-15
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: October 20052005 QX56
How to Read Wiring DiagramsEAS001FK
CONNECTOR SYMBOLS
Most of connector symbols in wiring diagrams are shown from

Page 2117 of 3419

INFINITI QX4 2005 Factory Service Manual GI-16
HOW TO USE THIS MANUAL
Revision: October 20052005 QX56

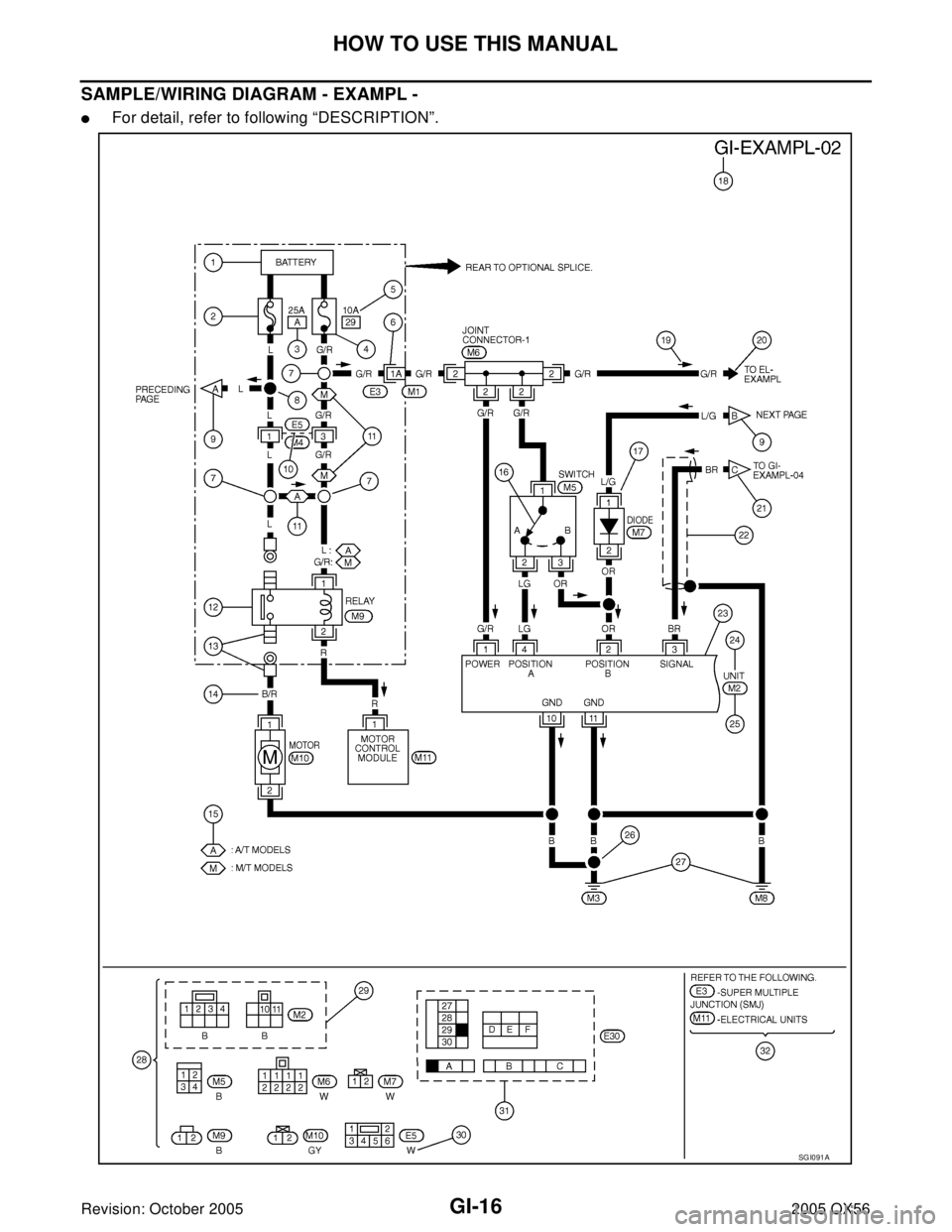

SAMPLE/WIRING DIAGRAM - EXAMPL -
For detail, refer to following “DESCRIPTION”.
SG I0 91 A

Page 2118 of 3419

INFINITI QX4 2005 Factory Service Manual HOW TO USE THIS MANUAL
GI-17
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: October 20052005 QX56

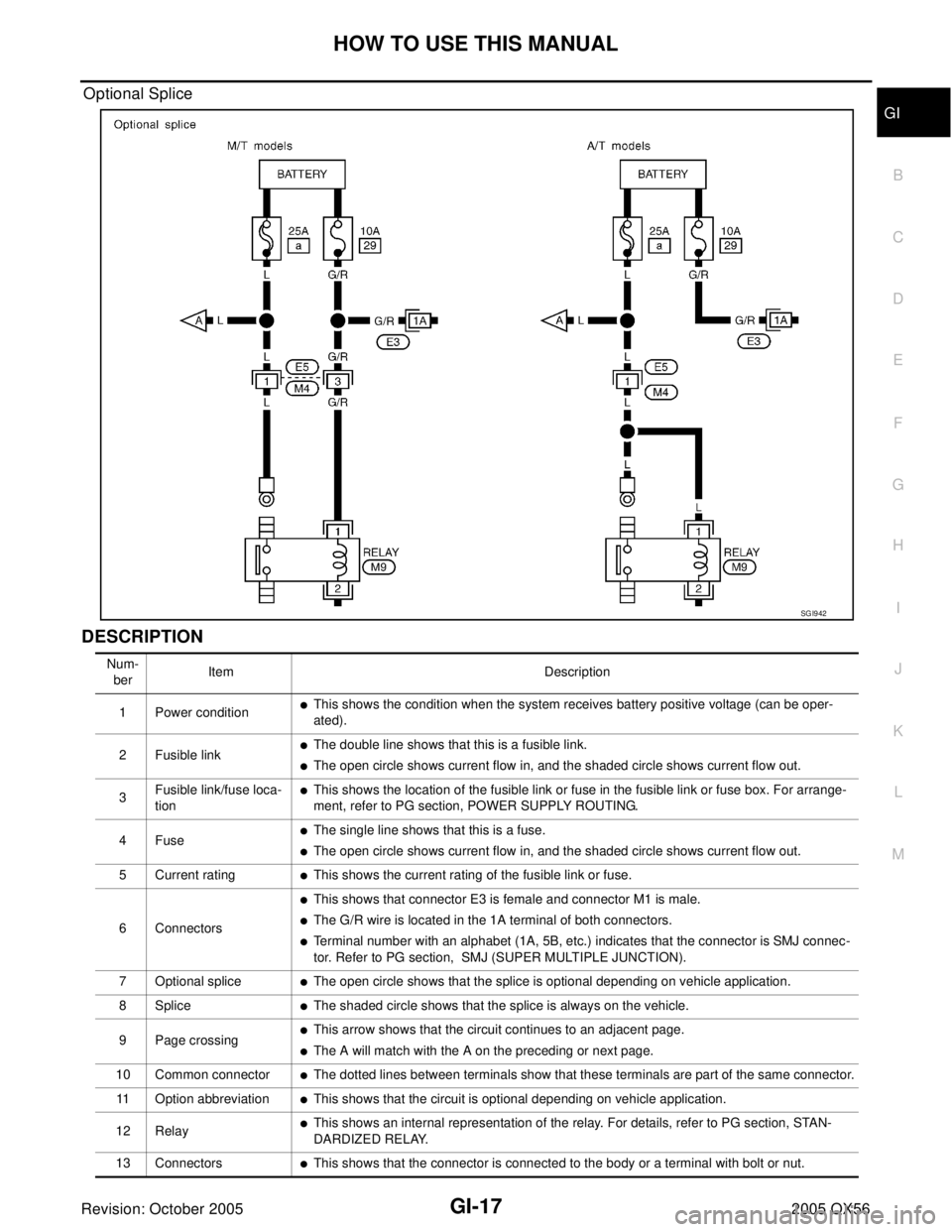

Optional Splice
DESCRIPTION
SG I9 42
Num-
berItem Description
1 Power condition
This shows the condition when t

Page 2119 of 3419

INFINITI QX4 2005 Factory Service Manual GI-18
HOW TO USE THIS MANUAL
Revision: October 20052005 QX56
14 Wire color
This shows a code for the color of the wire.
B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light GreenBR =

GI-18
HOW TO USE THIS MANUAL
Revision: October 20052005 QX56
14 Wire color
This shows a code for the color of the wire.
B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light GreenBR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green
When the wire color is striped, the base color is given first, followed by the stripe color as shown
below:
Example: L/W = Blue with White Stripe
15 Option description
This shows a description of the option abbreviation used on the page.
16 Switch
This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-
tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.
17 Assembly parts
Connector terminal in component shows that it is a harness incorporated assembly.
18 Cell code
This identifies each page of the wiring diagram by section, system and wiring diagram page
number.
19 Current flow arrow
Arrow indicates electric current flow, especially where the direction of standard flow (vertically
downward or horizontally from left to right) is difficult to follow.
A double arrow “ ” shows that current can flow in either direction depending on cir-
cuit operation.
20 System branch
This shows that the system branches to another system identified by cell code (section and
system).
21 Page crossing
This arrow shows that the circuit continues to another page identified by cell code.
The C will match with the C on another page within the system other than the next or preced-
ing pages.
22 Shielded line
The line enclosed by broken line circle shows shield wire.
23Component box in
wave line
This shows that another part of the component is also shown on another page (indicated by
wave line) within the system.
24 Component name
This shows the name of a component.
25 Connector number
This shows the connector number.
The letter shows which harness the connector is located in.
Example: M : main harness. For detail and to locate the connector, refer to PG section "Main
Harness", “Harness Layout”. A coordinate grid is included for complex harnesses to aid in
locating connectors.
26 Ground (GND)
The line spliced and grounded under wire color shows that ground line is spliced at the
grounded connector.
27 Ground (GND)
This shows the ground connection. For detailed ground distribution information, refer to
"Ground Distribution" in PG section.
28 Connector views
This area shows the connector faces of the components in the wiring diagram on the page.
29 Common component
Connectors enclosed in broken line show that these connectors belong to the same compo-
nent.
30 Connector color
This shows a code for the color of the connector. For code meaning, refer to wire color codes,
Number 14 of this chart.
31Fusible link and fuse
box
This shows the arrangement of fusible link(s) and fuse(s), used for connector views of
"POWER SUPPLY ROUTING" in PG section.
The open square shows current flow in, and the shaded square shows current flow out.
32 Reference area
This shows that more information on the Super Multiple Junction (SMJ) and Joint Connectors
(J/C) exists on the PG section. Refer to "Reference Area" for details. Num-
berItem Description

Page 2120 of 3419

INFINITI QX4 2005 Factory Service Manual HOW TO USE THIS MANUAL
GI-19
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: October 20052005 QX56

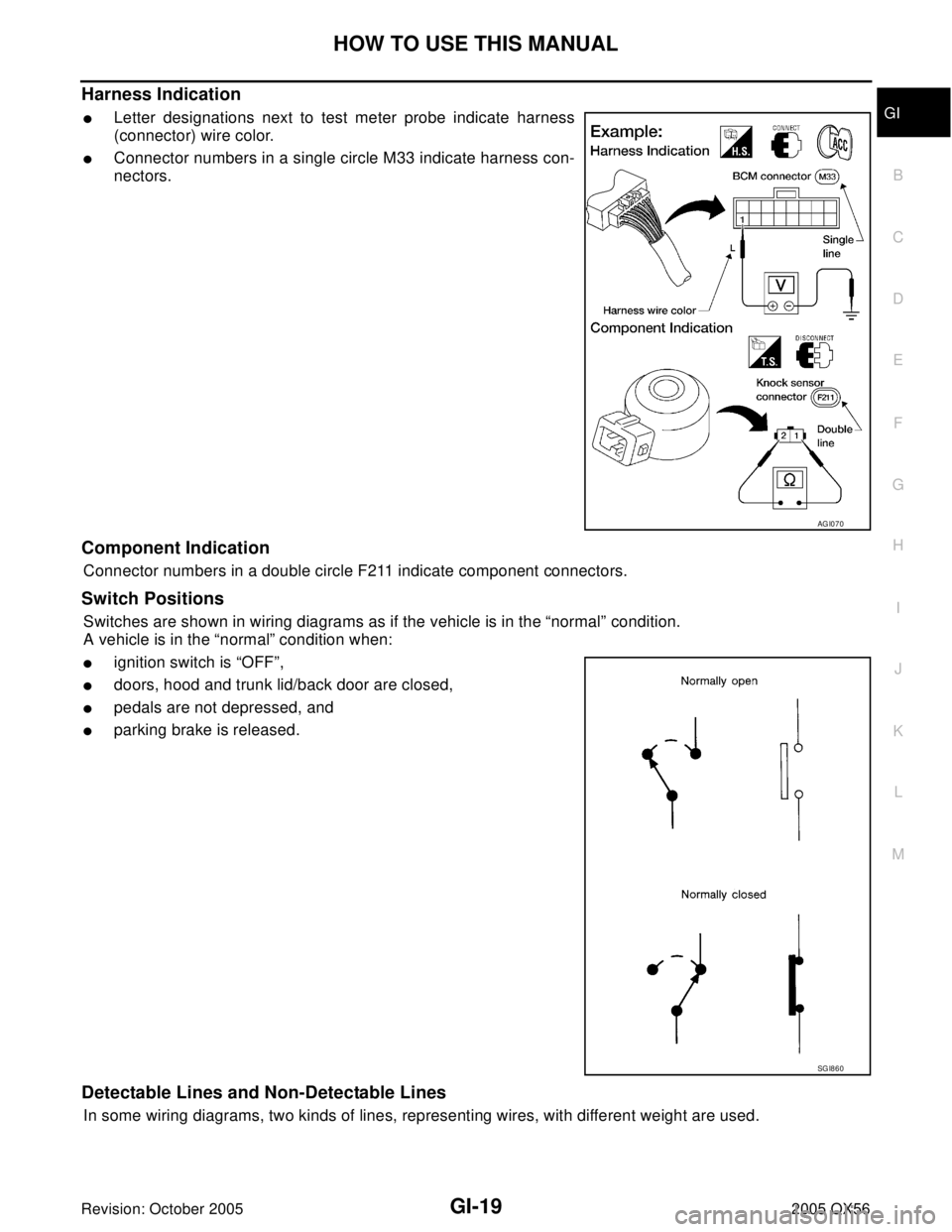

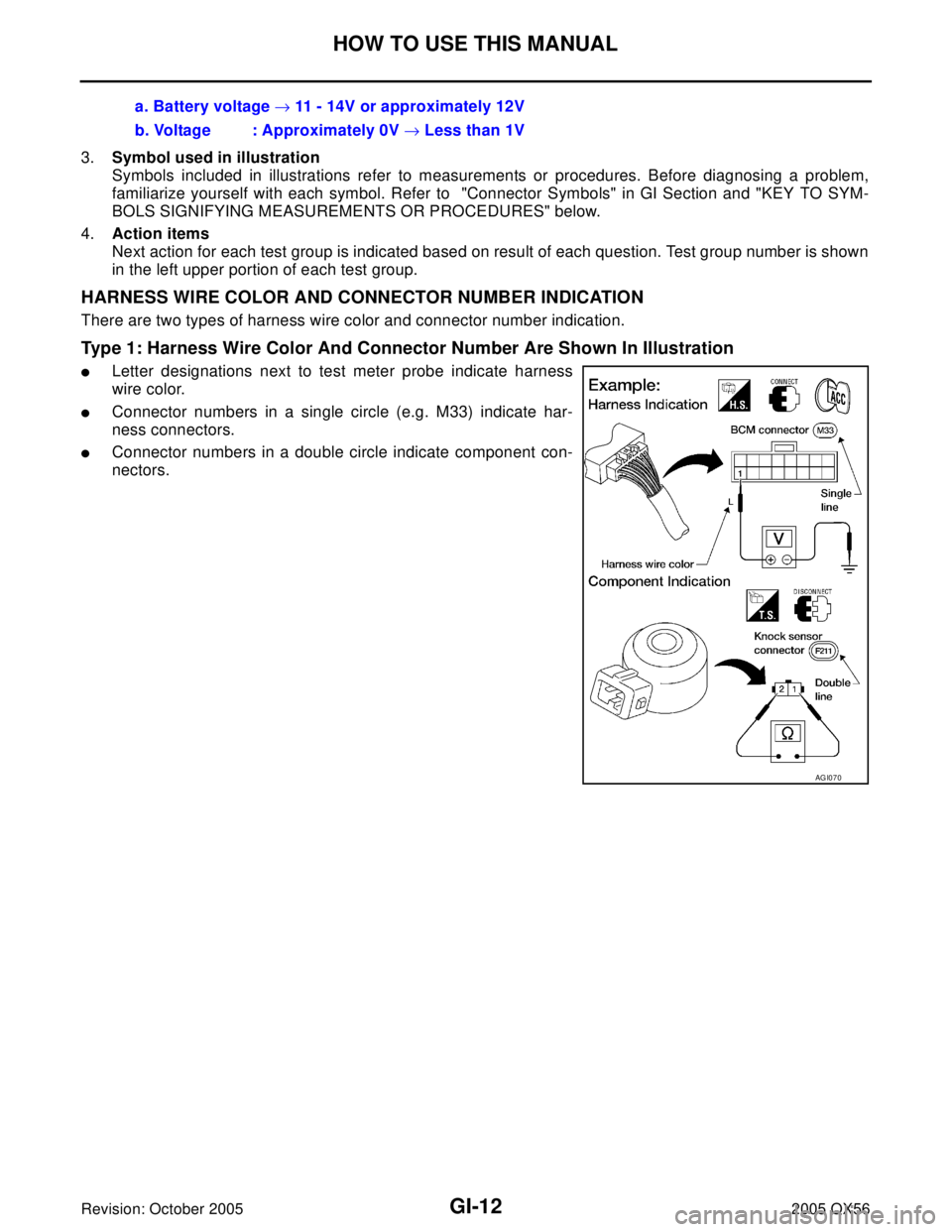

Harness Indication
Letter designations next to test meter probe indicate harness
(connector) wire color.
Conne
