Page 3377 of 3419

INFINITI QX4 2005 Factory Service Manual WW-18
FRONT WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56
4. Select the desired part to be diagnosed on the "SELECT TEST
ITEM" screen.
WORK SUPPORT
Operation Procedure
1. Touch "WIPER" on th

Page 3378 of 3419

INFINITI QX4 2005 Factory Service Manual FRONT WIPER AND WASHER SYSTEM
WW-19
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
ACTIVE TEST
Operation Procedure
1. Touch "WIPER" on the "SELECT TEST ITEM" screen.
2. Touch "ACTIVE TEST"

FRONT WIPER AND WASHER SYSTEM
WW-19
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
ACTIVE TEST
Operation Procedure
1. Touch "WIPER" on the "SELECT TEST ITEM" screen.
2. Touch "ACTIVE TEST" on the "SELECT DIAG MODE" screen.
3. Touch item(s) to be tested and check operation of the selected item(s).
4. During the operation check, touching "BACK" deactivates the operation.
Display Item List
CONSULT-II Function (IPDM E/R)EKS00BE2
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn the
ignition switch ON.
FR WIPER LOW "ON/OFF"Displays "Front Wiper LOW (ON)/Other (OFF)" status as judged from wiper switch sig-
nal.
FR WIPER INT "ON/OFF"Displays "Front Wiper INT (ON)/Other (OFF)" status as judged from wiper switch sig-
nal.
FR WASHER SW "ON/OFF"Displays "Front Washer Switch (ON)/Other (OFF)" status as judged from wiper switch
signal.
INT VOLUME (1 - 7)Displays intermittent operation dial position setting (1 - 7) as judged from wiper switch
signal.
FR WIPER STOP "ON/OFF" Displays "Stopped (ON)/Operating (OFF)" status as judged from the auto-stop signal.
VEHICLE SPEED "0.0 km/h" Displays vehicle speed as received from CAN communication.Monitor item name
"OPERATION OR UNIT"Contents
Te s t i t e mDisplay on CONSULT-II
screenDescription
Front wiper HI output FR WIPER (HI) Front wiper HI can be operated by any ON-OFF operation.
Front wiper LO output FR WIPER (LO) Front wiper LO can be operated by any ON-OFF operation.
Front wiper INT output FR WIPER (INT) Front wiper INT can be operated by any ON-OFF operation.
IPDM E/R diagnostic Mode Description
SELF-DIAG RESULTS Displays IPDM E/R self-diagnosis results.
DATA MONITOR Displays IPDM E/R input/output data in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
BBIA0369E

Page 3379 of 3419

INFINITI QX4 2005 Factory Service Manual WW-20
FRONT WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56
2. Touch "START (NISSAN BASED VHCL)".
3. Touch "IPDM E/R" on "SELECT SYSTEM" screen.
If "IPDM E/R" is not displayed, go to GI-39, "

Page 3380 of 3419

INFINITI QX4 2005 Factory Service Manual FRONT WIPER AND WASHER SYSTEM
WW-21
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
All Signals, Main Signals, Selection From Menu
NOTE:
Perform monitoring of IPDM E/R data with the ignition

Page 3381 of 3419

INFINITI QX4 2005 Factory Service Manual WW-22
FRONT WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56
2. IPDM E/R TO FRONT WIPERS (2) INSPECTION
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connectors and front wiper motor conn

Page 3382 of 3419

INFINITI QX4 2005 Factory Service Manual FRONT WIPER AND WASHER SYSTEM
WW-23
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
3. IPDM E/R INSPECTION
With CONSULT-II
1. Select "HI" on "ACTIVE TEST" screen.
2. When front wiper relay,

Page 3383 of 3419

INFINITI QX4 2005 Factory Service Manual WW-24
FRONT WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56

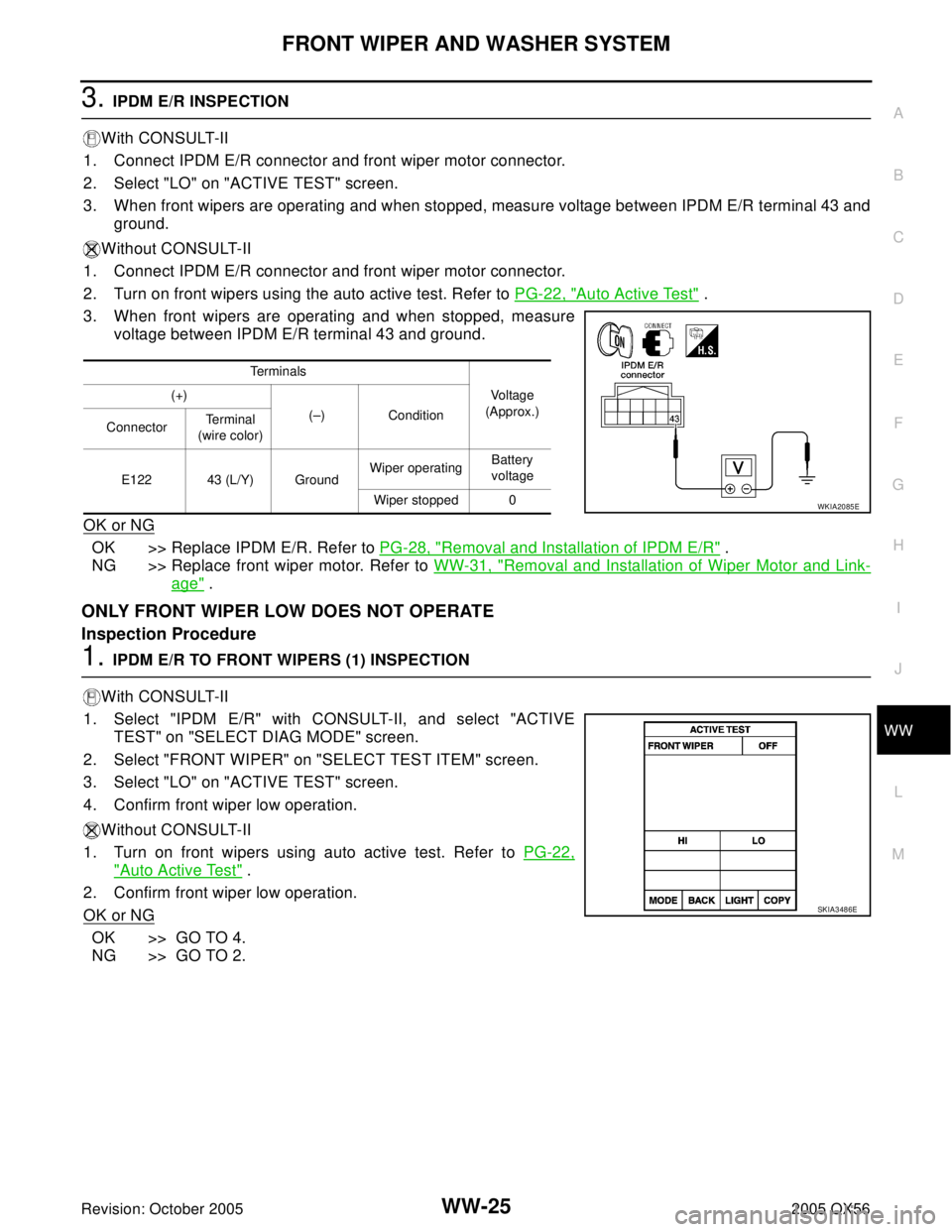

FRONT WIPER STOP POSITION IS INCORRECT
Inspection Procedure
1. IPDM E/R TO FRONT WIPER MOTOR (1) INSPECTION
With CONSULT-II
Select "

Page 3384 of 3419

INFINITI QX4 2005 Factory Service Manual FRONT WIPER AND WASHER SYSTEM
WW-25
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
3. IPDM E/R INSPECTION
With CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. S
