GW-78
REAR WINDOW DEFOGGER
Revision: October 20052005 QX56
through body grounds M57, M61 and M79
to IPDM E/R terminals 38 and 59
through body grounds E9, E15 and E24.
When front air control (rear window defogger switch) is turned to ON,
Ground is supplied
to BCM terminal 9
through front air control terminal 11
through front air control terminal 1
through body grounds M57, M61 and M79.
Then rear window defogger switch is illuminated.
Then BCM recognizes that rear window defogger switch is turned to ON.
Then it sends rear window defogger switch signals to IPDM E/R and display control unit via CAN communica-
tion (CAN-H, CAN-L).
When display control unit receives rear window defogger switch signals, and displays on the screen.
When IPDM E/R receives rear window defogger switch signals,
Ground is supplied
to rear window defogger relay (located in the IPDM E/R)
through IPDM E/R terminal 38
through IPDM E/R terminal 59
through body grounds E9, E15 and E24
and then rear window defogger relay is energized.
With power and ground supplied, rear window defogger filaments heat and defog the rear window.
When rear window defogger relay is turned to ON
Power is supplied
through heated mirror relay (located in the IPDM E/R)
through IPDM E/R terminal 23
to door mirror defogger (LH and RH) terminal 10.
Door mirror defogger (LH and RH) is grounded through body grounds M57, M61 and M79.
With power and ground supplied, rear window defogger filaments heat and defog the rear window and door
mirror defogger filaments heat and defog the mirror.
CAN Communication System DescriptionEIS005YO
Refer to LAN-5, "CAN COMMUNICATION" .
Page 2234 of 3419
REAR WINDOW DEFOGGER
GW-79
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: October 20052005 QX56
SchematicEIS005YP
WIWA0731E
Page 2235 of 3419
GW-80
REAR WINDOW DEFOGGER
Revision: October 20052005 QX56

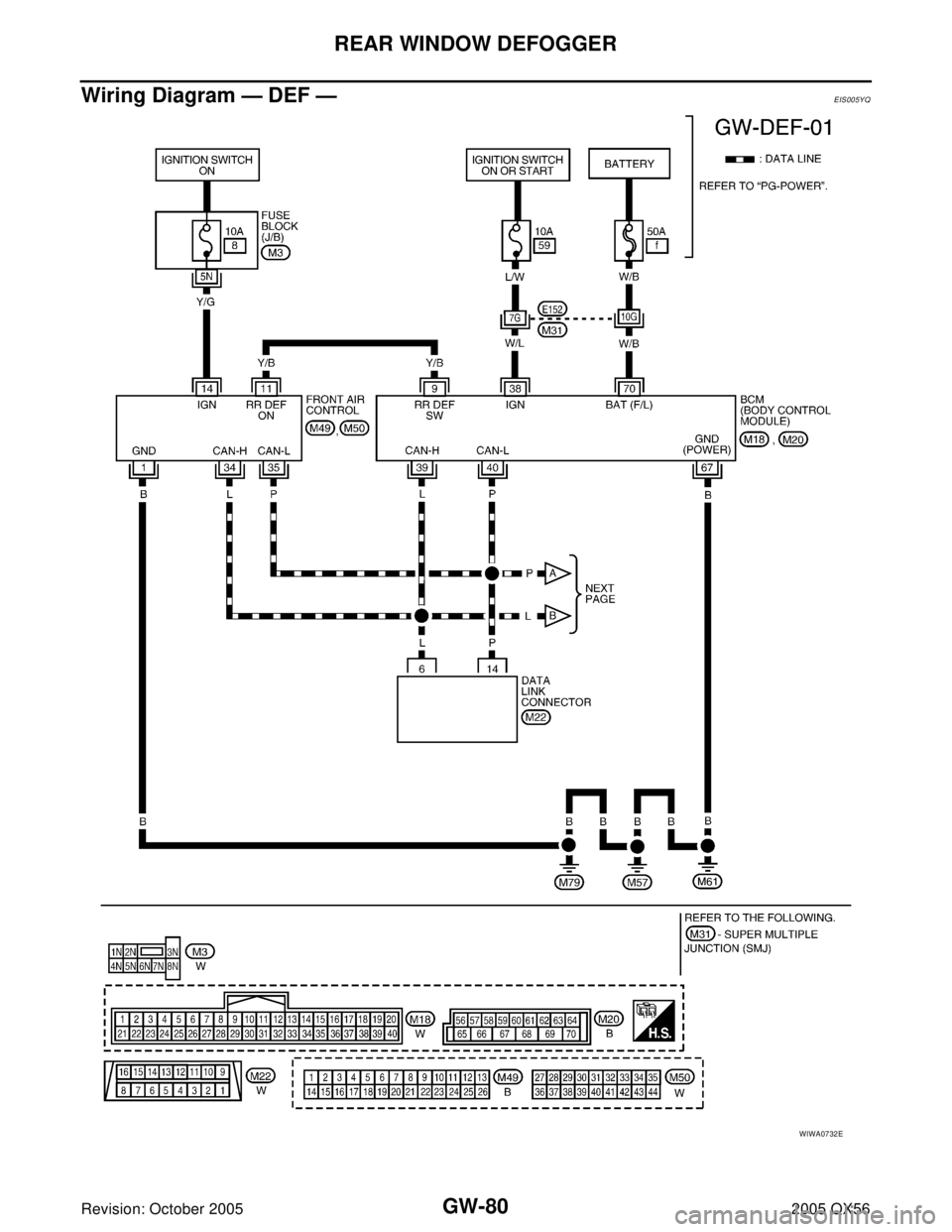

Wiring Diagram — DEF —EIS005YQ
WIWA0732E
Page 2236 of 3419
REAR WINDOW DEFOGGER
GW-81
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: October 20052005 QX56

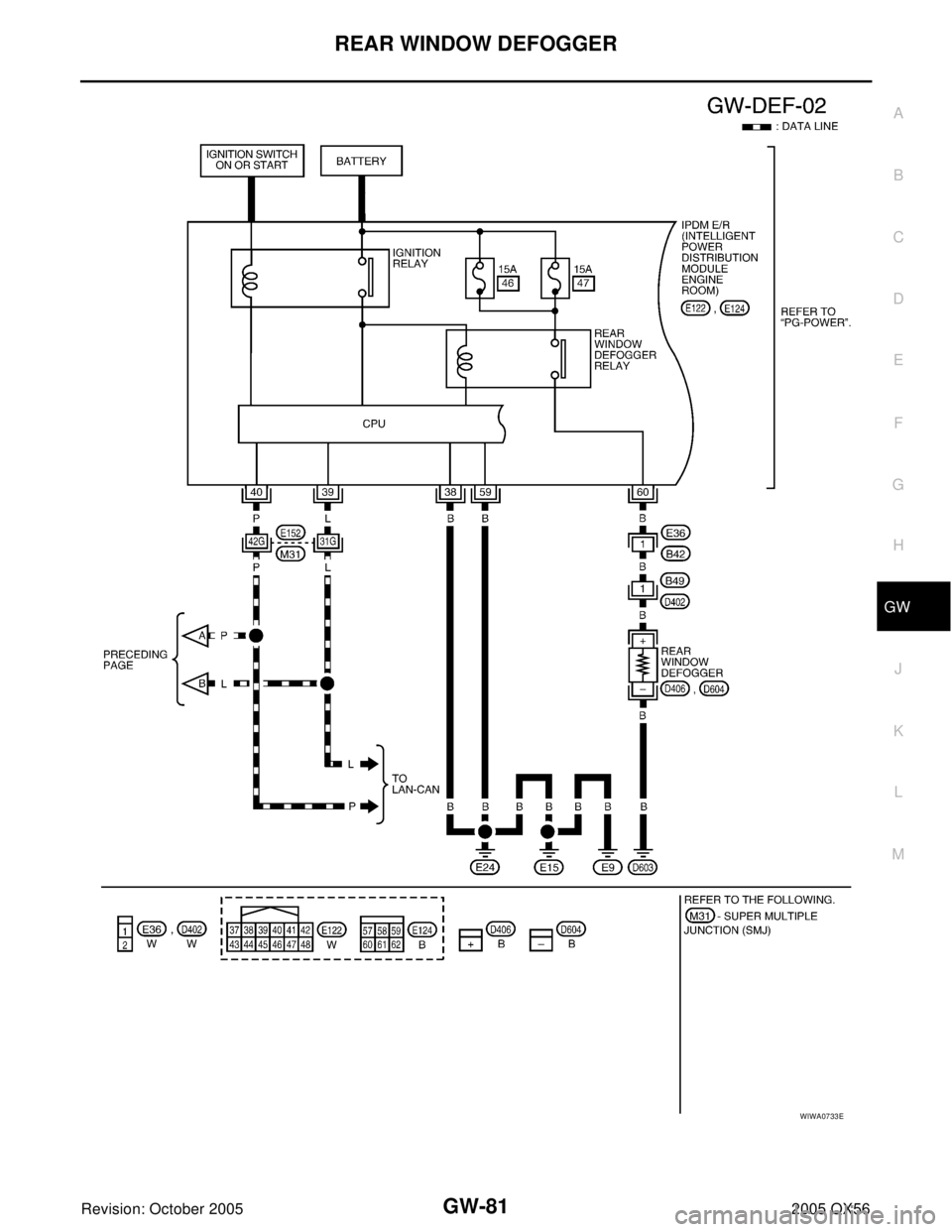

WIWA0733E
Page 2237 of 3419
GW-82
REAR WINDOW DEFOGGER
Revision: October 20052005 QX56
LIWA0382E
Page 2238 of 3419

REAR WINDOW DEFOGGER
GW-83
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: October 20052005 QX56
Terminal and Reference Value for BCMEIS005YR
Terminal and Reference Value for IPDM E/REIS005YS
Work FlowEIS005YT
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to GW-77, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to GW-85,
"Trouble Diagnoses Symptom Chart" .
4. Does rear window defogger and door mirror defogger operate normally? YES: GO TO 5, NO: GO TO 3.
5. Inspection end.
Terminal Wire color Item ConditionVoltage (V)
(Approx.)
9Y/BRear window defogger
switch signalWhen rear window defogger switch is pressed. 0
When rear window defogger switch is OFF. 5
38 W/L Ignition switch ON or START Ignition switch (ON or START position) Battery voltage
39 L CAN-H — —
40 P CAN-L — —
67 B Ground — 0
70 W/B Battery power supply — Battery voltage
Terminal Wire color Item ConditionVoltage (V)
(Approx.)
38 B Ground (Power) — 0
39 L CAN-H — —
40 P CAN-L — —
59 B Ground (Signal) — 0
60 BRear window defogger output
signalWhen rear window defogger switch is ON. Battery voltage
When rear window defogger switch is OFF. 0
Page 2239 of 3419

GW-84
REAR WINDOW DEFOGGER
Revision: October 20052005 QX56
CONSULT-II Function (BCM)EIS005YU
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II BASIC OPERATION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “BCM”.
If “BCM” is not indicated, go to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
BCM diagnostic
test itemDiagnostic mode Content
Inspection by partWORK SUPPORT Changes setting of each function.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The results of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
BCIA0030E
Page 2240 of 3419

REAR WINDOW DEFOGGER
GW-85
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: October 20052005 QX56
6. Touch “REAR DEFOGGER”.
7. Select diagnosis mode,“DATA MONITOR” and “ACTIVE TEST”.
DATA MONITOR
Display Item List
ACTIVE TEST
Display Item List
Trouble Diagnoses Symptom ChartEIS005YV
Make sure other systems using the signal of the following systems operate normally.
LIIA0153E
BCIA0031E
Monitor item “Operation” Content
REAR DEF SW “ON/OFF”Displays “Press (ON)/others (OFF)” status determined with the rear window defogger
switch.
IGN ON SW “ON/OFF” Displays “IGN (ON)/OFF” status determined with the ignition switch signal.
Test item Content
REAR WINDOW DEFOGGER Gives a drive signal to the rear window defogger to activate it.
Symptom Diagnoses / Service procedure Refer to page
Rear window defogger and door mirror defoggers do not
operate.1. BCM power supply and ground circuit checkGW-87
2. IPDM E/R auto active test checkPG-22
3. Rear window defogger switch circuit checkGW-88
4. Rear window defogger circuit checkGW-89
5. Replace IPDM E/ RPG-28
Rear window defogger does not operate but both of door
mirror defoggers operate.1. Rear window defogger circuit checkGW-892. Filament checkGW-89
3. Replace IPDM E/RPG-28
Both door mirror defoggers do not operate but rear win-
dow defogger operates.1. Door mirror defogger power supply circuit checkGW-90
2. Replace IPDM E/RPG-28
Door mirror defogger LH does not operate. 1. Driver side door mirror defogger circuit checkGW-92
