INFINITI QX4 2005 Factory Service Manual EC-666Revision: October 2005
ASCD INDICATOR
2005 QX56
Diagnostic ProcedureUBS00HDW
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO

Page 1858 of 3419

INFINITI QX4 2005 Factory Service Manual MIL AND DATA LINK CONNECTOR
EC-667
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
MIL AND DATA LINK CONNECTORPFP:24814
Wiring DiagramUBS00HDX
BBWA1718E

Page 1859 of 3419

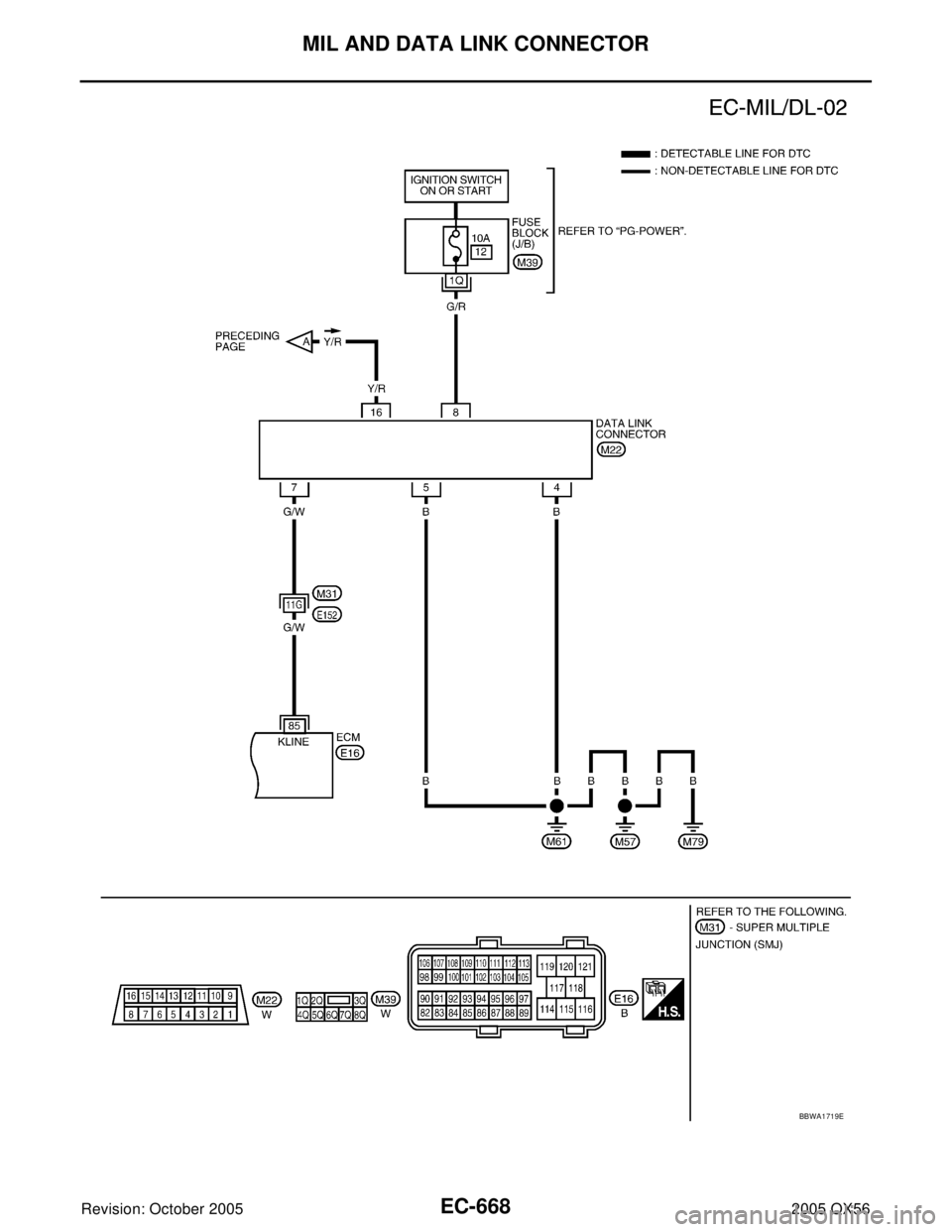

INFINITI QX4 2005 Factory Service Manual EC-668Revision: October 2005
MIL AND DATA LINK CONNECTOR
2005 QX56
BBWA1719E

Page 1860 of 3419

INFINITI QX4 2005 Factory Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EC-669
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureUBS00HE9
Idle Speed and Ignition Timi

Page 1861 of 3419

INFINITI QX4 2005 Factory Service Manual EC-670Revision: October 2005
SERVICE DATA AND SPECIFICATIONS (SDS)
2005 QX56
InjectorUBS00HEK
Fuel PumpUBS00HEL
Resistance [at 10 - 60°C (50 - 140°F)] 11.1 - 14.5Ω
Resistance [at 25°C (77°F)] 0.

Page 1862 of 3419

INFINITI QX4 2005 Factory Service Manual EI-1
EXTERIOR & INTERIOR
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION EI
A
B
EI
Revision: October 20052005 QX56 PRECAUTIONS .......................................................... 3
Service Notice

EI-1
EXTERIOR & INTERIOR
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION EI
A
B
EI
Revision: October 20052005 QX56 PRECAUTIONS .......................................................... 3
Service Notice .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ................................................................ 5
CUSTOMER INTERVIEW ..................................... 5
DUPLICATE THE NOISE AND TEST DRIVE ....... 6
CHECK RELATED SERVICE BULLETINS ........... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 6
REPAIR THE CAUSE ........................................... 6
CONFIRM THE REPAIR ....................................... 7
Generic Squeak and Rattle Troubleshooting ........... 7
INSTRUMENT PANEL .......................................... 7
CENTER CONSOLE ............................................. 7
DOORS ................................................................. 7
TRUNK .................................................................. 8
SUNROOF/HEADLINING ..................................... 8
OVERHEAD CONSOLE (FRONT AND REAR) ..... 8
SEATS ................................................................... 8
UNDERHOOD ....................................................... 8
Diagnostic Worksheet .............................................. 9
CLIP AND FASTENER ..............................................11
Description ..............................................................11
FRONT BUMPER ..................................................... 13
Removal and Installation ........................................ 13
REAR BUMPER ....................................................... 15
Removal and Installation ........................................ 15
FRONT GRILLE ........................................................ 17
Removal and Installation ........................................ 17
COWL TOP ............................................................... 18
Removal and Installation ........................................ 18
FRONT FENDER ...................................................... 20
Removal and Installation ........................................ 20OVER FENDER ......................................................... 21
Removal and Installation ........................................ 21
REMOVAL ........................................................... 21
INSTALLATION ................................................... 21
FENDER PROTECTOR ............................................ 23
Removal and Installation ........................................ 23
FRONT ................................................................ 23
LICENSE LAMP FINISHER ...................................... 24
Removal and Installation ........................................ 24
RUNNING BOARDS ................................................. 25
Removal and Installation ........................................ 25
REAR SPOILER ........................................................ 26
Removal and Installation ........................................ 26
REMOVAL ........................................................... 26
INSTALLATION ................................................... 26
ROOF RACK ............................................................. 27
Removal and Installation ........................................ 27
DOOR OUTSIDE MOLDING ..................................... 28
Removal and Installation ........................................ 28
............................................................................ 28
............................................................................ 29
SIDE GUARD MOLDING .......................................... 30
Removal and Installation ........................................ 30
REMOVAL ........................................................... 30
INSTALLATION ................................................... 30
DOOR FINISHER ...................................................... 32
Removal and Installation ........................................ 32
FRONT DOOR .................................................... 32
REAR DOOR ....................................................... 33
BODY SIDE TRIM ..................................................... 35
Removal and Installation ........................................ 35
LOWER DASH SIDE FINISHER ......................... 35
CENTER PILLAR LOWER FINISHER ................ 36
CENTER PILLAR UPPER FINISHER ................. 36
FRONT PILLAR FINISHER ................................. 36
KICKING PLATES ............................................... 36
MUDGUARD FINISHERS ................................... 36
DOOR PARTING SEALS .................................... 36
FLOOR TRIM ............................................................ 37
Removal and Installation ........................................ 37

Page 1863 of 3419

INFINITI QX4 2005 Factory Service Manual EI-2Revision: October 20052005 QX56 HEADLINING ............................................................ 38
Removal and Installation ........................................ 38
LUGGAGE FLOOR TRIM

Page 1864 of 3419

INFINITI QX4 2005 Factory Service Manual PRECAUTIONS
EI-3
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: October 20052005 QX56
PRECAUTIONSPFP:00001
Service NoticeEIS004W7
When removing or installing various parts, place a cloth or padding on the vehic

PRECAUTIONS
EI-3
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: October 20052005 QX56
PRECAUTIONSPFP:00001
Service NoticeEIS004W7
When removing or installing various parts, place a cloth or padding on the vehicle body to prevent
scratches.
Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to soil
or damage them.
Apply sealing compound where necessary when installing parts.
When applying sealing compound, be careful that the sealing compound does not protrude from parts.
When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust pre-
vention measures.
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS004W8
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WA RN ING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
