2005 INFINITI QX4 Factory Service Manual

engine oil capacity USB trunk open bonnet child restraint open hood

Load previous 8 pages

Page 2905 of 3419

INFINITI QX4 2005 Factory Service Manual RSU-30
REAR SUSPENSION MEMBER
Revision: October 20052005 QX56
REAR SUSPENSION MEMBERPFP:55501
Removal and InstallationEES001HI

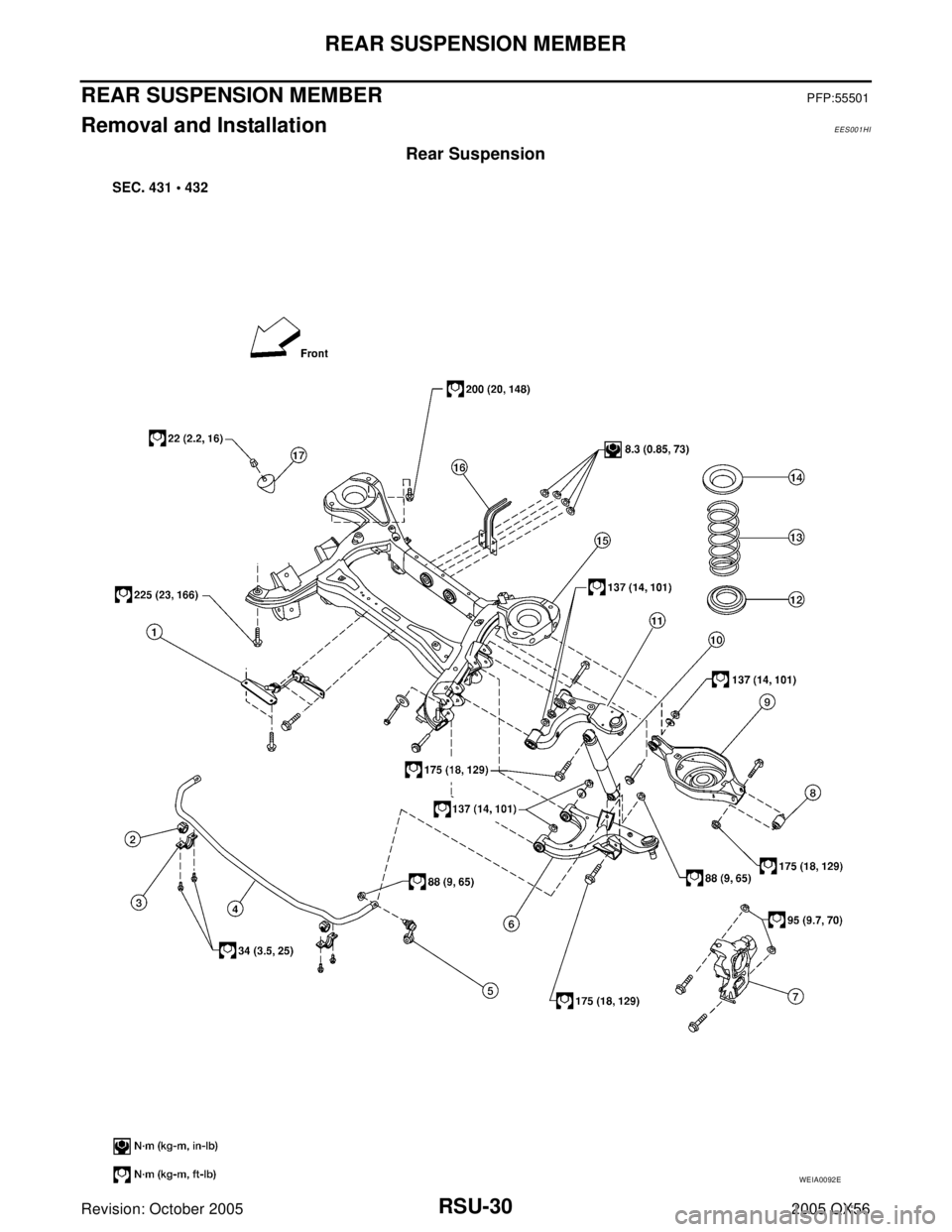

Rear Suspension
WEIA0092E

Page 2906 of 3419

INFINITI QX4 2005 Factory Service Manual REAR SUSPENSION MEMBER
RSU-31
C
D
F
G
H
I
J
K
L
MA
B
RSU
Revision: October 20052005 QX56

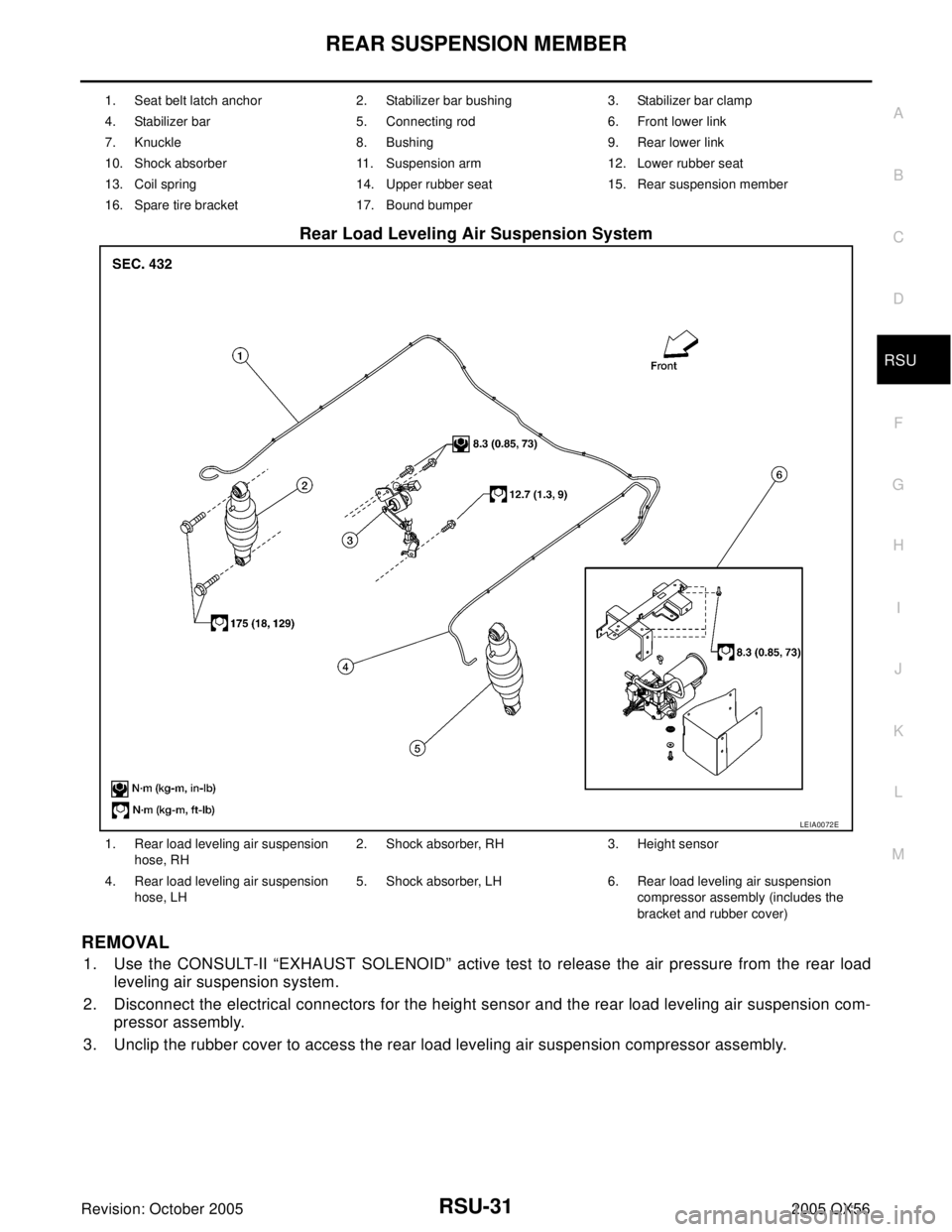

Rear Load Leveling Air Suspension System
REMOVAL
1. Use the CONSULT-II “EXHAUST SOLENOID” active test to re

Page 2907 of 3419

INFINITI QX4 2005 Factory Service Manual RSU-32
REAR SUSPENSION MEMBER
Revision: October 20052005 QX56
4. Disconnect the rear load leveling air suspension hoses at the
rear load leveling air suspension compressor assembly.
To disconnect the

RSU-32
REAR SUSPENSION MEMBER
Revision: October 20052005 QX56
4. Disconnect the rear load leveling air suspension hoses at the
rear load leveling air suspension compressor assembly.
To disconnect the hoses, push in on the lock ring using a suit-
able tool and pull the hose out.
5. Remove both of the rear wheel and tire assemblies using power
tool.
6. Remove the brake caliper without disconnecting the brake
hoses, using power tool. Reposition the brake caliper out of the
way using a suitable wire. Refer to BR-27, "
Removal and Instal-
lation of Brake Caliper and Disc Rotor" .
CAUTION:
Do not crimp or stretch the brake hose when repositioning the brake caliper out of the way.
Do not press brake pedal while the brake caliper is removed.
7. Remove the spare tire.
8. Disconnect the two rear ABS sensor electrical connectors.
9. Remove the two rear drive shafts. Refer to RAX-7, "
Removal and Installation" .
10. Remove the rear final drive. Refer to RFD-10, "
REAR FINAL DRIVE ASSEMBLY" .
11. Remove the EVAP canister bolt from the top of the rear suspension member.
12. Disconnect the parking brake cables from the brackets on the rear suspension member.
13. Set a suitable jack to support each of the rear lower links and the
coil spring tension.
14. Remove both of the rear lower link outer bolts and lower the jack to remove the rear coil springs.
15. Remove the two bolts to disconnect the seat belt latch anchor
from the rear suspension member.
16. Disconnect both of the connecting rods from the rear stabilizer
bar.
17. Set a suitable jack under the rear suspension member.
18. Remove the six rear suspension member bolts.
19. Slowly lower the jack to remove the rear suspension member,
suspension arm, front and rear lower links and stabilizer bar as
an assembly.
20. If necessary, remove the suspension arm, spare tire bracket,
height sensor, rear load leveling air suspension hoses, stabilizer
bar, knuckle, and front and rear lower links from the rear suspension member.
INSPECTION AFTER REMOVAL
Check the rear suspension member for deformation, cracks, and other damage and replace if necessary.
LEIA0074E
LEIA0077E
LEIA0075E

Page 2908 of 3419

INFINITI QX4 2005 Factory Service Manual REAR SUSPENSION MEMBER
RSU-33
C
D
F
G
H
I
J
K
L
MA
B
RSU
Revision: October 20052005 QX56
INSTALLATION
Installation is in the reverse order of removal.
When raising the rear suspension member assembly

Page 2909 of 3419

INFINITI QX4 2005 Factory Service Manual RSU-34
SHOCK ABSORBER
Revision: October 20052005 QX56
SHOCK ABSORBERPFP:56210
Removal and Installation EES001HJ
REMOVAL
1. Remove the wheel and tire assembly using power tool. Refer to WT-7, "Rotation

Page 2910 of 3419

INFINITI QX4 2005 Factory Service Manual SUSPENSION ARM
RSU-35
C
D
F
G
H
I
J
K
L
MA
B
RSU
Revision: October 20052005 QX56
SUSPENSION ARMPFP:55501
Removal and Installation EES001HK
REMOVAL
1. Remove the rear suspension member assembly using p

Page 2911 of 3419

INFINITI QX4 2005 Factory Service Manual RSU-36
SUSPENSION ARM
Revision: October 20052005 QX56
Check the ball joint. Replace the suspension arm assembly if
any of the following conditions exist:
–Ball stud is worn.
–Joint is hard to swi

Page 2912 of 3419

INFINITI QX4 2005 Factory Service Manual FRONT LOWER LINK
RSU-37
C
D
F
G
H
I
J
K
L
MA
B
RSU
Revision: October 20052005 QX56
FRONT LOWER LINKPFP:55110
Removal and InstallationEES001HL
REMOVAL
1. Remove the wheel and tire assembly using power

Load next 8 pages
