Page 1577 of 3419

EC-386Revision: October 2005
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
2005 QX56
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATERPFP:22693
DescriptionUBS00H71
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F sensor 1 element at the specified range.
CONSULT-II Reference Value in Data Monitor ModeUBS00H72
Specification data are reference values.
On Board Diagnosis LogicUBS00H73
DTC Confirmation ProcedureUBS00H74
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and let it idle for at least 10 seconds.
3. If 1st trip DTC is detected, go to EC-390, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Sensor Input Signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)Engine speed
Air fuel ratio (A/F) sensor 1
heater controlAir fuel ratio (A/F) sensor 1
heater
Mass air flow sensor Amount of intake air
MONITOR ITEM CONDITION SPECIFICATION
A/F S1 HTR (B1)
A/F S1 HTR (B2)
Engine: After warming up, idle the engine 0 - 100%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1031
1031
(Bank 1)Air fuel ratio (A/F) sensor
1 heater control circuit
lowThe current amperage in the heated air fuel ratio
(A/F) sensor 1 heater circuit is out of the normal
range.
(An excessively low voltage signal is sent to ECM
through the heated air fuel ratio (A/F) sensor 1
heater.)
Harness or connectors
(The A/F sensor 1 heater circuit is
open or shorted.)
A/F sensor 1 heater P1051
1051
(Bank 2)
P1032
1032
(Bank 1)Air fuel ratio (A/F) sensor
1 heater control circuit
highThe current amperage in the heated air fuel ratio
(A/F) sensor 1 heater circuit is out of the normal
range.
(An excessively high voltage signal is sent to ECM
through the heated air fuel ratio (A/F) sensor 1
heater.)
Harness or connectors
(The A/F sensor 1 heater circuit is
shorted.)
A/F sensor 1 heater P1052
1052
(Bank 2)
SEF 0 58 Y
Page 1578 of 3419
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
EC-387
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56

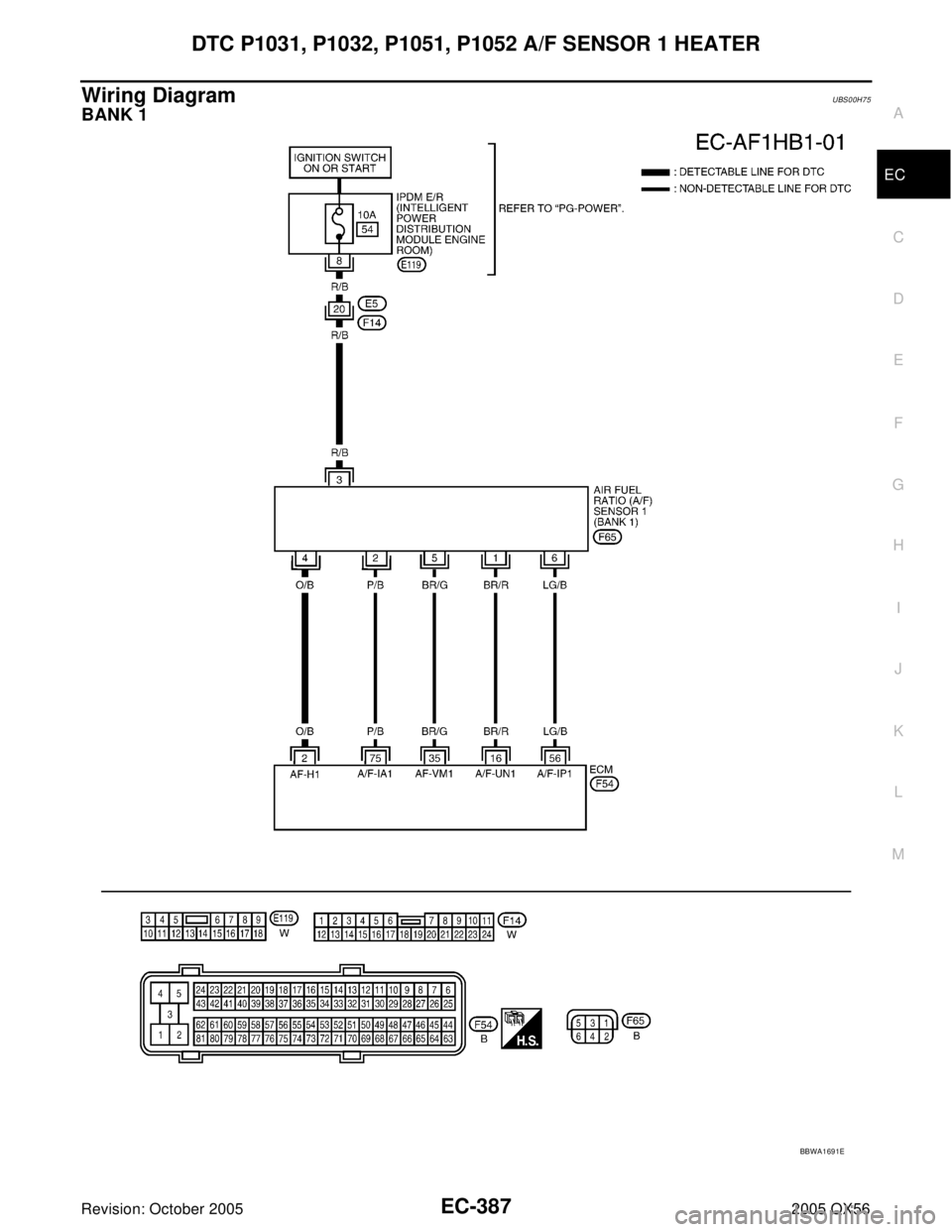

Wiring DiagramUBS00H75
BANK 1
BBWA1691E
Page 1579 of 3419
EC-388Revision: October 2005
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
2005 QX56
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
2O/BA/F sensor 1 heater
(bank 1)[Engine is running]
Warm-up condition
Idle speedApproximately 5V
PBIB1584E
Page 1580 of 3419
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
EC-389
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56

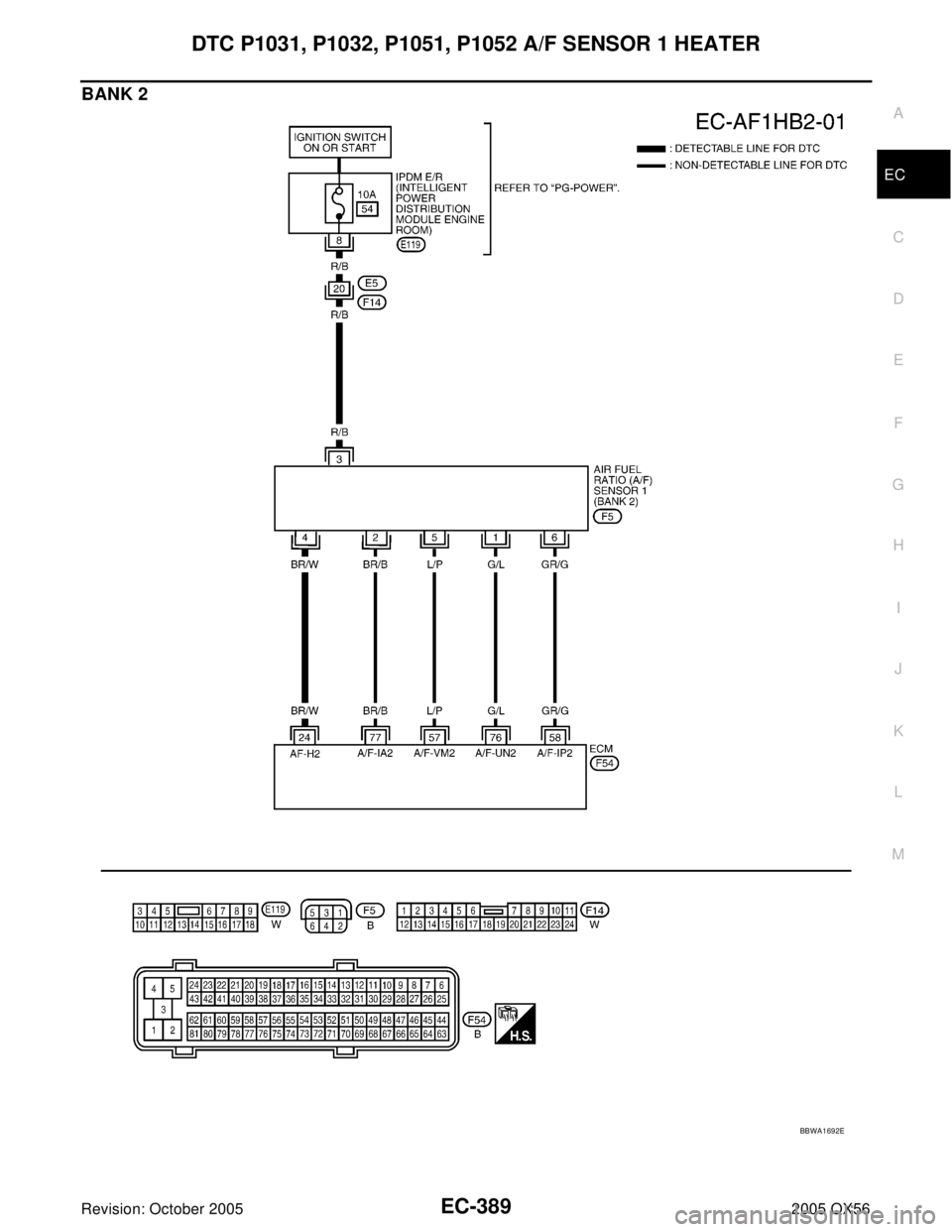

BANK 2
BBWA1692E
Page 1581 of 3419
EC-390Revision: October 2005
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
2005 QX56
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureUBS00H76
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-162, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
24 BR/WA/F sensor 1 heater
(bank 2)[Engine is running]
Warm-up condition
Idle speedApproximately 5V
PBIB1584E
BBIA0354E
Page 1582 of 3419

DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
EC-391
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
2. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect air fuel ratio (A/F) sensor 1 harness connector.
2. Turn ignition switch ON.
3. Check voltage between A/F sensor 1 terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E5, F14
IPDM E/R harness connector E119
10A fuse
Harness for open or short between A/F sensor 1 and fuse
>> Repair or replace harness or connectors.
4. CHECK A/F SENSOR 1 HEATER OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 2 (bank 1) or 24 (bank 2) and A/F sensor 1 terminal 4.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK A/F SENSOR 1 HEATER
Refer to EC-392, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 7.Voltage: Battery voltage
BBIA0376E
PBIB1683E
Continuity should exist.
Page 1583 of 3419

EC-392Revision: October 2005
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
2005 QX56
6. CHECK INTERMITTENT INCIDENT
Perform EC-156, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace.
7. REPLACE AIR FUEL RATIO (A/F) SENSOR 1
Replace air fuel ratio (A/F) sensor 1.
CAUTION:
Discard any air fuel ratio (A/F) sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.
Before installing new air fuel ratio (A/F) sensor, clean exhaust system threads (using Oxygen Sen-
sor Thread Cleaner tool J-43897-18 or J-43897-12) and approved anti-seize lubricant.
>>INSPECTION END
Component InspectionUBS00H77
AIR FUEL RATIO (A/F) SENSOR 1 HEATER
Check resistance between terminals 3 and 4.
Check continuity between terminals 3 and 1, 2, 5, 6, terminals 4 and
1, 2, 5, 6.
If NG, replace the A/F sensor 1.
CAUTION:
Discard any A/F sensor which has been dropped from a
height of more than 0.5 m (19.7 in) onto a hard surface such
as a concrete floor; use a new one.
Before installing new A/F sensor, clean exhaust system
threads using Heated Oxygen Sensor Thread Cleaner tool
J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Removal and Installation UBS00H78
AIR FUEL RATIO (A/F) SENSOR 1
Refer to EM-19, "EXHAUST MANIFOLD AND THREE WAY CATALYST" . Resistance: 2.3 - 4.3Ω at 25°C (77°F)
Continuity should not exist.
PBIB1684E
Page 1584 of 3419

DTC P1065 ECM POWER SUPPLY
EC-393
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
DTC P1065 ECM POWER SUPPLYPFP:23710
Component DescriptionUBS00H79
Battery voltage is supplied to the ECM even when the ignition switch
is turned OFF for the ECM memory function of the DTC memory, the
air-fuel ratio feedback compensation value memory, the idle air vol-
ume learning value memory, etc.
On Board Diagnosis LogicUBS00H7A
DTC Confirmation ProcedureUBS00H7B
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn
ON.
5. Repeat steps 3 and 4 for 4 times.
6. If 1st trip DTC is detected, go to EC-395, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB11 64 E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1065
1065ECM power supply circuitECM back-up RAM system does not function
properly.
Harness or connectors
[ECM power supply (back-up) circuit is
open or shorted.]
ECM
