INFINITI QX4 2005 Factory Service Manual SC-16 STARTING SYSTEM Revision: October 20052005 QX56 MINIMUM SPECIFICATION OF CRANKING VOLTAGE REFERENCING COOLANT TEMPERA- TURE Removal and InstallationEKS00B7E REMOVAL 1. Remove the intake manifold

Page 2954 of 3419

INFINITI QX4 2005 Factory Service Manual CHARGING SYSTEM SC-17 C D E F G H I J L MA B SC Revision: October 20052005 QX56 CHARGING SYSTEMPFP:23100 System DescriptionEKS00B7H The generator provides DC voltage to operate the vehicles electrica

Page 2955 of 3419

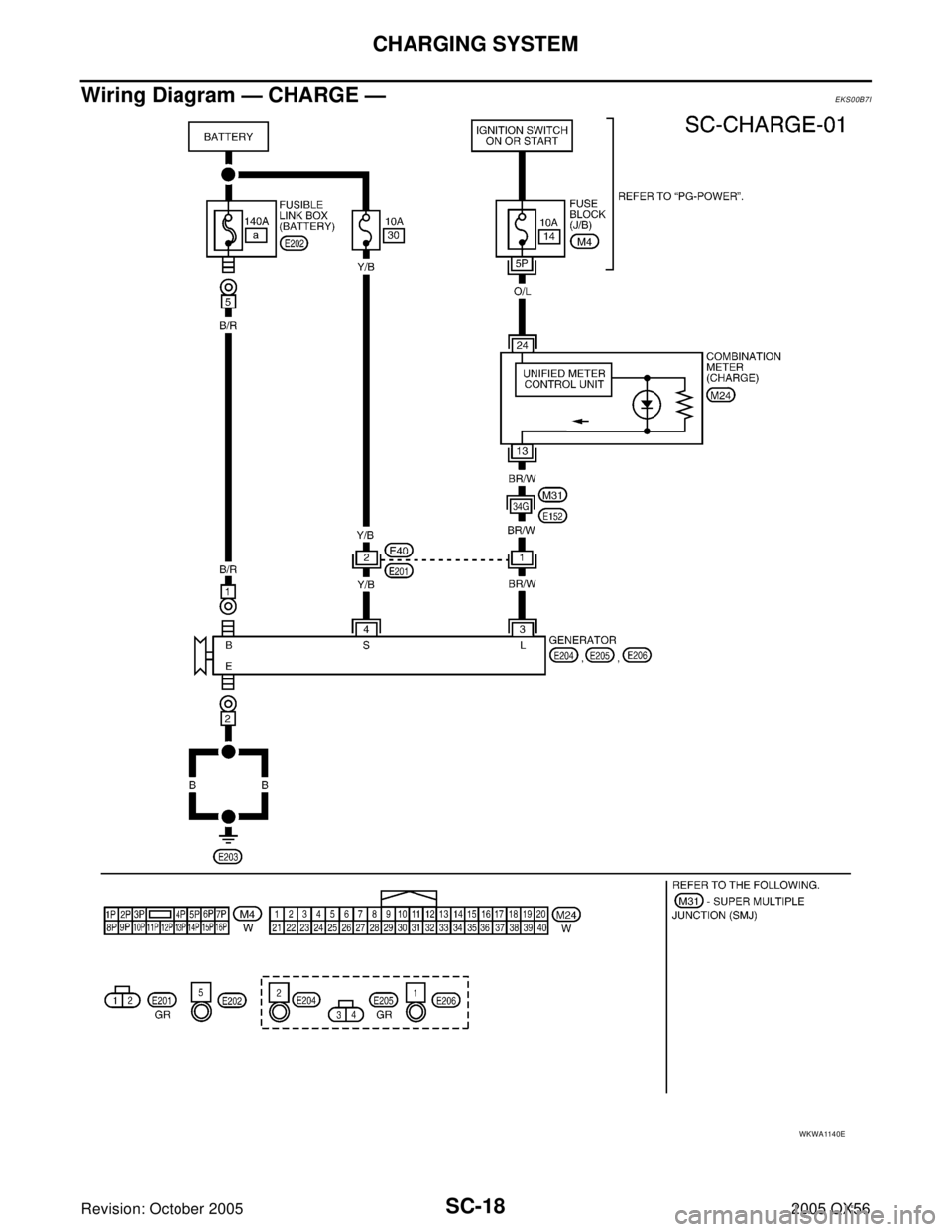

INFINITI QX4 2005 Factory Service Manual SC-18 CHARGING SYSTEM Revision: October 20052005 QX56 Wiring Diagram — CHARGE —EKS00B7I WKWA1140E

Page 2956 of 3419

INFINITI QX4 2005 Factory Service Manual CHARGING SYSTEM SC-19 C D E F G H I J L MA B SC Revision: October 20052005 QX56 Trouble Diagnoses with Battery/Starting/Charging System TesterEKS00B7J NOTE: To ensure a complete and thorough diagnosis

Page 2957 of 3419

INFINITI QX4 2005 Factory Service Manual SC-20 CHARGING SYSTEM Revision: October 20052005 QX56 10. Raise and hold the engine speed at 1,500 to 2,000 rpm for about 5 seconds, then return the engine to idle. Once the increase in engine rpm is

Page 2958 of 3419

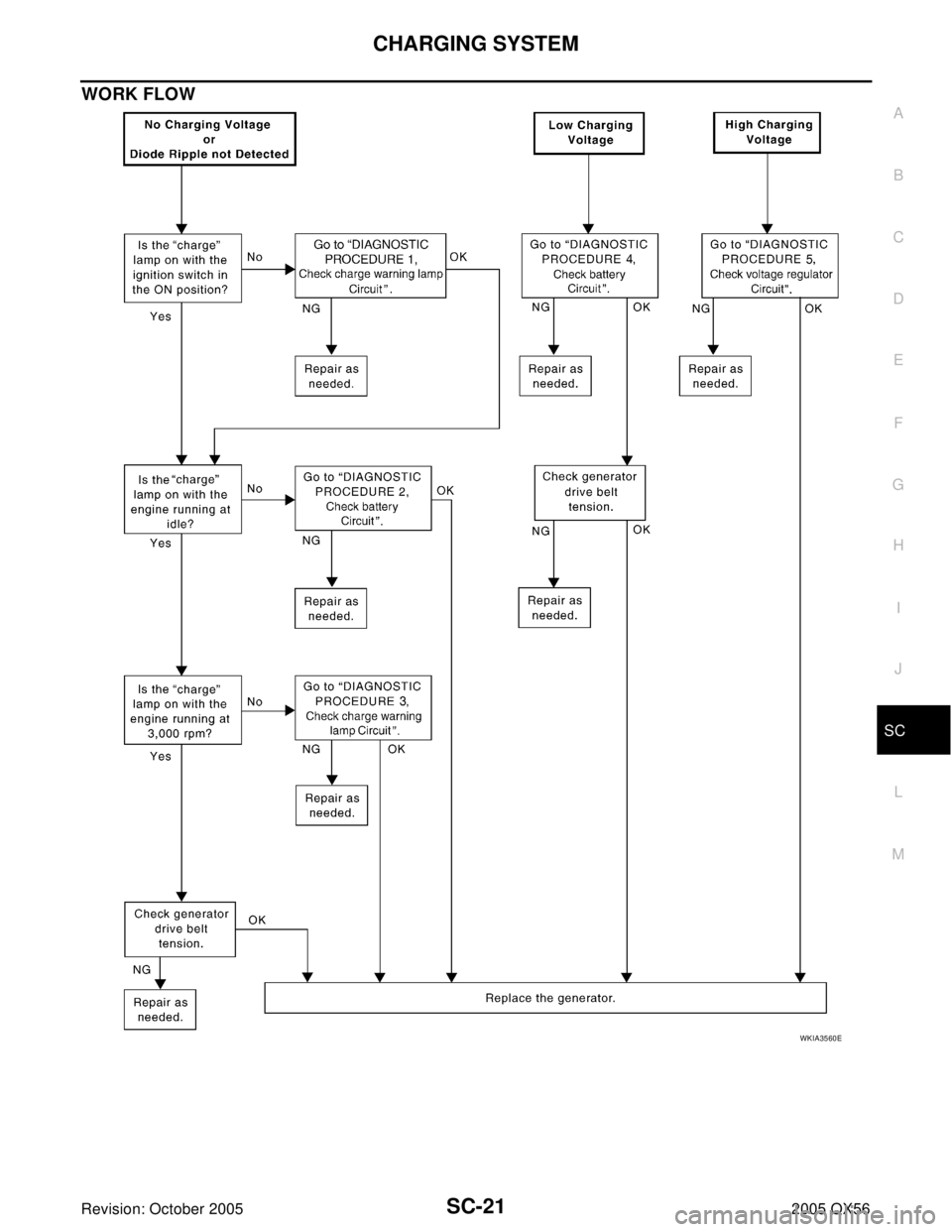

INFINITI QX4 2005 Factory Service Manual CHARGING SYSTEM SC-21 C D E F G H I J L MA B SC Revision: October 20052005 QX56 WORK FLOW WKIA3560E

Page 2959 of 3419

INFINITI QX4 2005 Factory Service Manual SC-22 CHARGING SYSTEM Revision: October 20052005 QX56 DIAGNOSTIC PROCEDURE 1 Check Charge Warning Lamp Circuit 1. CHECK CHARGE WARNING LAMP CIRCUIT CONNECTION 1. Turn the ignition switch OFF. 2. Check

Page 2960 of 3419

INFINITI QX4 2005 Factory Service Manual CHARGING SYSTEM SC-23 C D E F G H I J L MA B SC Revision: October 20052005 QX56 DIAGNOSTIC PROCEDURE 2 Check Battery Circuit 1. CHECK BATTERY CIRCUIT CONNECTION 1. Turn the ignition switch OFF. 2. Che
