Page 3369 of 3419
WW-10
FRONT WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56

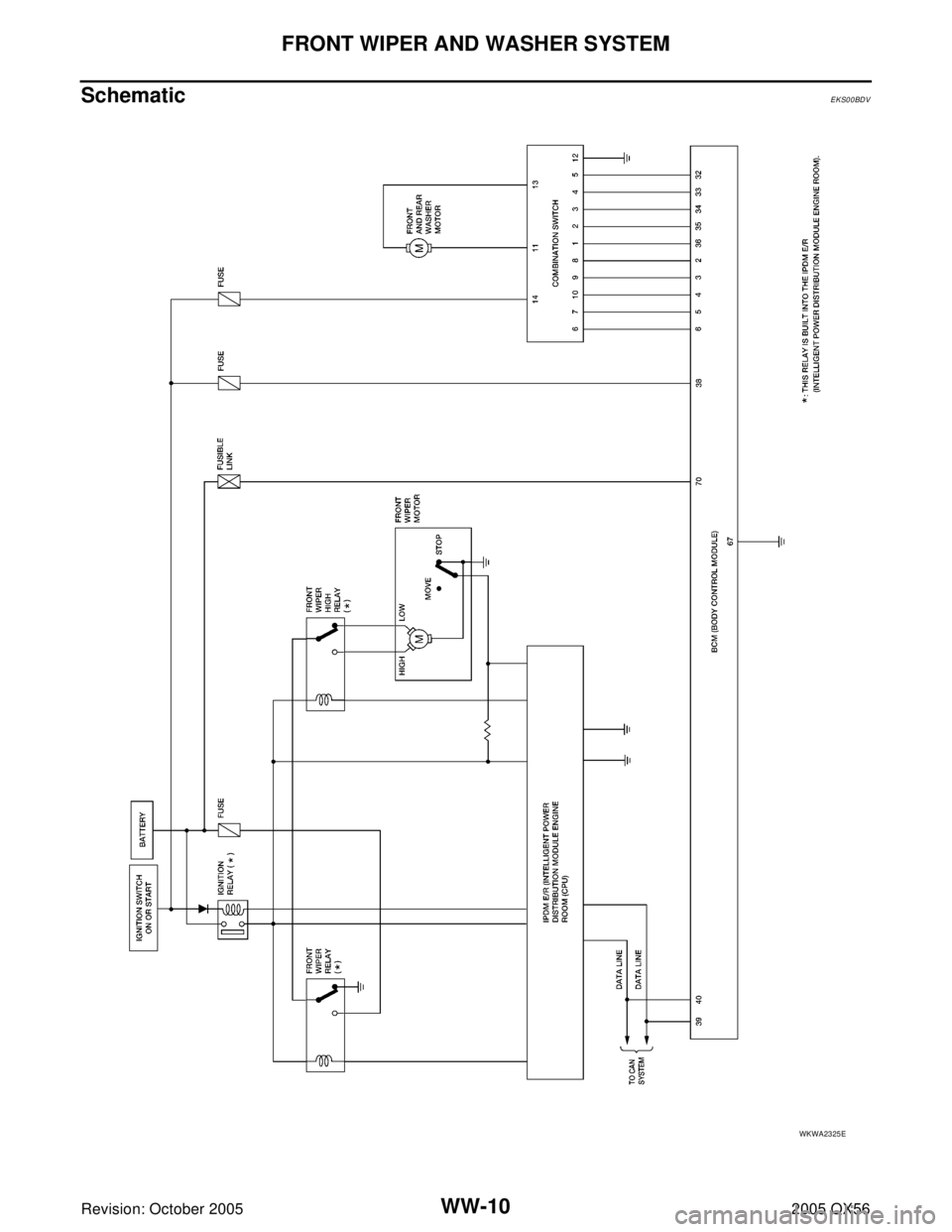

SchematicEKS00BDV
WKWA2325E
Page 3370 of 3419
FRONT WIPER AND WASHER SYSTEM
WW-11
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56

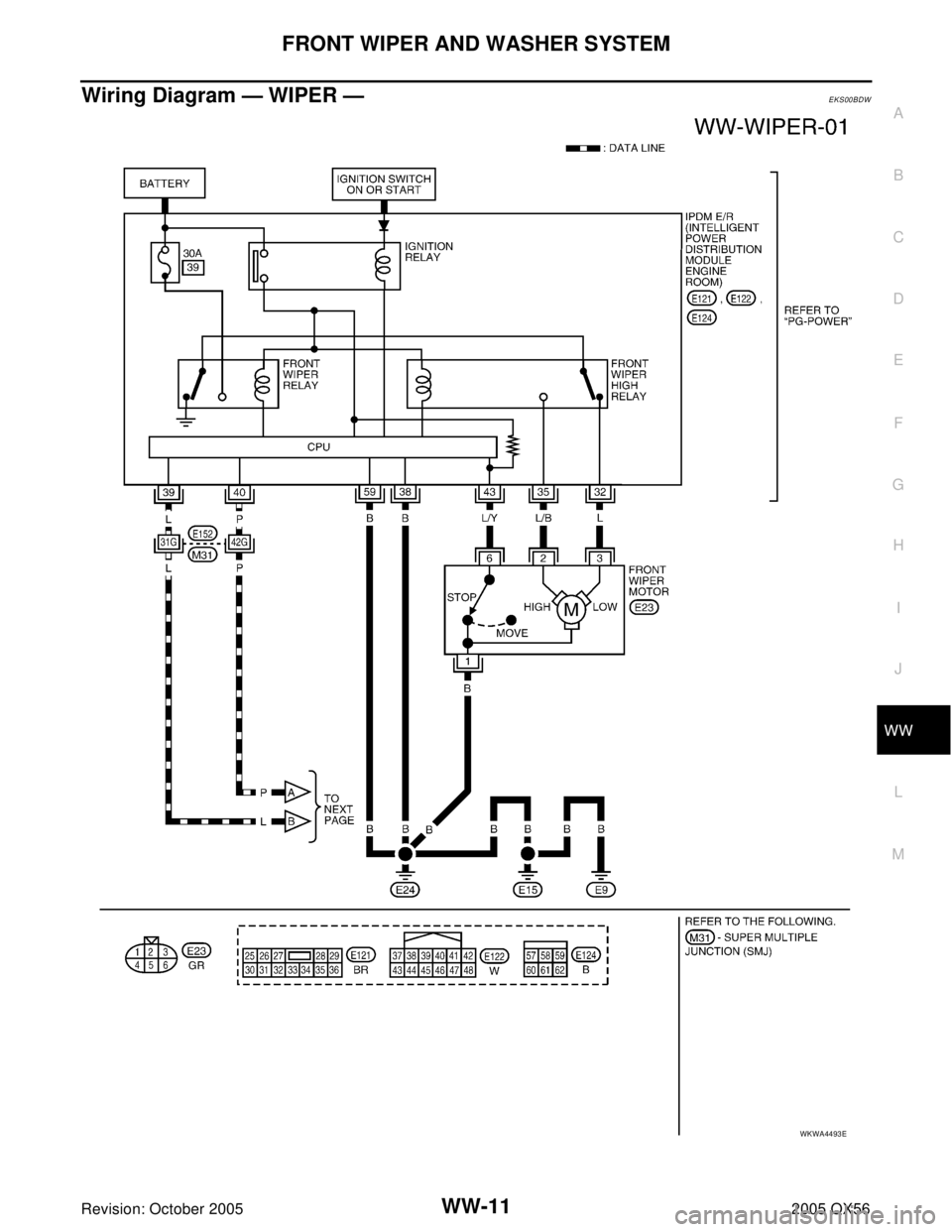

Wiring Diagram — WIPER —EKS00BDW
WKWA4493E
Page 3371 of 3419
WW-12
FRONT WIPER AND WASHER SYSTEM

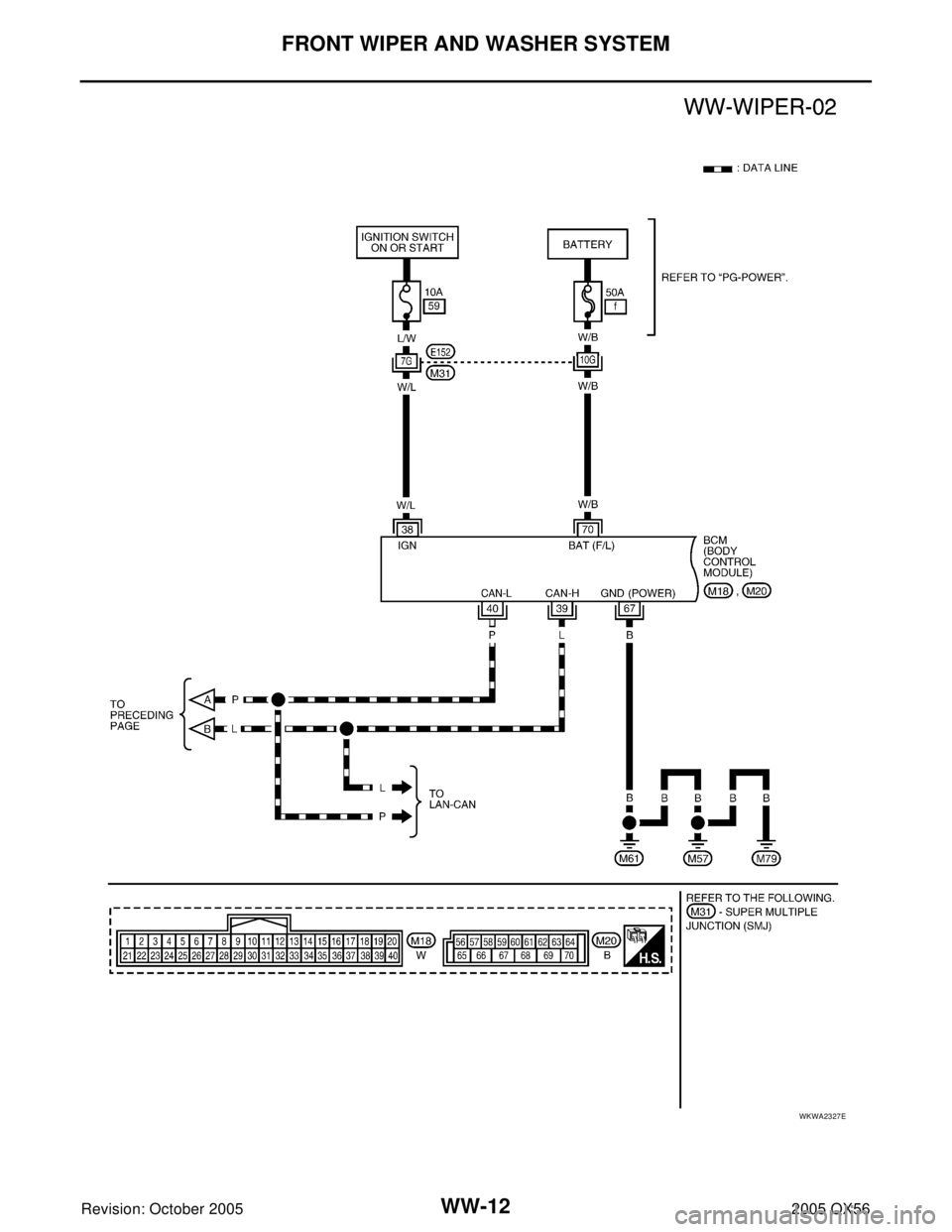

Revision: October 20052005 QX56
WKWA2327E
Page 3372 of 3419
FRONT WIPER AND WASHER SYSTEM
WW-13
C
D
E
F
G
H
I
J
L
MA
B
WW

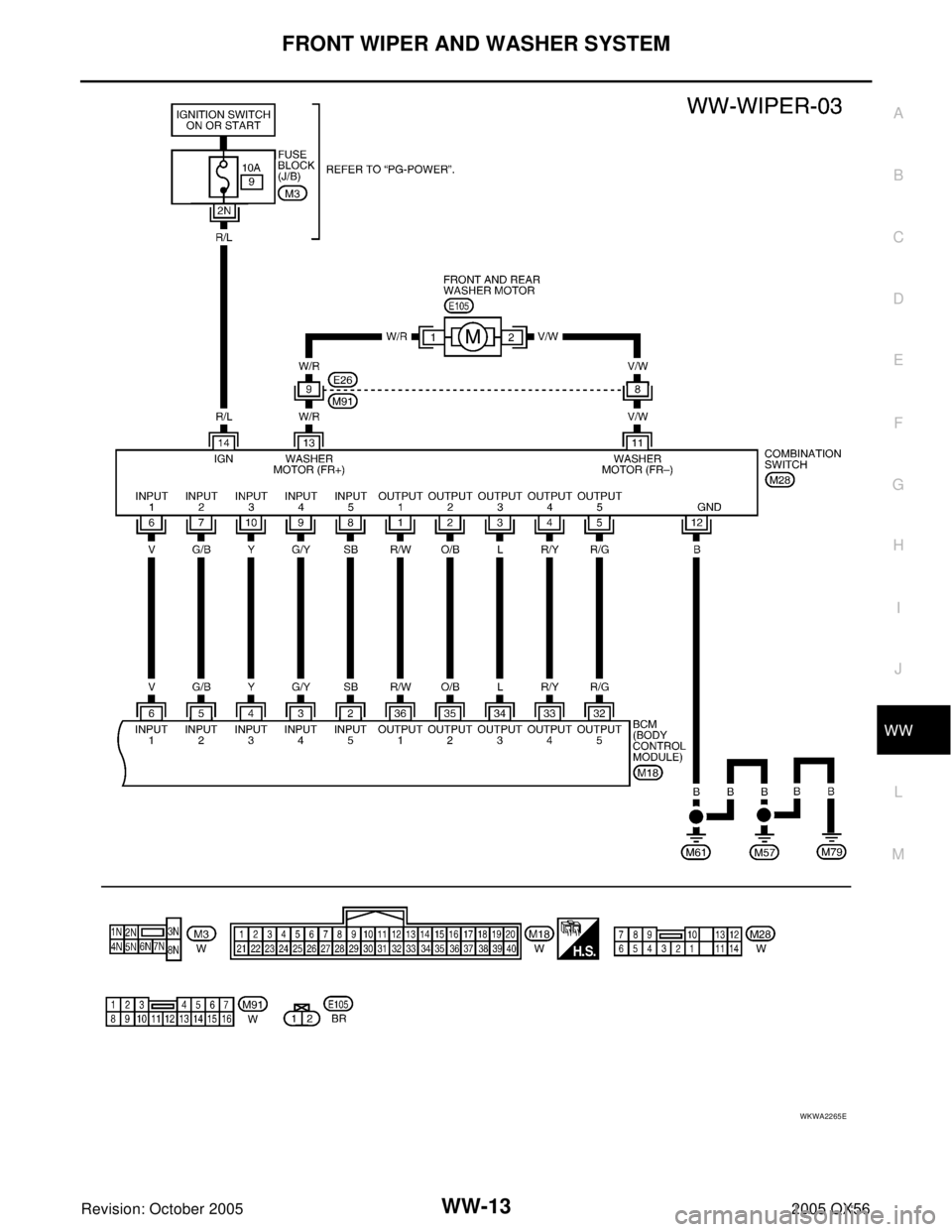

Revision: October 20052005 QX56
WKWA2265E
Page 3373 of 3419

WW-14
FRONT WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56
Terminals and Reference Values for BCMEKS00BDX
Te r m i -
nal No.Wire
colorSignal nameMeasuring condition
Reference Value (V)
(Approx.) Ignition
switchOperation or condition
2 SB Combination switch input 5 ON
Light switch and wiper switch OFF
Wiper dial position 4
3 G/Y Combination switch input 4 ON
Light switch and wiper switch OFF
Wiper dial position 4
4 Y Combination switch input 3 ON
Light switch and wiper switch OFF
Wiper dial position 4
5 G/B Combination switch input 2
ON
Light switch and wiper switch OFF
Wiper dial position 4
6 V Combination switch input 1
32 R/G Combination switch output 5 ON
Light switch and wiper switch OFF
Wiper dial position 4
33 R/Y Combination switch output 4 ON
Light switch and wiper switch OFF
Wiper dial position 4
34 L Combination switch output 3 ON
Light switch and wiper switch OFF
Wiper dial position 4
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
Page 3374 of 3419

FRONT WIPER AND WASHER SYSTEM
WW-15
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
Terminals and Reference Values for IPDM E/R EKS00BDY
Work FlowEKS00BDZ
1. Confirm the trouble symptom or customer complaint.
2. Understand the system description, refer to WW-4, "
System Description" .
3. Perform preliminary inspection, refer to WW-15, "
Preliminary Inspection" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does wiper function operate normally? If it operates normally, GO TO 6. If not, GO TO 4.
6. Inspection End.
Preliminary InspectionEKS00BE0
INSPECTION FOR POWER SUPPLY AND GROUND CIRCUIT
Inspection procedure
1. CHECK FUSE
Check if wiper or washer fuse is blown.
35 O/B Combination switch output 2
ON
Light switch and wiper switch OFF
Wiper dial position 4
36 R/W Combination switch output 1
38 W/L Ignition switch (ON) ON — Battery
39 L CAN-H ON — —
40 P CAN-L ON — —
67 B Ground — — 0
70 W/B Battery power OFF — Battery Te r m i -
nal No.Wire
colorSignal nameMeasuring condition
Reference Value (V)
(Approx.) Ignition
switchOperation or condition
SKIA5292E
Te r m i n a l
No.Wire
colorSignal nameMeasuring condition
Reference value (V)
(Approx.) Ignition
switchOperation or condition
32 L Low speed signal ON Wiper switchOFF 0
LO Battery
35 L/B High speed signal ON Wiper switchOFF 0
HI Battery
38 B Ground — — 0
39 L CAN-H ON — —
40 P CAN-L ON — —
43 L/Y Wiper auto stop signal ONWiper operating Battery
Wiper stopped 0
59 B Ground — — 0
Unit Power source Fuse No.
Front and rear washer motor Ignition switch ON or START 9
Front wiper relay Battery 39
BCMIgnition switch ON or START 59
Battery f
Page 3375 of 3419
WW-16
FRONT WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of problem before installing new fuse. Refer to PG-4,
"POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connectors.
2. Check voltage between BCM harness connector terminals and
ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open or short between BCM and fuse.
3. GROUND CIRCUIT INSPECTION (BCM)
Check for continuity between BCM terminal and ground.
OK or NG
OK >> Inspection End.
NG >> Repair/replace BCM ground circuit.
Terminals Ignition switch position
(+)
(–) OFF ON
ConnectorTe r m i n a l
(Wire color)
M18 38 (W/L)
Ground0V
Battery voltage
M20 70 (W/B) Battery voltage
WKIA2089E
Terminals
Ignition switch
conditionContinuity
ConnectorTe r m i n a l
(wire color)
M20 67 (B) Ground OFF Yes
WKIA2090E
Page 3376 of 3419

FRONT WIPER AND WASHER SYSTEM
WW-17
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
CONSULT-II Function (BCM)EKS00BE1
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn the
ignition switch ON.
2. Touch "START (NISSAN BASED VHCL)".
3. Touch "BCM" on the "SELECT SYSTEM" screen.
If "BCM" is not indicated, go to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
BCM diagnostic
test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
BCIA0030E
