ENGINE OIL
2005 QX56
5. Install Tools.
6. Start the engine and warm it up to normal operating temperature.
7. Check the engine oil pressure with engine running under no-load.
Engine oil pressure [Engine oil temperature at 80°C (175°F)]
Unit: kPa (kg/cm2
, psi)
CAUTION:
If the difference is extreme, check the oil passages and oil pump for leaks and blockages.
8. After the inspections, install oil pressure sensor as follows:
a. Remove old liquid gasket adhering to oil pressure sensor and engine.
b. Apply liquid gasket and tighten oil pressure sensor to the specification.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-45, "
Recommended Chemical Prod-
ucts and Sealants" .
c. After warming up engine, make sure there is no leakage of engine oil with engine running.
Changing Engine OilEBS00LMT
WAR NIN G:
Be careful not to burn yourself, as the engine oil is hot.
Prolonged and repeated contact with used engine oil may
cause skin cancer; try to avoid direct skin contact with
used engine oil. If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as possible.
1. Remove engine front undercover using power tool.
2. Warm up engine, and check for oil leakage from engine compo-
nents. Refer to LU-7, "
OIL LEAKAGE" .
3. Stop engine and wait for 10 minutes.
4. Loosen oil filler cap, then remove drain plug.
5. Drain engine oil.
6. Install drain plug with new washer.
CAUTION:
Be sure to clean drain plug and install with new washer.
7. Refill with new engine oil. Refer to MA-11, "

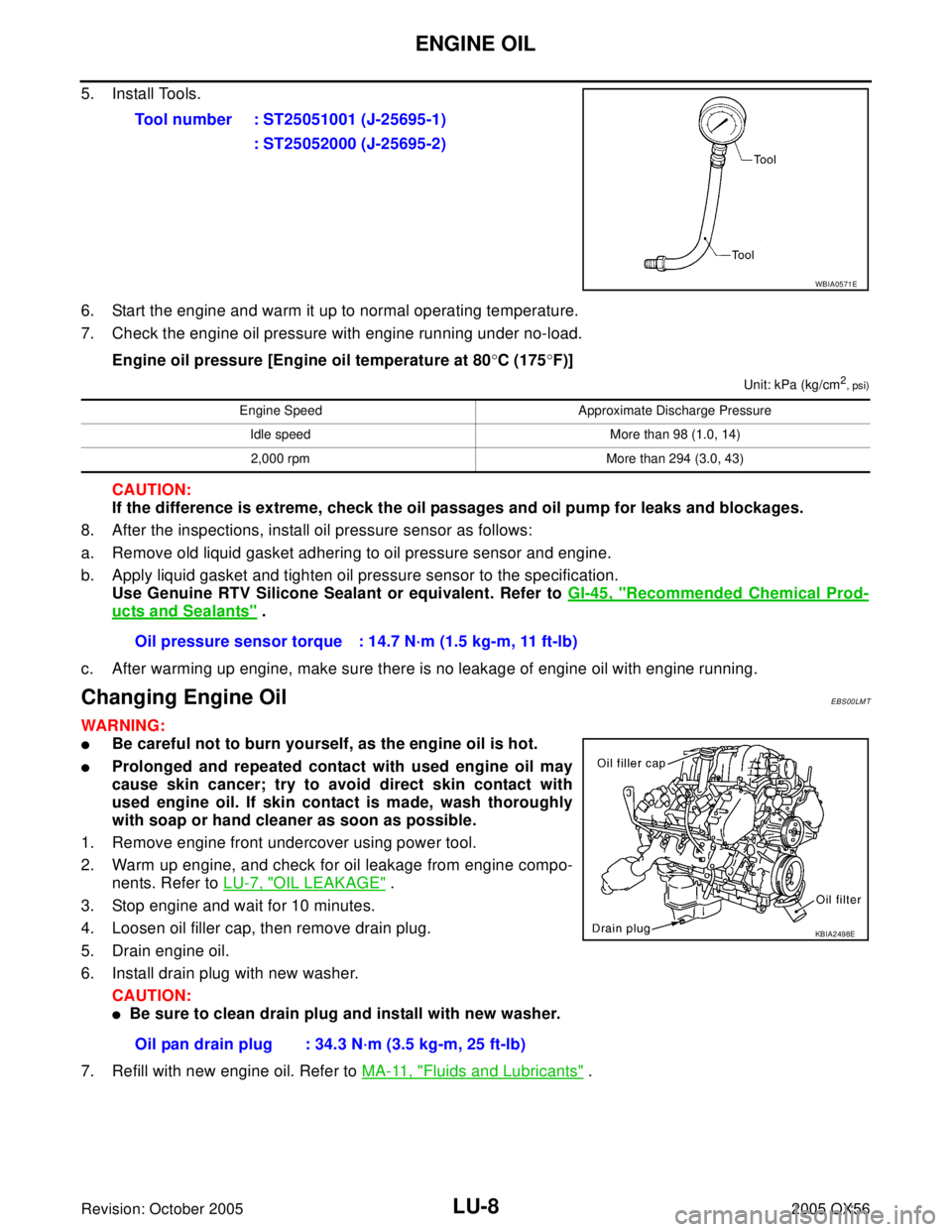

Fluids and Lubricants" . Tool number : ST25051001 (J-25695-1)
: ST25052000 (J-25695-2)
WBIA0571E
Engine Speed Approximate Discharge Pressure
Idle speed More than 98 (1.0, 14)
2,000 rpm More than 294 (3.0, 43)
Oil pressure sensor torque : 14.7 N·m (1.5 kg-m, 11 ft-lb)
Oil pan drain plug : 34.3 N·m (3.5 kg-m, 25 ft-lb)
KBIA2498E
Page 2626 of 3419
ENGINE OIL
LU-9
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: October 20052005 QX56
Engine oil capacity (Approximate):
Unit: (US qt, Imp qt)
CAUTION:
The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.
Always use the oil level gauge to determine when the proper amount of engine oil is in the
engine.
8. Warm up engine and check area around drain plug and oil filter for oil leakage.
9. Stop engine and wait for 10 minutes.
10. Check engine oil level. Refer to LU-7, "
OIL LEVEL" .
Drain and refillWith oil filter change 6.2 (6 1/2, 5-1/2)
Without oil filter change 5.9 (6-1/4, 5-1/4)
Dry engine (engine overhaul) 7.6 (8, 6-3/4)
Page 2627 of 3419

LU-10Revision: October 2005
OIL FILTER
2005 QX56
OIL FILTERPFP:15208
Removal and InstallationEBS00LMU
REMOVAL
1. Remove the engine front undercover using power tool.
2. Remove the oil filter using Tool.
CAUTION:
The oil filter is provided with a relief valve.
Use Genuine NISSAN oil filter or equivalent.
Be careful not to get burned when the engine and engine
oil are hot.
When removing, prepare a shop cloth to absorb any
engine oil leakage or spillage.
Do not allow engine oil to adhere to the drive belts.
Completely wipe off any engine oil that adheres to the engine and the vehicle.
INSTALLATION
1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply engine oil to the oil seal circumference of the new oil filter.
3. Screw the oil filter manually until it touches the installation sur-
face, then tighten it by 2/3 turn. Or tighten to specification.
4. Inspect the engine for oil leakage. Refer to LU-10, "
INSPEC-
TION AFTER INSTALLATION" .
5. Install the engine front undercover using power tool.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level. Refer to LU-7, "OIL LEVEL" .
2. Start the engine and check for engine oil leakage.
3. Stop the engine and wait for 10 minutes.

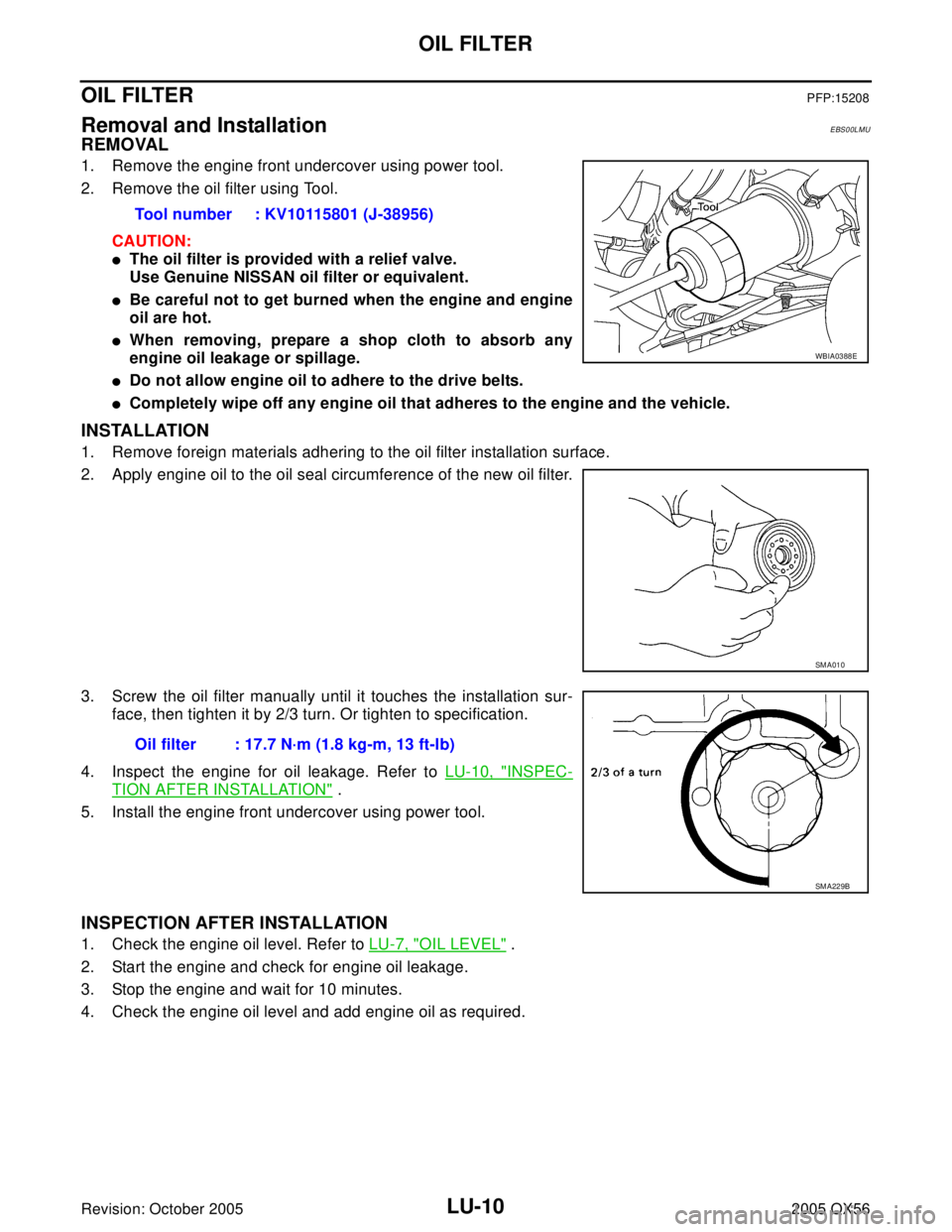

4. Check the engine oil level and add engine oil as required.Tool number : KV10115801 (J-38956)
WBIA0388E
SM A01 0
Oil filter : 17.7 N·m (1.8 kg-m, 13 ft-lb)
SM A22 9B
Page 2628 of 3419

OIL COOLER
LU-11
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: October 20052005 QX56
OIL COOLERPFP:21305
Removal and InstallationEBS00LMV
WA RN ING:
Be careful not to burn yourself, as the engine oil and engine coolant are hot.
REMOVAL
1. Remove engine front undercover using power tool.
2. Disconnect water hoses, pinching hoses near oil cooler to prevent engine coolant from spilling.
CAUTION:
Do not spill engine coolant on the drive belt.
3. Remove oil filter. Refer to LU-10, "
Removal and Installation" .
CAUTION:
Do not spill engine oil on the drive belts.
4. Remove connector bolt, and remove oil cooler.
INSPECTION AFTER REMOVAL
Oil Cooler
Check oil cooler for cracks. Check oil cooler for clogging by blowing compressed air through engine coolant
inlet. If necessary, replace oil cooler assembly.
Relief Valve
Inspect relief valve for movement, cracks and breaks by pushing the ball. If replacement is necessary, remove
valve by prying it out using a suitable tool. Install a new valve in place by tapping it.
WBIA0414E
1. Oil pan 2. Water hose 3. Water pipe
4. Water hose 5. Oil cooler bolt 6. Oil filter
7. Oil cooler 8. O-ring 9. Relief valve
10. Water hose 11. Connector pipe 12. Gasket
Page 2629 of 3419
LU-12Revision: October 2005
OIL COOLER
2005 QX56
INSTALLATION
Installation is in the reverse order of removal, paying attention to the following:
Confirm that no foreign objects are adhering to the sealing sur-
faces of the oil cooler or oil pan.
Tighten the connecting bolt after aligning the stopper on the oil
pan side with protrusion of the oil cooler.
INSPECTION AFTER INSTALLATION
1. Check levels and add engine oil and engine coolant. Refer to LU-7, "OIL LEVEL" and CO-10, "LEVEL
CHECK" .
2. Start the engine, and check for leaks of engine oil and engine coolant.
3. Stop engine and wait for 10 minutes.
4. Check engine oil level and engine coolant level again.
KBIA2500E
Page 2630 of 3419
OIL PUMP
LU-13
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: October 20052005 QX56
OIL PUMPPFP:15010
Removal and InstallationEBS00LMW
REMOVAL
1. Remove front cover. Refer to EM-35, "TIMING CHAIN" .
2. Remove the oil pump drive spacer.
3. Remove the oil pump.
INSTALLATION
Installation is in the reverse order of removal, paying attention of the following:
When inserting the oil pump drive spacer, align the crankshaft
key and the flat face of the inner rotor.
If they are not aligned, rotate the oil pump inner rotor by hand.
Make sure that the each part is aligned and tap lightly until it
reaches the end.

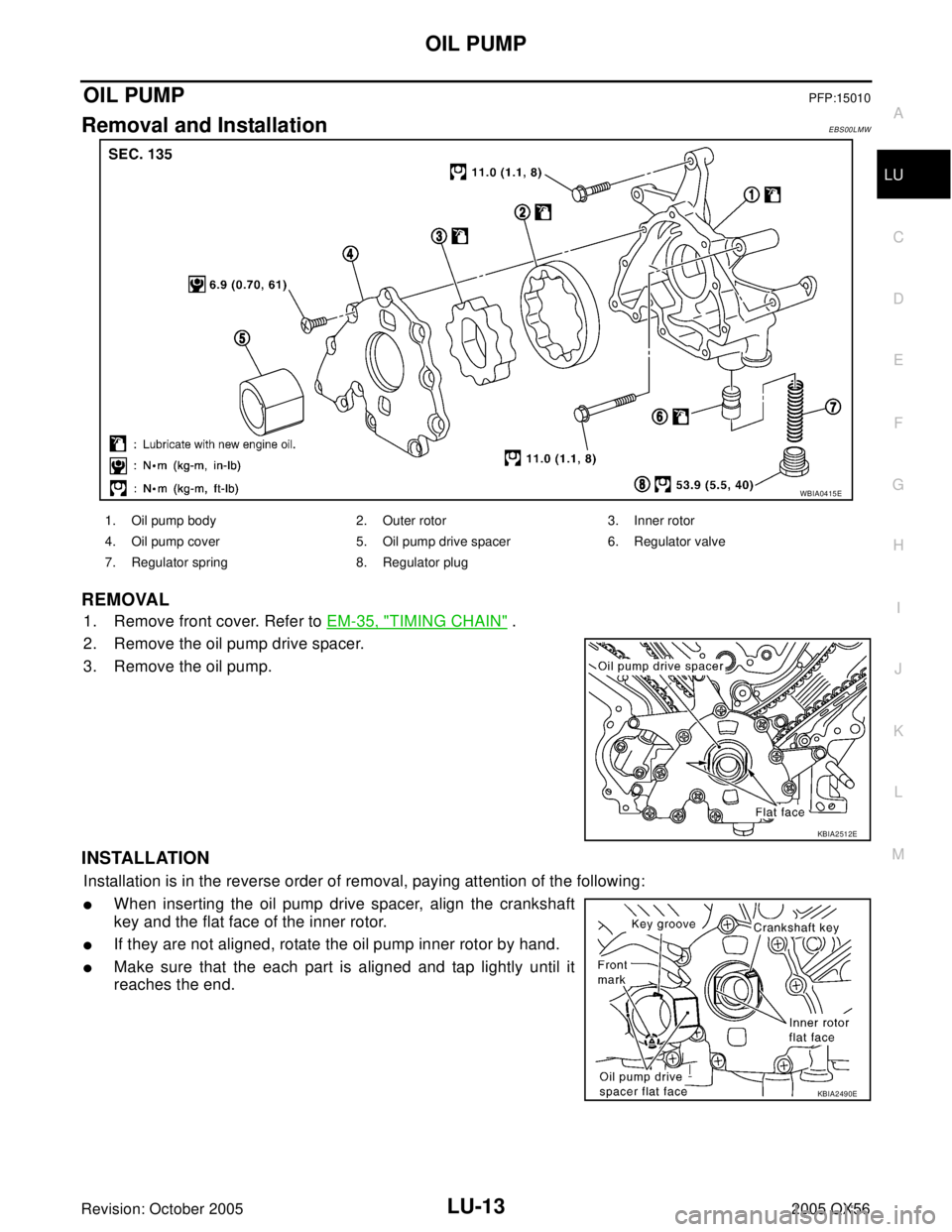

WBIA0415E
1. Oil pump body 2. Outer rotor 3. Inner rotor
4. Oil pump cover 5. Oil pump drive spacer 6. Regulator valve
7. Regulator spring 8. Regulator plug
KBIA2512E
KBIA2490E
Page 2631 of 3419

LU-14Revision: October 2005
OIL PUMP
2005 QX56
INSPECTION AFTER INSTALLATION
Start the engine, and check for leaks of engine oil.
Stop engine and wait 10 minutes.
Check level and add engine oil as required. Refer to LU-7, "ENGINE OIL" .
Disassembly and AssemblyEBS00LMX
DISASSEMBLY
1. Remove oil pump cover.
2. Remove inner rotor and outer rotor from oil pump body.
3. Remove the regulator plug, regulator spring and regulator valve.
INSPECTION AFTER DISASSEMBLY
Clearance of Oil Pump Parts
Measure radial clearance using a suitable tool.
Measure side clearance using suitable tools.
Calculate the clearance between inner rotor and oil pump body
as follows.
1. Measure the outer diameter of protruded portion of inner rotor
(position 5) using suitable tool.Body to outer rotor (position 1)
: 0.114 - 0.200 mm (0.0045 - 0.0079 in)
Inner rotor to outer rotor tip (position 2)
: Below 0.180 mm (0.0071 in)

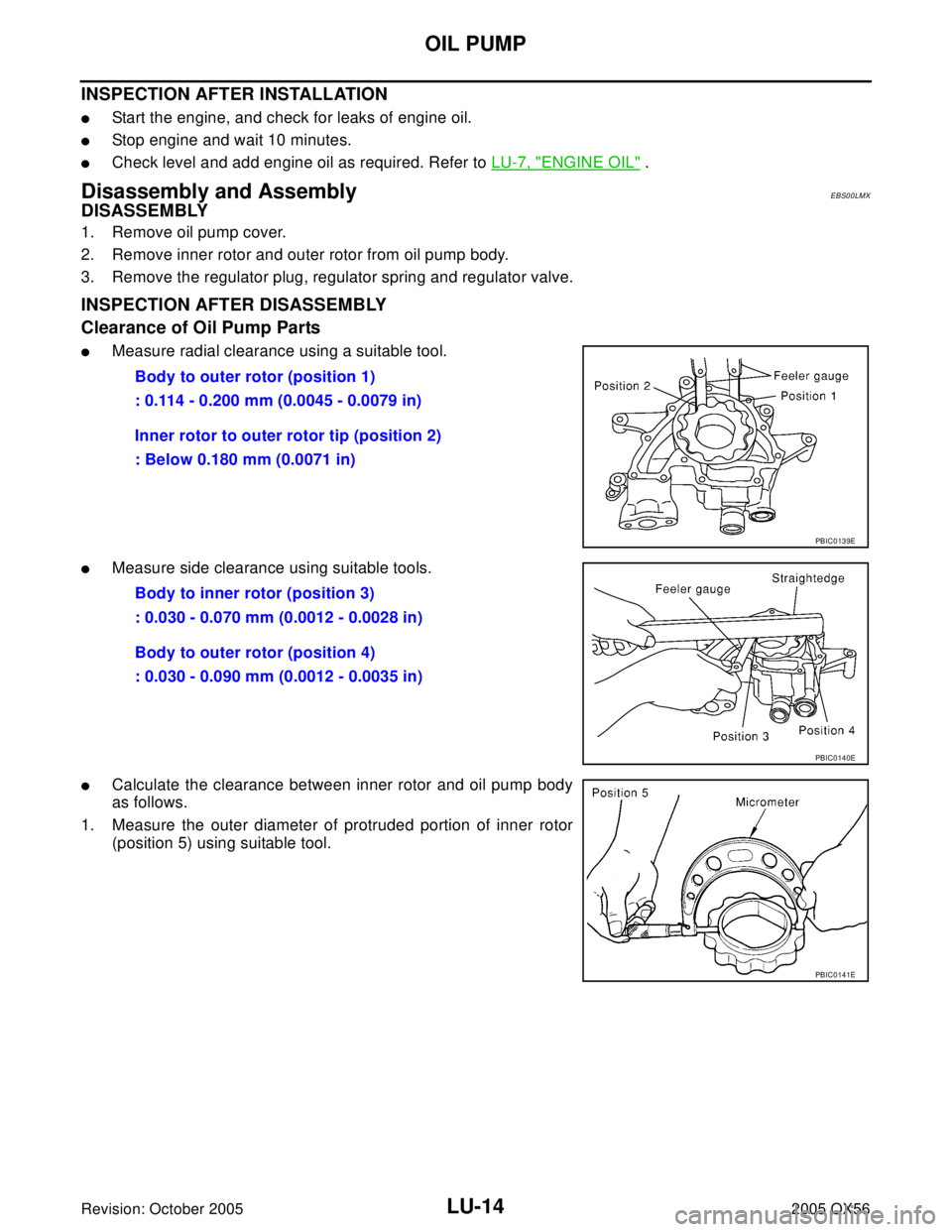

PBIC0139E
Body to inner rotor (position 3)
: 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Body to outer rotor (position 4)
: 0.030 - 0.090 mm (0.0012 - 0.0035 in)
PBIC0140E
PBIC0141E
Page 2632 of 3419
OIL PUMP
LU-15
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: October 20052005 QX56
2. Measure the inner diameter of oil pump body to brazed portion
(position 6) using suitable tool.
3. Calculate the clearance using the following formula.
(Clearance) = (Inner diameter of oil pump body) - (Outer diameter of inner rotor)
Regulator Valve Clearance
Check regulator valve to oil pump cover clearance using the following formula.
(Clearance) = D1 (Valve hole diameter) - D2 (Outer Diameter of
valve)
CAUTION:
Coat regulator valve with engine oil.
Check that it falls smoothly into the regulator valve hole by
its own weight.
ASSEMBLY
Installation is in the reverse order of removal.
NOTE:
Install the inner rotor and outer rotor with the punched marks on the
oil pump cover side.

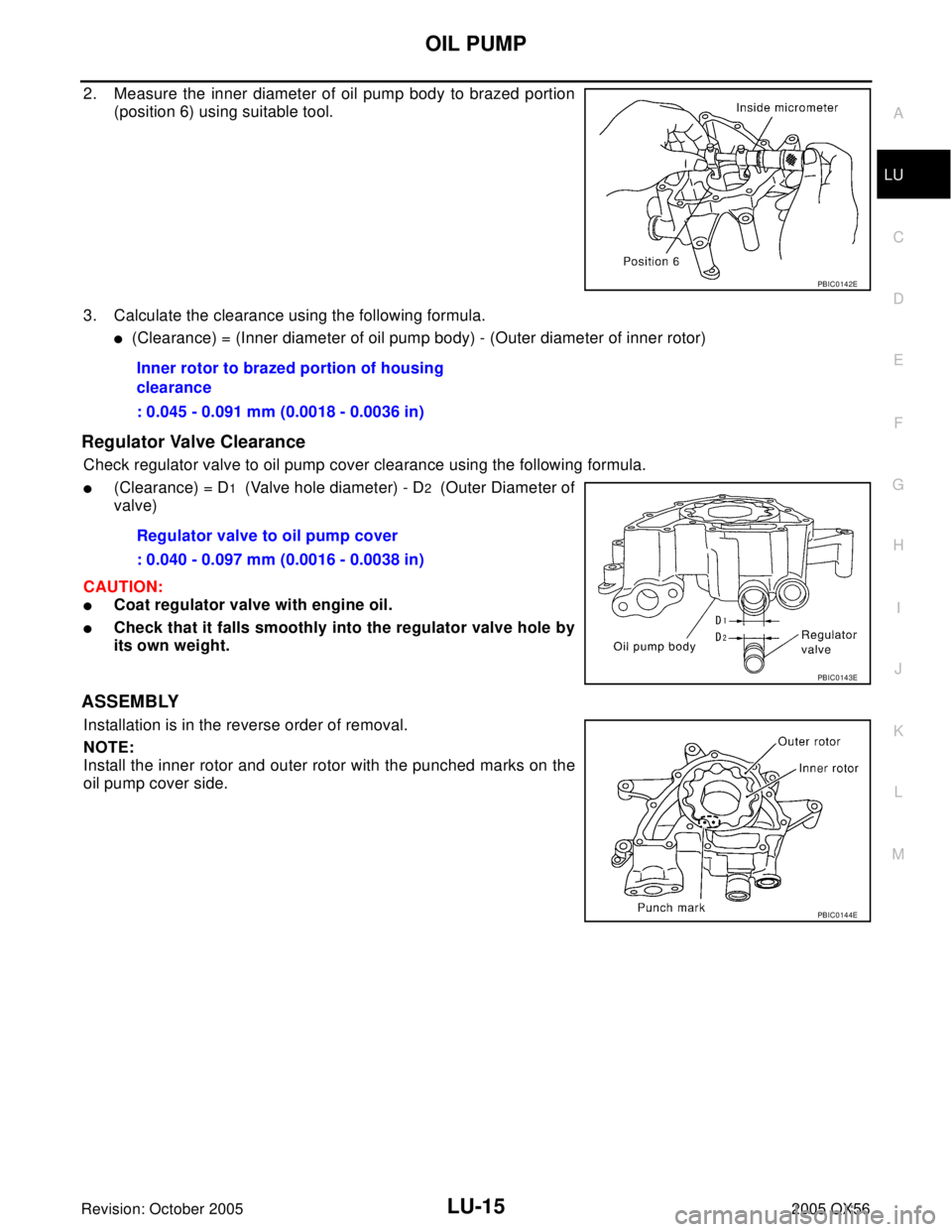

PBIC0142E
