INFINITI QX4 2005 Factory Service Manual EC-146Revision: October 2005
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
2005 QX56
TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionUBS00L0F
The specification (SP) value indicates the tolerance

EC-146Revision: October 2005
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
2005 QX56
TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionUBS00L0F
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:
B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)
A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)
MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionUBS00L0G
Vehicle driven distance: More than 5,000 km (3,017 miles)
Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm2 , 14.25 - 15.12 psi)
Atmospheric temperature: 20 - 30°C (68 - 86°F)
Engine coolant temperature: 75 - 95°C (167 - 203°F)
Transmission: Warmed-up*1
Electrical load: Not applied*2
Engine speed: Idle
*1: After the engine is warmed up to normal operating temperature, drive vehicle until “ATF TEMP SE 1” (A/T
fluid temperature sensor signal) indicates more than 60°C (140°F).
*2: Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
Inspection ProcedureUBS00L0H
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. Perform EC-72, "
Basic Inspection" .
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2”
and “MAS A/F SE-B1” in “DATA MONITOR (SPEC)” mode with
CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-147, "
Diagnostic Procedure" .
SEF 6 01 Z

Page 1338 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-147
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
Diagnostic ProcedureUBS00L0I

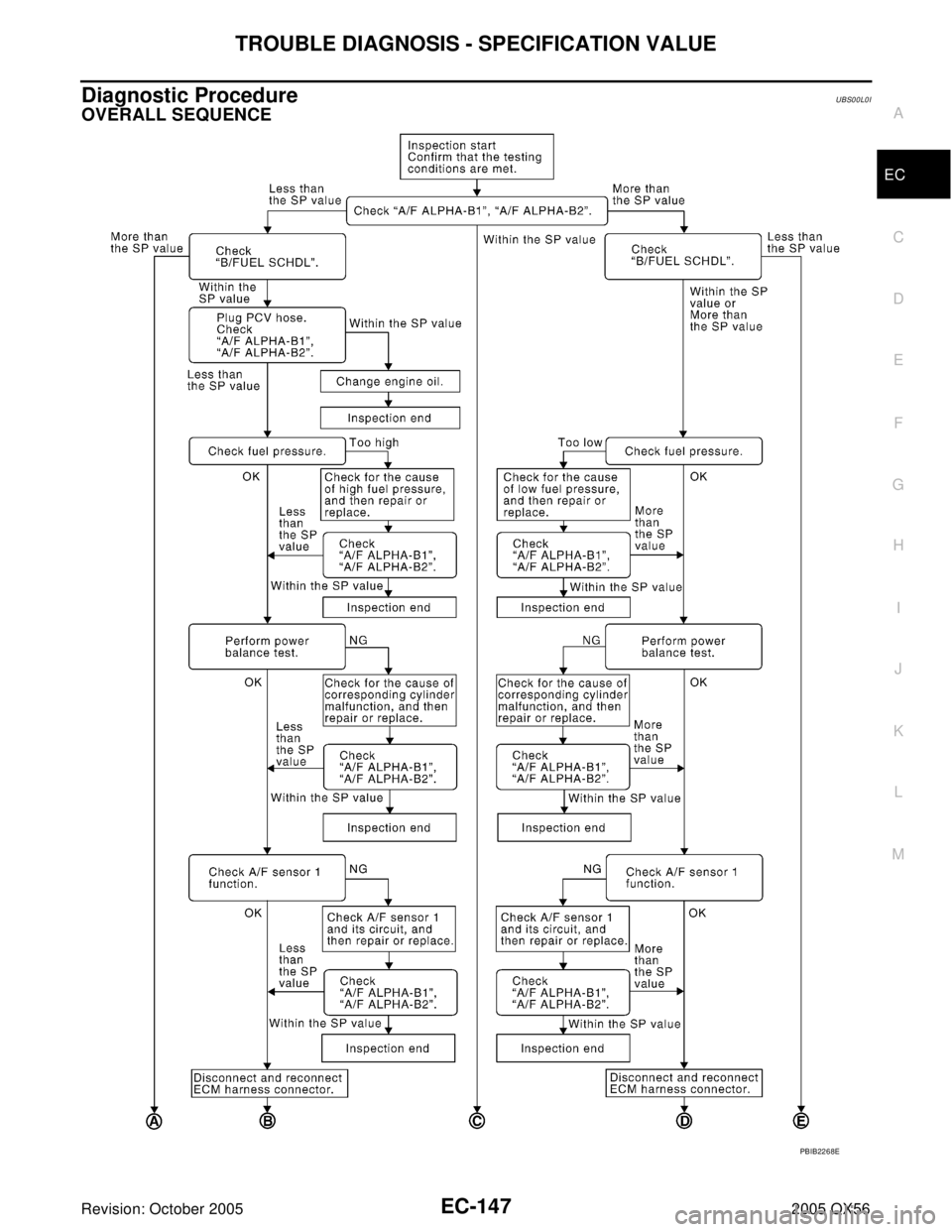

OVERALL SEQUENCE
PBIB2268E

Page 1339 of 3419

INFINITI QX4 2005 Factory Service Manual EC-148Revision: October 2005
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
2005 QX56

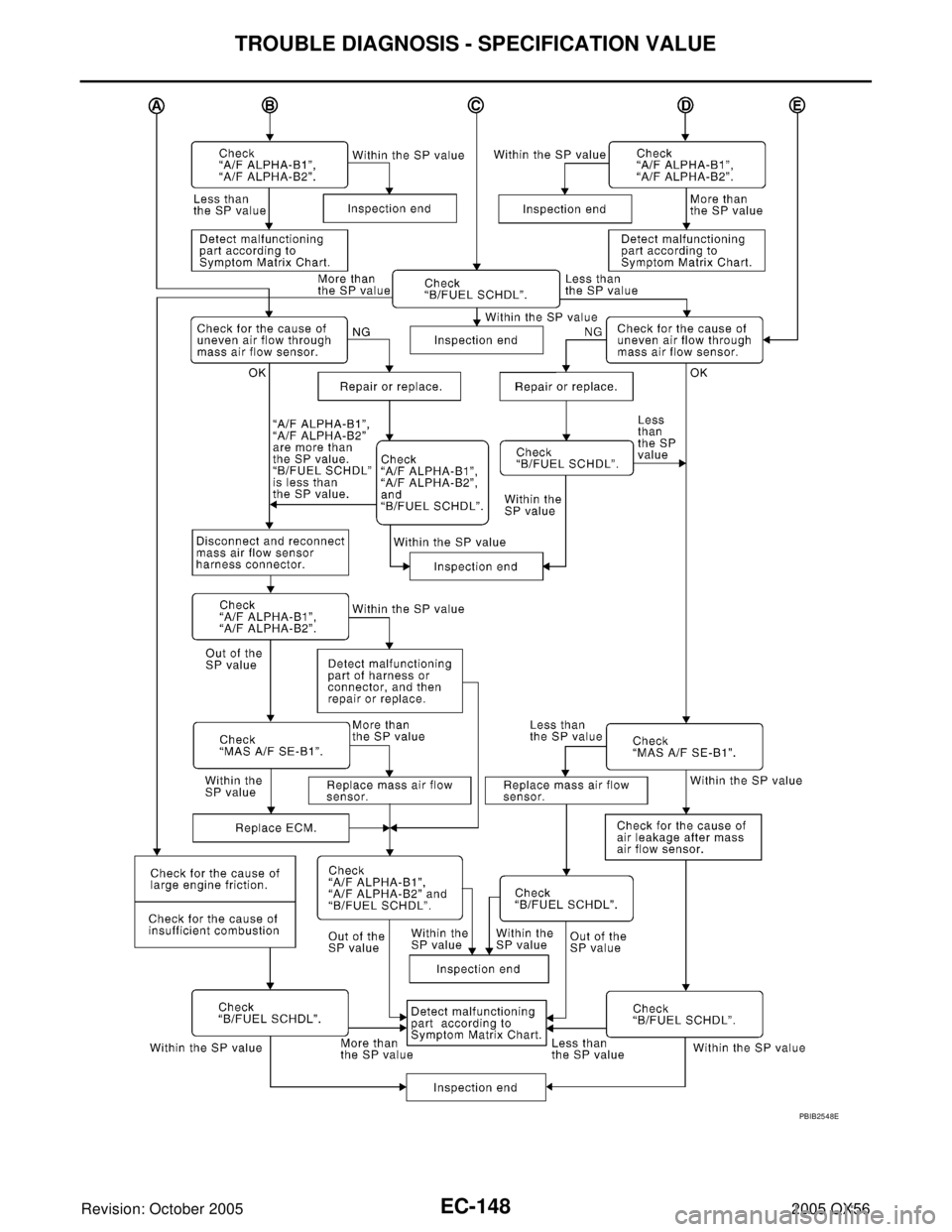

PBIB2548E

Page 1340 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-149
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
DETAILED PROCEDURE
1. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Confirm

Page 1341 of 3419

INFINITI QX4 2005 Factory Service Manual EC-150Revision: October 2005
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
2005 QX56
5. CHANGE ENGINE OIL
1. Stop the engine.
2. Change engine oil.
NOTE:
This symptom may occur when a large amount of gasoli

Page 1342 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-151
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
10. DETECT MALFUNCTIONING PART
1. Check the following.
–Ignition coil and its circuit (Refer

Page 1343 of 3419

INFINITI QX4 2005 Factory Service Manual EC-152Revision: October 2005
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
2005 QX56
15. DISCONNECT AND RECONNECT ECM HARNESS CONNECTOR
1. Stop the engine.
2. Disconnect ECM harness connector. Check pin ter

Page 1344 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-153
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
20. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”, AND “B/FUEL SCHDL”
Select “A/F ALPHA-B1
