Page 2553 of 3419

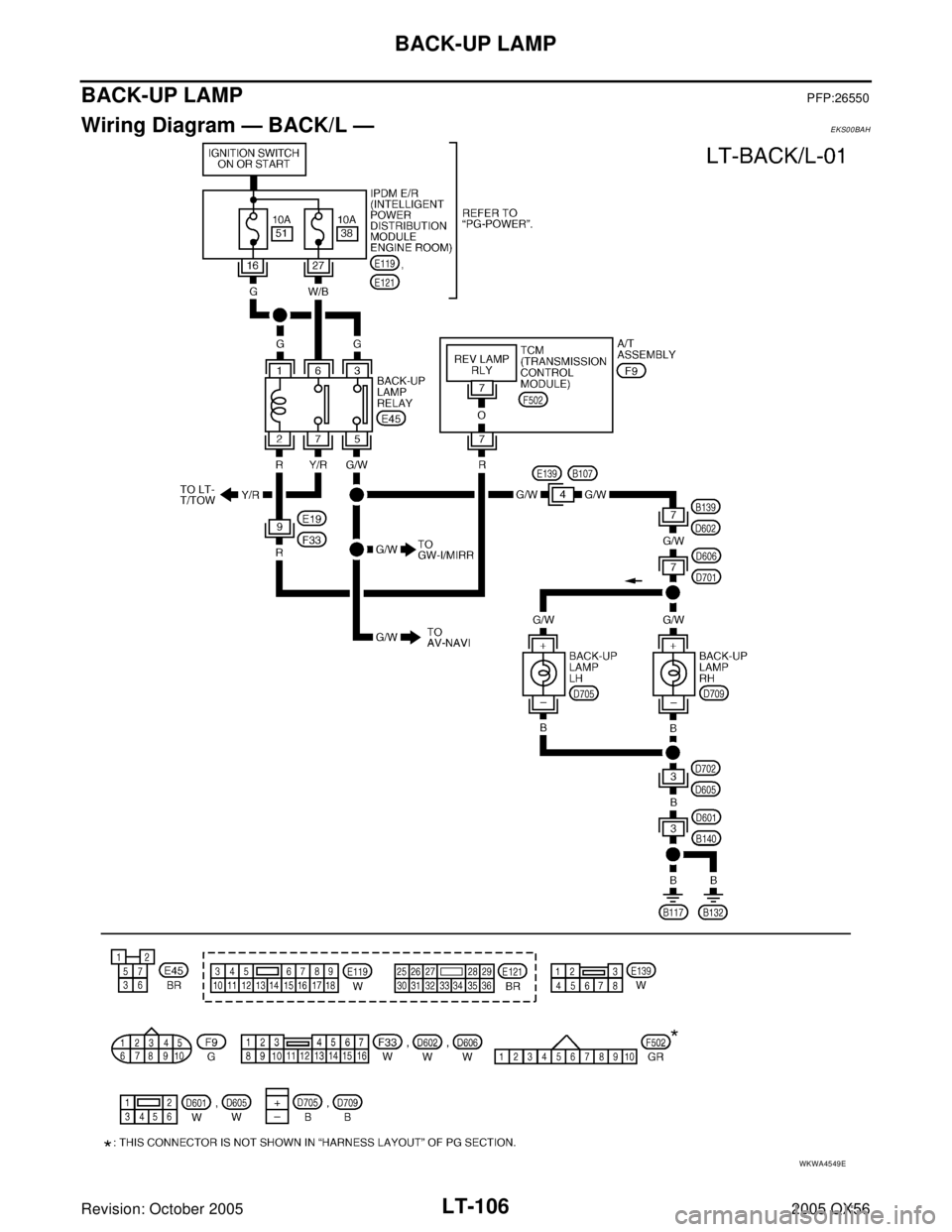

INFINITI QX4 2005 Factory Service Manual LT-106 BACK-UP LAMP Revision: October 20052005 QX56 BACK-UP LAMPPFP:26550 Wiring Diagram — BACK/L —EKS00BAH WKWA4549E

Page 2554 of 3419

INFINITI QX4 2005 Factory Service Manual BACK-UP LAMP LT-107 C D E F G H I J L MA B LT Revision: October 20052005 QX56 Bulb ReplacementEKS00BAI 1. Remove back door lower finisher. Refer to EI-42, "Removal and Installation" . 2. Turn bulb soc

Page 2555 of 3419

INFINITI QX4 2005 Factory Service Manual LT-108 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: October 20052005 QX56 PARKING, LICENSE PLATE AND TAIL LAMPSPFP:26550 Component Parts and Harness Connector LocationEKS00BAK System DescriptionEKS

Page 2556 of 3419

INFINITI QX4 2005 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-109 C D E F G H I J L MA B LT Revision: October 20052005 QX56 OPERATION BY LIGHTING SWITCH With the lighting switch in the 1ST or 2ND position (or if the auto

Page 2557 of 3419

INFINITI QX4 2005 Factory Service Manual LT-110 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: October 20052005 QX56 SchematicEKS00BAN WKWA2493E

Page 2558 of 3419

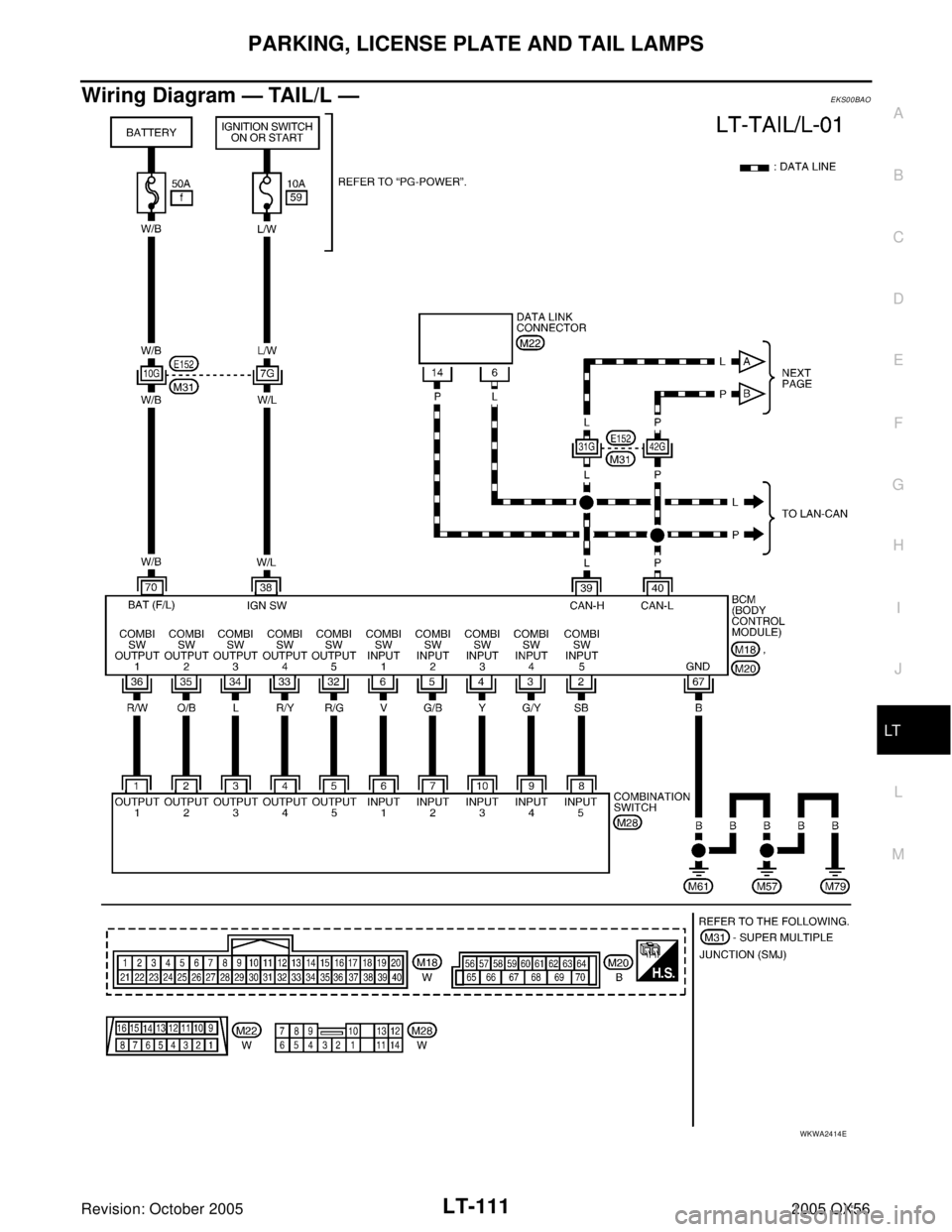

INFINITI QX4 2005 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-111 C D E F G H I J L MA B LT Revision: October 20052005 QX56 Wiring Diagram — TAIL/L —EKS00BAO WKWA2414E

Page 2559 of 3419

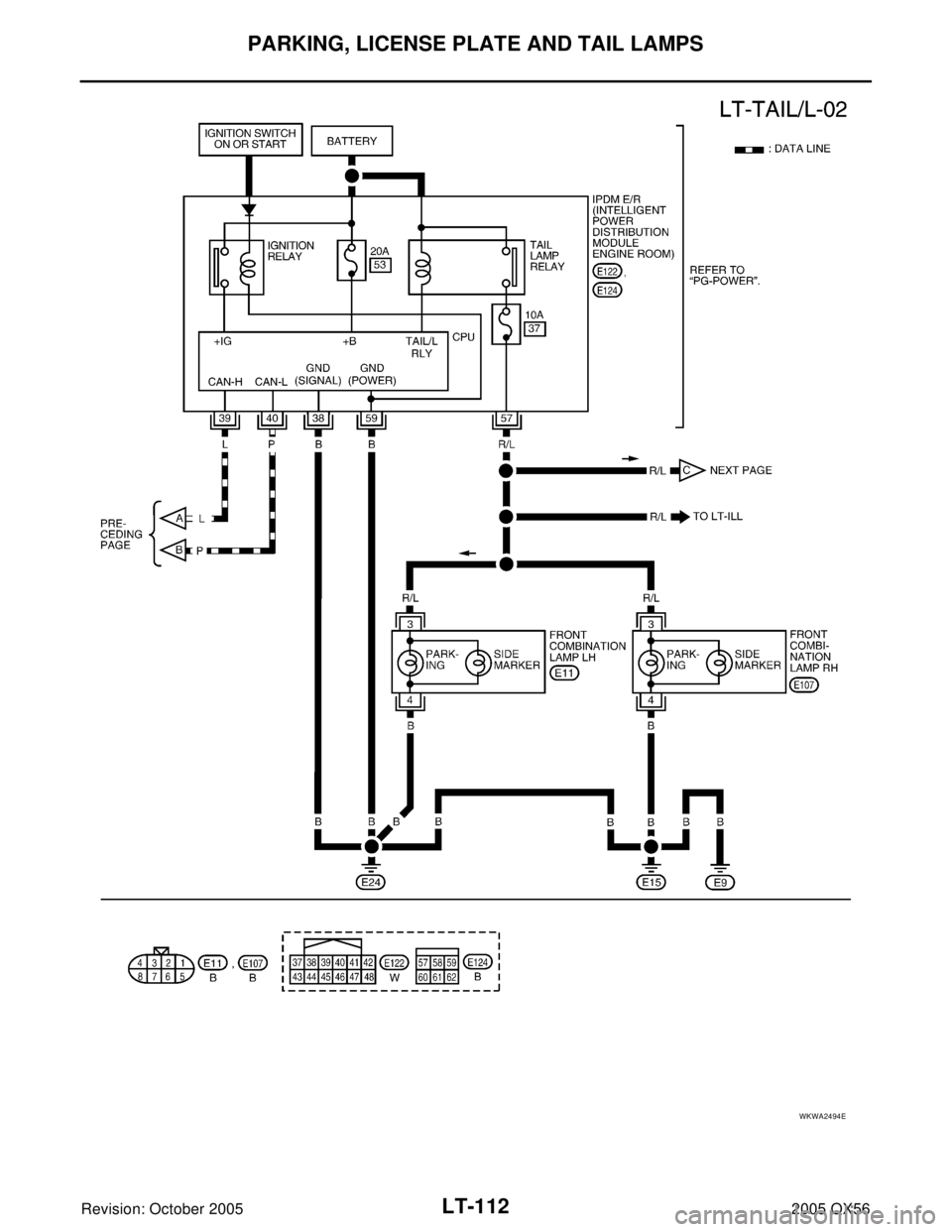

INFINITI QX4 2005 Factory Service Manual LT-112 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: October 20052005 QX56 WKWA2494E

Page 2560 of 3419

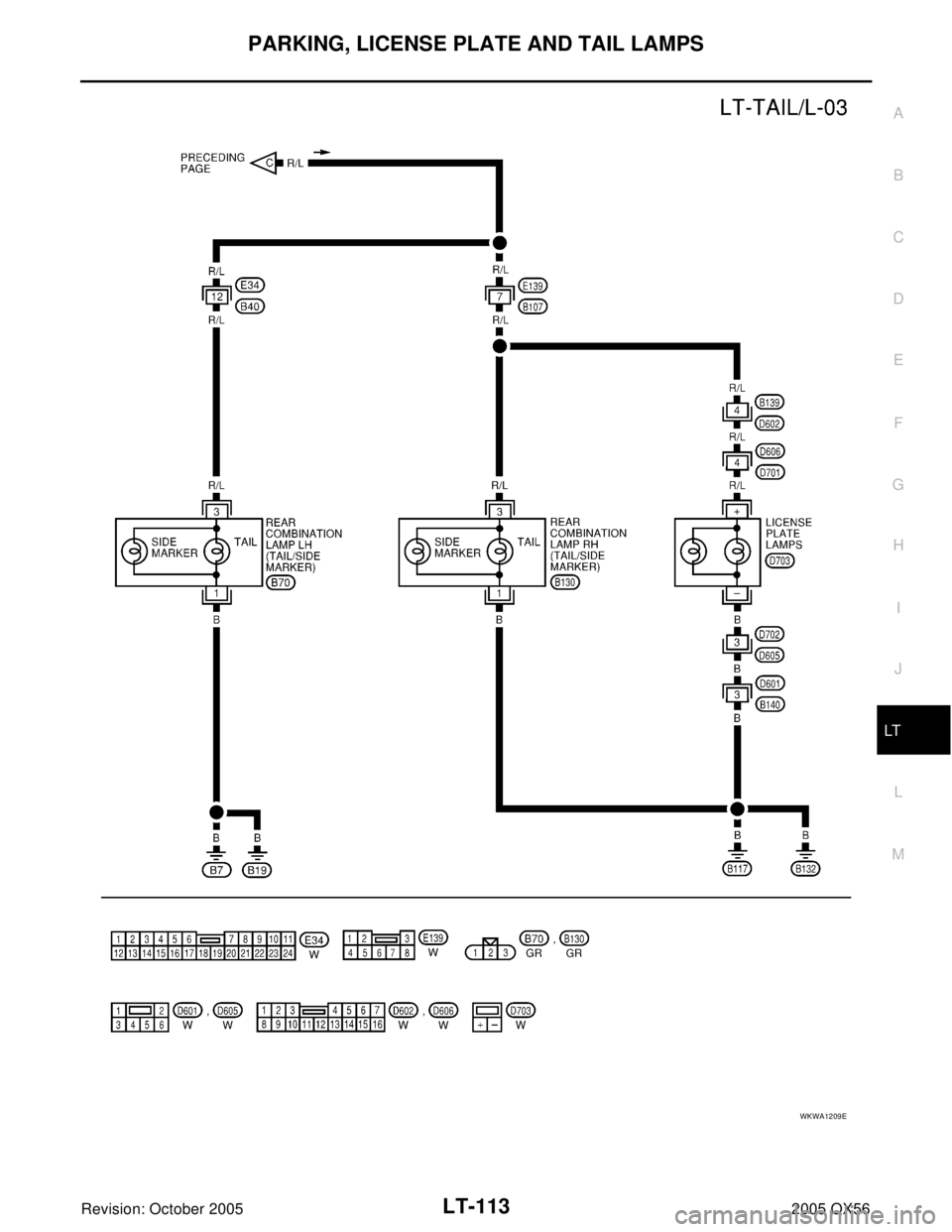

INFINITI QX4 2005 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-113 C D E F G H I J L MA B LT Revision: October 20052005 QX56 WKWA1209E
