Page 1889 of 3419

INFINITI QX4 2005 Factory Service Manual EI-28 DOOR OUTSIDE MOLDING Revision: October 20052005 QX56 DOOR OUTSIDE MOLDINGPFP:82820 Removal and InstallationEIS008ZQ Front Door Removal 1. Open the front door and door window fully. 2. Remove the

Page 1890 of 3419

INFINITI QX4 2005 Factory Service Manual DOOR OUTSIDE MOLDING EI-29 C D E F G H J K L MA B EI Revision: October 20052005 QX56 Rear Door Removal 1. Open the windows fully. 2. Remove the door outside molding. Remove the hole cover and remove

Page 1891 of 3419

INFINITI QX4 2005 Factory Service Manual EI-30 SIDE GUARD MOLDING Revision: October 20052005 QX56 SIDE GUARD MOLDINGPFP:76840 Removal and InstallationEIS004WP REMOVAL CAUTION: Never apply tack-paper adhesive remover to body panel surface fin

Page 1892 of 3419

INFINITI QX4 2005 Factory Service Manual SIDE GUARD MOLDING EI-31 C D E F G H J K L MA B EI Revision: October 20052005 QX56 2. Heat the panel and double-faced adhesive tape surface to 30° to 40°C (86° to 104°F). 3. Remove the backing she

Page 1893 of 3419

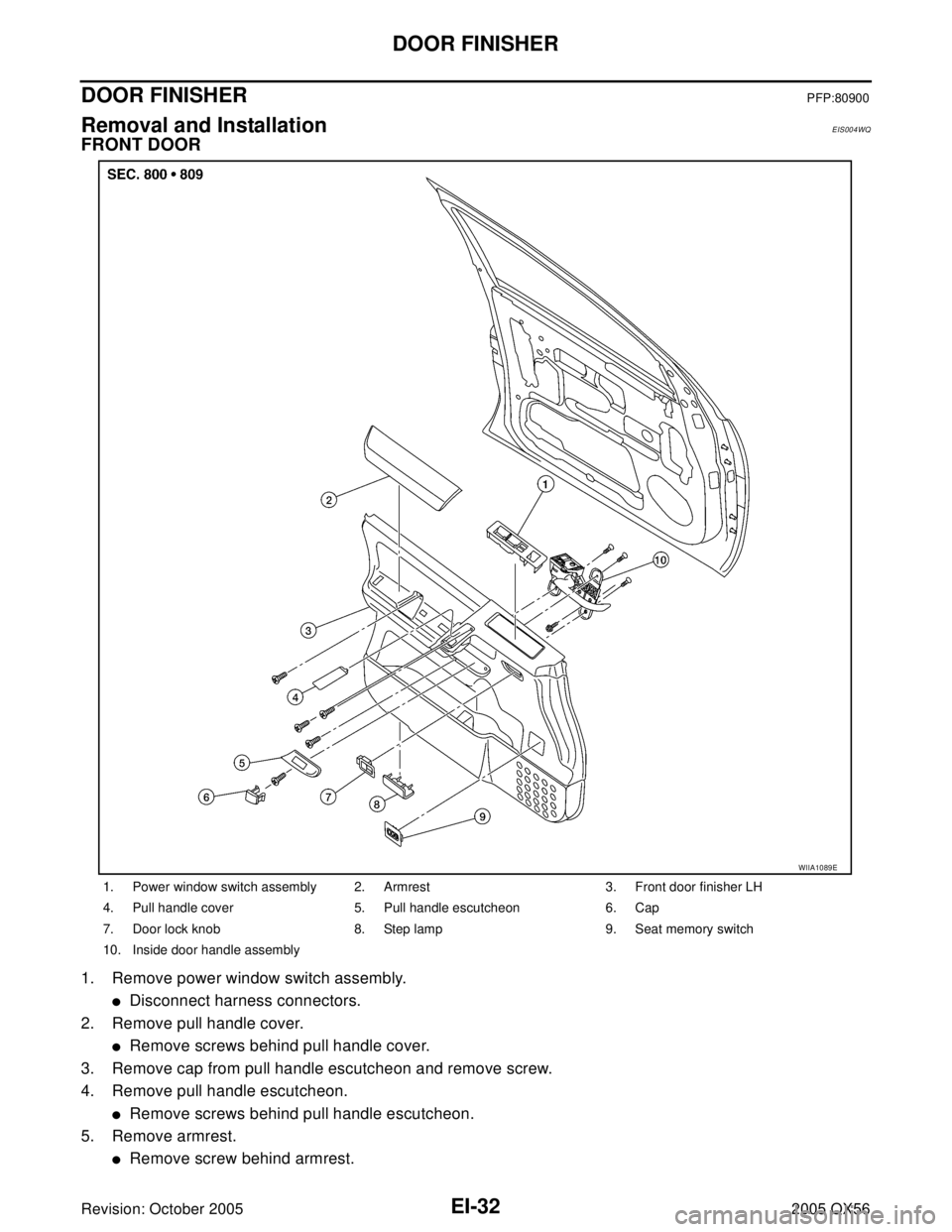

INFINITI QX4 2005 Factory Service Manual EI-32 DOOR FINISHER Revision: October 20052005 QX56 DOOR FINISHERPFP:80900 Removal and InstallationEIS004WQ FRONT DOOR 1. Remove power window switch assembly. Disconnect harness connectors. 2. Remove

Page 1894 of 3419

INFINITI QX4 2005 Factory Service Manual DOOR FINISHER EI-33 C D E F G H J K L MA B EI Revision: October 20052005 QX56 6. Remove memory seat switch. Disconnect harness connector. 7. Remove step lamp. Disconnect harness connector. 8. Remove

Page 1895 of 3419

INFINITI QX4 2005 Factory Service Manual EI-34 DOOR FINISHER Revision: October 20052005 QX56 3. Remove cap from pull handle escutcheon and remove screw. 4. Remove pull handle escutcheon. Remove screws behind pull handle escutcheon. 5. Remov

Page 1896 of 3419

INFINITI QX4 2005 Factory Service Manual BODY SIDE TRIM EI-35 C D E F G H J K L MA B EI Revision: October 20052005 QX56 BODY SIDE TRIMPFP:76913 Removal and InstallationEIS004WR CAUTION: Wrap the tip of flat-bladed screwdriver with a cloth w
