INFINITI QX4 2005 Factory Service Manual EC-66Revision: October 2005
ON BOARD DIAGNOSTIC (OBD) SYSTEM
2005 QX56
The DTC and 1st trip DTC are displayed at the same time. If the MIL does not illuminate in diagnostic test
mode I (Malfunction wa

EC-66Revision: October 2005
ON BOARD DIAGNOSTIC (OBD) SYSTEM
2005 QX56
The DTC and 1st trip DTC are displayed at the same time. If the MIL does not illuminate in diagnostic test
mode I (Malfunction warning), all displayed items are 1st trip DTCs. If only one code is displayed when the MIL
illuminates in diagnostic test mode II (SELF-DIAGNOSTIC RESULTS), it is a DTC; if two or more codes are
displayed, they may be either DTCs or 1st trip DTCs. DTC No. is same as that of 1st trip DTC. These uniden-
tified codes can be identified by using the CONSULT-II or GST. A DTC will be used as an example for how to
read a code.
A particular trouble code can be identified by the number of four-digit numeral flashes. The “zero” is indicated
by the number of ten flashes. The length of time the 1,000th-digit numeral flashes on and off is 1.2 seconds
consisting of an ON (0.6-second) - OFF (0.6-second) cycle.
The 100th-digit numeral and lower digit numerals consist of a 0.3-second ON and 0.3-second OFF cycle.
A change from one digit numeral to another occurs at an interval of 1.0-second OFF. In other words, the later
numeral appears on the display 1.3 seconds after the former numeral has disappeared.
A change from one trouble code to another occurs at an interval of 1.8-second OFF.
In this way, all the detected malfunctions are classified by their DTC numbers. The DTC 0000 refers to no mal-
function. (See EC-8, "
INDEX FOR DTC" )
How to Erase Diagnostic Test Mode II (Self-diagnostic Results)
The DTC can be erased from the back up memory in the ECM by depressing accelerator pedal. Refer to EC-
65, "How to Erase Diagnostic Test Mode II (Self-diagnostic Results)" .
If the battery is disconnected, the DTC will be lost from the backup memory within 24 hours.
Be careful not to erase the stored memory before starting trouble diagnoses.
OBD System Operation ChartUBS00KZT
RELATIONSHIP BETWEEN MIL, 1ST TRIP DTC, DTC, AND DETECTABLE ITEMS
When a malfunction is detected for the first time, the 1st trip DTC and the 1st trip freeze frame data are
stored in the ECM memory.
When the same malfunction is detected in two consecutive trips, the DTC and the freeze frame data are
stored in the ECM memory, and the MIL will come on. For details, refer to EC-48, "
Tw o Tr ip D e t e c t i o n
Logic" .
The MIL will go off after the vehicle is driven 3 times (driving pattern B) with no malfunction. The drive is
counted only when the recorded driving pattern is met (as stored in the ECM). If another malfunction
occurs while counting, the counter will reset.
The DTC and the freeze frame data will be stored until the vehicle is driven 40 times (driving pattern A)
without the same malfunction recurring (except for Misfire and Fuel Injection System). For Misfire and
Fuel Injection System, the DTC and freeze frame data will be stored until the vehicle is driven 80 times
(driving pattern C) without the same malfunction recurring. The “TIME” in “SELF-DIAGNOSTIC
RESULTS” mode of CONSULT-II will count the number of times the vehicle is driven.
The 1st trip DTC is not displayed when the self-diagnosis results in OK for the 2nd trip.
PBIA3905E

Page 1258 of 3419

INFINITI QX4 2005 Factory Service Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-67
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
SUMMARY CHART
For details about patterns B and C under “Fuel Injection System” and “Misfire”, s

Page 1259 of 3419

INFINITI QX4 2005 Factory Service Manual EC-68Revision: October 2005
ON BOARD DIAGNOSTIC (OBD) SYSTEM
2005 QX56

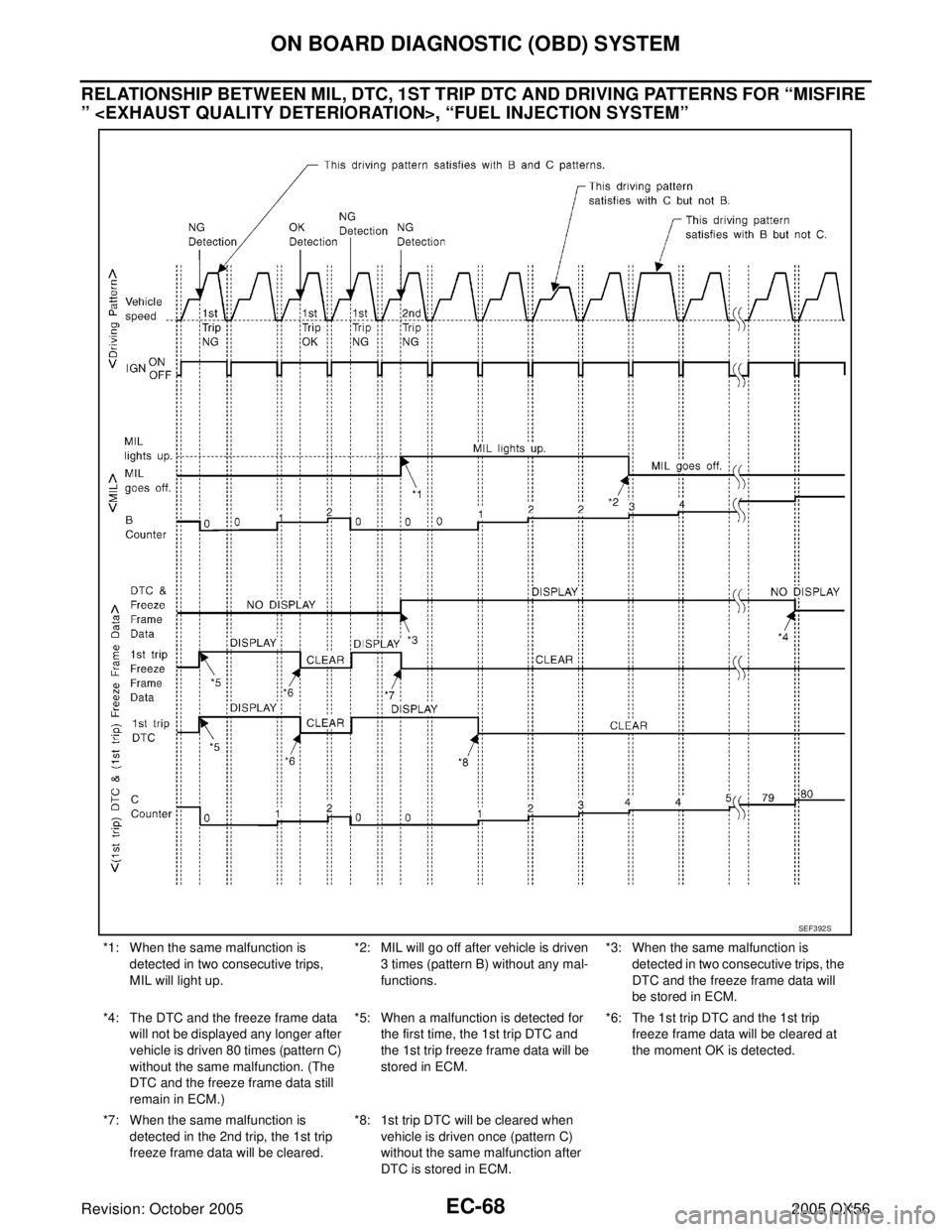

RELATIONSHIP BETWEEN MIL, DTC, 1ST TRIP DTC AND DRIVING PATTERNS FOR “MISFIRE
” <EXHAUST QUALITY DETERIORATION>, “FUEL INJ

Page 1260 of 3419

INFINITI QX4 2005 Factory Service Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-69
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
EXPLANATION FOR DRIVING PATTERNS FOR “MISFIRE <EXHAUST QUALITY DETERIORA-
TION>”, “FUEL INJECTION

Page 1261 of 3419

INFINITI QX4 2005 Factory Service Manual EC-70Revision: October 2005
ON BOARD DIAGNOSTIC (OBD) SYSTEM
2005 QX56

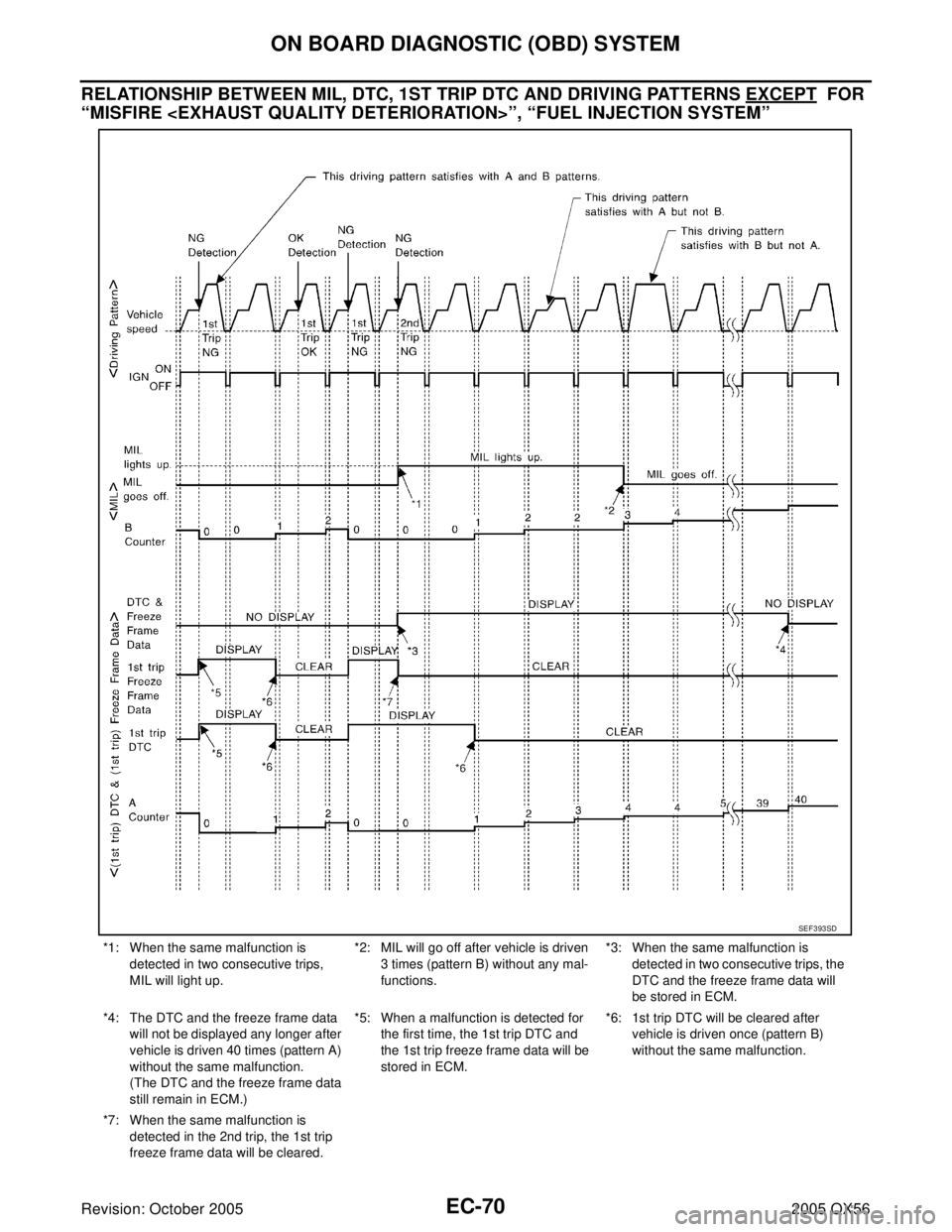

RELATIONSHIP BETWEEN MIL, DTC, 1ST TRIP DTC AND DRIVING PATTERNS EXCEPT FOR
“MISFIRE <EXHAUST QUALITY DETERIORATION>”, “F

Page 1262 of 3419

INFINITI QX4 2005 Factory Service Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-71
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56

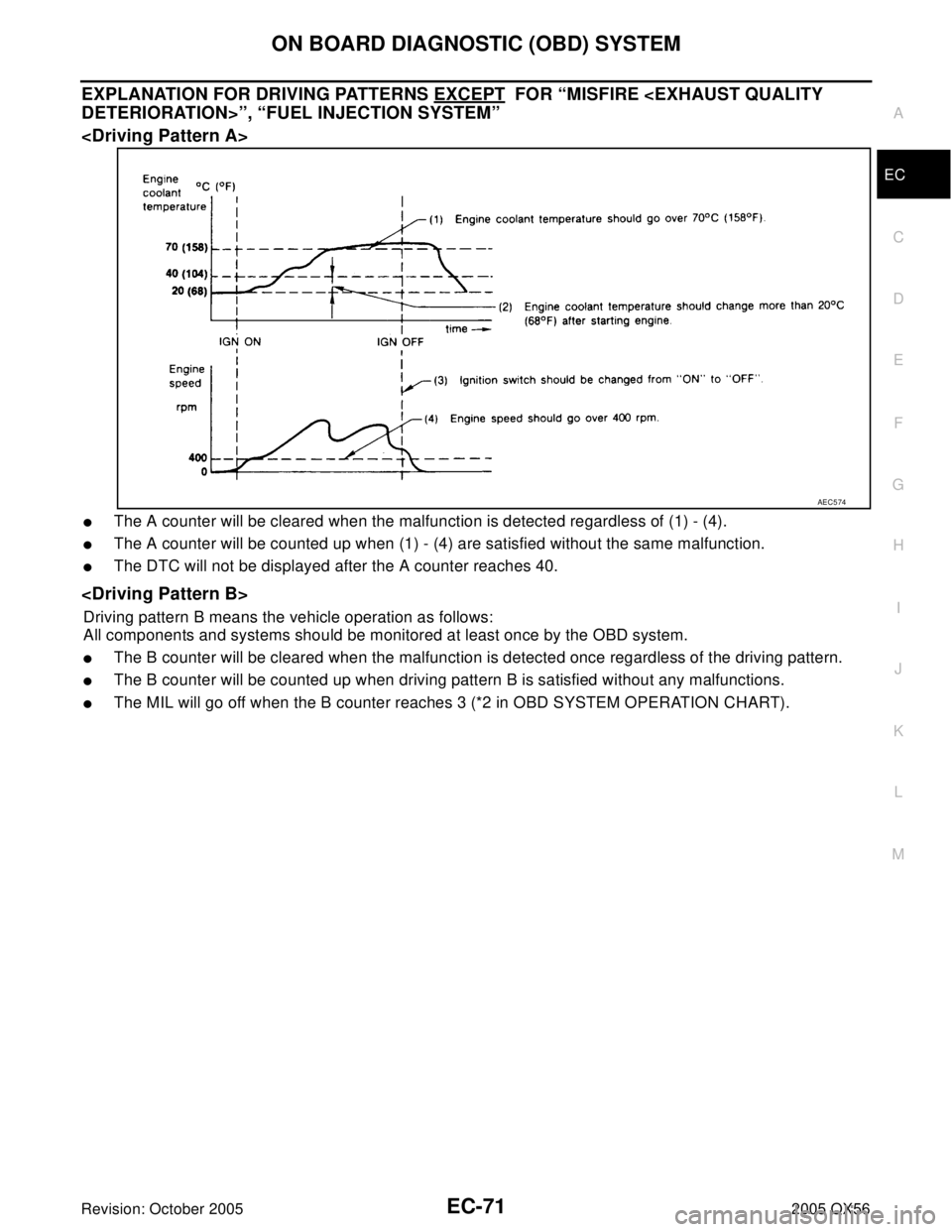

EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR “MISFIRE <EXHAUST QUALITY
DETERIORATION>”, “FUEL IN

Page 1263 of 3419

INFINITI QX4 2005 Factory Service Manual EC-72Revision: October 2005
BASIC SERVICE PROCEDURE
2005 QX56
BASIC SERVICE PROCEDUREPFP:00018
Basic InspectionUBS00KZU
1. INSPECTION START
1. Check service records for any recent repairs that may ind

Page 1264 of 3419

INFINITI QX4 2005 Factory Service Manual BASIC SERVICE PROCEDURE
EC-73
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
3. CHECK TARGET IDLE SPEED
With CONSULT-II
1. Run engine at about 2,000 rpm for about 2 minutes under no load.
