Page 3297 of 3419
TF-154
TRANSFER ASSEMBLY
Revision: October 20052005 QX56
11. Remove the snap ring and washer holder from the mainshaft.
12. Remove the C-rings from the mainshaft, using suitable tool.
13. Set the center case on the press stand. Remove the mainshaft
from the center case.
14. Remove the snap ring from the mainshaft, using suitable tool.
15. Remove the thrust needle bearing from the press flange.
SDIA2104E
SDIA2105E
SDIA2108E
SDIA2 110 E
SDIA2109E
Page 3298 of 3419
TRANSFER ASSEMBLY
TF-155
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: October 20052005 QX56
16. Press the flange until the snap ring is out of place, using Tools.
17. Remove the snap ring from the mainshaft, using suitable tool.
18. Remove the press flange from the mainshaft.
19. Remove the return spring assembly from the clutch hub.
20. Remove each plate from the clutch drum.Tool number A: ST22452000 (J-34335)
B: ST30911000 ( — )
C: KV31103300 ( — )
SD I A 2 111E
SDIA2 112 E
SMT910C
SM T9 11 C
SMT912C
Page 3299 of 3419
TF-156
TRANSFER ASSEMBLY
Revision: October 20052005 QX56

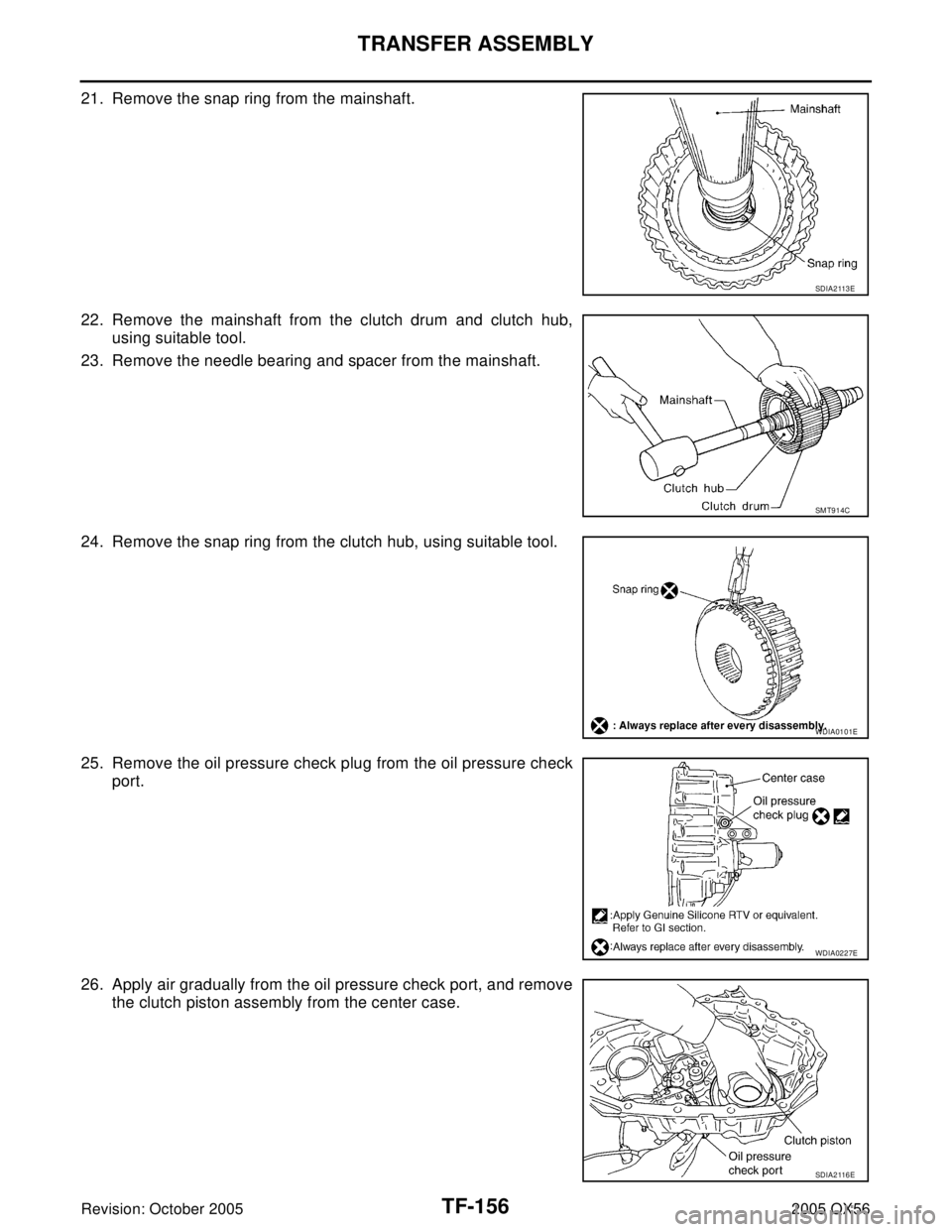

21. Remove the snap ring from the mainshaft.
22. Remove the mainshaft from the clutch drum and clutch hub,
using suitable tool.
23. Remove the needle bearing and spacer from the mainshaft.
24. Remove the snap ring from the clutch hub, using suitable tool.
25. Remove the oil pressure check plug from the oil pressure check
port.
26. Apply air gradually from the oil pressure check port, and remove
the clutch piston assembly from the center case.
SDIA2 113 E
SMT914C
WDIA0101E
WDIA0227E
SDIA2 116 E
Page 3300 of 3419
TRANSFER ASSEMBLY
TF-157
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: October 20052005 QX56

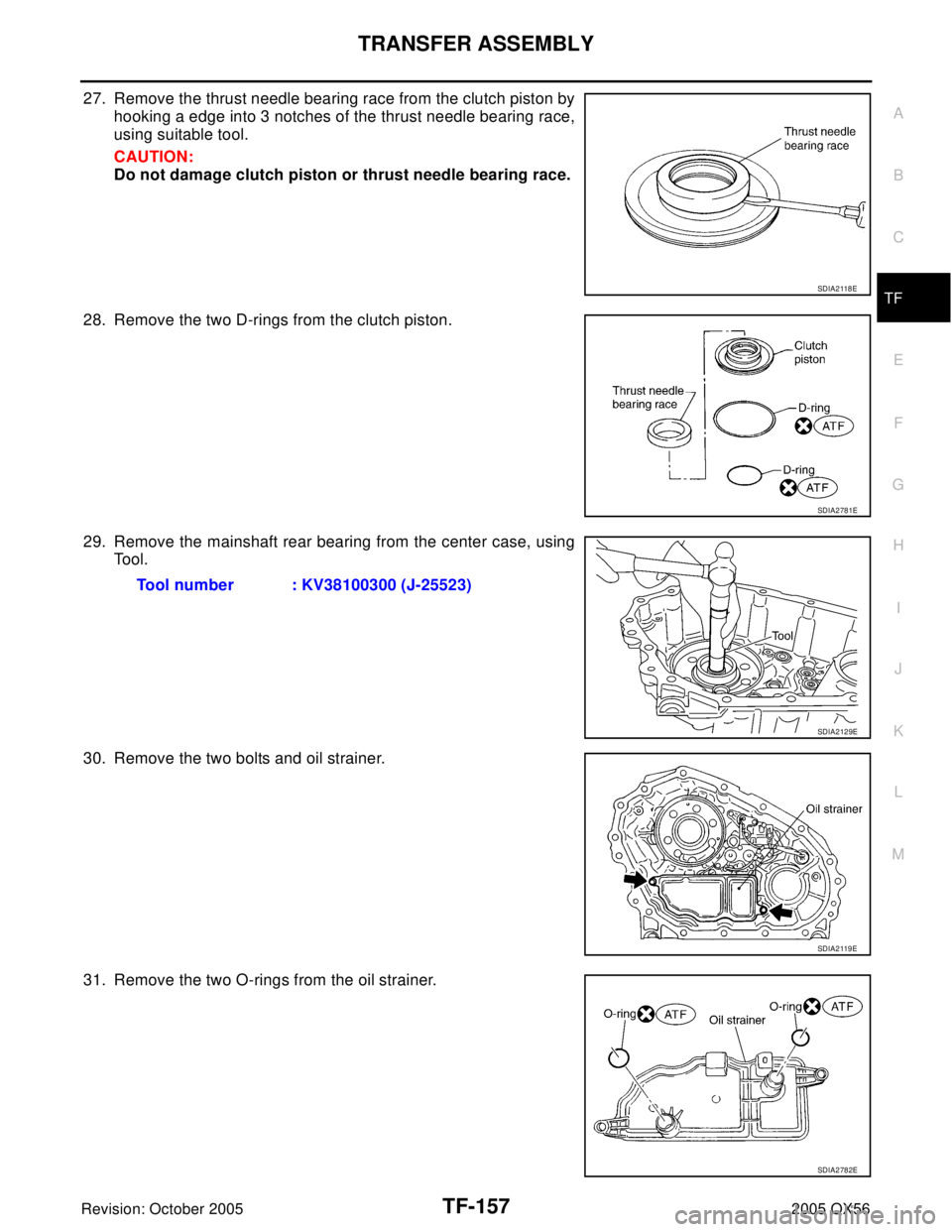

27. Remove the thrust needle bearing race from the clutch piston by
hooking a edge into 3 notches of the thrust needle bearing race,
using suitable tool.
CAUTION:
Do not damage clutch piston or thrust needle bearing race.
28. Remove the two D-rings from the clutch piston.
29. Remove the mainshaft rear bearing from the center case, using
Tool.
30. Remove the two bolts and oil strainer.
31. Remove the two O-rings from the oil strainer.
SDIA2 118 E
SDIA2781E
Tool number : KV38100300 (J-25523)
SDIA2129E
SDIA2 119 E
SDIA2782E
Page 3301 of 3419

TF-158
TRANSFER ASSEMBLY
Revision: October 20052005 QX56

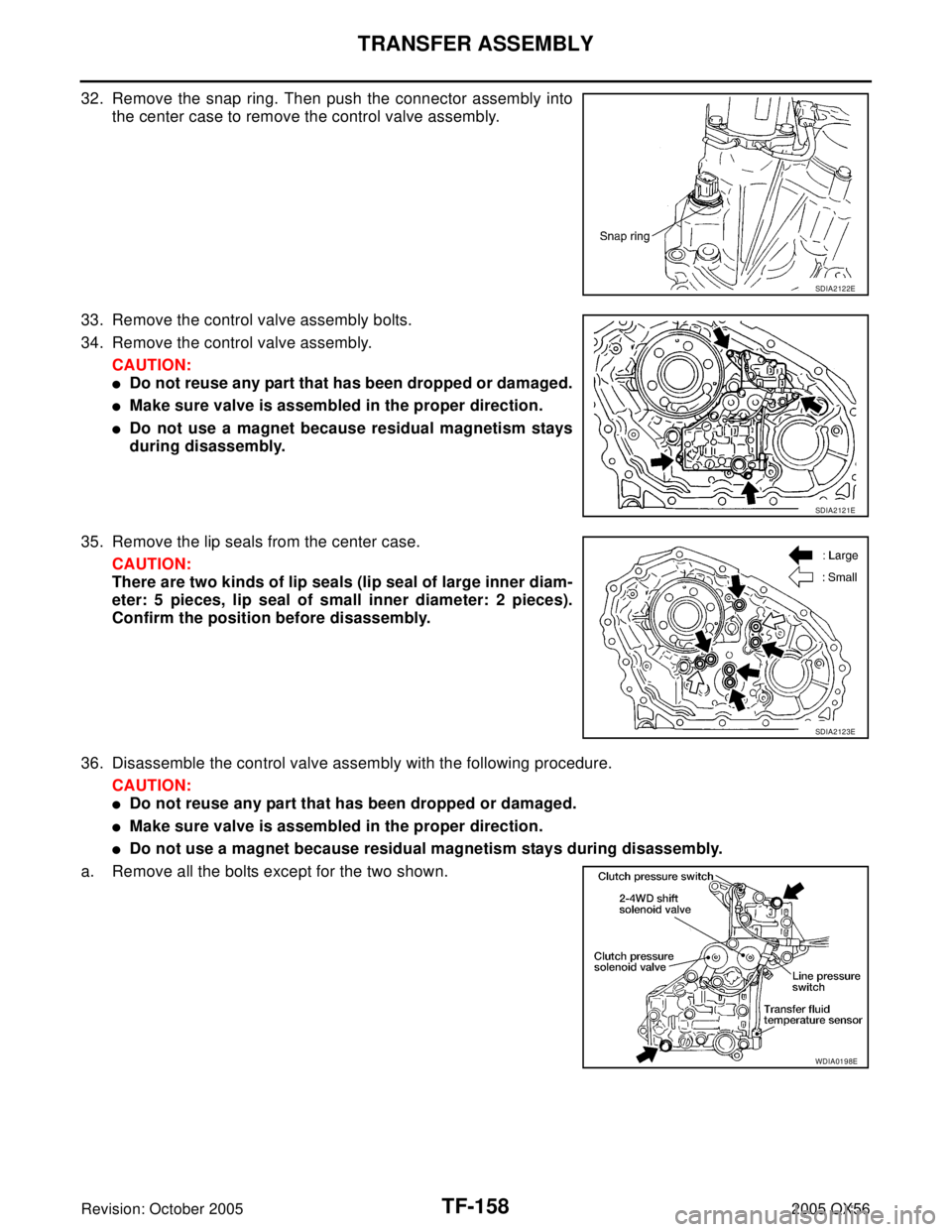

32. Remove the snap ring. Then push the connector assembly into
the center case to remove the control valve assembly.
33. Remove the control valve assembly bolts.
34. Remove the control valve assembly.
CAUTION:
Do not reuse any part that has been dropped or damaged.
Make sure valve is assembled in the proper direction.
Do not use a magnet because residual magnetism stays
during disassembly.
35. Remove the lip seals from the center case.
CAUTION:
There are two kinds of lip seals (lip seal of large inner diam-
eter: 5 pieces, lip seal of small inner diameter: 2 pieces).
Confirm the position before disassembly.
36. Disassemble the control valve assembly with the following procedure.
CAUTION:
Do not reuse any part that has been dropped or damaged.
Make sure valve is assembled in the proper direction.
Do not use a magnet because residual magnetism stays during disassembly.
a. Remove all the bolts except for the two shown.
SDIA2122E
SDIA2121E
SDIA2123E
WDIA0198E
Page 3302 of 3419
TRANSFER ASSEMBLY
TF-159
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: October 20052005 QX56
b. Remove the following from the control valve assembly:
Clutch pressure solenoid valve
Clutch pressure switch
2-4WD shift solenoid valve
Line pressure switch
Transfer fluid temperature sensor
c. Remove the O-rings from each solenoid valve, switch and termi-
nal body.
d. Place the control valve with the lower body facing up. Remove
the two bolts, and then remove the lower body and separator
plate from the upper body.
CAUTION:
Do not drop relief balls. Detach lower body carefully.
e. Make sure the reverse balls, relief balls, relief springs, accumu-
lator pistons and valve springs are securely installed as shown,
and remove them.
f. Remove the retainer plates.
g. Remove each plug (2), control valve (3) and spring (4) from the
upper body (5).
Retainer plate (1)
WDIA0199E
SDIA2125E
SDIA2126E
SDIA2127E
WDIA0284E
Page 3303 of 3419
TF-160
TRANSFER ASSEMBLY
Revision: October 20052005 QX56

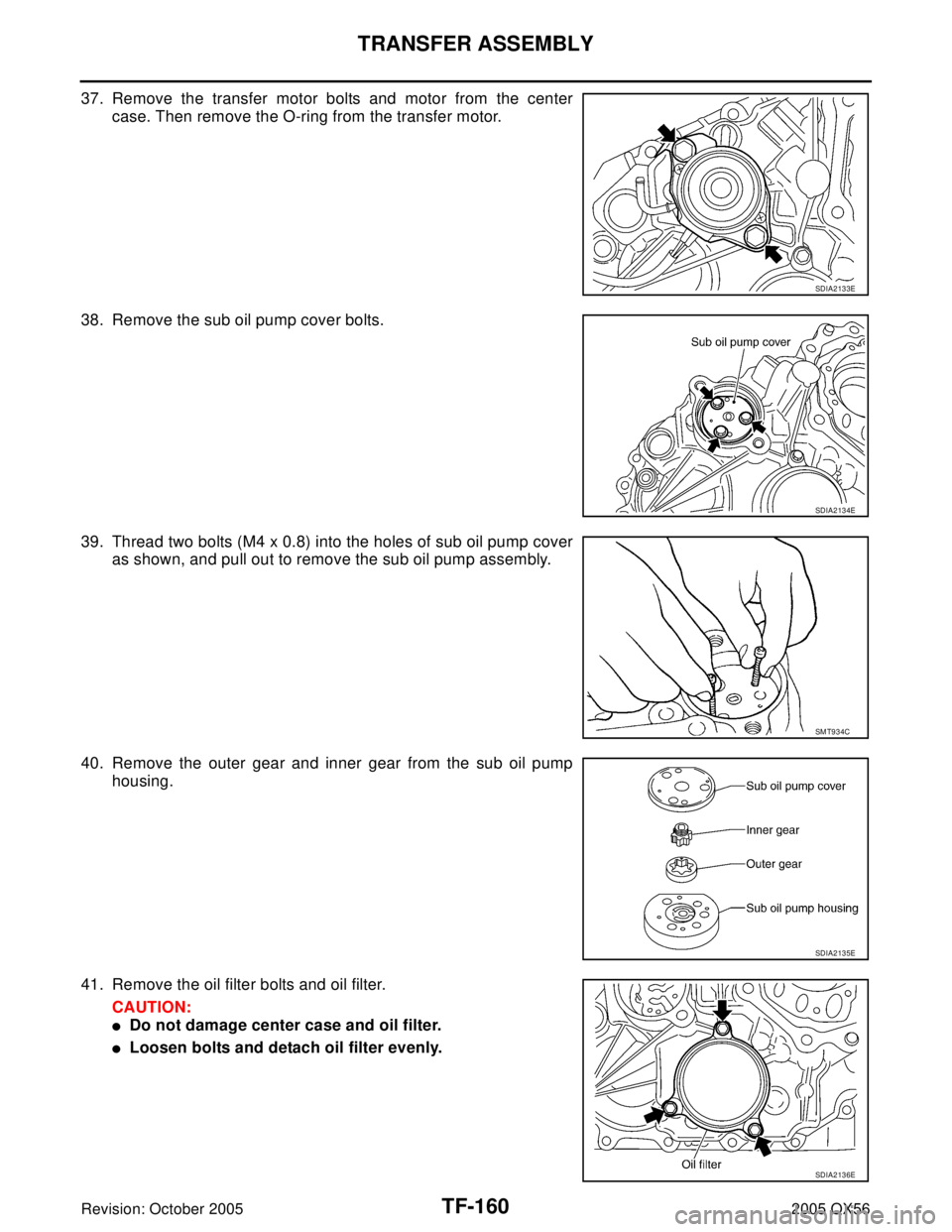

37. Remove the transfer motor bolts and motor from the center
case. Then remove the O-ring from the transfer motor.
38. Remove the sub oil pump cover bolts.
39. Thread two bolts (M4 x 0.8) into the holes of sub oil pump cover
as shown, and pull out to remove the sub oil pump assembly.
40. Remove the outer gear and inner gear from the sub oil pump
housing.
41. Remove the oil filter bolts and oil filter.
CAUTION:
Do not damage center case and oil filter.
Loosen bolts and detach oil filter evenly.
SDIA2133E
SDIA2134E
SMT934C
SDIA2135E
SDIA2136E
Page 3304 of 3419
TRANSFER ASSEMBLY
TF-161
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: October 20052005 QX56
42. Remove the O-rings from the oil filter.
43. Remove the oil filter stud from the oil filter.
44. Remove the O-ring from the oil filter stud.
INSPECTION AFTER DISASSEMBLY
Shift Rod Components
Check the working face of the shift rod and fork for wear, partial
wear, bending and other abnormality. If any is found, replace
with a new one.
Measure the clearance between the shift fork and sleeve. If it is
out of specification, replace it with a new one.
SDIA2327E
SDIA2784E
SMT009D
Specification : Less than 0.36 mm (0.0142 in)
SMT010D
