1. Raise the glass to the top position.
2. While pressing and holding the reset switch, lower the glass to
the bottom position.
3. Release the reset switch. Verify that the reset switch returns to
the original position, if not, pull the switch using suitable tool.
4. Raise the glass to the top position.
CAUTION:
Do not operate the glass automatically to raise the glass to the
top position.
SIIA0347E
Page 2226 of 3419

REAR DOOR GLASS AND REGULATOR
GW-71
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: October 20052005 QX56
REAR DOOR GLASS AND REGULATORPFP:82300
Removal and InstallationEIS0062O
REAR DOOR GLASS
Removal
1. Remove the rear door finisher. Refer to EI-33, "Rear Door" .
2. Operate the power window switch to raise/lower the door win-
dow until the glass bolts can be seen.
3. Remove the inside seal.
4. Remove the glass run from the partition glass.
5. Remove the partition sash bolt (lower) and screw (upper) to
remove the sash.
6. Remove the glass bolts and glass.
Installation
Installation is in the reverse order of removal.
Fitting Inspection
Check that the glass is securely fit into the glass run groove.
Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the
sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts,
guide rail bolts, and glass and carrier plate bolts to correct the glass position.

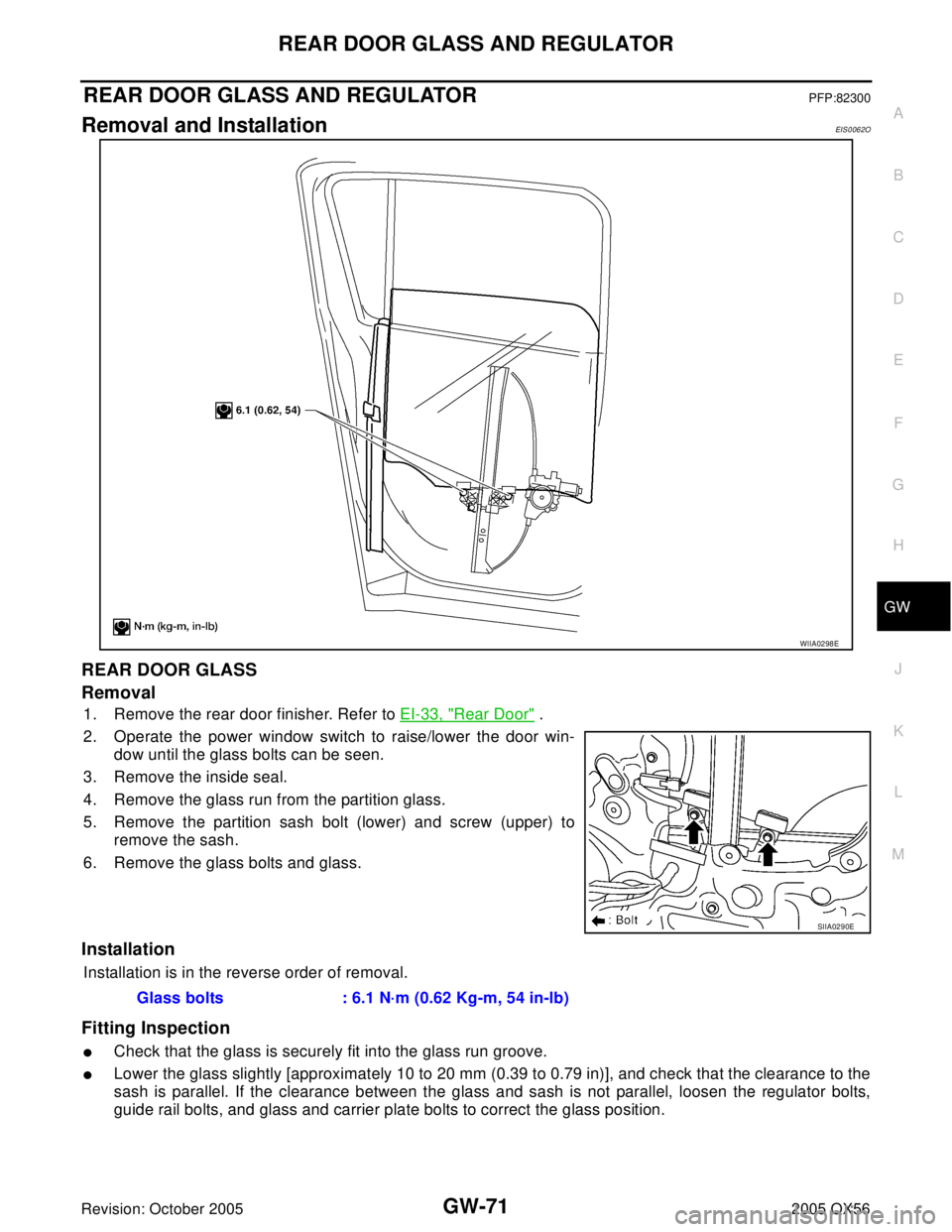

WIIA0298E
SIIA0290E
Glass bolts : 6.1 N·m (0.62 Kg-m, 54 in-lb)
Page 2227 of 3419
GW-72
REAR DOOR GLASS AND REGULATOR
Revision: October 20052005 QX56
REAR DOOR GLASS REGULATOR
Removal
1. Remove the rear door finisher. Refer to EI-33, "Rear Door" .
2. Operate the power window switch to raise/lower the door win-
dow until the glass bolts can be seen.
3. Remove the inside seal.
4. Remove the glass bolts.
5. Raise the glass and hold in place with suitable tool.
6. Remove the bolts, and the regulator and guide channel.
7. Disconnect the connector from the regulator assembly.
Inspection after removal
Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.
Gear wear
Regulator deformation
Spring damage
Grease condition for each sliding part
Installation
1. Connect the harness connector to the regulator assembly and
install the regulator and guide channel.
SIIA0290E
SIIA0291E
SIIA0291E
Page 2228 of 3419
REAR DOOR GLASS AND REGULATOR
GW-73
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: October 20052005 QX56
2. Install the glass from outside to ensure that it is in both the front
and rear glass channels. Tighten glass bolts to the specified
torque.
3. Install the inside seal.
4. Install the rear door finisher. Refer to EI-33, "
Rear Door" . Glass bolts : 6.1 N·m (0.62 kg-m, 54 in-lb)
SIIA0290E
Page 2229 of 3419

GW-74
SIDE WINDOW GLASS
Revision: October 20052005 QX56
SIDE WINDOW GLASSPFP:83300
Removal and InstallationEIS004US
REMOVAL
1. Remove the rear lower and upper finisher. Refer to EI-35, "BODY SIDE TRIM" .
2. Disconnect the rear side window motor harness.
3. Remove the rear side window motor mounting bolts.
4. Remove the rear side window front mounting nuts.
INSTALLATION
1. Install the glass from outside to insure that it is even with the top and bottom of the opening. Tighten rear
side window front mounting nuts to the specified torque.
2. Install rear side window motor mounting bolts. Tighten rear side window latch mounting bolts to the speci-
fied torque.
3. Connect the rear side window motor harness.
4. Install rear pillar upper and lower finisher. Refer to EI-35, "
BODY SIDE TRIM" .

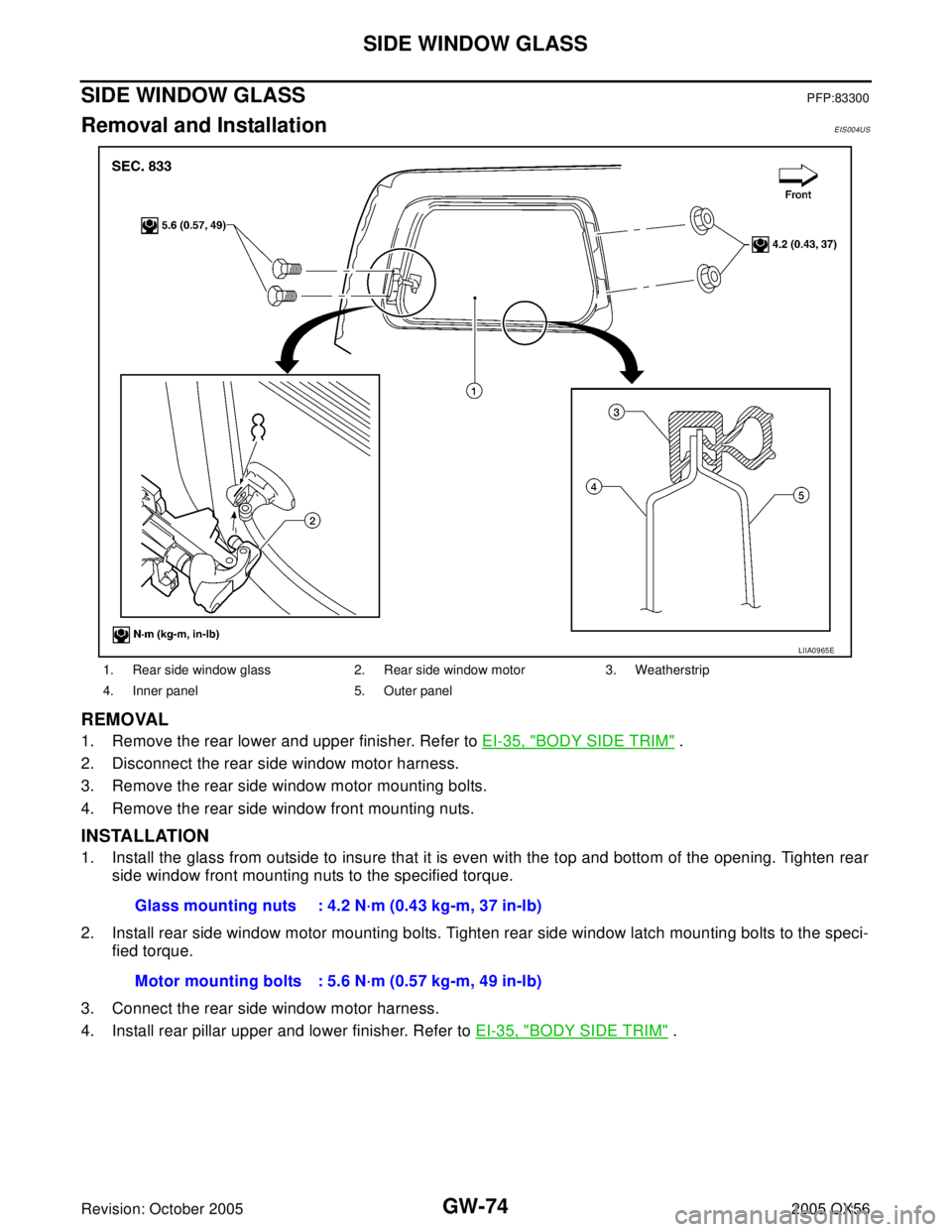

1. Rear side window glass 2. Rear side window motor 3. Weatherstrip
4. Inner panel 5. Outer panel
LIIA0965E
Glass mounting nuts : 4.2 N·m (0.43 kg-m, 37 in-lb)
Motor mounting bolts : 5.6 N·m (0.57 kg-m, 49 in-lb)
Page 2230 of 3419
INSIDE MIRROR
GW-75
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: October 20052005 QX56
INSIDE MIRRORPFP:96321

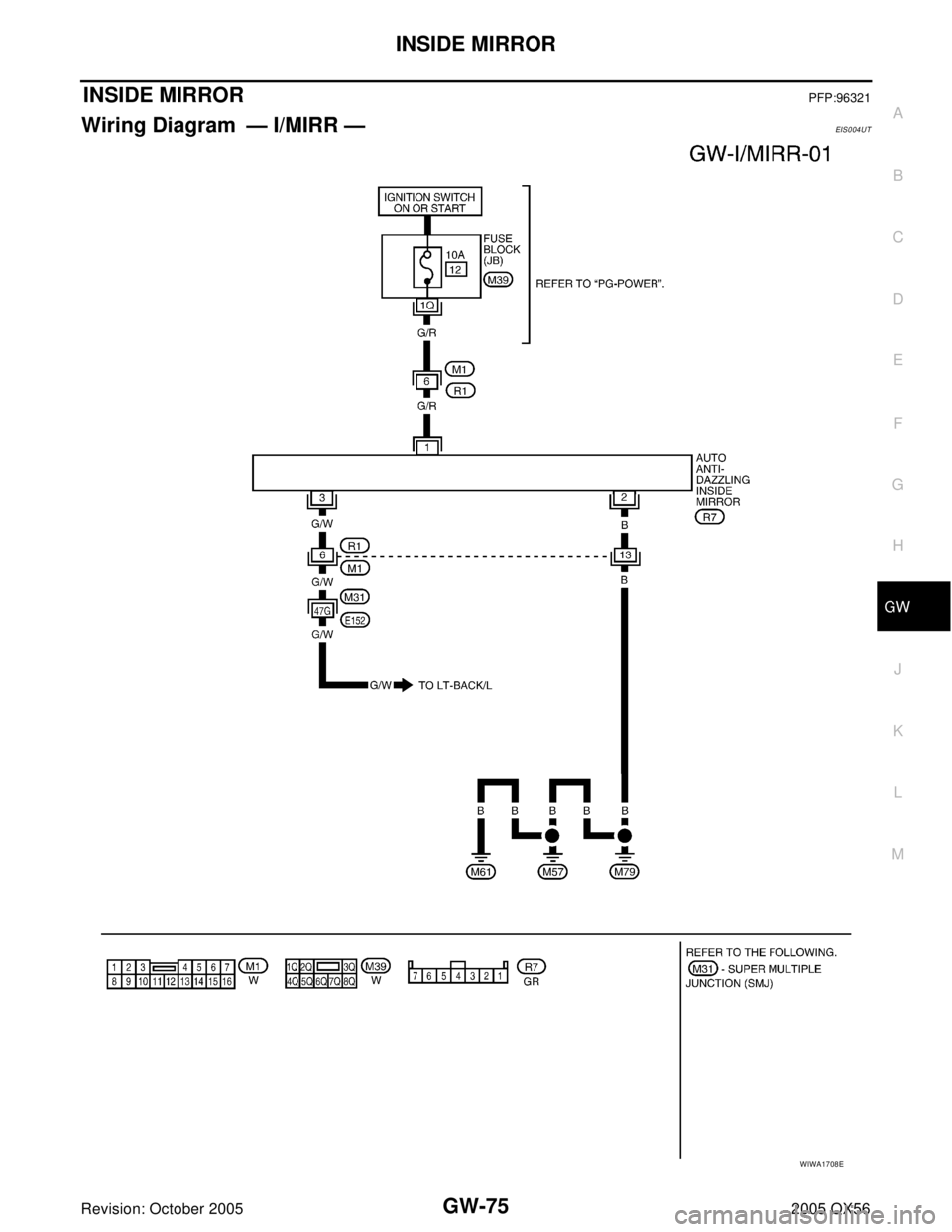

Wiring Diagram — I/MIRR —EIS0 04 UT
WIWA1708E
Page 2231 of 3419
GW-76
INSIDE MIRROR
Revision: October 20052005 QX56
Removal and InstallationEIS004UU
INSIDE MIRROR
1. Remove connector cover.
2. Slide the mirror upward to remove.
3. Disconnect the connector.
Installation is in the reverse order of removal.
1. Inside mirror 2. Inside mirror finisher
SIIA0828E
Page 2232 of 3419

REAR WINDOW DEFOGGER
GW-77
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: October 20052005 QX56
REAR WINDOW DEFOGGERPFP:25350

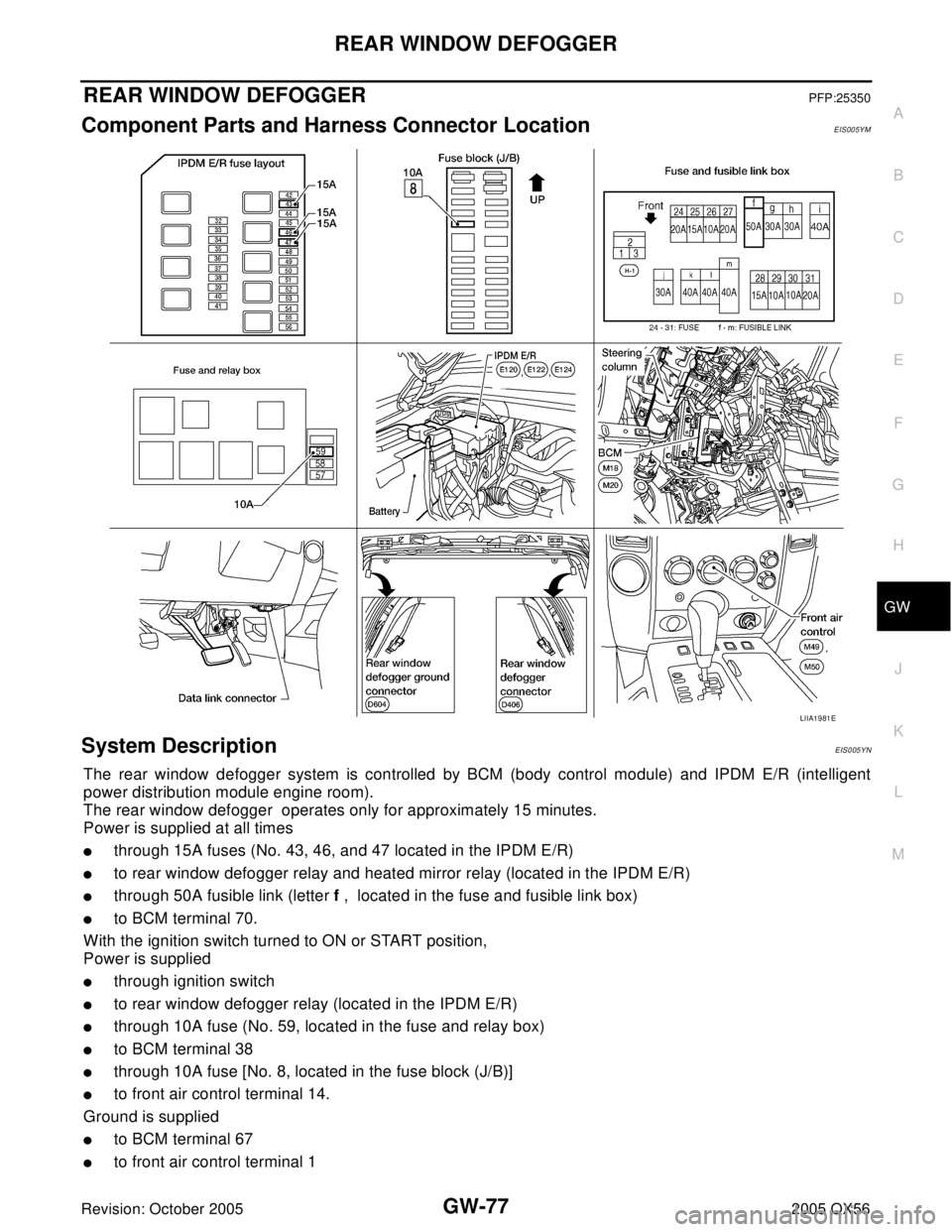

Component Parts and Harness Connector LocationEIS005YM
System DescriptionEIS005YN
The rear window defogger system is controlled by BCM (body control module) and IPDM E/R (intelligent
power distribution module engine room).
The rear window defogger operates only for approximately 15 minutes.
Power is supplied at all times
through 15A fuses (No. 43, 46, and 47 located in the IPDM E/R)
to rear window defogger relay and heated mirror relay (located in the IPDM E/R)
through 50A fusible link (letter f , located in the fuse and fusible link box)
to BCM terminal 70.
With the ignition switch turned to ON or START position,
Power is supplied
through ignition switch
to rear window defogger relay (located in the IPDM E/R)
through 10A fuse (No. 59, located in the fuse and relay box)
to BCM terminal 38
through 10A fuse [No. 8, located in the fuse block (J/B)]
to front air control terminal 14.
Ground is supplied
to BCM terminal 67
to front air control terminal 1
