FFD-10
REAR COVER GASKET
Revision: October 20052005 QX56
REAR COVER GASKETPFP:38320
Removal and InstallationEDS003PJ
REMOVAL
1. Remove front final drive. Refer to FFD-11, "REMOVAL" .
2. Drain gear oil. Refer to MA-25, "
Changing Final Drive Oil" .
3. Remove rear cover.
INSTALLATION
1. Apply 3.2mm (0.126 in) bead of sealant to the rear cover.
Use Genuine Silicone RTV sealant or equivalent. Refer to. GI-
45, "Recommended Chemical Products and Sealants" .
2. Install rear cover and tighten rear cover bolts in the order as
shown FFD-13, "
COMPONENTS" .
3. Fill final drive with recommended gear oil. Refer to GI-45, "
Rec-
ommended Chemical Products and Sealants" .
4. Install front final drive. Refer to FFD-12, "
INSTALLATION" .
BDIA0004E
BDIA0005E
Page 2042 of 3419
FRONT FINAL DRIVE ASSEMBLY
FFD-11
C
E
F
G
H
I
J
K
L
MA
B
FFD
Revision: October 20052005 QX56
FRONT FINAL DRIVE ASSEMBLYPFP:38500
Removal and InstallationEDS003PK
REMOVAL
1. Remove front propeller shaft. Refer to PR-4, "Removal and Installation" .
CAUTION:
Be careful not to damage spline, sleeve yoke and front oil seal when removing propeller shaft.
2. Separate LH and RH drive shafts from front final drive. Refer to FAX-7, "
Removal and Installation" .
3. Remove front cross member.
4. Disconnect the vent hose.

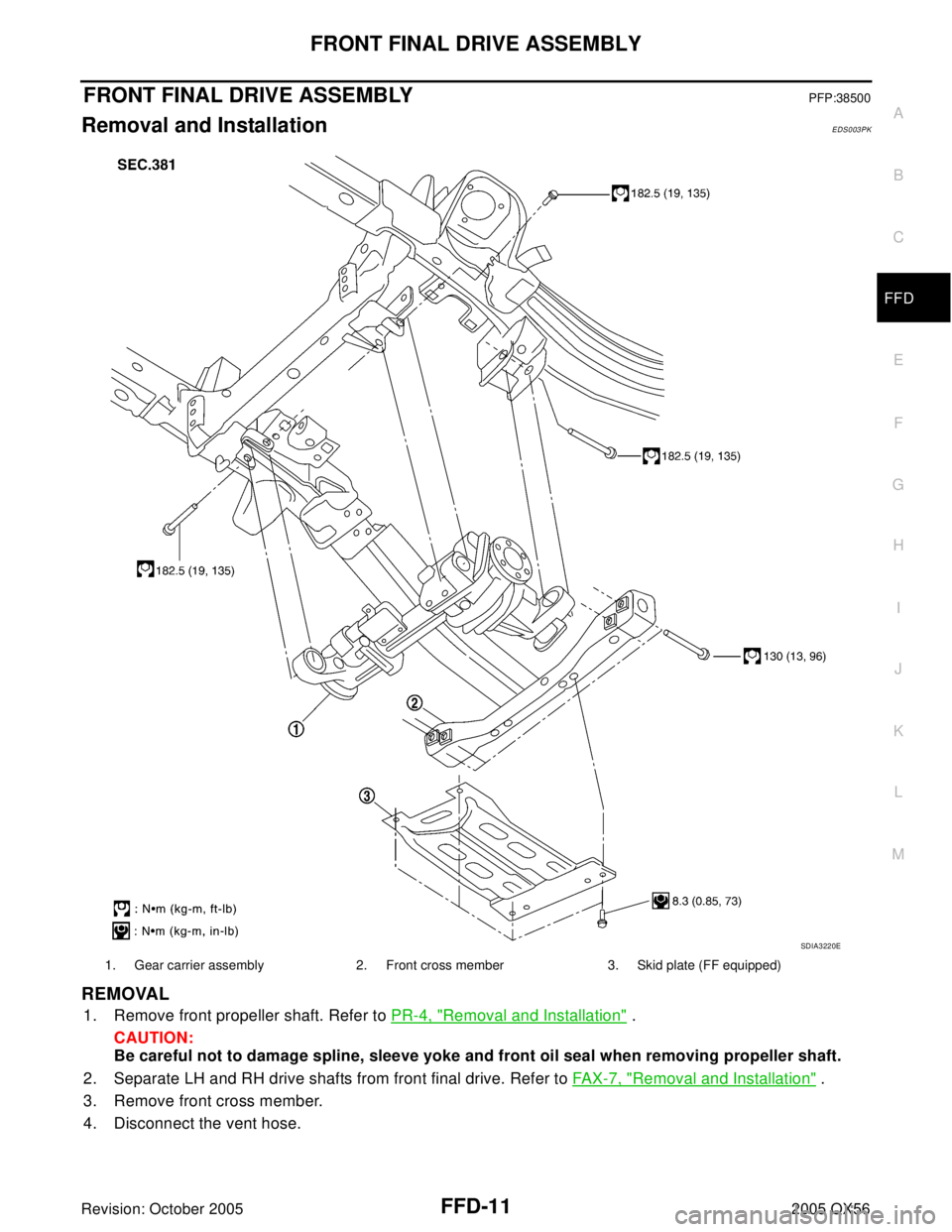

1. Gear carrier assembly 2. Front cross member 3. Skid plate (FF equipped)
SDIA3220E
Page 2043 of 3419
FFD-12
FRONT FINAL DRIVE ASSEMBLY
Revision: October 20052005 QX56
5. Support the front final drive with suitable jack and remove the
front final drive bolts. Carefully remove front final drive.
INSTALLATION
1. Install front final drive assembly.
2. Connect the vent hose.
3. Install the front cross member.
4. Install LH and RH drive shaft. Refer to FAX-7, "
Removal and
Installation" .
5. Install front propeller shaft. Refer to PR-4, "
Removal and Instal-
lation" .
BDIA0008E
Front final drive bolts : 182.5 N·m (19 kg-m, 135 ft-lb)
BDIA0008E
Page 2044 of 3419
FRONT FINAL DRIVE ASSEMBLY
FFD-13
C
E
F
G
H
I
J
K
L
MA
B
FFD
Revision: October 20052005 QX56
Disassembly and AssemblyEDS003PL
COMPONENTS

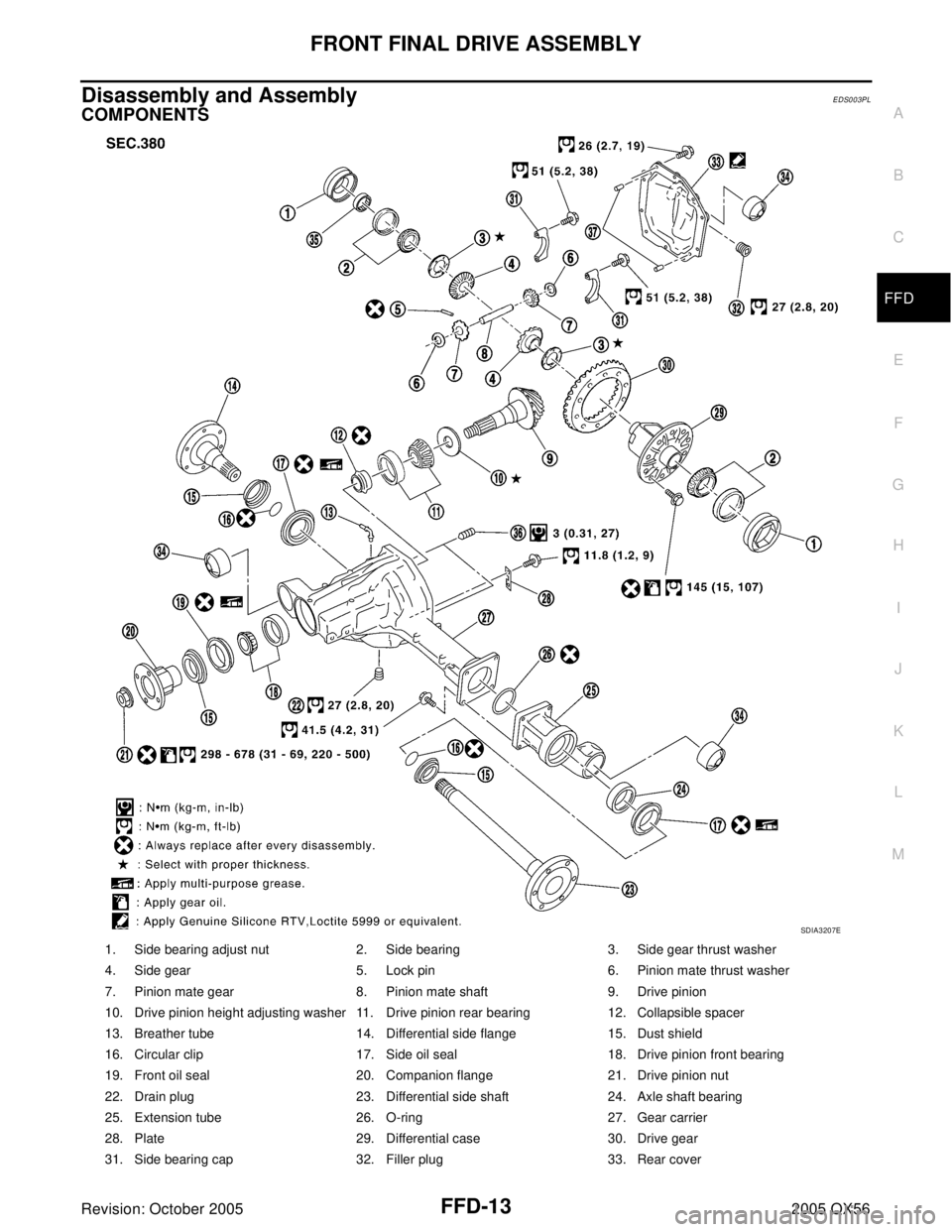

1. Side bearing adjust nut 2. Side bearing 3. Side gear thrust washer
4. Side gear 5. Lock pin 6. Pinion mate thrust washer
7. Pinion mate gear 8. Pinion mate shaft 9. Drive pinion
10. Drive pinion height adjusting washer 11. Drive pinion rear bearing 12. Collapsible spacer
13. Breather tube 14. Differential side flange 15. Dust shield
16. Circular clip 17. Side oil seal 18. Drive pinion front bearing
19. Front oil seal 20. Companion flange 21. Drive pinion nut
22. Drain plug 23. Differential side shaft 24. Axle shaft bearing
25. Extension tube 26. O-ring 27. Gear carrier
28. Plate 29. Differential case 30. Drive gear
31. Side bearing cap 32. Filler plug 33. Rear cover
SDIA3207E
Page 2045 of 3419

FFD-14
FRONT FINAL DRIVE ASSEMBLY
Revision: October 20052005 QX56
ASSEMBLY INSPECTION AND ADJUSTMENT
Before inspection and adjustment, drain gear oil.
Total Preload Torque
1. Rotate drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction.
2. Rotate drive pinion at least 20 times to check for smooth operation of the bearing.
3. Measure total preload with preload gauge.
If measured value is out of the specification, disassemble it to
check and adjust each part. Adjust the pinion bearing preload
and side bearing preload.
Adjust the pinion bearing preload first, then adjust the side bear-
ing preload.
34. Bushing 35. Bearing 36 Screw
37 Dowel pin
Tool number : ST3127S000
Total preload (with oil seal):
2.98 - 4.76 N·m (0.31 - 0.48 kg-m, 27 - 42 in-lb)
SDIA2220E
When the preload torque is large
On pinion bearings: Replace the collapsible spacer.
On side bearings: Loosen the side bearing adjust nuts at the same force on each side.
When the preload is small
On pinion bearings: Tighten the drive pinion nut.
On side bearings: Tighten the side bearing adjust nuts at the same force on each side.
Page 2046 of 3419
FRONT FINAL DRIVE ASSEMBLY
FFD-15
C
E
F
G
H
I
J
K
L
MA
B
FFD
Revision: October 20052005 QX56
Tooth Contact
1. Remove rear cover. Refer to FFD-17, "Differential Assembly" .
2. Thoroughly clean drive gear and drive pinion teeth.
3. Lightly apply a mixture of powdered ferric oxide and oil or the
equivalent. Apply it to 3 or 4 teeth of drive gear drive side.
4. Rotate drive gear back and forth several times, check drive pin-
ion gear to drive gear tooth contact.
CAUTION:
Check tooth contact on drive side and reverse side.
SDIA2248E
SDIA2249E
SDIA1796E
Page 2047 of 3419

FFD-16
FRONT FINAL DRIVE ASSEMBLY
Revision: October 20052005 QX56
Backlash
1. Remove carrier cover. Refer to FFD-17, "Differential Assembly" .
2. Fit a dial indicator to the drive gear face to measure the back-
lash.
If the backlash is outside of the specified value, use each side
bearing adjust nut.
Companion Flange Runout
1. Fit a dial indicator onto the companion flange face (inner side of
the propeller shaft mounting bolt holes).
2. Rotate companion flange to check for runout.
3. Fit a test indicator to the inner side of companion flange (socket
diameter).
4. Rotate companion flange to check for runout.
5. If the runout value is outside the runout limit, follow the proce-
dure below to adjust.
a. Check for runout while changing the phase between companion flange and drive pinion by 90° step, and
search for the position where the runout is the minimum.
b. If the runout value is still outside of the limit after the phase has been changed, possible cause will be an
assembly malfunction of drive pinion and pinion bearing and malfunction of pinion bearing. Check for
these items and repair if necessary.
c. If the runout value is still outside of the limit after the check and repair, replace companion flange.Backlash: 0.13 - 0.18 mm (0.0051 - 0.0071 in)
SDIA3203E
When the backlash is large:
Loosen adjust nut A and tighten adjust nut B.
When the backlash is small:
Loosen adjust nut B and tighten adjust nut A.
SDIA2262E
Runout limit: 0.10 mm (0.0039 in)
Runout limit: 0.13 mm (0.0051 in)
PDIA0646E
Page 2048 of 3419
FRONT FINAL DRIVE ASSEMBLY
FFD-17
C
E
F
G
H
I
J
K
L
MA
B
FFD
Revision: October 20052005 QX56
DISASSEMBLY
Differential Assembly
1. Drain gear oil, if necessary.
2. Remove differential side shaft with a soft hammer.
3. Remove differential side flange with a soft hammer.
4. Remove extension tube and O-ring.
5. Place a small hole in seal case, using a suitable punch or drill.
SDIA2223E
SDIA2224E
SDIA3205E
LDIA0129E
