Page 1177 of 3419
DI-74
REAR VIEW MONITOR
Revision: October 20052005 QX56

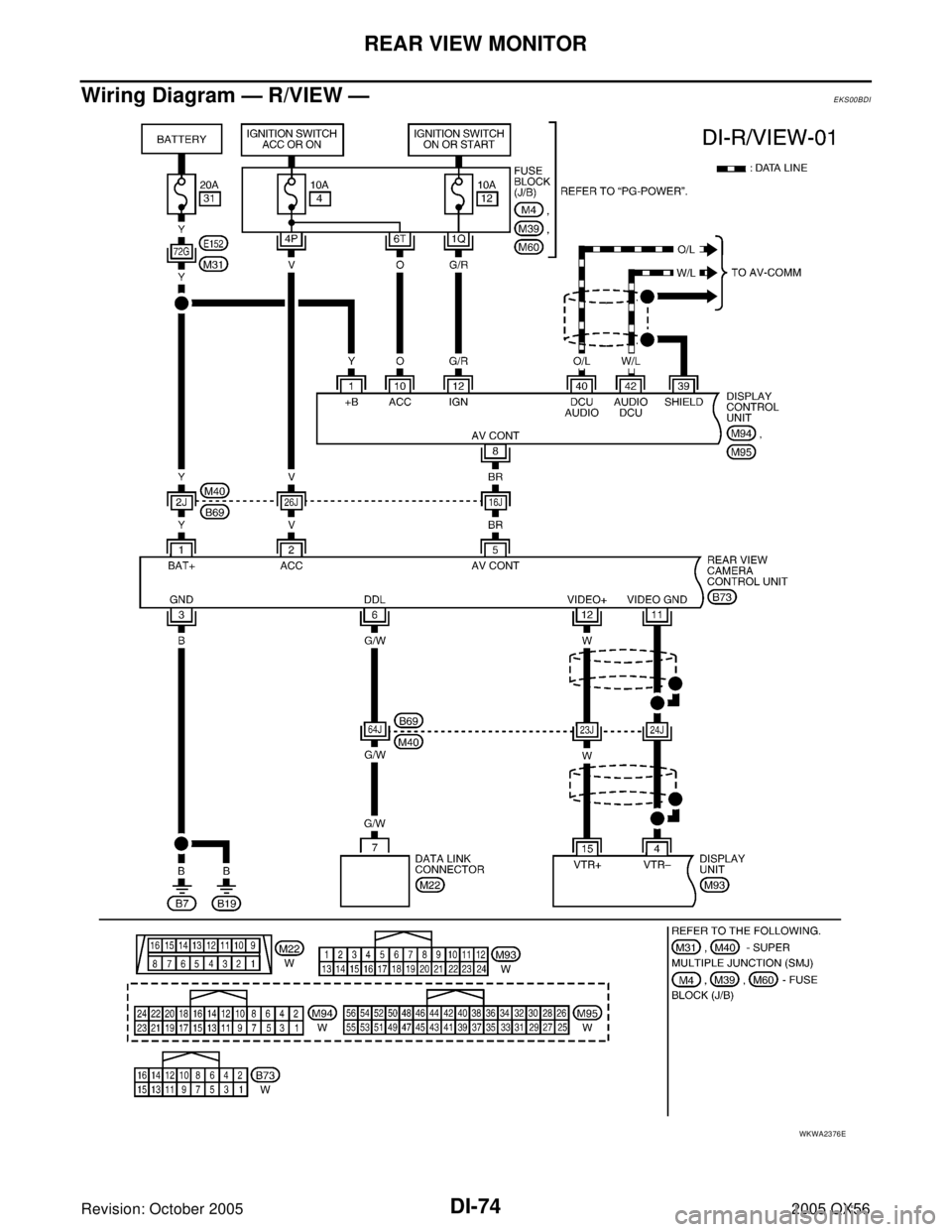

Wiring Diagram — R/VIEW —EKS00BDI
WKWA2376E
Page 1178 of 3419
REAR VIEW MONITOR
DI-75
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56

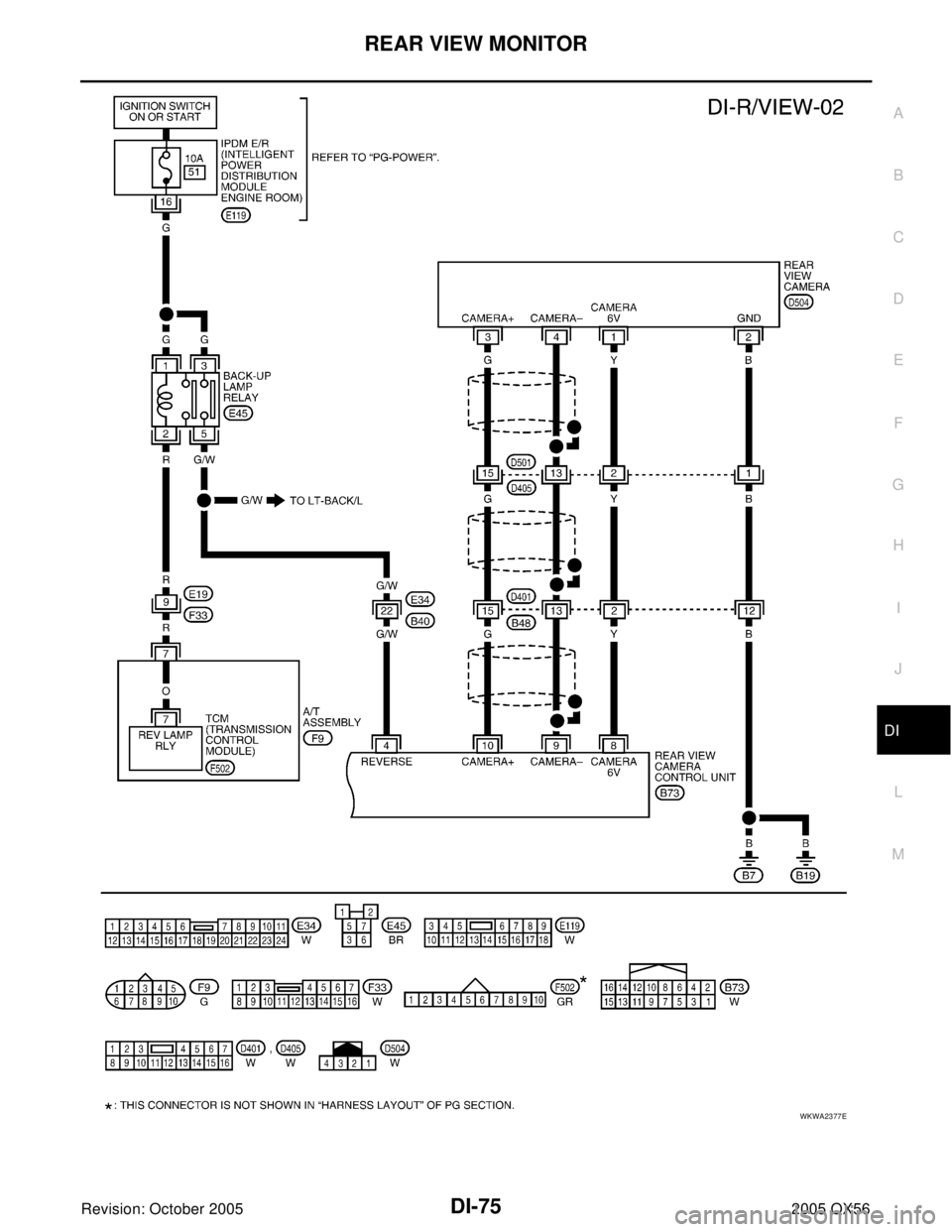

WKWA2377E
Page 1179 of 3419
DI-76
REAR VIEW MONITOR
Revision: October 20052005 QX56

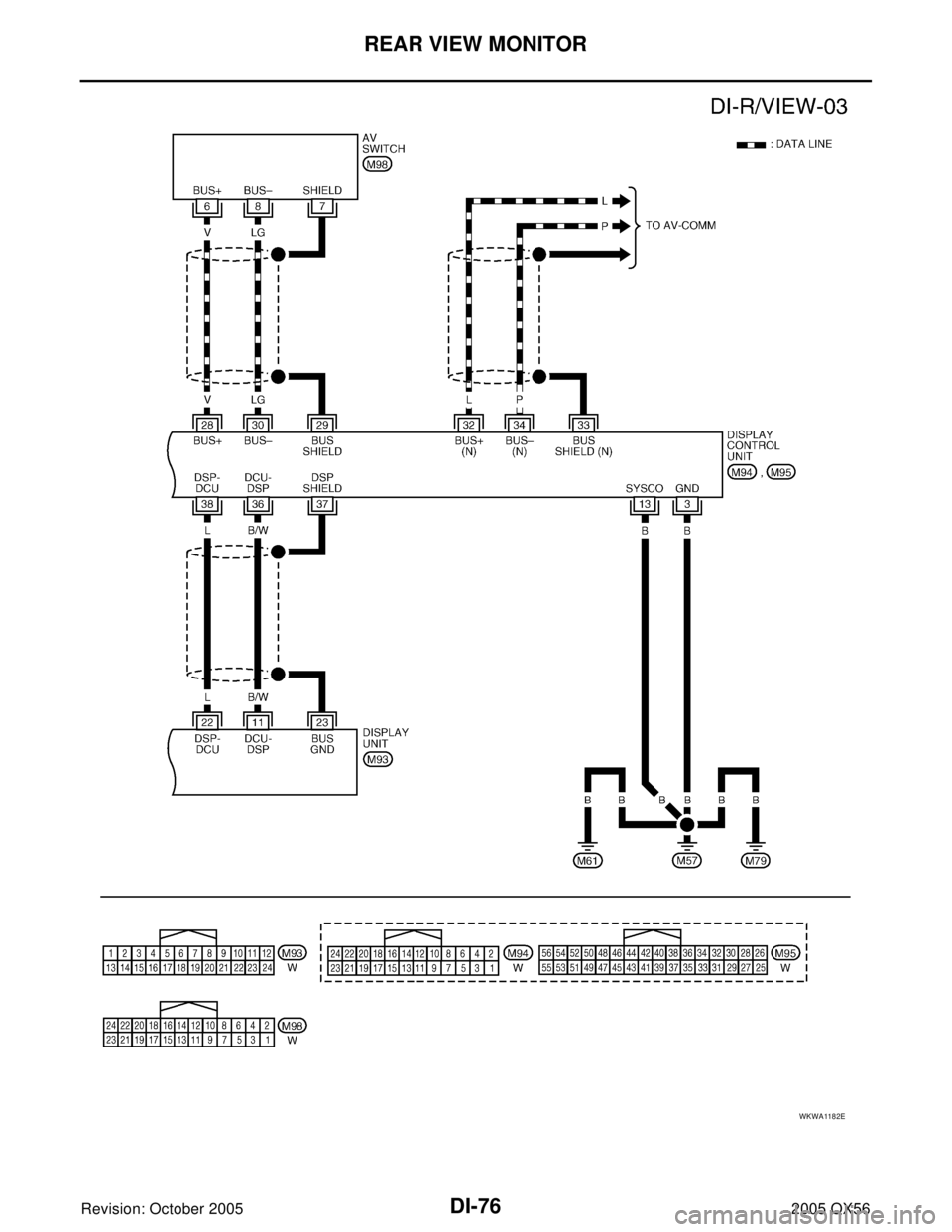

WKWA1182E
Page 1180 of 3419
REAR VIEW MONITOR
DI-77
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
Terminals and Reference Value for Rear View Camera Control UnitEKS00BDJ
Te r m i n a l
No.Wire
colorItemCondition
Reference value (V)
(Approx.) Ignition
switchOperation
1 Y Battery power OFF — Battery voltage
2 V ACC power ACC — Battery voltage
3 B Ground ON — 0
4 G/W Reverse signal input ONA/T selector lever R position Battery voltage
A/T selector lever in other than R
position0
5BRAV Control ONA/T selector lever R position 0
—0
6G/WDDL — — —
8 Y Camera power output ON A/T selector lever R position 6
9 — Camera image input (–) ON — 0
10 G Camera image input (+) ON A/T selector lever R position
11 — Shield ground — — —
12 W Composite image output ON A/T selector lever R position
SKIA4894E
SKIA4896E
Page 1181 of 3419

DI-78
REAR VIEW MONITOR
Revision: October 20052005 QX56

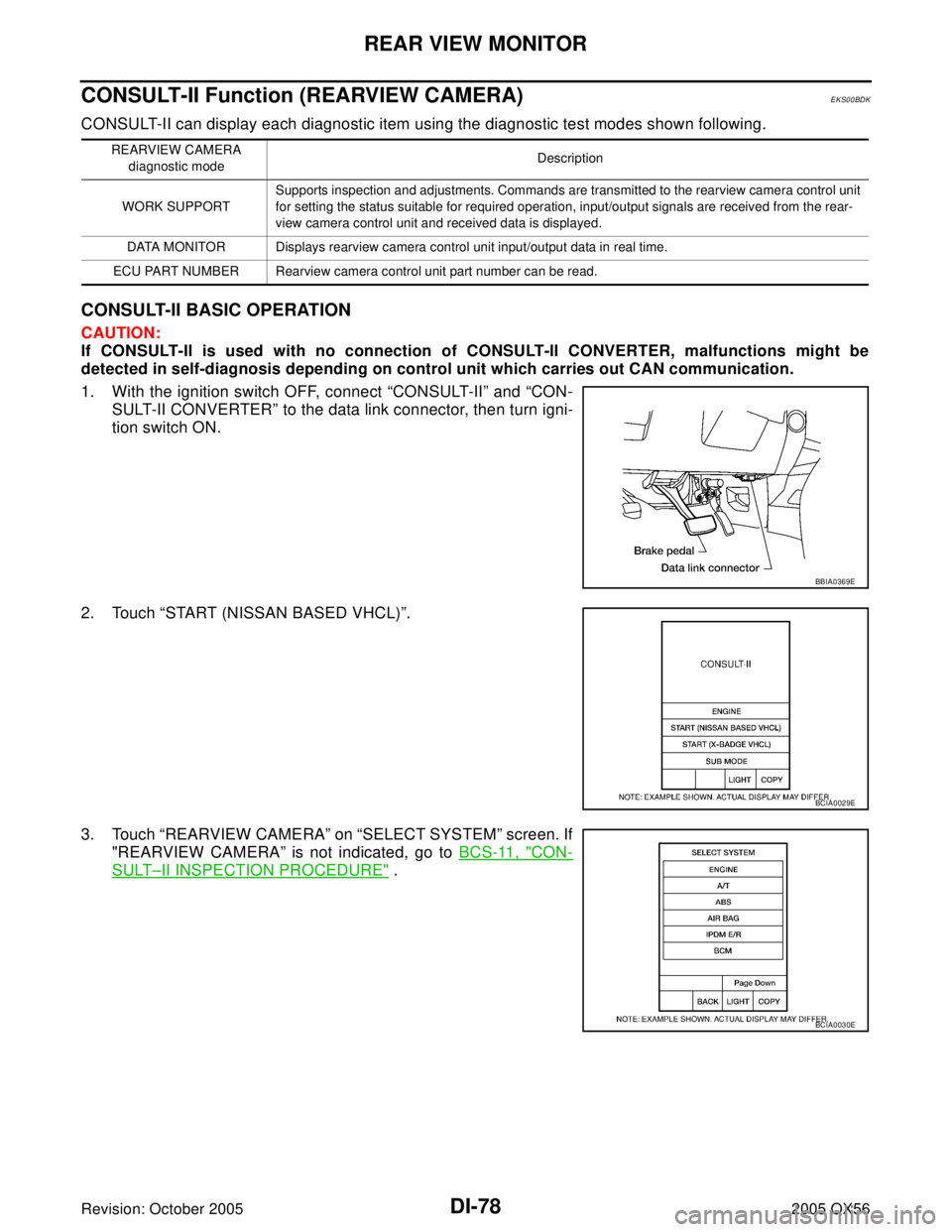

CONSULT-II Function (REARVIEW CAMERA)EKS00BDK
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II BASIC OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With the ignition switch OFF, connect “CONSULT-II” and “CON-
SULT-II CONVERTER” to the data link connector, then turn igni-
tion switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “REARVIEW CAMERA” on “SELECT SYSTEM” screen. If
"REARVIEW CAMERA” is not indicated, go to BCS-11, "
CON-
SULT–II INSPECTION PROCEDURE" .
REARVIEW CAMERA
diagnostic modeDescription
WORK SUPPORTSupports inspection and adjustments. Commands are transmitted to the rearview camera control unit
for setting the status suitable for required operation, input/output signals are received from the rear-
view camera control unit and received data is displayed.
DATA MONITOR Displays rearview camera control unit input/output data in real time.
ECU PART NUMBER Rearview camera control unit part number can be read.
BBIA0369E
BCIA0029E
BCIA0030E
Page 1182 of 3419

REAR VIEW MONITOR
DI-79
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
4. Select “WORK SUPPORT”, “DATA MONITOR” or “ECU PART
NUMBER”.
WORK SUPPORT
Operation Procedure
1. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
2. Touch either “SELCT GUIDELINE PATTERN” or “ADJ GUIDELINE POSITION” on the “SELECT WORK
ITEM” screen.
Refer to DI-80, "
SIDE DISTANCE GUIDELINE CORRECTION PROCEDURE" for detail.
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on the “SELECT MONITOR ITEM” screen.
3. When “SELECTION FROM MENU” is selected, touch individual items to be monitored. When “ALL SIG-
NALS” is selected, all items will be monitored.
4. Touch “START”.
5. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
BCIA0031E
SELCT GUIDELINE PATTERN Side distance guideline is optional from two patterns.
ADJ GUIDELINE POSITION Side distance guideline is adjustable toward up and down, right and left.
ALL SIGNALS Monitors all signals.
SELECTION FROM MENU Selects and monitors individual signal.
Display item [Unit]ALL SIG-
NALSSELECTION
FROM MENUContents
R POSI SIG [ON/OFF] X X Indicates [ON/OFF] condition of R position signal input.
Page 1183 of 3419

DI-80
REAR VIEW MONITOR
Revision: October 20052005 QX56

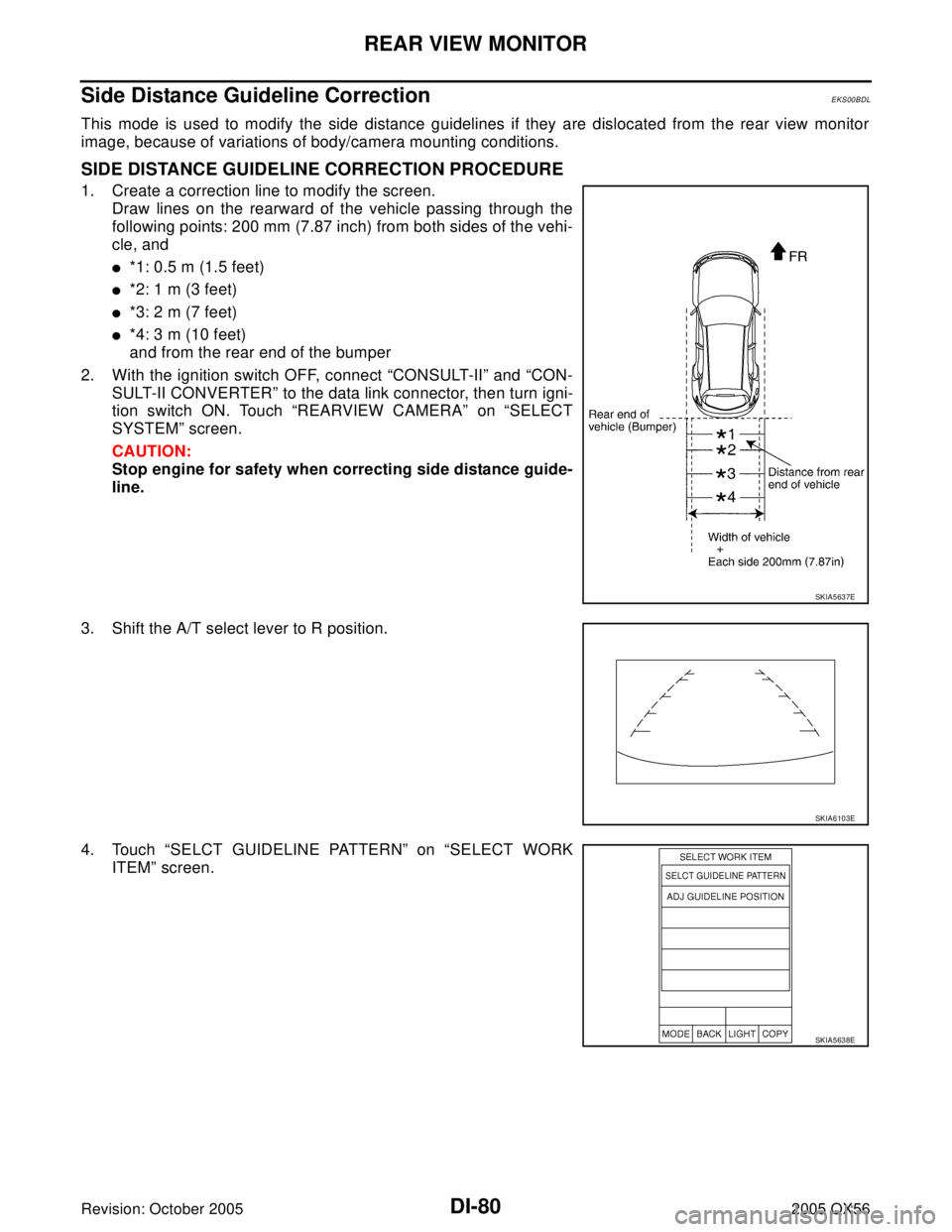

Side Distance Guideline CorrectionEKS00BDL
This mode is used to modify the side distance guidelines if they are dislocated from the rear view monitor
image, because of variations of body/camera mounting conditions.
SIDE DISTANCE GUIDELINE CORRECTION PROCEDURE
1. Create a correction line to modify the screen.
Draw lines on the rearward of the vehicle passing through the
following points: 200 mm (7.87 inch) from both sides of the vehi-
cle, and
*1: 0.5 m (1.5 feet)
*2: 1 m (3 feet)
*3: 2 m (7 feet)
*4: 3 m (10 feet)
and from the rear end of the bumper
2. With the ignition switch OFF, connect “CONSULT-II” and “CON-
SULT-II CONVERTER” to the data link connector, then turn igni-
tion switch ON. Touch “REARVIEW CAMERA” on “SELECT
SYSTEM” screen.
CAUTION:
Stop engine for safety when correcting side distance guide-
line.
3. Shift the A/T select lever to R position.
4. Touch “SELCT GUIDELINE PATTERN” on “SELECT WORK
ITEM” screen.
SKIA5637E
SKIA6103E
SKIA5638E
Page 1184 of 3419
REAR VIEW MONITOR
DI-81
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
5. Touch “UP” or “DOWN”, and select the guide line, “PATTERN
NO. 0” or “PATTERN NO. 1”, which is the closest to the cor-
rected line.
6. Touch “SAVE”, and confirm the guide line.
7. Touch “END”.
8. Touch “ADJ GUIDELINE POSITION” on “SELECT WORK
ITEM” screen.
9. Adjust the guide line touching “X UP”, “X DOWN”, “Y UP” or “Y
DOWN” so that the corrected line can fit the guide line.
10. Touch “SAVE”, and confirm the guide line.
11. Touch “END” to finish correcting.
SKIA5639E
SKIA5638E
SKIA5642E
