Page 1265 of 3419

INFINITI QX4 2005 Factory Service Manual EC-74Revision: October 2005 BASIC SERVICE PROCEDURE 2005 QX56 6. PERFORM IDLE AIR VOLUME LEARNING Refer to EC-91, " Idle Air Volume Learning" . Is Idle Air Volume Learning carried out successfully? Ye

Page 1266 of 3419

INFINITI QX4 2005 Factory Service Manual BASIC SERVICE PROCEDURE EC-75 C D E F G H I J K L MA EC Revision: October 20052005 QX56 10. CHECK IGNITION TIMING 1. Run engine at idle. 2. Check ignition timing with a timing light. Refer to EC-77, "

Page 1267 of 3419

INFINITI QX4 2005 Factory Service Manual EC-76Revision: October 2005 BASIC SERVICE PROCEDURE 2005 QX56 15. CHECK IGNITION TIMING AGAIN 1. Run engine at idle. 2. Check ignition timing with a timing light. Refer to EC-77, " IGNITION TIMING" .

Page 1268 of 3419

INFINITI QX4 2005 Factory Service Manual BASIC SERVICE PROCEDURE EC-77 C D E F G H I J K L MA EC Revision: October 20052005 QX56 Idle Speed and Ignition Timing CheckUBS00KZV IDLE SPEED With CONSULT-II Check idle speed in “DATA MONITOR”

Page 1269 of 3419

INFINITI QX4 2005 Factory Service Manual EC-78Revision: October 2005 BASIC SERVICE PROCEDURE 2005 QX56 2. Connect ignition coil No.1 and spark plug with suitable high-ten- sion wire as shown, and attach timing light clamp to this wire. 3. Ch

Page 1270 of 3419

INFINITI QX4 2005 Factory Service Manual BASIC SERVICE PROCEDURE EC-79 C D E F G H I J K L MA EC Revision: October 20052005 QX56 Idle Mixture Ratio AdjustmentUBS00KZW PREPARATION 1. Make sure that the following parts are in good order. Batt

Page 1271 of 3419

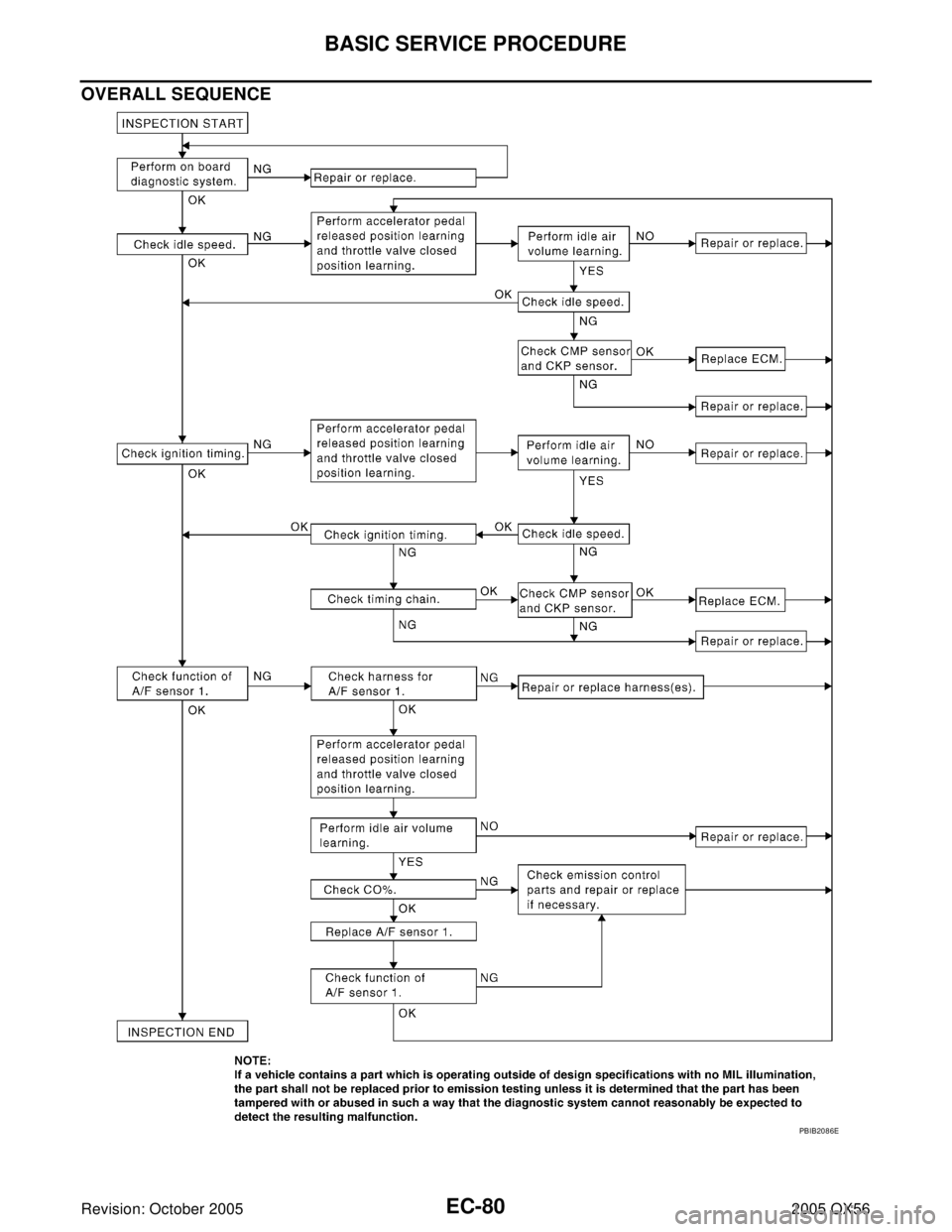

INFINITI QX4 2005 Factory Service Manual EC-80Revision: October 2005 BASIC SERVICE PROCEDURE 2005 QX56 OVERALL SEQUENCE PBIB2086E

Page 1272 of 3419

INFINITI QX4 2005 Factory Service Manual BASIC SERVICE PROCEDURE EC-81 C D E F G H I J K L MA EC Revision: October 20052005 QX56 DETAILED PROCEDURE 1. INSPECTION START 1. Check service records for any recent repairs that may indicate a relat
