Page 2425 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-146 [CAN] CAN SYSTEM (TYPE 4) Revision: October 20052005 QX56 Case 11 Check combination meter circuit. Refer to LAN-162, "Combination Meter Circuit Check" . SKIB3393E PKIA8828E

Page 2426 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-147 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 12 Check display control unit circuit. Refer to LAN-163, "Display Control Unit Circuit Check" . SKIB33

Page 2427 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-148 [CAN] CAN SYSTEM (TYPE 4) Revision: October 20052005 QX56 Case 13 Check BCM circuit. Refer to LAN-163, "BCM Circuit Check" . SKIB3395E PKIA8830E

Page 2428 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-149 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 14 Check data link connector circuit. Refer to LAN-164, "Data Link Connector Circuit Check" . SKIB3396

Page 2429 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-150 [CAN] CAN SYSTEM (TYPE 4) Revision: October 20052005 QX56 Case 15 Check steering angle sensor circuit. Refer to LAN-164, "Steering Angle Sensor Circuit Check" . SKIB3397E PKIA8832E

Page 2430 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-151 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 16 Check front air control circuit. Refer to LAN-165, "Front Air Control Circuit Check" . SKIB3398E PK

Page 2431 of 3419

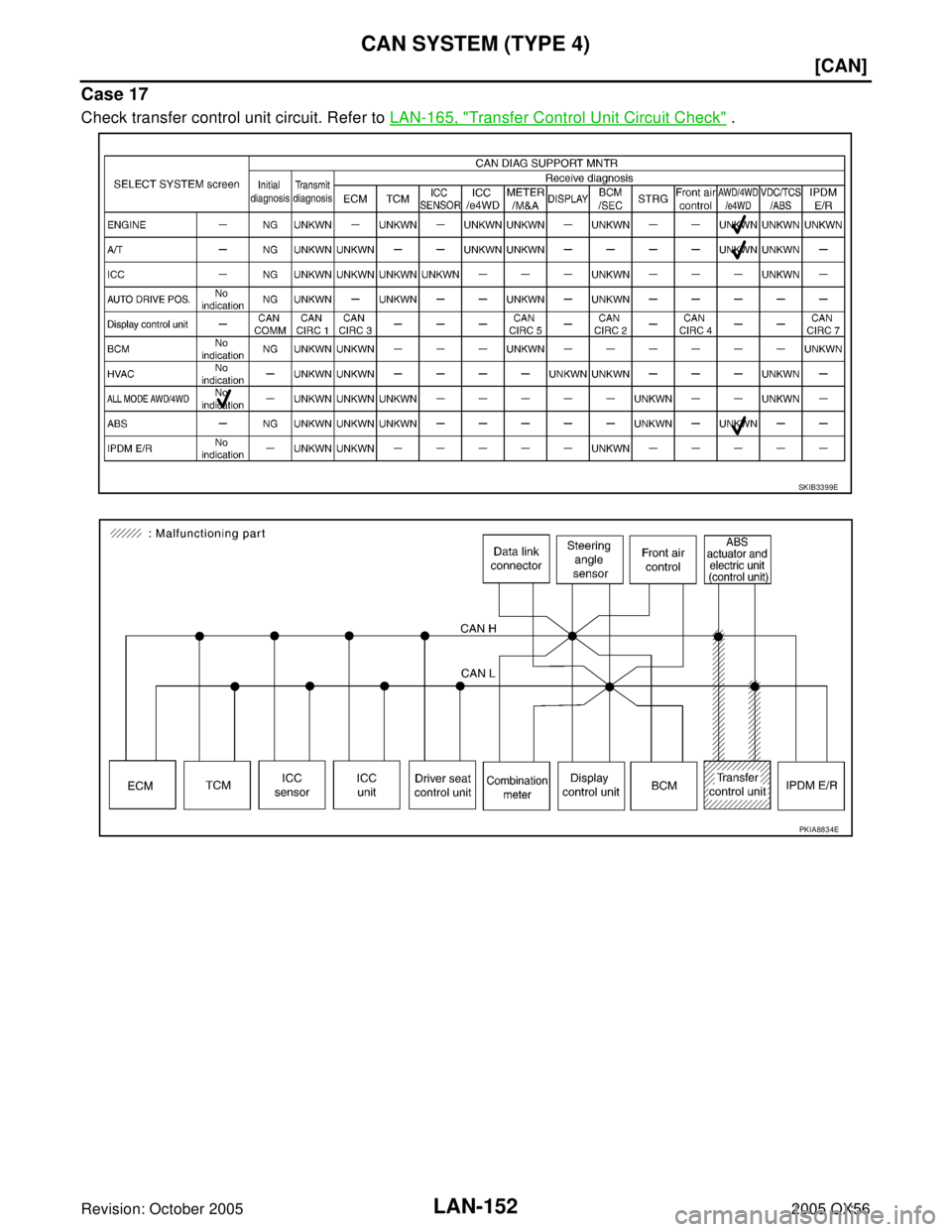

INFINITI QX4 2005 Factory Service Manual LAN-152 [CAN] CAN SYSTEM (TYPE 4) Revision: October 20052005 QX56 Case 17 Check transfer control unit circuit. Refer to LAN-165, "Transfer Control Unit Circuit Check" . SKIB3399E PKIA8834E

Page 2432 of 3419

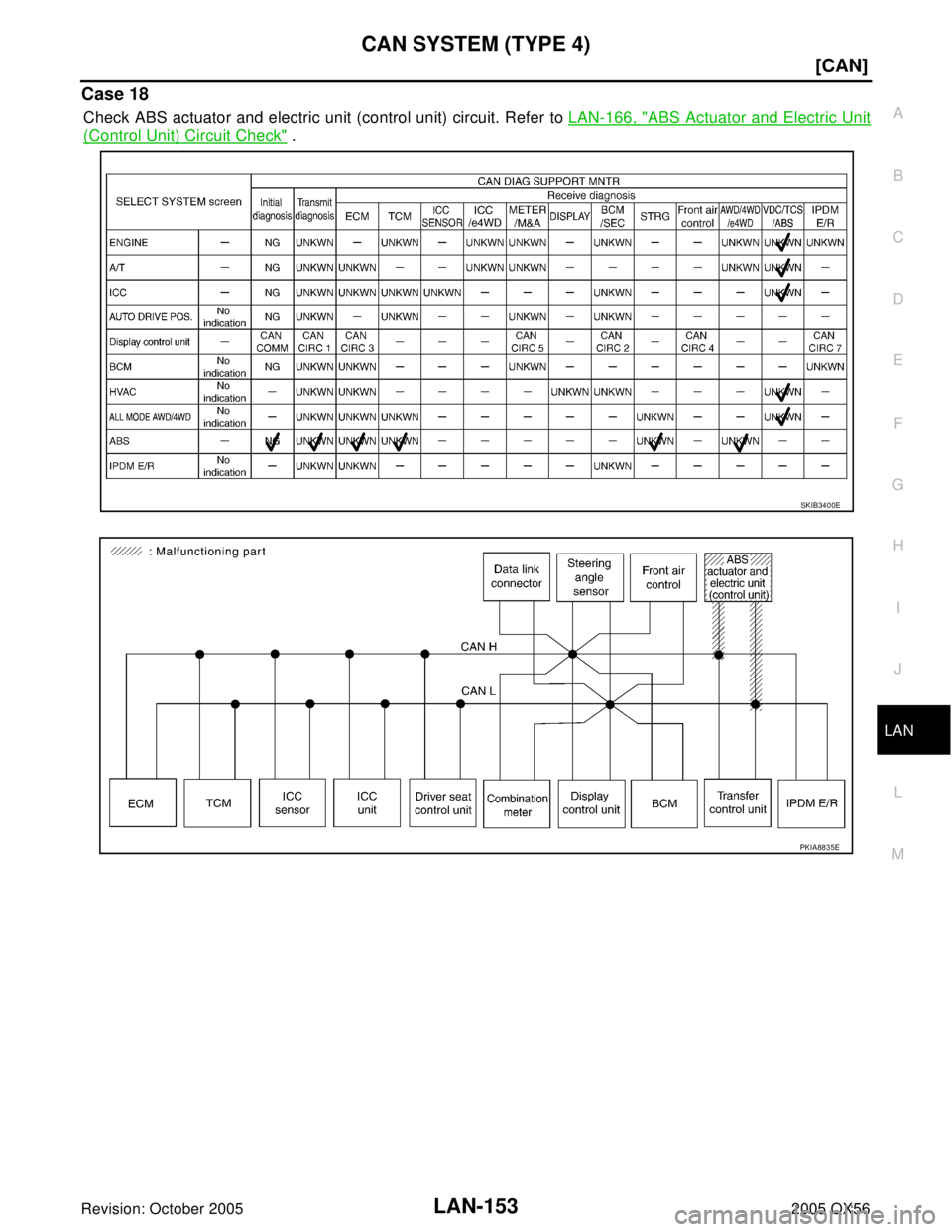

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-153 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 18 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-166, "ABS Actuator and El
