Page 2985 of 3419

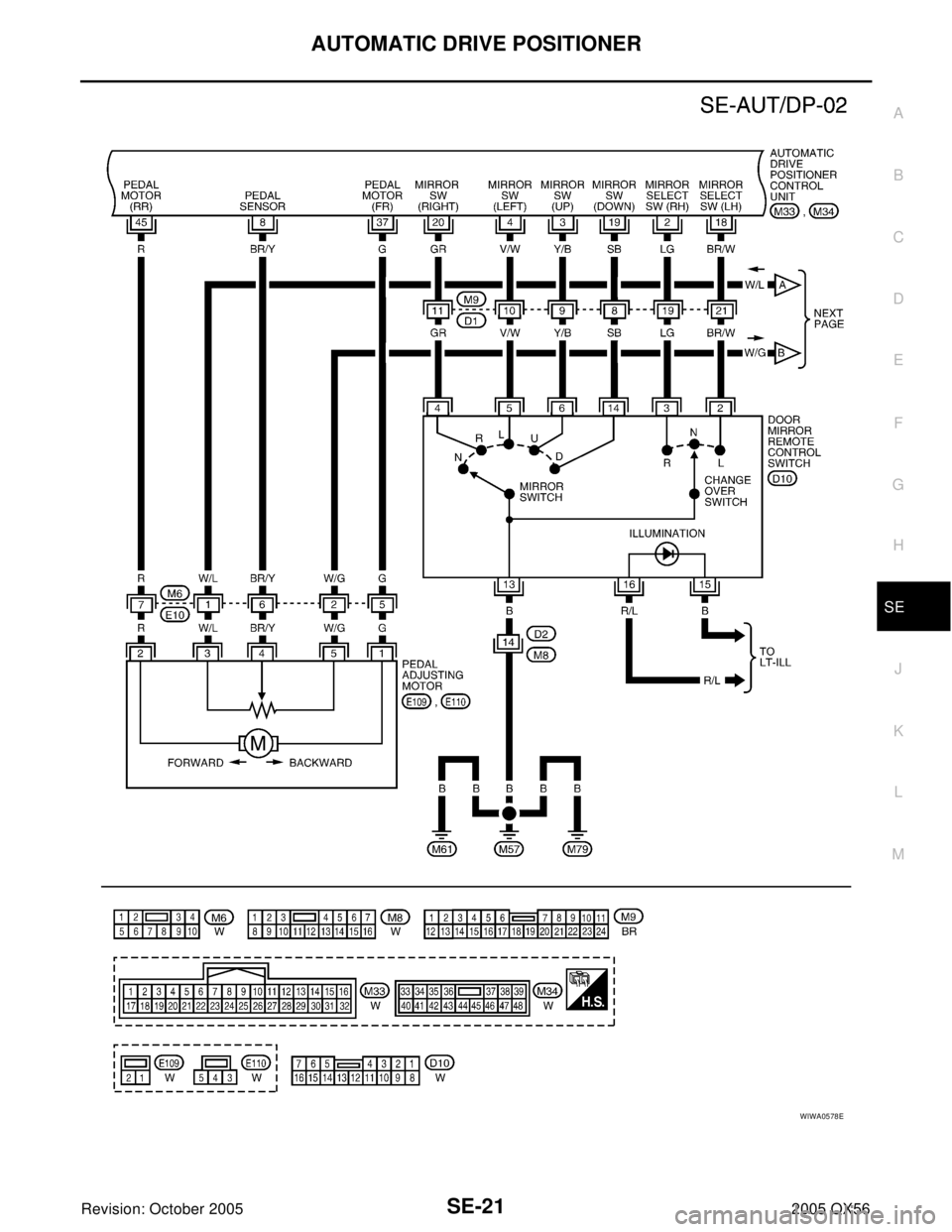

INFINITI QX4 2005 Factory Service Manual SE-20 AUTOMATIC DRIVE POSITIONER Revision: October 20052005 QX56 Wiring Diagram — AUT/DP —EIS004XI WIWA0577E

Page 2986 of 3419

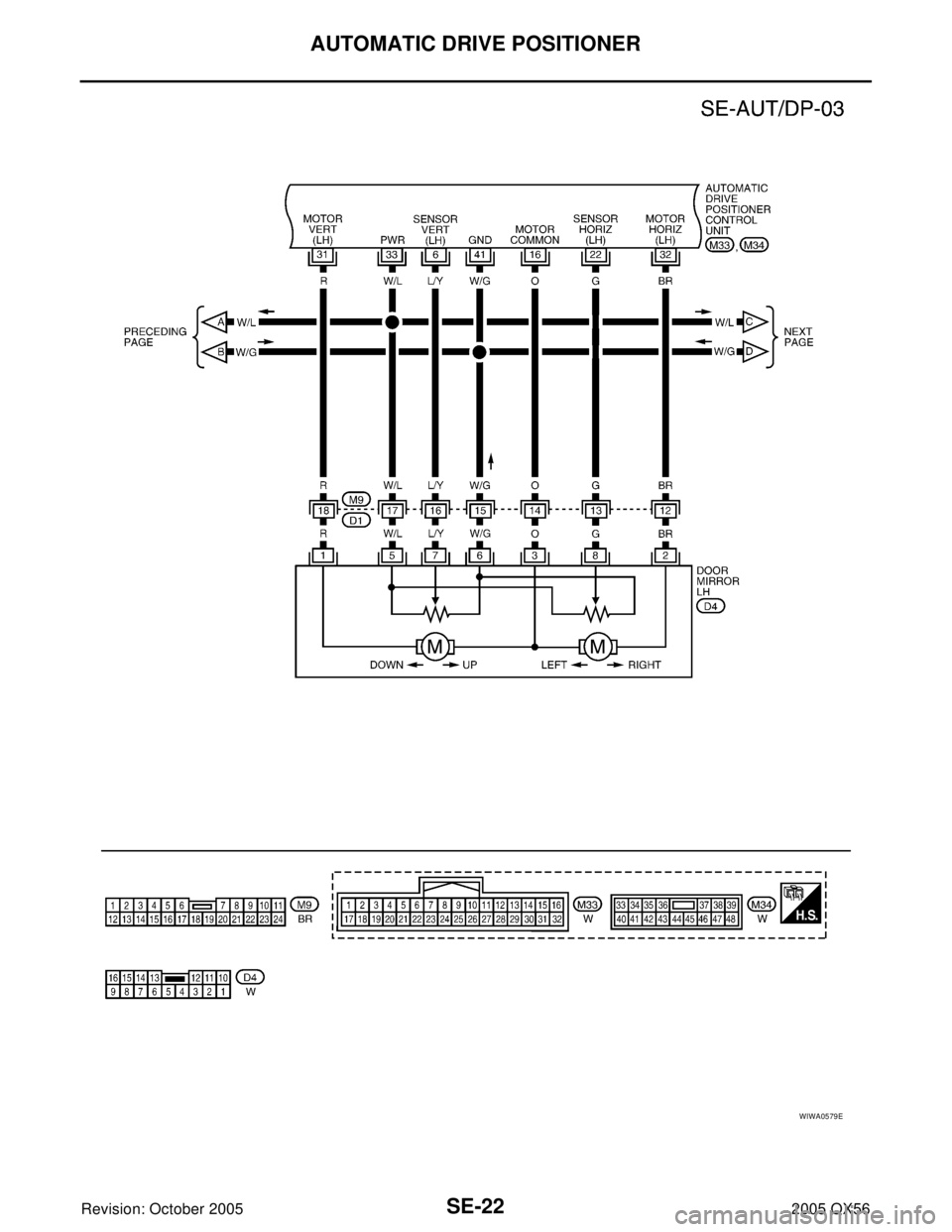

INFINITI QX4 2005 Factory Service Manual AUTOMATIC DRIVE POSITIONER SE-21 C D E F G H J K L MA B SE Revision: October 20052005 QX56 WIWA0578E

Page 2987 of 3419

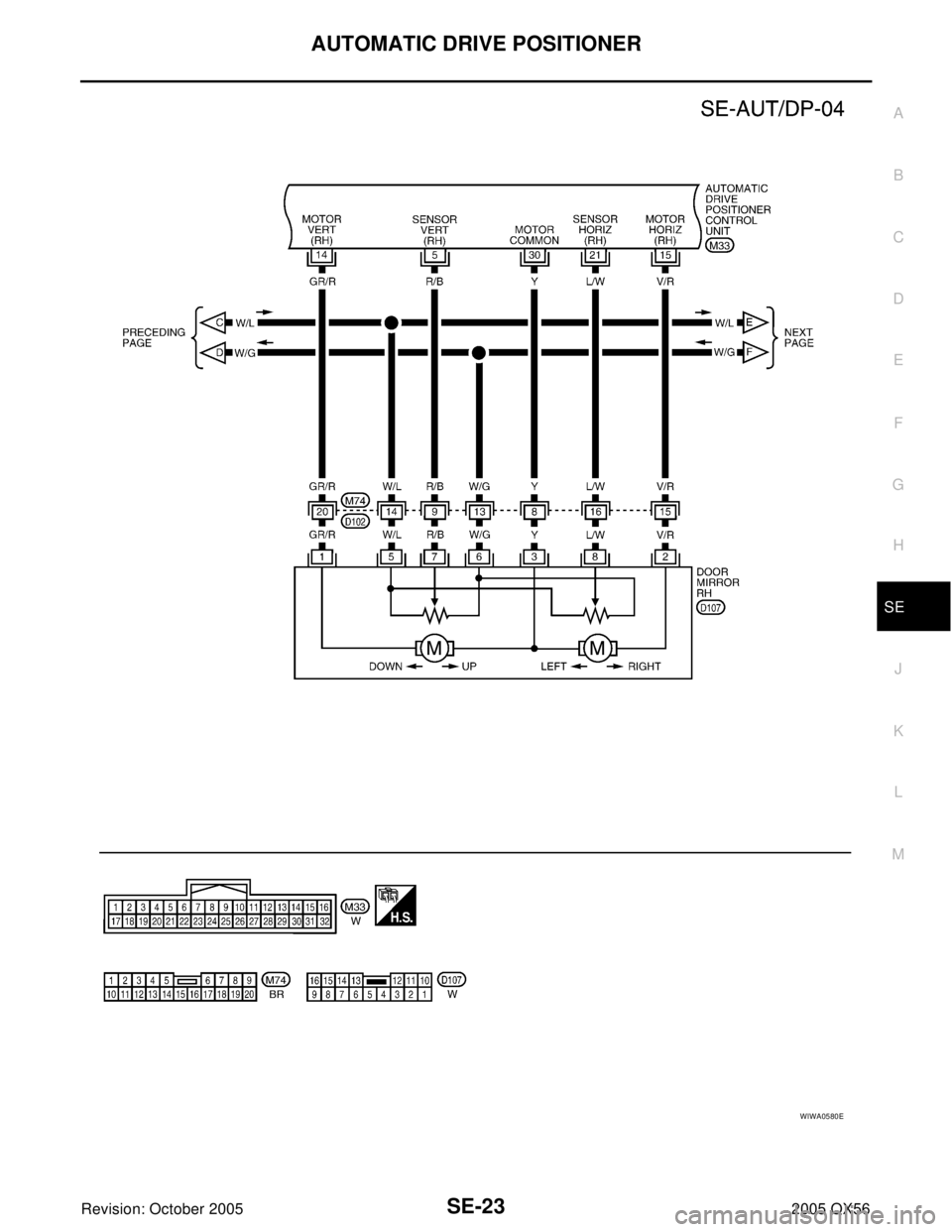

INFINITI QX4 2005 Factory Service Manual SE-22 AUTOMATIC DRIVE POSITIONER Revision: October 20052005 QX56 WIWA0579E

Page 2988 of 3419

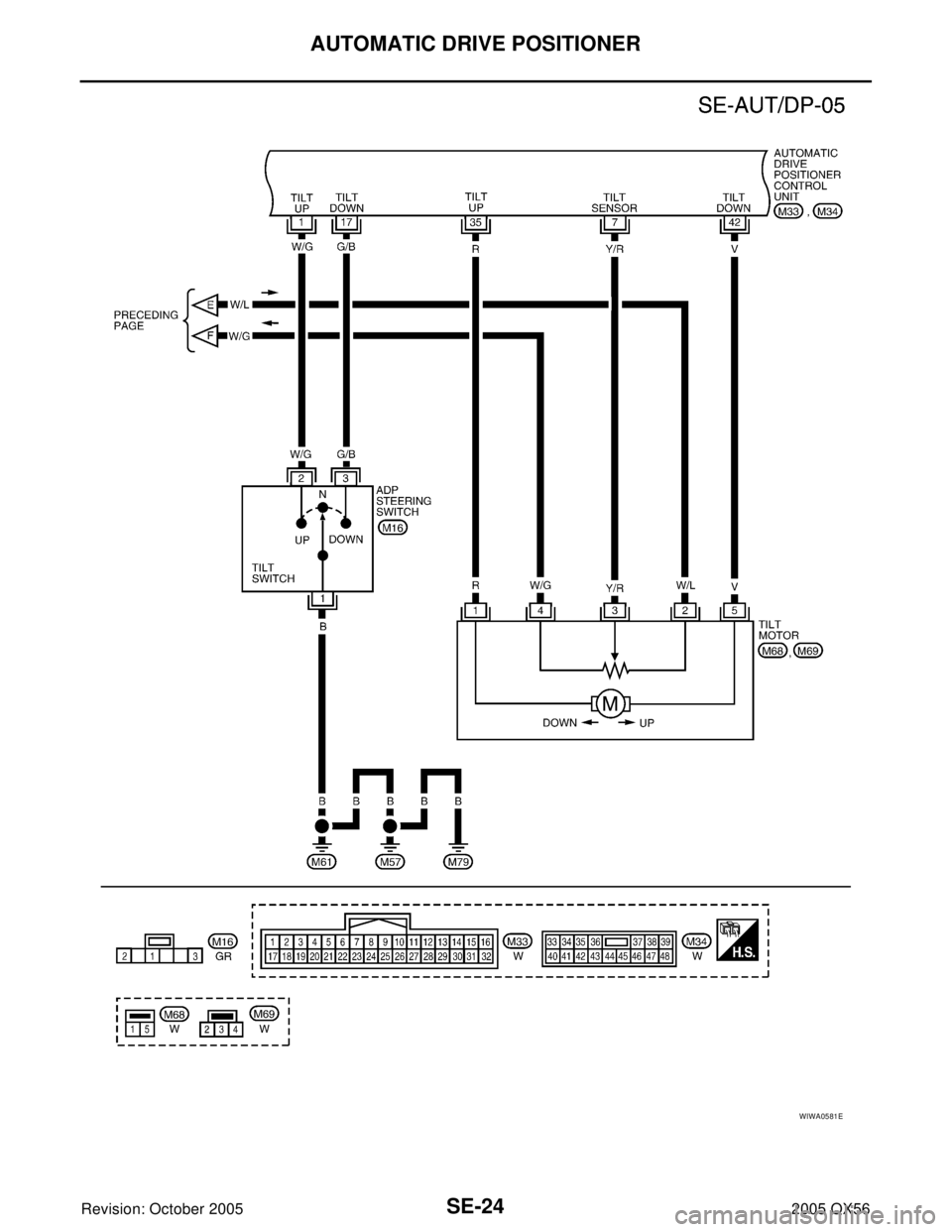

INFINITI QX4 2005 Factory Service Manual AUTOMATIC DRIVE POSITIONER SE-23 C D E F G H J K L MA B SE Revision: October 20052005 QX56 WIWA0580E

Page 2989 of 3419

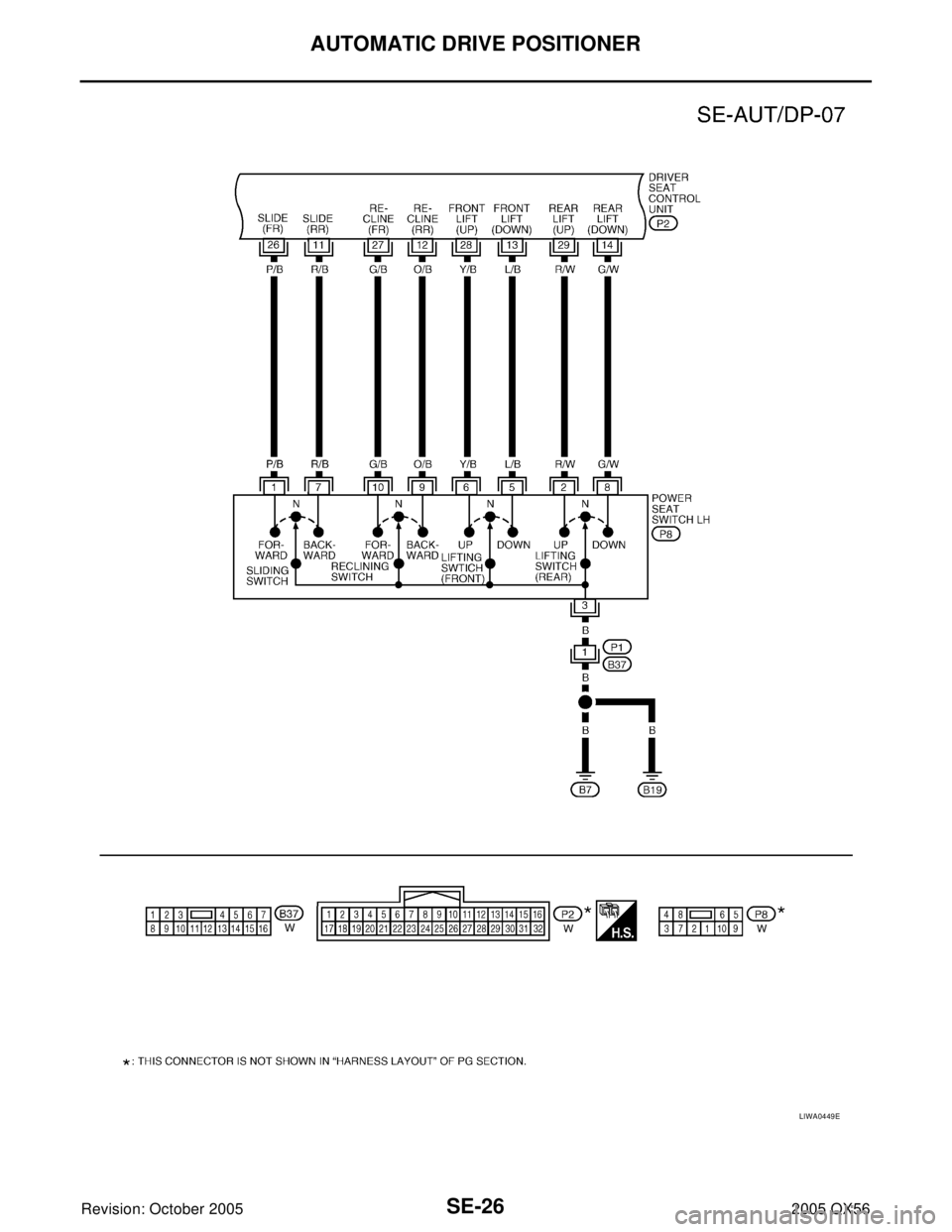

INFINITI QX4 2005 Factory Service Manual SE-24 AUTOMATIC DRIVE POSITIONER Revision: October 20052005 QX56 WIWA0581E

Page 2990 of 3419

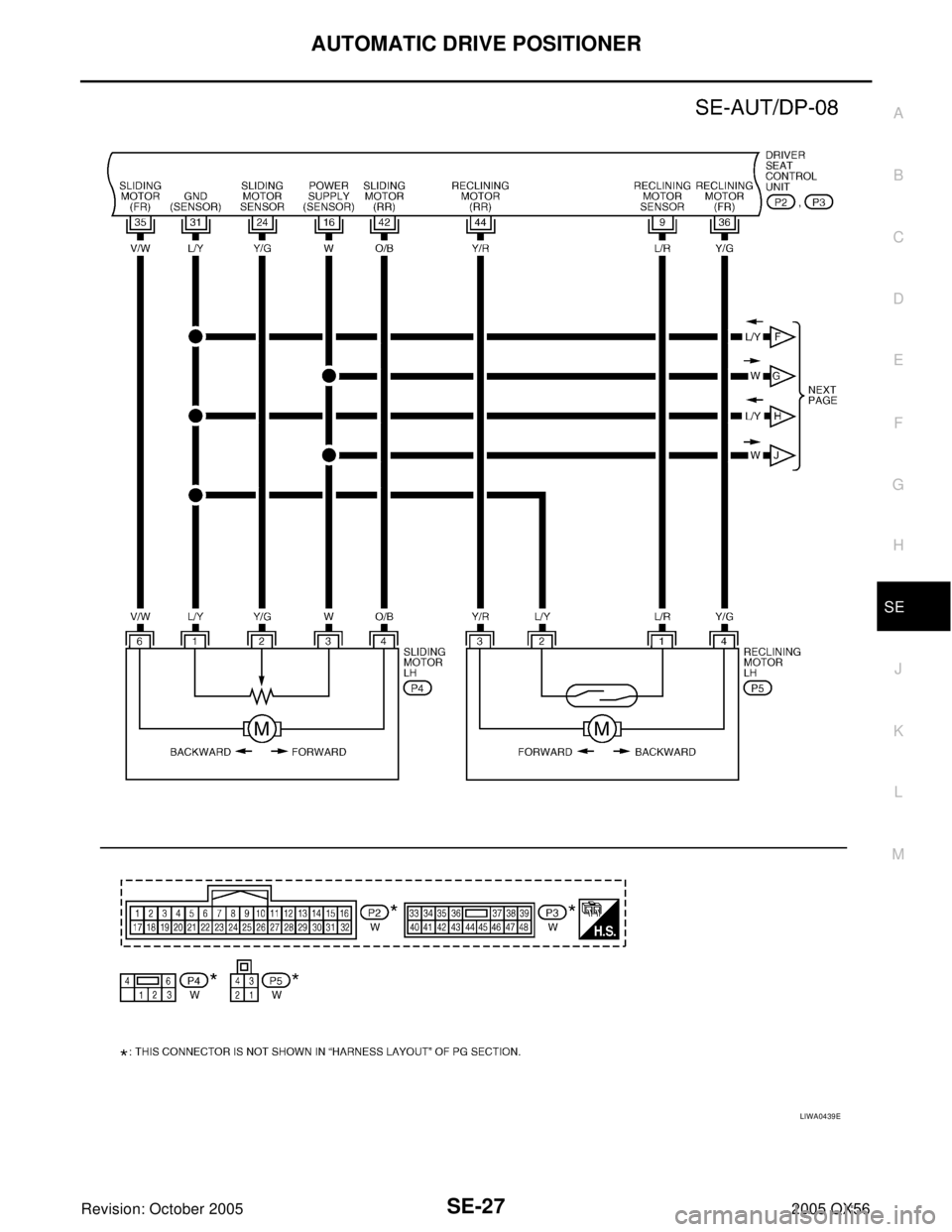

INFINITI QX4 2005 Factory Service Manual AUTOMATIC DRIVE POSITIONER SE-25 C D E F G H J K L MA B SE Revision: October 20052005 QX56 WIWA0582E

Page 2991 of 3419

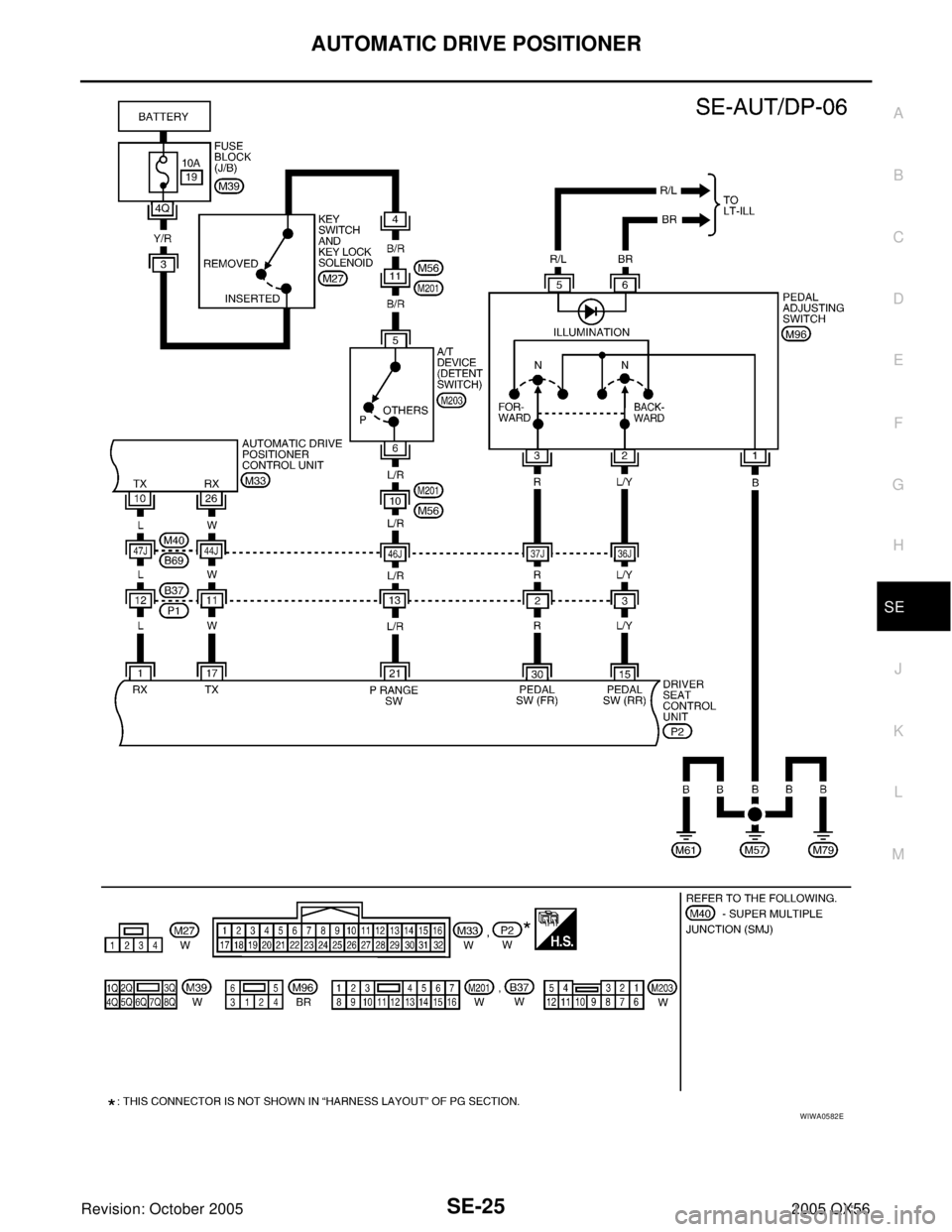

INFINITI QX4 2005 Factory Service Manual SE-26 AUTOMATIC DRIVE POSITIONER Revision: October 20052005 QX56 LIWA0449E

Page 2992 of 3419

INFINITI QX4 2005 Factory Service Manual AUTOMATIC DRIVE POSITIONER SE-27 C D E F G H J K L MA B SE Revision: October 20052005 QX56 LIWA0439E
