Page 2977 of 3419

INFINITI QX4 2005 Factory Service Manual SE-12
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56
Manual OperationEIS004XC
The driving position [seat position, steering wheel, pedal position (accelerator, brake) and door mirror posit

SE-12
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56
Manual OperationEIS004XC
The driving position [seat position, steering wheel, pedal position (accelerator, brake) and door mirror position]
can be adjusted with the power seat switch LH, pedal adjusting switch, door mirror remote control switch or
ADP steering switch.
NOTE:
The door mirrors can be manually operated with the ignition switch turned to ACC or ON.
Adjustable pedals can only operate when A/T shift lever is in P position (except when ignition switch
turned to OFF).
If A/T device (detent switch) error is detected, manual adjustable pedal operation cannot be performed
when ignition switch turns ON.
Automatic OperationEIS004XD
NOTE:
Disconnecting the battery erases the stored memory.
After connecting the battery, insert the key into the ignition cylinder and turn the front door switch LH ON (open)→OFF (close)→ON
(open), the Entry/ Exiting function becomes possible.
After Exiting operation is carried out, return operation can be operated.
NOTE:
During automatic operation, if the ignition switch is turned ON→START, the automatic operation is suspended. When the ignition switch
returns to ON, it resumes.
System DescriptionEIS004XE
The system automatically moves the driver seat and steering wheel to facilitate entry/exit to/from the vehi-
cle. The driver seat control unit can also store the optimum driving positions (driver seat, steering wheel,
pedal position and door mirror position) for 2 people. One-touch operation allows changing between driv-
ing positions.
7. Pedal adjusting switch M96 8. A. Door mirrror LH D4, RH D107
B. Front door switch LH B8
C. Front door lock assembly LH (key
cylinder switch) D149. A. A/T selector lever
B. A/T device (detent switch) M203
10. A. Sliding motor LH P4 (driver seat
view), reclining motor LH P5, lifting
motor (front) P6, lifting motor (rear)
P7
B. Driver seat control unit P2, P3
C. Power seat switch LH P811. A. ADP steering switch M16
B.Tilt motor M68, M69
Function Description
Memory operation The seat, steering wheel, pedals (accelerator, brake) and door mirrors move to the
stored driving position by pushing seat memory switch (1 or 2).
Entry/Exit-
ing functionExiting operation At exit, the seat moves backward and the steering wheel raises. (Exiting position)
Entry operationAt entry, the seat and steering wheel return from Exiting position to the previous driv-
ing position before the Exiting operation.
Keyfob interlock operationPerform memory operation, turnout operation and return operation by pressing key-
fob unlock button.
Auto operation temporary stop
conditions.When ignition switch is turned to START during seat memory switch operation and return
operation, seat memory switch operation and return operation is stopped.
Auto operation stop conditions.
When the vehicle speed becomes 7 km/h (4 MPH) or higher (memory switch operation
and entry operation).
When the setting switch, seat memory switch 1, or 2 are pressed.
When A/T shift lever is in any position other than P.
When the door mirror remote control switch is operated (when ignition switch turned to
ON).
When power seat switch turned ON.
When pedal adjusting switch turned ON.
When front seat sliding Entry/Exiting setting is OFF (entry/exiting operation).

Page 2978 of 3419

INFINITI QX4 2005 Factory Service Manual AUTOMATIC DRIVE POSITIONER
SE-13
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56
The settings (ON/OFF) of the automatic sliding seat (Entry/Exiting operation) at entry/exit can be changed
a

Page 2979 of 3419

INFINITI QX4 2005 Factory Service Manual SE-14
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56
FAIL - S AF E M ODE
When any manual and automatic operations are not performed, if any motor operations of seats or pedals are
detected

Page 2980 of 3419

INFINITI QX4 2005 Factory Service Manual AUTOMATIC DRIVE POSITIONER
SE-15
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56

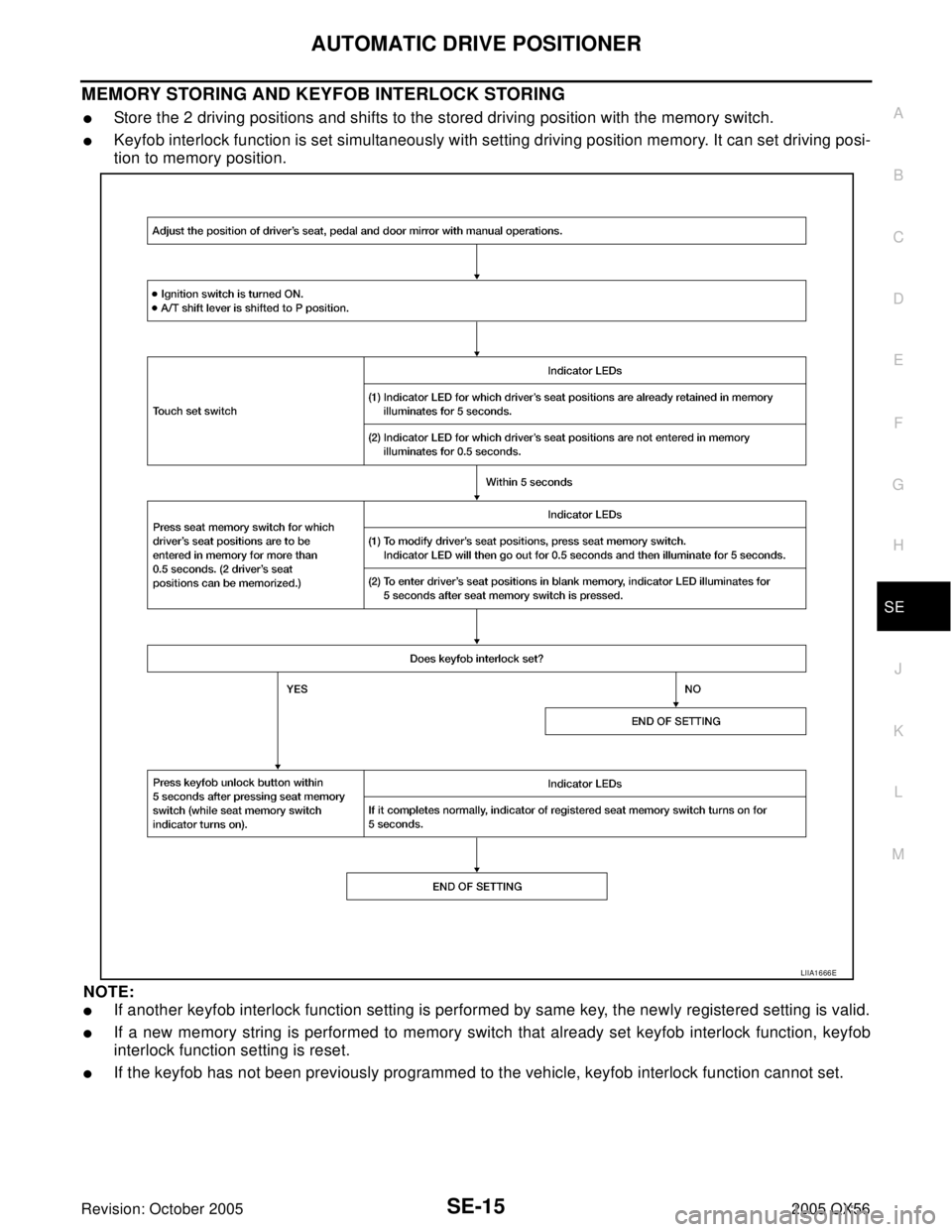

MEMORY STORING AND KEYFOB INTERLOCK STORING
Store the 2 driving positions and shifts to the stored driving p

Page 2981 of 3419

INFINITI QX4 2005 Factory Service Manual SE-16
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56
MEMORY OPERATION
Selecting the memorized position.
NOTE:
The front seat position and pedal adjustment functions (see the following tabl

Page 2982 of 3419

INFINITI QX4 2005 Factory Service Manual AUTOMATIC DRIVE POSITIONER
SE-17
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56
KEYFOB INTERLOCK OPERATION
The system performs memory operation, exiting operation and return operation by p

Page 2983 of 3419

INFINITI QX4 2005 Factory Service Manual SE-18
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56
SchematicEIS004XH
WIWA0575E

Page 2984 of 3419

INFINITI QX4 2005 Factory Service Manual AUTOMATIC DRIVE POSITIONER
SE-19
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56
WIWA0576E
