INFINITI QX4 2005 Factory Service Manual TF-178
TRANSFER ASSEMBLY
Revision: October 20052005 QX56
18. Apply liquid gasket to the entire center case mounting surface of
the front case assembly as shown.
Use Genuine Anaerobic Liquid Gasket or

Page 3322 of 3419

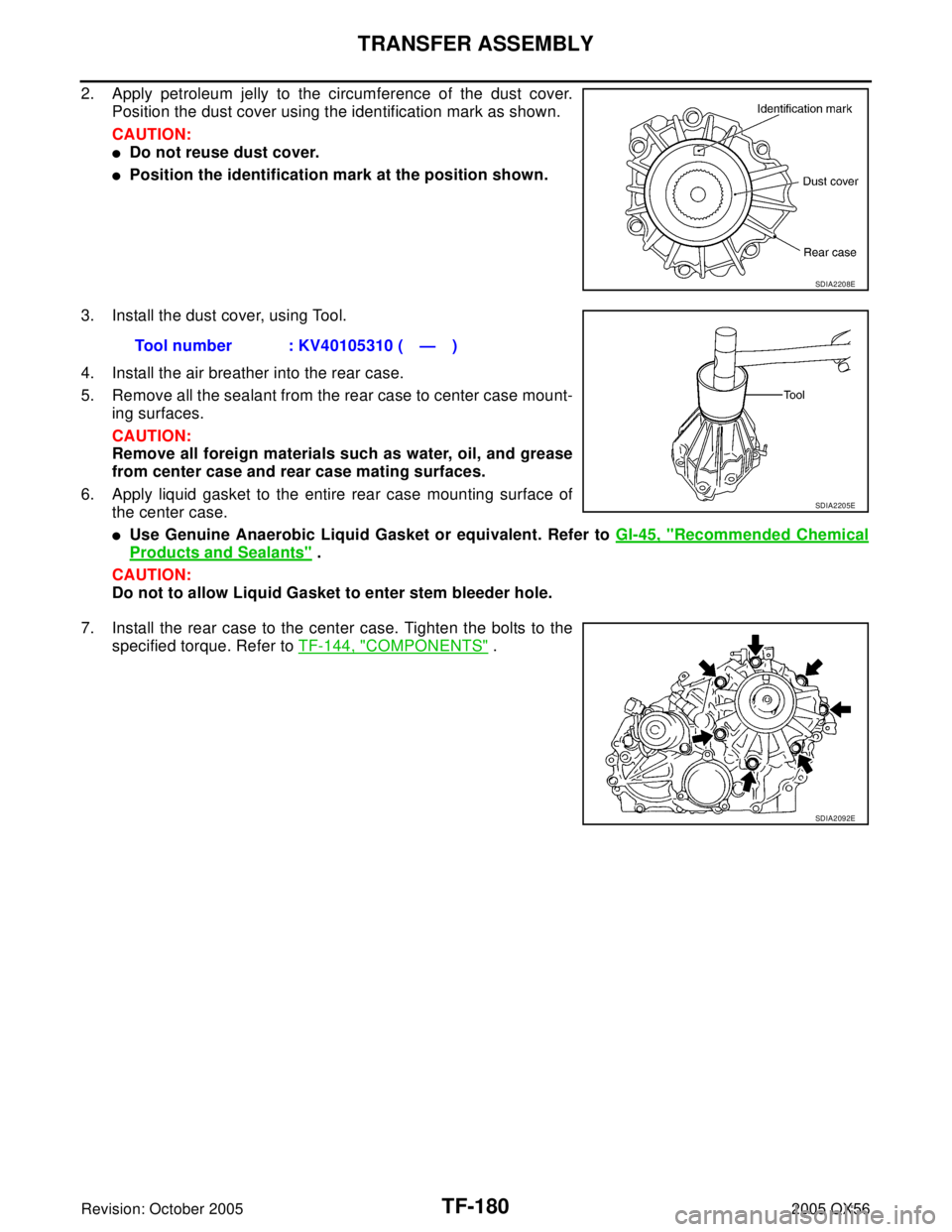

INFINITI QX4 2005 Factory Service Manual TRANSFER ASSEMBLY
TF-179
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: October 20052005 QX56
24. Install the companion flange self-lock nut. Tighten to the speci-
fied torque, using Tool. Refer to TF-144, "
COM

Page 3323 of 3419

INFINITI QX4 2005 Factory Service Manual TF-180
TRANSFER ASSEMBLY
Revision: October 20052005 QX56
2. Apply petroleum jelly to the circumference of the dust cover.
Position the dust cover using the identification mark as shown.
CAUTION:
Do n

Page 3324 of 3419

INFINITI QX4 2005 Factory Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
TF-181
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: October 20052005 QX56
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsEDS002J0
Inspection and Adju

Page 3325 of 3419

INFINITI QX4 2005 Factory Service Manual TF-182
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: October 20052005 QX56
*: Always check with the Parts Department for the latest parts information.
Control Valve
Unit: mm (in)
*: Always check wit

Page 3326 of 3419

INFINITI QX4 2005 Factory Service Manual WT-1
ROAD WHEELS & TIRES
E SUSPENSION
CONTENTS
C
D
F
G
H
I
J
K
L
M
SECTION WT
A
B
WT
Revision: October 20052005 QX56 PRECAUTIONS .......................................................... 2
Precautio

WT-1
ROAD WHEELS & TIRES
E SUSPENSION
CONTENTS
C
D
F
G
H
I
J
K
L
M
SECTION WT
A
B
WT
Revision: October 20052005 QX56 PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
PREPARATION ........................................................... 3
Special Service Tool ................................................. 3
Commercial Service Tools ........................................ 3
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 4
NVH Troubleshooting Chart ..................................... 4
WHEEL ....................................................................... 5
Inspection ................................................................. 5
WHEEL AND TIRE ASSEMBLY ................................. 6
Balancing Wheels .................................................... 6
REMOVAL ............................................................. 6
WHEEL BALANCE ADJUSTMENT ...................... 6
Rotation .................................................................... 7
LOW TIRE PRESSURE WARNING SYSTEM ............ 8
System Components ................................................ 8
System Description .................................................. 8
TRANSMITTER ..................................................... 8
REMOTE KEYLESS ENTRY RECEIVER ............. 8
BCM (BODY CONTROL MODULE) ...................... 9
WARNING LAMP AND BUZZER .......................... 9
DISPLAY UNIT ...................................................... 9
CAN COMMUNICATION .......................................... 10
System Description ................................................ 10
TROUBLE DIAGNOSES ...........................................11
Wiring Diagram .......................................................11
BCM Input/Output Signal Standard ........................ 13
ID Registration Procedure ...................................... 14
ID REGISTRATION WITH TRANSMITTER
ACTIVATION TOOL ............................................ 14
ID REGISTRATION WITHOUT TRANSMITTER
ACTIVATION TOOL ............................................ 15
Transmitter Wake Up Operation ............................. 16
WITH TRANSMITTER ACTIVATION TOOL ........ 16
CONSULT-II Function (BCM) ................................. 17
Self-Diagnosis ........................................................ 18DESCRIPTION .................................................... 18
FUNCTION .......................................................... 18
CONSULT-II ......................................................... 18
How to Perform Trouble Diagnosis for Quick and
Accurate Repair ...................................................... 20
INTRODUCTION ................................................. 20
WORK FLOW ...................................................... 20
Preliminary Check .................................................. 21
Malfunction Code/Symptom Chart .......................... 22
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC
ITEMS ........................................................................ 24
Inspection 1: Transmitter or Control Unit (BCM) ..... 24
MALFUNCTION CODE NO. 21, 22, 23 OR 24 ... 24
Inspection 2: Transmitter - 1 ................................... 24
MALFUNCTION CODE NO. 31, 32, 33, 34, 41,
42, 43, 44, 45, 46, 47 OR 48 ............................... 24
Inspection 3: Transmitter - 2 ................................... 25
MALFUNCTION CODE NO. 35, 36, 37 OR 38 ... 25
Inspection 4: Vehicle Speed Signal ........................ 26
MALFUNCTION CODE NO. 52 ........................... 26
TROUBLE DIAGNOSIS FOR SYMPTOMS .............. 27
Inspection 1: Warning Lamp Does Not Come On
When Ignition Switch Is Turned On ........................ 27
Inspection 2: Warning Lamp Stays On When Ignition
Switch Is Turned On ............................................... 27
Inspection 3: Warning Lamp Flashes When Ignition
Switch Is Turned On ............................................... 29
Inspection 4: Hazard Warning Lamp Flashes When
Ignition Switch Is Turned On .................................. 30
Inspection 5: “TIRE PRESSURE” Information In
Display Unit Does Not Exist .................................... 31
Inspection 6: ID Registration Cannot Be Completed ... 31
REMOVAL AND INSTALLATION ............................. 32
Transmitter (Pressure Sensor) ............................... 32
REMOVAL ........................................................... 32
INSTALLATION ................................................... 32
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 34
Road Wheel ............................................................ 34
Tire ......................................................................... 34

Page 3327 of 3419

INFINITI QX4 2005 Factory Service Manual WT-2
PRECAUTIONS
Revision: October 20052005 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EES002C8
The Supplemental Res

Page 3328 of 3419

INFINITI QX4 2005 Factory Service Manual PREPARATION
WT-3
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: October 20052005 QX56
PREPARATIONPFP:00002

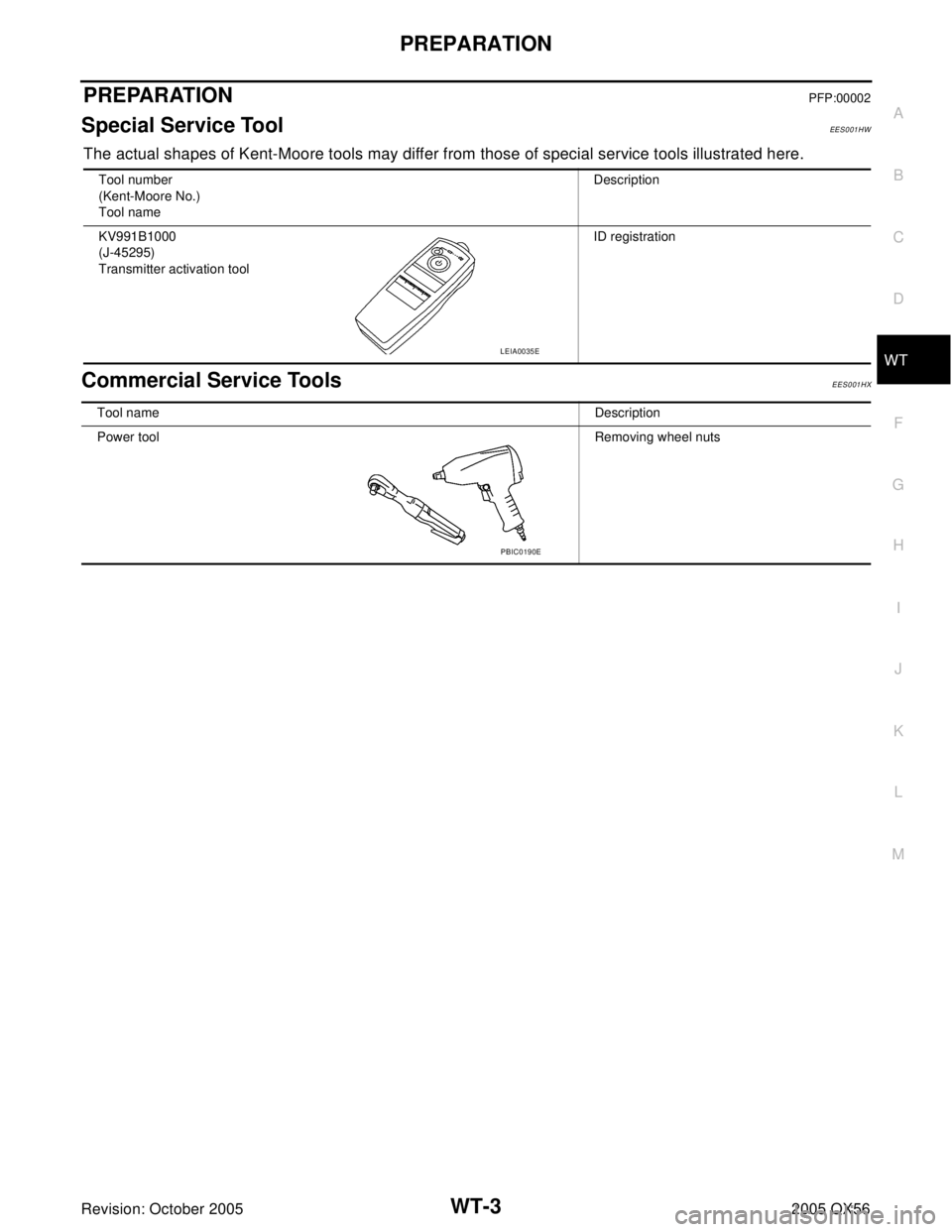

Special Service ToolEES001HW
The actual shapes of Kent-Moore tools may differ from those of special serv
