Page 3409 of 3419

WW-50
REAR WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56
3. CHECK REAR WIPER MOTOR AUTO STOP SWITCH GROUNDS
Check continuity between rear wiper motor harness connector D704
terminals and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK REAR WIPER OPERATING
1. Connect BCM connectors and rear wiper motor connector.
2. Turn ignition switch ON.
3. Turn rear wiper switch ON, then to OFF when wiper arm
reaches mid sweep.
4. Check voltage between rear wiper motor connector D704 termi-
nal 6 (Y) and ground.
OK or NG
OK >> Replace rear wiper motor. Refer to WW-53, "Removal
and Installation of Rear Wiper Motor" .
NG >> Replace BCM. Refer to BCS-20, "
Removal and Installation of BCM" .
Only Rear Wiper Does Not OperateEKS00BEK
1. CHECK COMBINATION SWITCH INPUT SIGNAL
Select "BCM" on CONSULT-II. With "WIPER" data monitor, make
sure "RR WIPER ON" turns ON-OFF according to operation of wiper
switch.
OK or NG
OK >> Replace BCM. Refer to BCS-20, "Removal and Installa-
tion of BCM" .
NG >> Check the wiper switch. Refer to WW-7, "
COMBINA-
TION SWITCH READING FUNCTION" .
Terminals
Continuity
ConnectorTe r m i n a l
(wire color)
D7041 (Y/L)
GroundNo
2 (O)
3 (B)
Ye s
5 (B)
WKIA2097E
Battery voltage should exist on the reverse wipe
until arm is seated in the stop.
WKIA2098E
When rear wiper switch is in
ON position: RR WIPER ON ON
SKIA4248E
Page 3410 of 3419

REAR WIPER AND WASHER SYSTEM
WW-51
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
Only Rear Wiper Intermittent Does Not OperateEKS00BEL
1. CHECK COMBINATION SWITCH INPUT SIGNAL
Select "BCM" on CONSULT-II. With "WIPER" data monitor, make
sure "RR WIPER INT" turns ON-OFF according to operation of wiper
switch.
OK or NG
OK >> Replace BCM. Refer to BCS-20, "Removal and Installa-
tion of BCM" .
NG >> Check the wiper switch. Refer to WW-7, "
COMBINA-
TION SWITCH READING FUNCTION" .
Wiper Does Not Wipe When Rear Washer OperatesEKS00BEM
1. CHECK COMBINATION SWITCH INPUT SIGNAL
Select "BCM" on CONSULT-II. With "WIPER" data monitor, make
sure "RR WASHER SW" turns ON-OFF according to operation of
rear washer switch.
OK or NG
OK >> Replace BCM. Refer to BCS-20, "Removal and Installa-
tion of BCM" .
NG >> Check the wiper switch. Refer to WW-7, "
COMBINA-
TION SWITCH READING FUNCTION" . When rear wiper switch is in
INT position: RR WIPER INT ON
SKIA4249E
When rear wiper switch is in
WASHER position: RR WASHER SW ON
SKIA4250E
Page 3411 of 3419
WW-52
REAR WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56
Removal and Installation of Rear Wiper Arm, Adjustment of Rear Wiper Arm
Stop Location
EKS00BEN
REMOVAL
1. Operate the rear wiper motor and stop it at the auto stop position.
2. Remove rear wiper arm cover by gripping bottom edge and
rotating cover up. Remove mounting nut, and remove the wiper
arm.
INSTALLATION
1. Prior to wiper arm installation, turn on wiper switch to operate wiper motor and then turn it "OFF" (Auto
Stop).
2. Clean up the pivot area as illustrated. This will reduce the possi-
bility of wiper arm looseness.
3. Install rear wiper arm so that the arm rests in the stopper and
tighten wiper arm nut.
LKIA0608E
SEL024J
Page 3412 of 3419
REAR WIPER AND WASHER SYSTEM
WW-53
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
Removal and Installation of Rear Wiper Motor EKS00BEO
REMOVAL
1. Remove rear wiper arm. Refer to WW-52, "Removal and Instal-
lation of Rear Wiper Arm, Adjustment of Rear Wiper Arm Stop
Location" .
2. Remove pivot cap.
3. Remove back door finisher lower. Refer to EI-42, "
BACK DOOR
TRIM" .
4. Remove the glass hatch latch assembly. Refer to BL-135,
"BACK DOOR LOCK" .
5. Disconnect rear wiper motor connector.
6. Remove rear wiper motor mounting bolts, and remove rear
wiper motor.
INSTALLATION
CAUTION:
Do not drop the wiper motor or cause it to contact other parts.
WKIA5018E
1. Wiper arm cover 2. Wiper arm and blade 3. Pivot cap
4. Rear wiper motor 5. Wiper arm stop
LKIA0416E
Page 3413 of 3419

WW-54
REAR WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56
1. Clean up the pivot area as illustrated. This will reduce possibility
of wiper arm looseness.
2. Install rear wiper motor to the vehicle.
3. Connect rear wiper motor connector.
4. Install glass hatch latch assembly and adjust as necessary.
Refer to BL-135, "
BACK DOOR LOCK" .
5. Install back door finisher lower. Refer to EI-42, "
BACK DOOR
TRIM" .
6. Attach pivot cap.
7. Attach wiper arm. Refer to WW-52, "
Removal and Installation of
Rear Wiper Arm, Adjustment of Rear Wiper Arm Stop Location" .
Rear Washer Nozzle AdjustmentEKS00BEP
This vehicle is equipped with a non-adjustable rear washer nozzle.
If not satisfied with washer fluid spray coverage, confirm that the washer nozzle is installed correctly.
If the washer nozzle is installed correctly, and the washer fluid spray coverage is not satisfactory, replace
the washer nozzle.
Rear Washer Tube LayoutEKS00BEQ
Removal and Installation of Rear Washer NozzleEKS00BER
REMOVAL
1. Remove the rear spoiler. Refer to EI-26, "REAR SPOILER" .
2. Remove rear washer tube from nozzle.
3. Release retaining clips, and remove washer nozzle.
INSTALLATION
Installation is in the reverse order of removal.
SEL024J
WKIA1925E
LKIA0418E
Page 3414 of 3419
REAR WIPER AND WASHER SYSTEM
WW-55
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
Check ValveEKS00BES
A check valve is provided in the washer fluid line. Be careful not
to connect check valve to washer tube in the wrong direction.
Removal and Installation of Rear Wiper and Washer SwitchEKS00BET
Refer to WW-33, "Removal and Installation of Wiper and Washer Switch" .
Removal and Installation of Washer TankEKS00BEU
Refer to WW-33, "Removal and Installation of Washer Tank" .
Removal and Installation of Washer MotorEKS00BEV
Refer to WW-34, "Removal and Installation of Washer Motor" .
PKIA2546E
Page 3415 of 3419
WW-56
POWER SOCKET
Revision: October 20052005 QX56
POWER SOCKETPFP:253A2

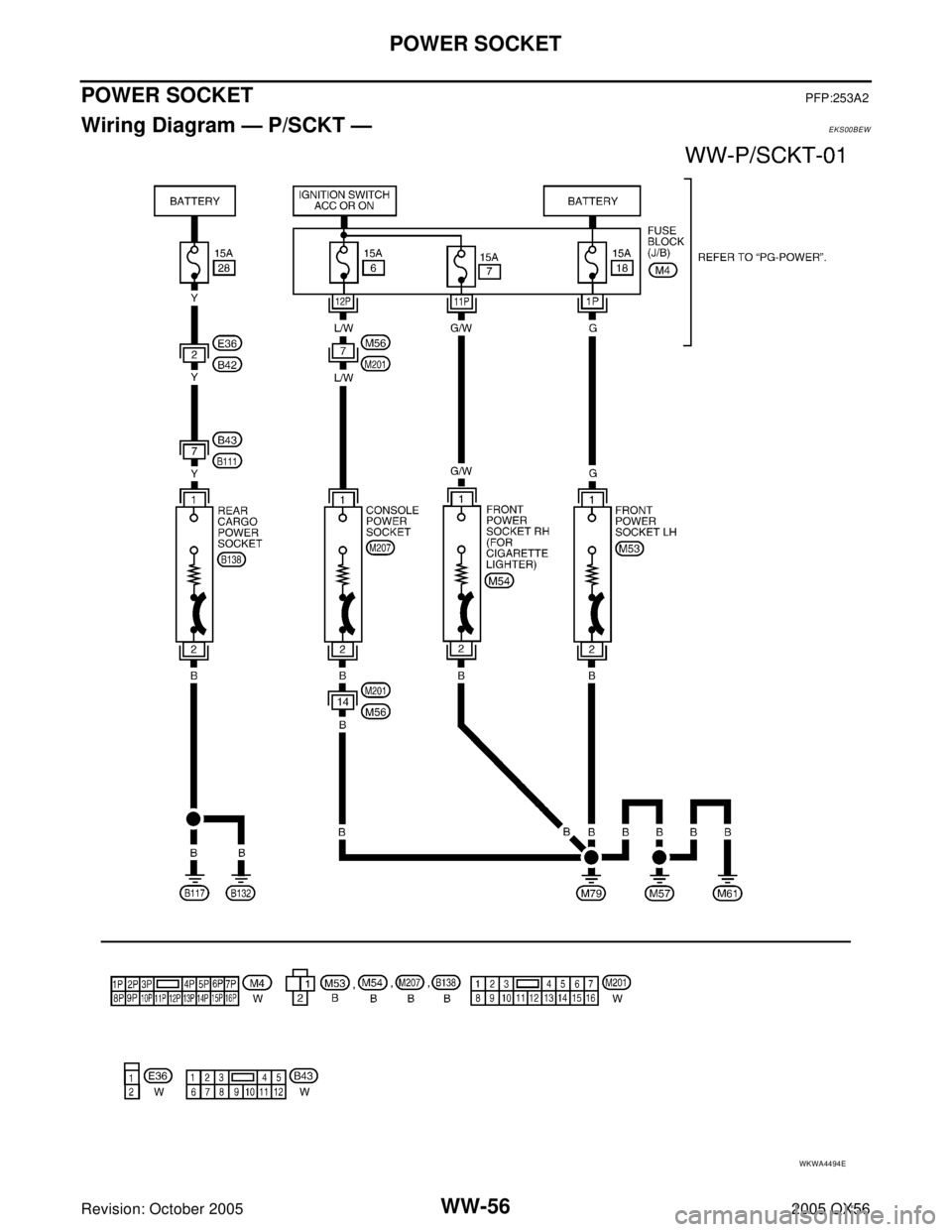

Wiring Diagram — P/SCKT — EKS00BEW
WKWA4494E
Page 3416 of 3419
POWER SOCKET
WW-57
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
Removal and Installation of Power SocketsEKS00BEX
REMOVAL
1. Disconnect battery negative terminal before removing front
power socket LH and rear cargo power socket. Remove inner
socket from the ring, while pressing the hook on the ring out
from square hole.
2. Disconnect power socket connector.
3. Remove ring from power socket finisher while pressing pawls.
INSTALLATION
Installation is in the reverse order of removal.
WKIA1035E
