Page 2385 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-106 [CAN] CAN SYSTEM (TYPE 3) Revision: October 20052005 QX56 Case 8 Check display control unit circuit. Refer to LAN-120, "Display Control Unit Circuit Check" . SKIB3372E PKIA8163E

Page 2386 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-107 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 9 Check BCM circuit. Refer to LAN-120, "BCM Circuit Check" . SKIB3373E PKIA8164E

Page 2387 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-108 [CAN] CAN SYSTEM (TYPE 3) Revision: October 20052005 QX56 Case 10 Check data link connector circuit. Refer to LAN-121, "Data Link Connector Circuit Check" . SKIB3374E PKIA8165E

Page 2388 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-109 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 11 Check steering angle sensor circuit. Refer to LAN-121, "Steering Angle Sensor Circuit Check" . SKIB

Page 2389 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-110 [CAN] CAN SYSTEM (TYPE 3) Revision: October 20052005 QX56 Case 12 Check front air control circuit. Refer to LAN-122, "Front Air Control Circuit Check" . SKIB3429E PKIA8167E

Page 2390 of 3419

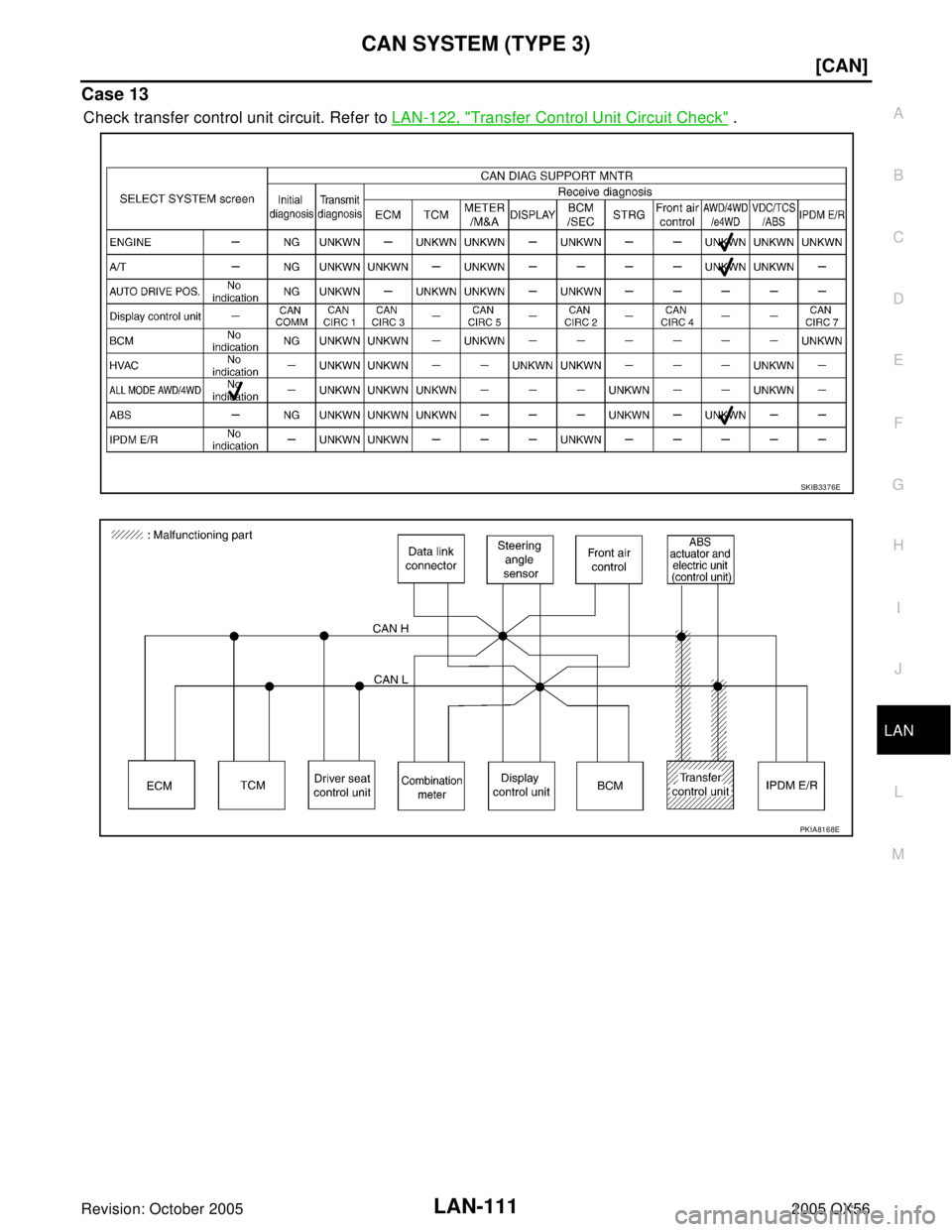

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-111 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 13 Check transfer control unit circuit. Refer to LAN-122, "Transfer Control Unit Circuit Check" . SKIB

Page 2391 of 3419

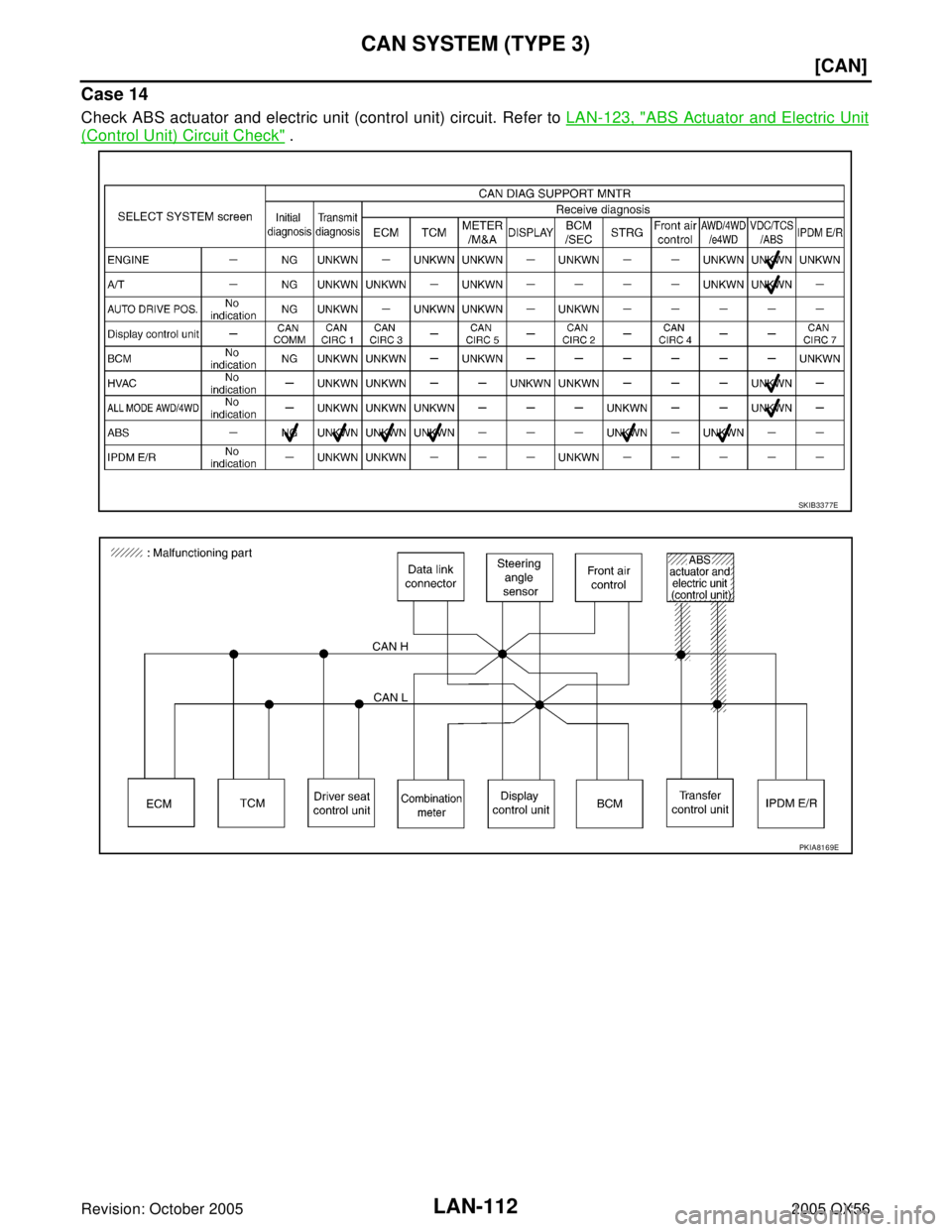

INFINITI QX4 2005 Factory Service Manual LAN-112 [CAN] CAN SYSTEM (TYPE 3) Revision: October 20052005 QX56 Case 14 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-123, "ABS Actuator and Electric Unit (Control Unit)

Page 2392 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-113 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 15 Check IPDM E/R circuit. Refer to LAN-123, "IPDM E/R Circuit Check" . SKIB3378E PKIA8170E
