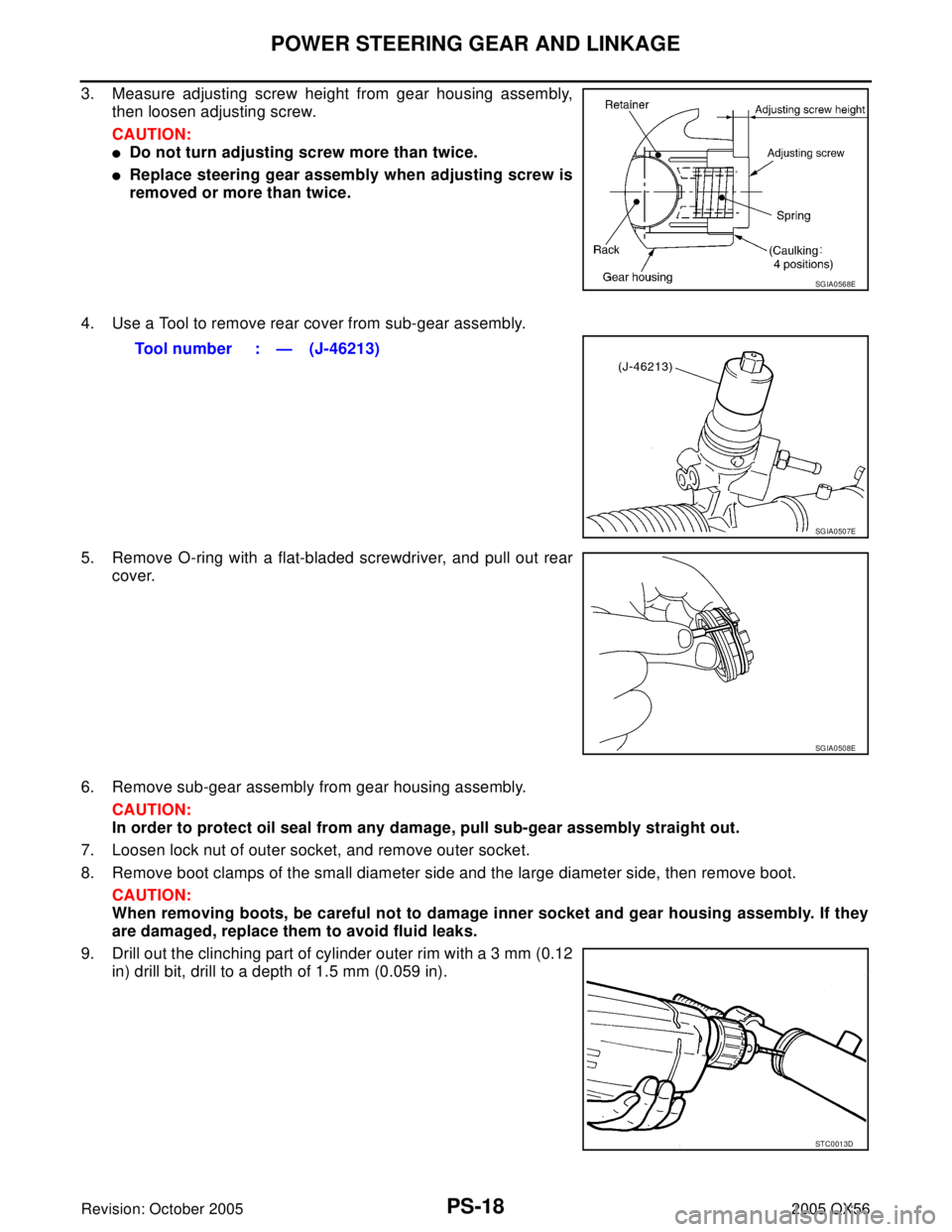

Page 2785 of 3419

PS-18
POWER STEERING GEAR AND LINKAGE
Revision: October 20052005 QX56
3. Measure adjusting screw height from gear housing assembly,
then loosen adjusting screw.
CAUTION:
Do not turn adjusting screw more than twice.
Replace steering gear assembly when adjusting screw is
removed or more than twice.
4. Use a Tool to remove rear cover from sub-gear assembly.
5. Remove O-ring with a flat-bladed screwdriver, and pull out rear
cover.
6. Remove sub-gear assembly from gear housing assembly.
CAUTION:
In order to protect oil seal from any damage, pull sub-gear assembly straight out.
7. Loosen lock nut of outer socket, and remove outer socket.
8. Remove boot clamps of the small diameter side and the large diameter side, then remove boot.
CAUTION:
When removing boots, be careful not to damage inner socket and gear housing assembly. If they
are damaged, replace them to avoid fluid leaks.
9. Drill out the clinching part of cylinder outer rim with a 3 mm (0.12
in) drill bit, drill to a depth of 1.5 mm (0.059 in).
SGIA0568E
Tool number : — (J-46213)
SGIA0507E
SGIA0508E
STC0013D
Page 2786 of 3419

POWER STEERING GEAR AND LINKAGE
PS-19
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: October 20052005 QX56
10. Remove end cover assembly with a 45 mm (1.77 in) open head
wrench or suitable tool.
CAUTION:
Be careful not to damage gear housing assembly. If it is
damaged, replace gear housing assembly. Otherwise, fluid
leaks may result.
11. Pull rack assembly with oil seal out of gear housing assembly.
CAUTION:
Be careful not to damage cylinder. If it is damaged, replace gear housing assembly. Otherwise,
fluid leaks may result.
12. Heat rack Teflon® ring to approximately 40°C (104°F) with a
dryer, then remove it and O-ring from rack assembly.
CAUTION:
Be careful not to damage rack assembly. If it is damaged,
replace with a new one to avoid fluid leaks.
13. Use a taped 29 mm (1.14 in) socket and an extension bar.
Remove rack oil seal from gear housing assembly.
CAUTION:
Be careful not to damage gear housing assembly and cylin-
der inner wall. If it is damaged, gear housing assembly
must be replaced. Otherwise, fluid leaks will result.
SST 0 81 B
SGIA0151E
SGIA0179E
Page 2787 of 3419

PS-20
POWER STEERING GEAR AND LINKAGE
Revision: October 20052005 QX56

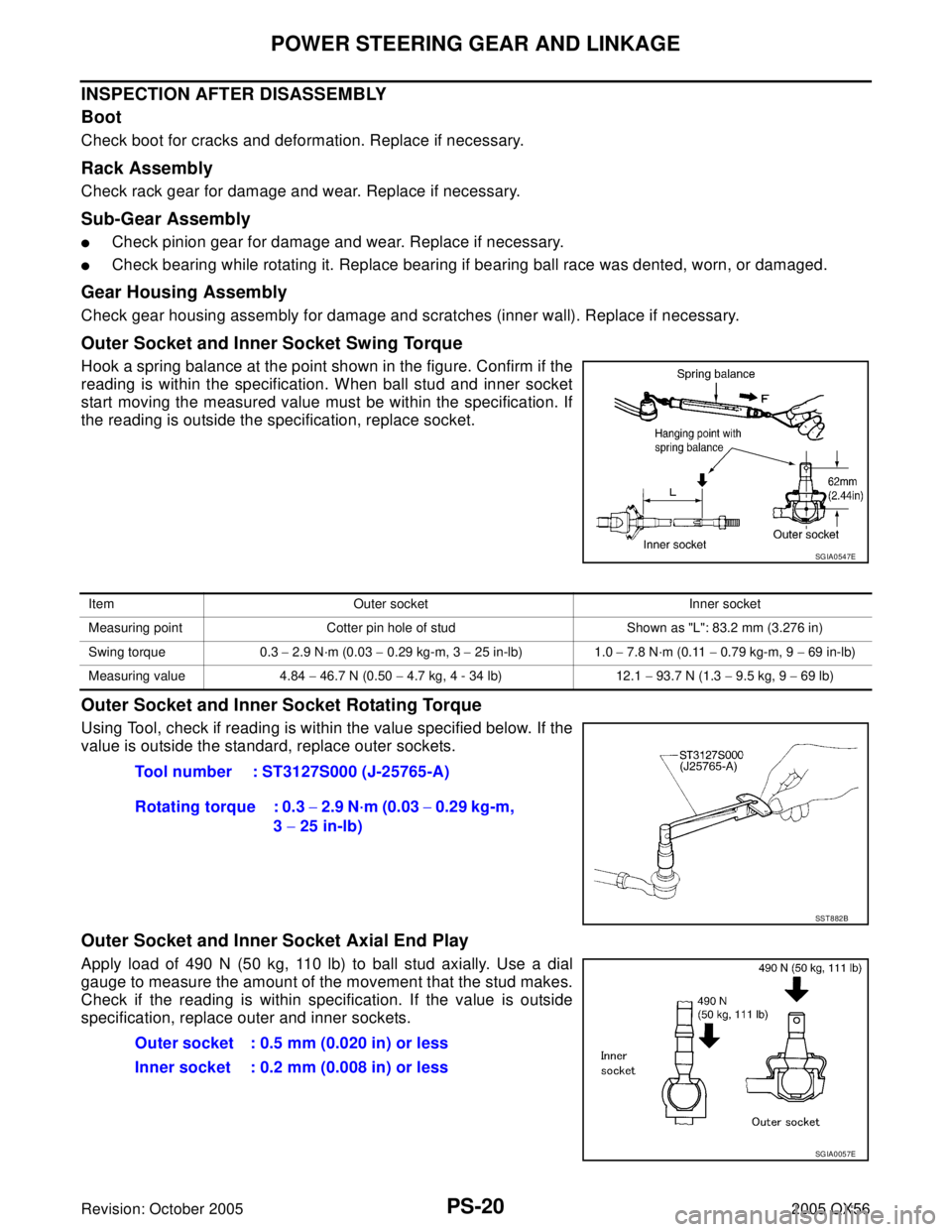

INSPECTION AFTER DISASSEMBLY
Boot
Check boot for cracks and deformation. Replace if necessary.
Rack Assembly
Check rack gear for damage and wear. Replace if necessary.
Sub-Gear Assembly
Check pinion gear for damage and wear. Replace if necessary.
Check bearing while rotating it. Replace bearing if bearing ball race was dented, worn, or damaged.
Gear Housing Assembly
Check gear housing assembly for damage and scratches (inner wall). Replace if necessary.
Outer Socket and Inner Socket Swing Torque
Hook a spring balance at the point shown in the figure. Confirm if the
reading is within the specification. When ball stud and inner socket
start moving the measured value must be within the specification. If
the reading is outside the specification, replace socket.
Outer Socket and Inner Socket Rotating Torque
Using Tool, check if reading is within the value specified below. If the
value is outside the standard, replace outer sockets.
Outer Socket and Inner Socket Axial End Play
Apply load of 490 N (50 kg, 110 lb) to ball stud axially. Use a dial
gauge to measure the amount of the movement that the stud makes.
Check if the reading is within specification. If the value is outside
specification, replace outer and inner sockets.
SGIA0547E
Item Outer socket Inner socket
Measuring point Cotter pin hole of stud Shown as "L": 83.2 mm (3.276 in)
Swing torque 0.3 − 2.9 N·m (0.03 − 0.29 kg-m, 3 − 25 in-lb) 1.0 − 7.8 N·m (0.11 − 0.79 kg-m, 9 − 69 in-lb)
Measuring value 4.84 − 46.7 N (0.50 − 4.7 kg, 4 - 34 lb) 12.1 − 93.7 N (1.3 − 9.5 kg, 9 − 69 lb)
Tool number : ST3127S000 (J-25765-A)
Rotating torque : 0.3 − 2.9 N·m (0.03 − 0.29 kg-m,
3 − 25 in-lb)
SST 8 82 B
Outer socket : 0.5 mm (0.020 in) or less
Inner socket : 0.2 mm (0.008 in) or less
SGIA0057E
Page 2788 of 3419

POWER STEERING GEAR AND LINKAGE
PS-21
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: October 20052005 QX56

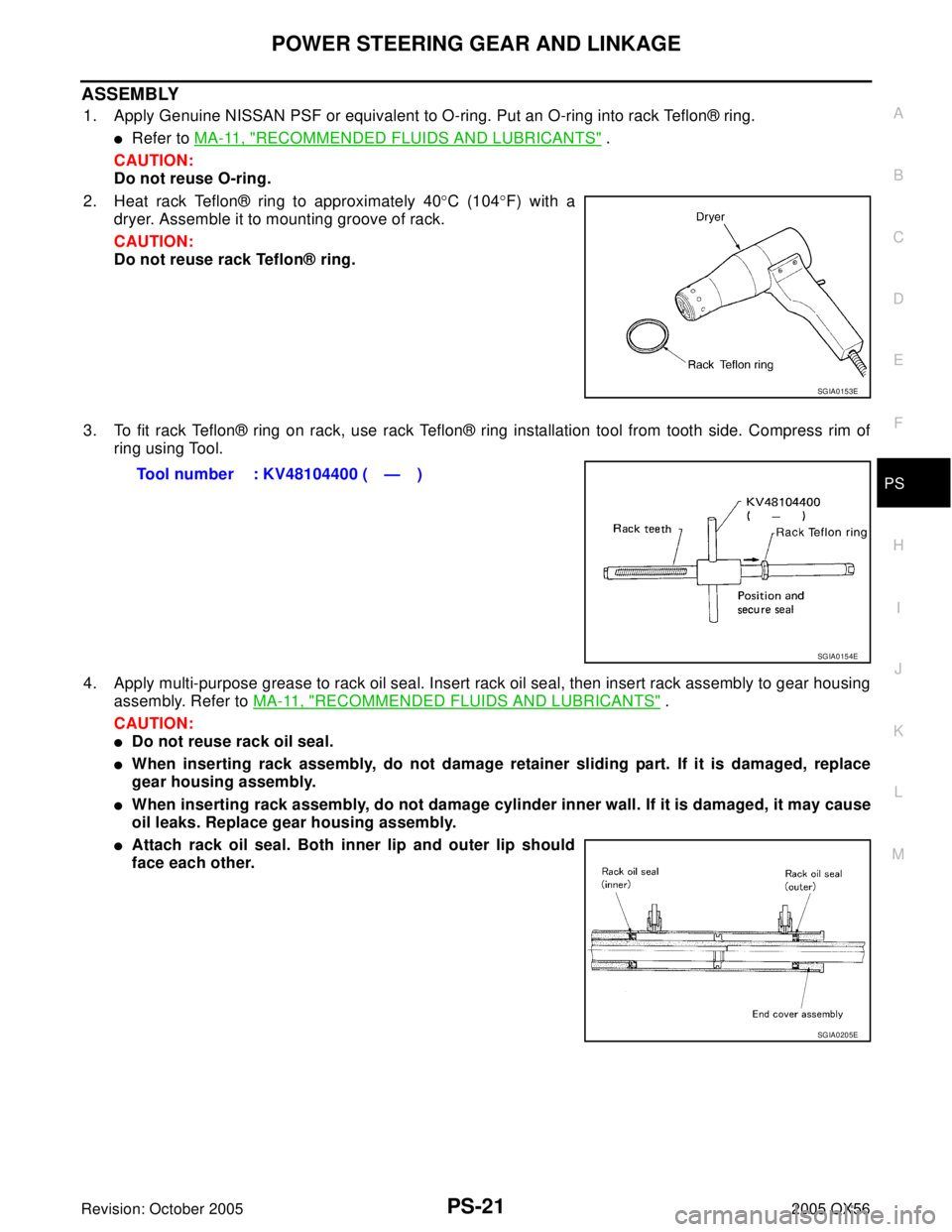

ASSEMBLY
1. Apply Genuine NISSAN PSF or equivalent to O-ring. Put an O-ring into rack Teflon® ring.
Refer to MA-11, "RECOMMENDED FLUIDS AND LUBRICANTS" .
CAUTION:
Do not reuse O-ring.
2. Heat rack Teflon® ring to approximately 40°C (104°F) with a
dryer. Assemble it to mounting groove of rack.
CAUTION:
Do not reuse rack Teflon® ring.
3. To fit rack Teflon® ring on rack, use rack Teflon® ring installation tool from tooth side. Compress rim of
ring using Tool.
4. Apply multi-purpose grease to rack oil seal. Insert rack oil seal, then insert rack assembly to gear housing
assembly. Refer to MA-11, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
CAUTION:
Do not reuse rack oil seal.
When inserting rack assembly, do not damage retainer sliding part. If it is damaged, replace
gear housing assembly.
When inserting rack assembly, do not damage cylinder inner wall. If it is damaged, it may cause
oil leaks. Replace gear housing assembly.
Attach rack oil seal. Both inner lip and outer lip should
face each other.
SGIA0153E
Tool number : KV48104400 ( — )
SGIA0154E
SGIA0205E
Page 2789 of 3419
![INFINITI QX4 2005 Factory Service Manual PS-22
POWER STEERING GEAR AND LINKAGE
Revision: October 20052005 QX56
a. To avoid damaging inner rack oil seal, wrap an OHP sheet
[approximately 70 mm (2.76 in) × 100 mm (3.94 in)] around rack
teeth. INFINITI QX4 2005 Factory Service Manual PS-22
POWER STEERING GEAR AND LINKAGE
Revision: October 20052005 QX56
a. To avoid damaging inner rack oil seal, wrap an OHP sheet
[approximately 70 mm (2.76 in) × 100 mm (3.94 in)] around rack
teeth.](/manual-img/42/57035/w960_57035-2788.png)

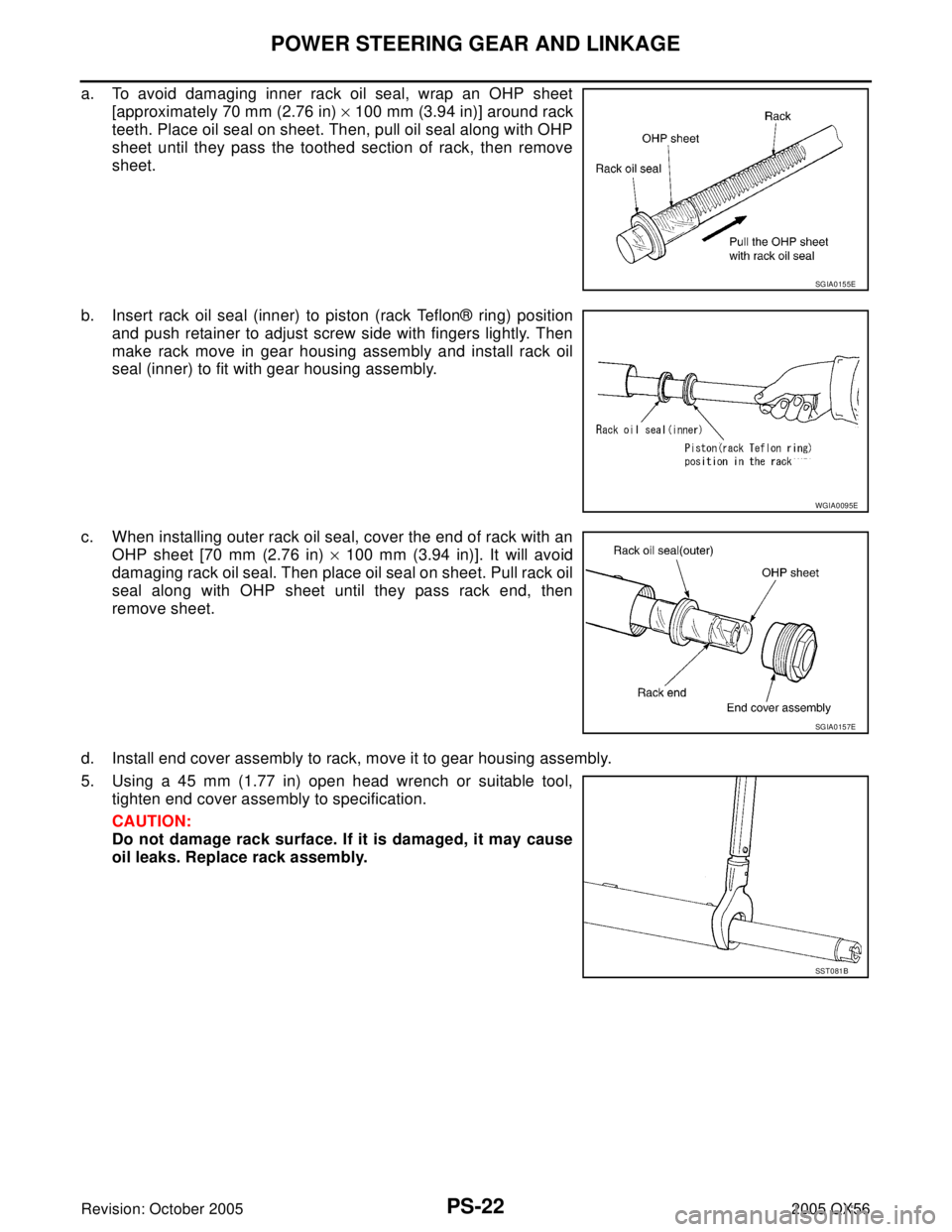

PS-22
POWER STEERING GEAR AND LINKAGE
Revision: October 20052005 QX56
a. To avoid damaging inner rack oil seal, wrap an OHP sheet
[approximately 70 mm (2.76 in) × 100 mm (3.94 in)] around rack
teeth. Place oil seal on sheet. Then, pull oil seal along with OHP
sheet until they pass the toothed section of rack, then remove
sheet.
b. Insert rack oil seal (inner) to piston (rack Teflon® ring) position
and push retainer to adjust screw side with fingers lightly. Then
make rack move in gear housing assembly and install rack oil
seal (inner) to fit with gear housing assembly.
c. When installing outer rack oil seal, cover the end of rack with an
OHP sheet [70 mm (2.76 in) × 100 mm (3.94 in)]. It will avoid
damaging rack oil seal. Then place oil seal on sheet. Pull rack oil
seal along with OHP sheet until they pass rack end, then
remove sheet.
d. Install end cover assembly to rack, move it to gear housing assembly.
5. Using a 45 mm (1.77 in) open head wrench or suitable tool,
tighten end cover assembly to specification.
CAUTION:
Do not damage rack surface. If it is damaged, it may cause
oil leaks. Replace rack assembly.
SGIA0155E
WGIA0095E
SGIA0157E
SST 0 81 B
Page 2790 of 3419

POWER STEERING GEAR AND LINKAGE
PS-23
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: October 20052005 QX56

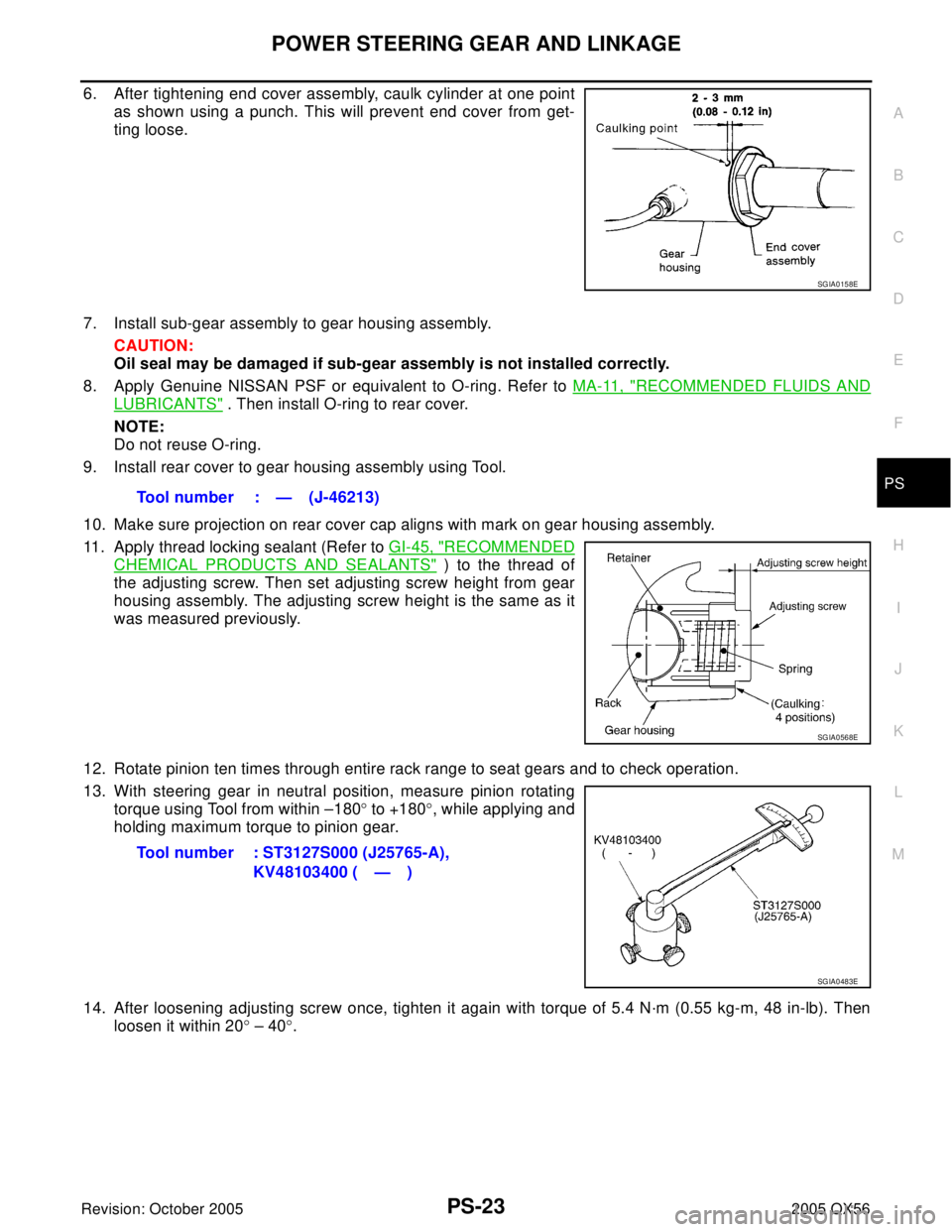

6. After tightening end cover assembly, caulk cylinder at one point
as shown using a punch. This will prevent end cover from get-
ting loose.
7. Install sub-gear assembly to gear housing assembly.
CAUTION:
Oil seal may be damaged if sub-gear assembly is not installed correctly.
8. Apply Genuine NISSAN PSF or equivalent to O-ring. Refer to MA-11, "
RECOMMENDED FLUIDS AND
LUBRICANTS" . Then install O-ring to rear cover.
NOTE:
Do not reuse O-ring.
9. Install rear cover to gear housing assembly using Tool.
10. Make sure projection on rear cover cap aligns with mark on gear housing assembly.
11. Apply thread locking sealant (Refer to GI-45, "
RECOMMENDED
CHEMICAL PRODUCTS AND SEALANTS" ) to the thread of
the adjusting screw. Then set adjusting screw height from gear
housing assembly. The adjusting screw height is the same as it
was measured previously.
12. Rotate pinion ten times through entire rack range to seat gears and to check operation.
13. With steering gear in neutral position, measure pinion rotating
torque using Tool from within –180° to +180°, while applying and
holding maximum torque to pinion gear.
14. After loosening adjusting screw once, tighten it again with torque of 5.4 N·m (0.55 kg-m, 48 in-lb). Then
loosen it within 20° – 40°.
SGIA0158E
Tool number : — (J-46213)
SGIA0568E
Tool number : ST3127S000 (J25765-A),
KV48103400 ( — )
SGIA0483E
Page 2791 of 3419

PS-24
POWER STEERING GEAR AND LINKAGE
Revision: October 20052005 QX56

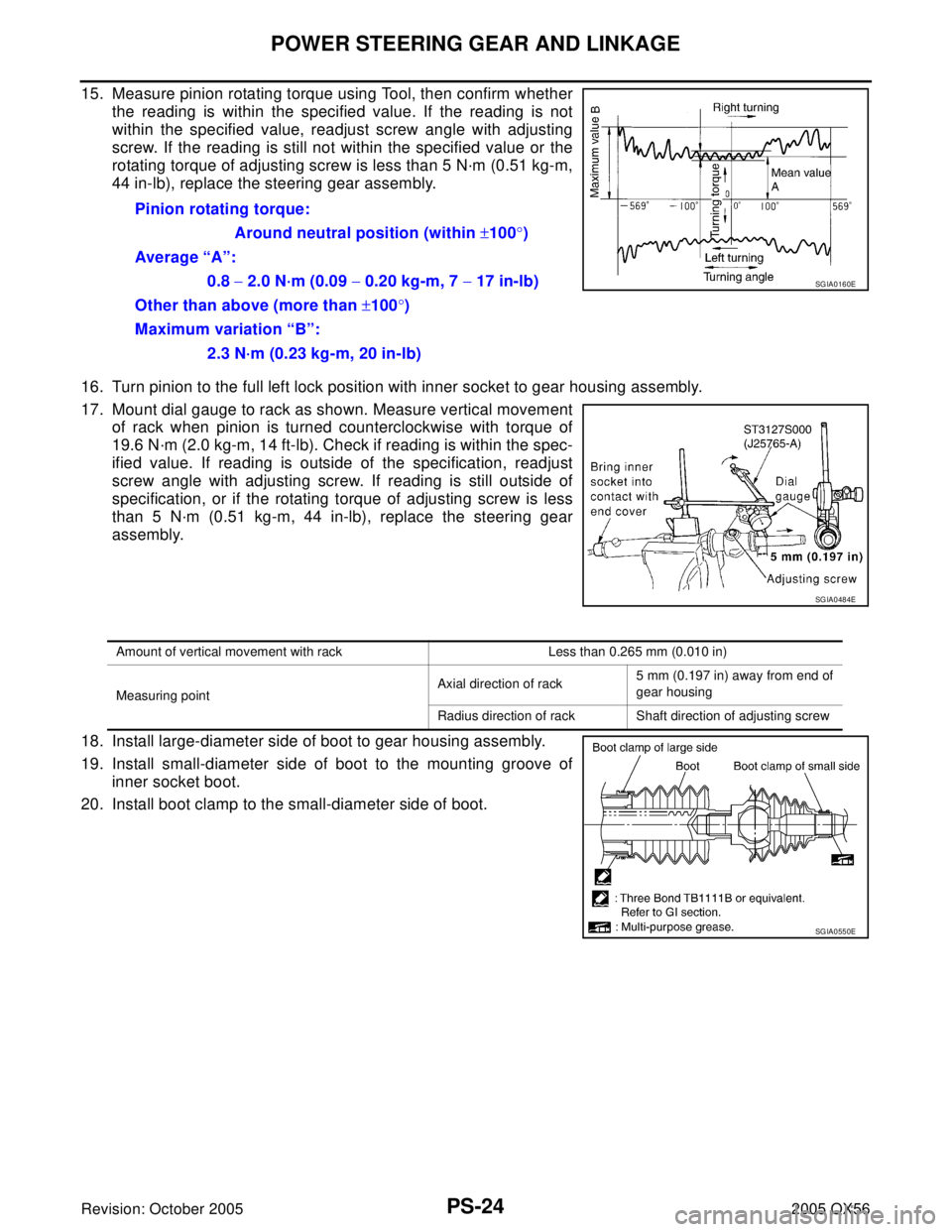

15. Measure pinion rotating torque using Tool, then confirm whether
the reading is within the specified value. If the reading is not
within the specified value, readjust screw angle with adjusting
screw. If the reading is still not within the specified value or the
rotating torque of adjusting screw is less than 5 N·m (0.51 kg-m,
44 in-lb), replace the steering gear assembly.
16. Turn pinion to the full left lock position with inner socket to gear housing assembly.
17. Mount dial gauge to rack as shown. Measure vertical movement
of rack when pinion is turned counterclockwise with torque of
19.6 N·m (2.0 kg-m, 14 ft-lb). Check if reading is within the spec-
ified value. If reading is outside of the specification, readjust
screw angle with adjusting screw. If reading is still outside of
specification, or if the rotating torque of adjusting screw is less
than 5 N·m (0.51 kg-m, 44 in-lb), replace the steering gear
assembly.
18. Install large-diameter side of boot to gear housing assembly.
19. Install small-diameter side of boot to the mounting groove of
inner socket boot.
20. Install boot clamp to the small-diameter side of boot.Pinion rotating torque:
Around neutral position (within ±100°)
Average “A”:
0.8 − 2.0 N·m (0.09 − 0.20 kg-m, 7 − 17 in-lb)
Other than above (more than ±100°)
Maximum variation “B”:
2.3 N·m (0.23 kg-m, 20 in-lb)
SGIA0160E
SGIA0484E
Amount of vertical movement with rack Less than 0.265 mm (0.010 in)
Measuring pointAxial direction of rack5 mm (0.197 in) away from end of
gear housing
Radius direction of rack Shaft direction of adjusting screw
SGIA0550E
Page 2792 of 3419
POWER STEERING GEAR AND LINKAGE
PS-25
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: October 20052005 QX56

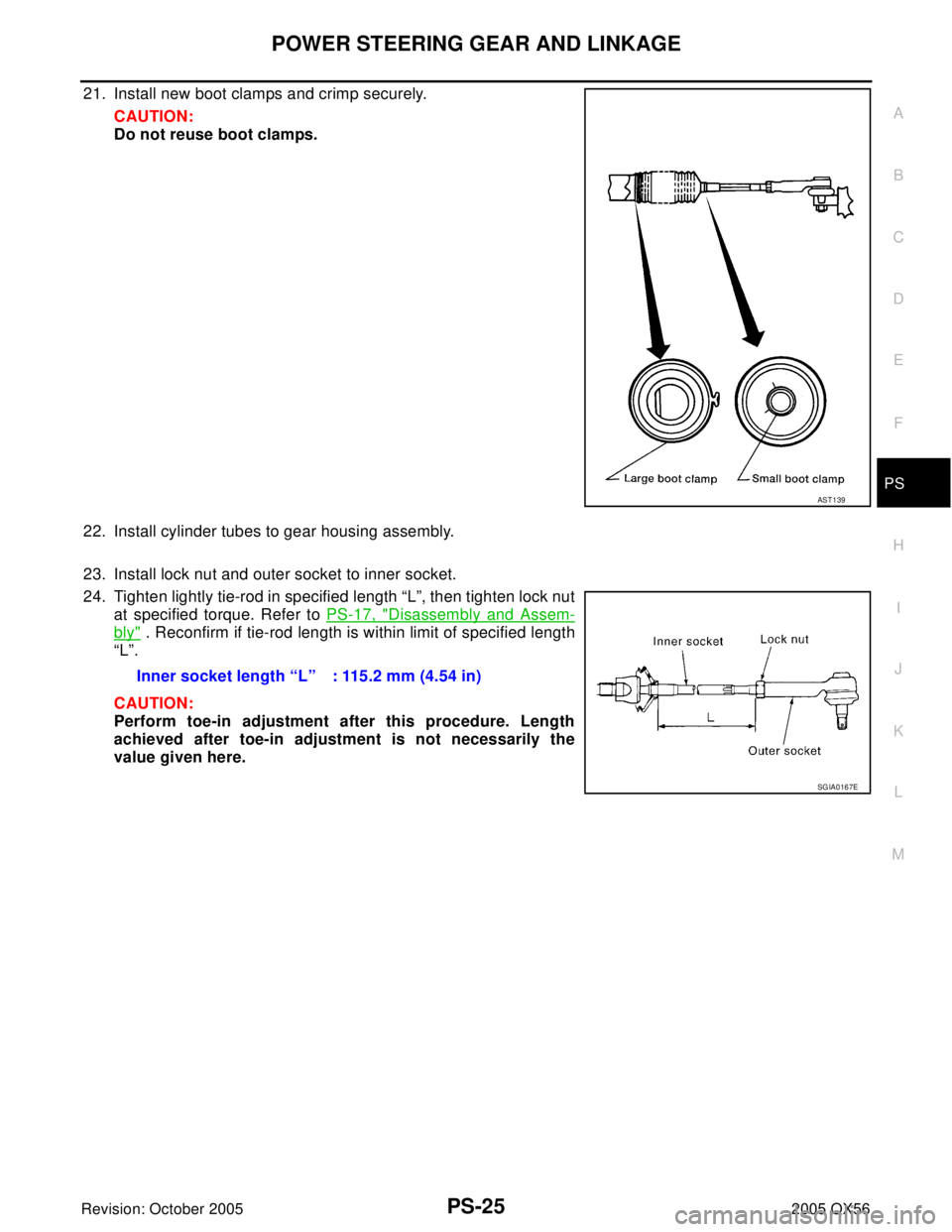

21. Install new boot clamps and crimp securely.
CAUTION:
Do not reuse boot clamps.
22. Install cylinder tubes to gear housing assembly.
23. Install lock nut and outer socket to inner socket.
24. Tighten lightly tie-rod in specified length “L”, then tighten lock nut
at specified torque. Refer to PS-17, "
Disassembly and Assem-
bly" . Reconfirm if tie-rod length is within limit of specified length
“L”.
CAUTION:
Perform toe-in adjustment after this procedure. Length
achieved after toe-in adjustment is not necessarily the
value given here.
AST 1 39
Inner socket length “L” : 115.2 mm (4.54 in)
SGIA0167E
