INFINITI QX4 2005 Factory Service Manual SRS-10 TROUBLE DIAGNOSIS Revision: October 20052005 QX56 SRS Components Parts LocationEHS0016N 1. Side curtain air bag modules 2. Front RH side air bag module 3. Belt tension sensor 4. RH side air bag

Page 3090 of 3419

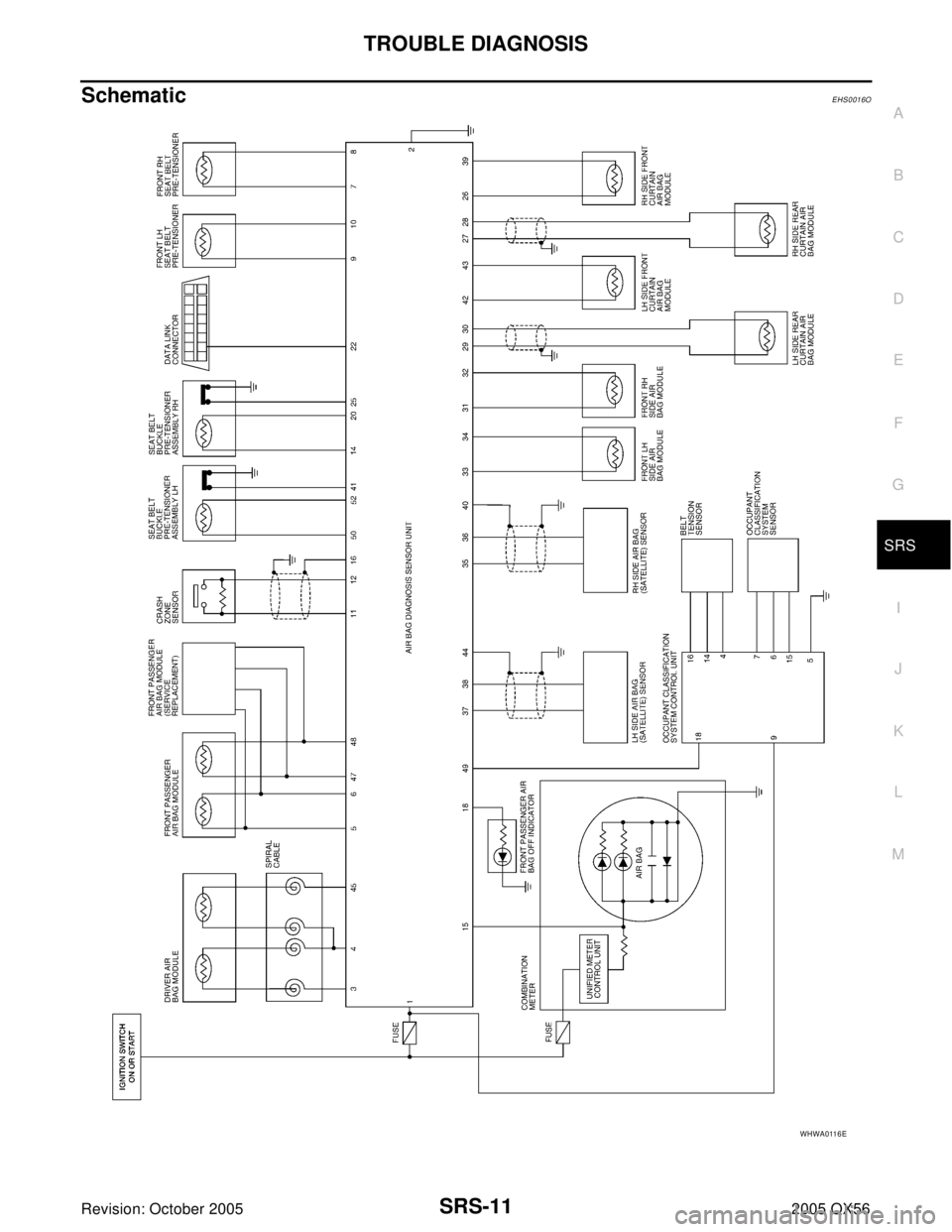

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS SRS-11 C D E F G I J K L MA B SRS Revision: October 20052005 QX56 SchematicEHS0016O WHWA0116E

Page 3091 of 3419

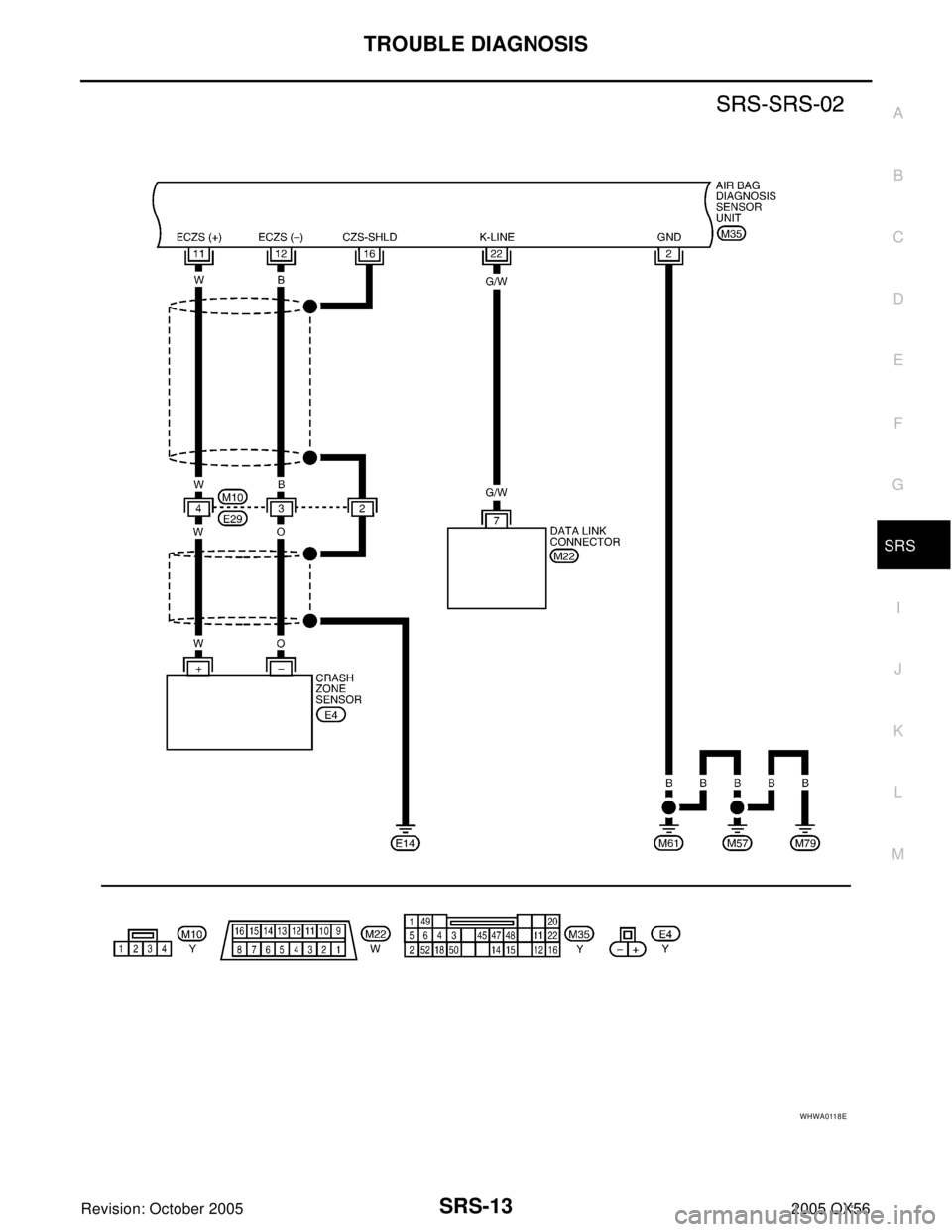

INFINITI QX4 2005 Factory Service Manual SRS-12 TROUBLE DIAGNOSIS Revision: October 20052005 QX56 Wiring Diagram— SRS —EHS0016P WHWA0117E

Page 3092 of 3419

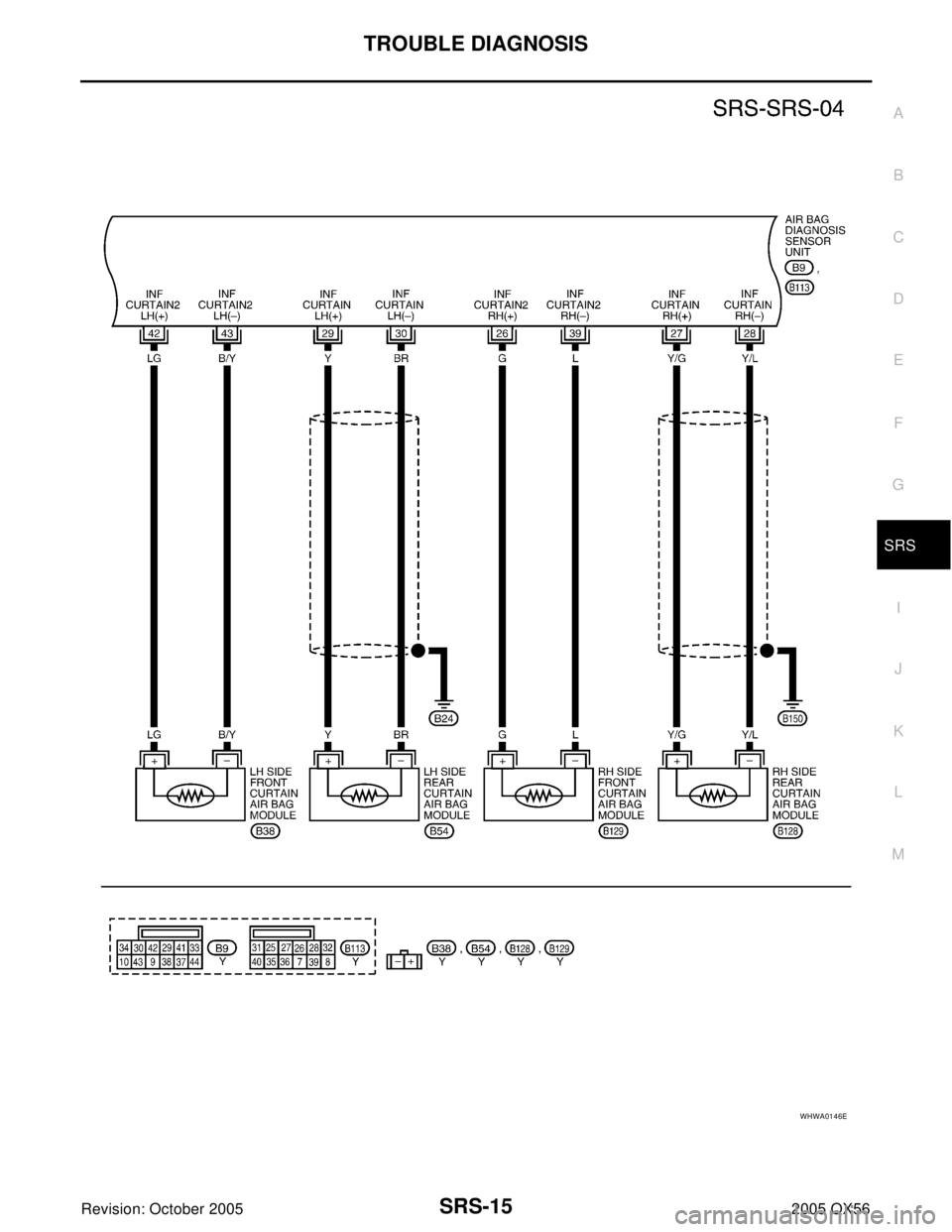

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS SRS-13 C D E F G I J K L MA B SRS Revision: October 20052005 QX56 WHWA0118E

Page 3093 of 3419

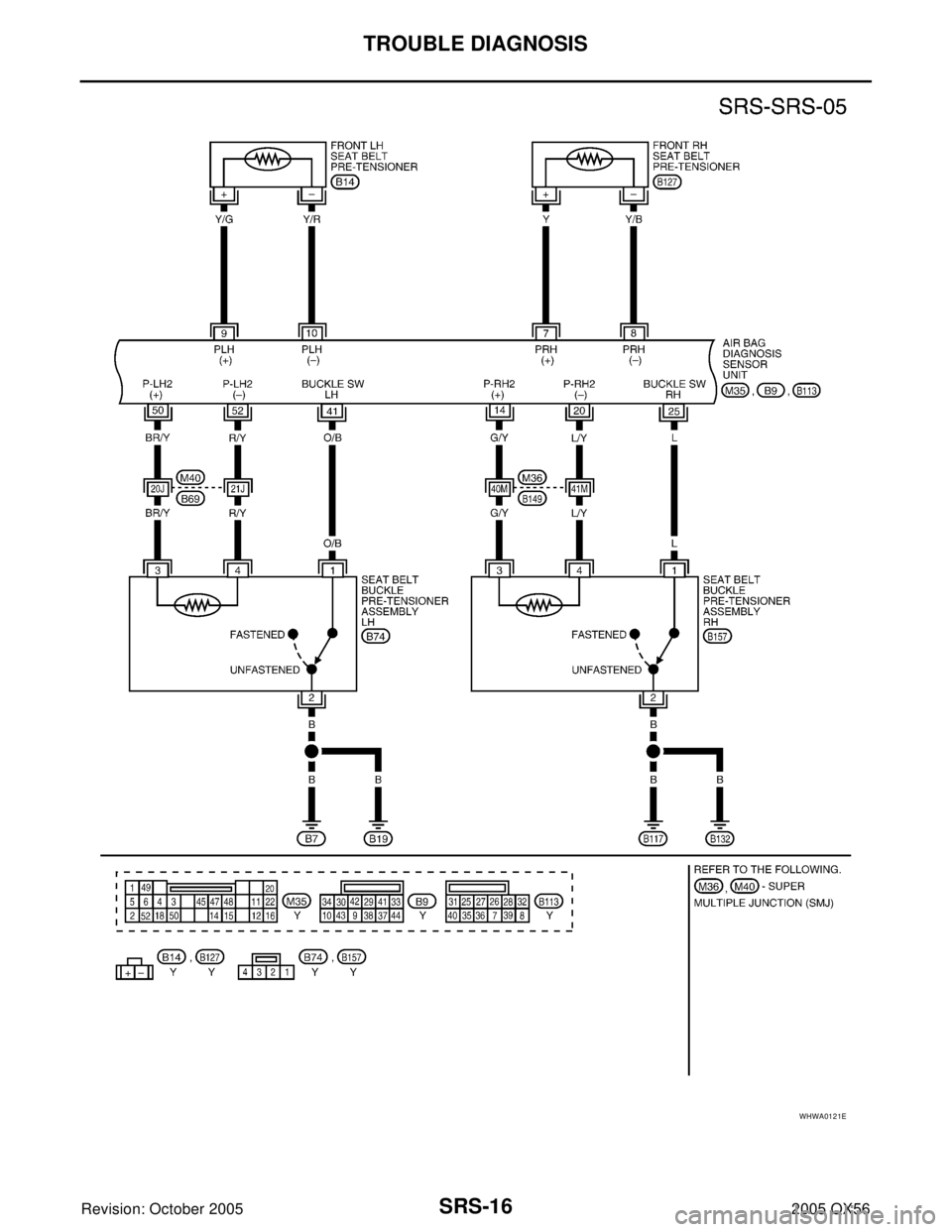

INFINITI QX4 2005 Factory Service Manual SRS-14 TROUBLE DIAGNOSIS Revision: October 20052005 QX56 WHWA0119E

Page 3094 of 3419

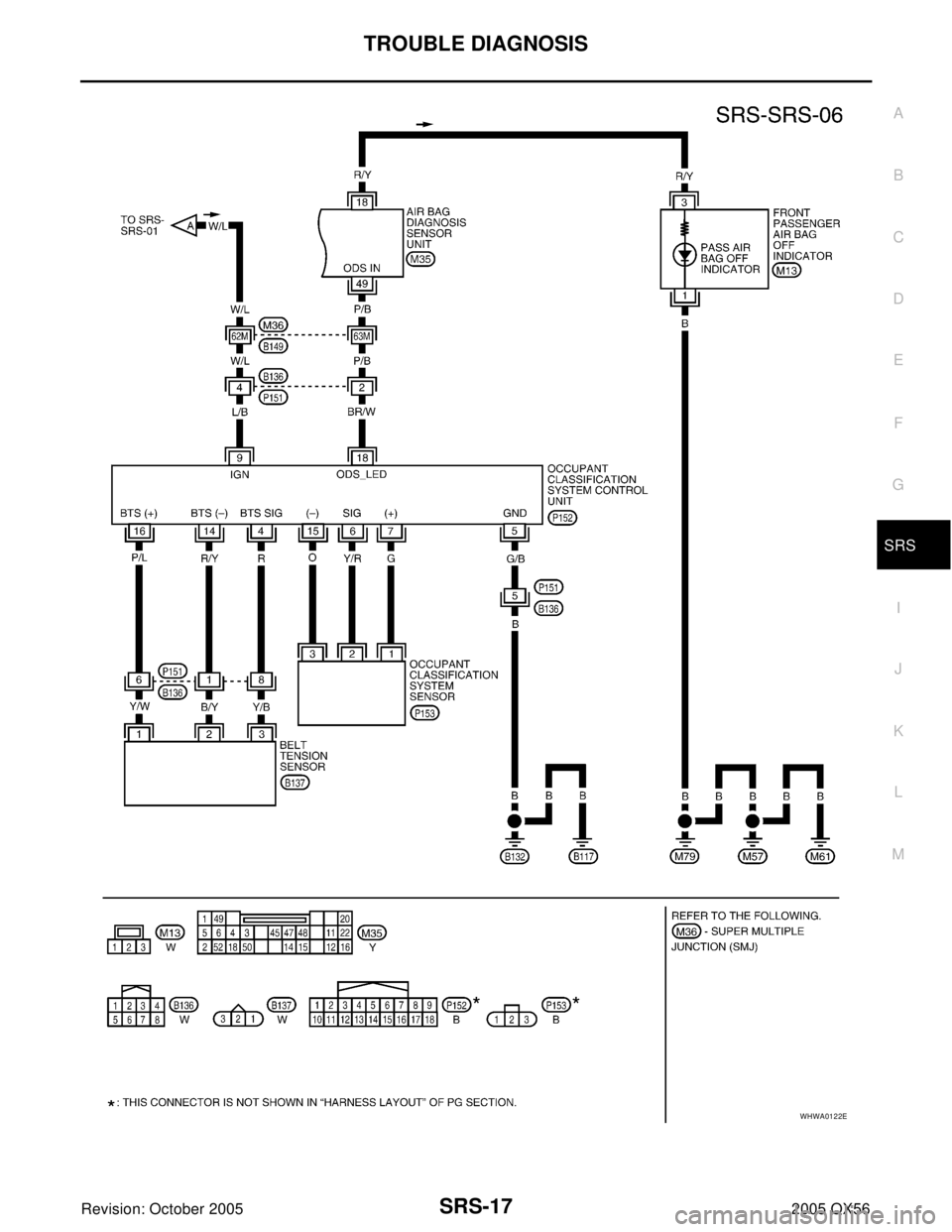

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS SRS-15 C D E F G I J K L MA B SRS Revision: October 20052005 QX56 WHWA0146E

Page 3095 of 3419

INFINITI QX4 2005 Factory Service Manual SRS-16 TROUBLE DIAGNOSIS Revision: October 20052005 QX56 WHWA0121E

Page 3096 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS SRS-17 C D E F G I J K L MA B SRS Revision: October 20052005 QX56 WHWA0122E
