Page 2737 of 3419

INFINITI QX4 2005 Factory Service Manual PG-62 HARNESS Revision: October 20052005 QX56 VENT/V EC EVAP Canister Vent Control Valve W/ANT AV Audio Antenna WAR N DI Warning Lam ps WINDOW GW Power Window WIP/R WW Rear Wiper and Washer

Page 2738 of 3419

INFINITI QX4 2005 Factory Service Manual ELECTRICAL UNITS LOCATION PG-63 C D E F G H I J L MA B PG Revision: October 20052005 QX56 ELECTRICAL UNITS LOCATIONPFP:25230 Electrical Units LocationEKS00BNF ENGINE COMPARTMENT WKIA2014E

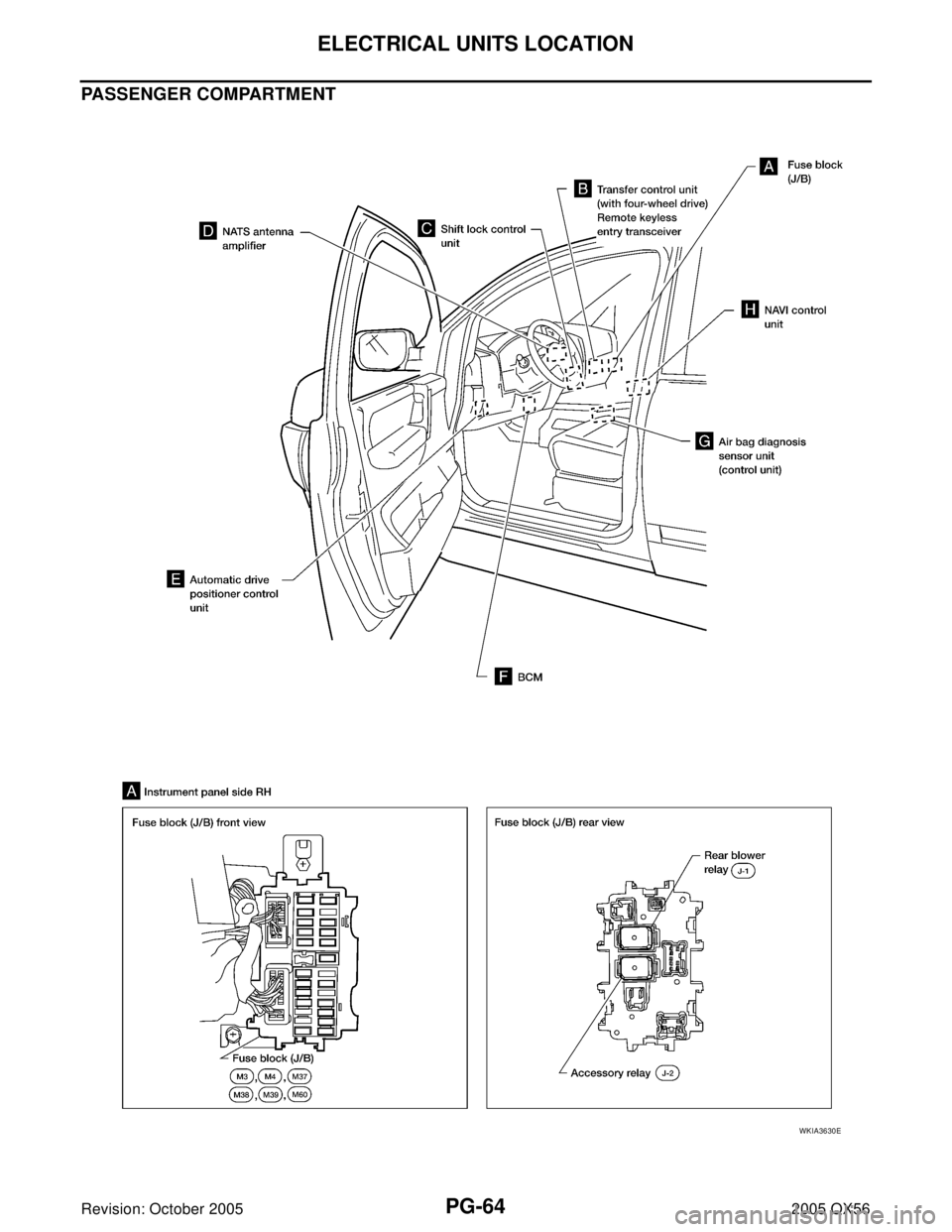

Page 2739 of 3419

INFINITI QX4 2005 Factory Service Manual PG-64 ELECTRICAL UNITS LOCATION Revision: October 20052005 QX56 PASSENGER COMPARTMENT WKIA3630E

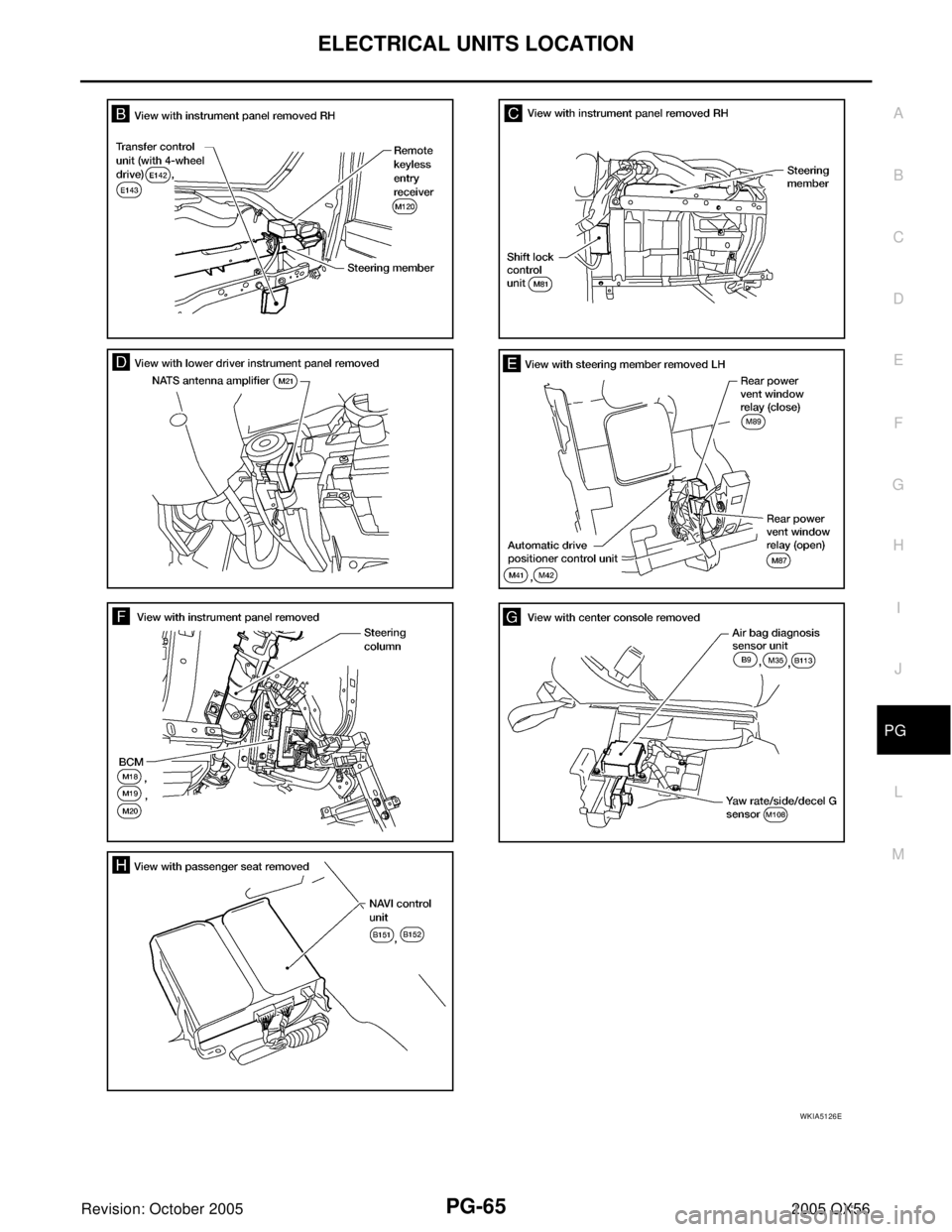

Page 2740 of 3419

INFINITI QX4 2005 Factory Service Manual ELECTRICAL UNITS LOCATION PG-65 C D E F G H I J L MA B PG Revision: October 20052005 QX56 WKIA5126E

Page 2741 of 3419

INFINITI QX4 2005 Factory Service Manual PG-66 ELECTRICAL UNITS LOCATION Revision: October 20052005 QX56 Fuse EKS00BNG If fuse is blown, be sure to eliminate cause of incident before installing new fuse. Use fuse of specified rating. Never

Page 2742 of 3419

INFINITI QX4 2005 Factory Service Manual HARNESS CONNECTOR PG-67 C D E F G H I J L MA B PG Revision: October 20052005 QX56 HARNESS CONNECTORPFP:B4341 DescriptionEKS00BNJ HARNESS CONNECTOR (TAB-LOCKING TYPE) The tab-locking type connectors h

Page 2743 of 3419

INFINITI QX4 2005 Factory Service Manual PG-68 HARNESS CONNECTOR Revision: October 20052005 QX56 HARNESS CONNECTOR (SLIDE-LOCKING TYPE) A new style slide-locking type connector is used on certain systems and components, especially those rel

Page 2744 of 3419

INFINITI QX4 2005 Factory Service Manual HARNESS CONNECTOR PG-69 C D E F G H I J L MA B PG Revision: October 20052005 QX56 HARNESS CONNECTOR (LEVER LOCKING TYPE) Lever locking type harness connectors are used on certain control units and co
