Page 3257 of 3419

INFINITI QX4 2005 Factory Service Manual TF-114
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: October 20052005 QX56
DIAGNOSTIC PROCEDURE

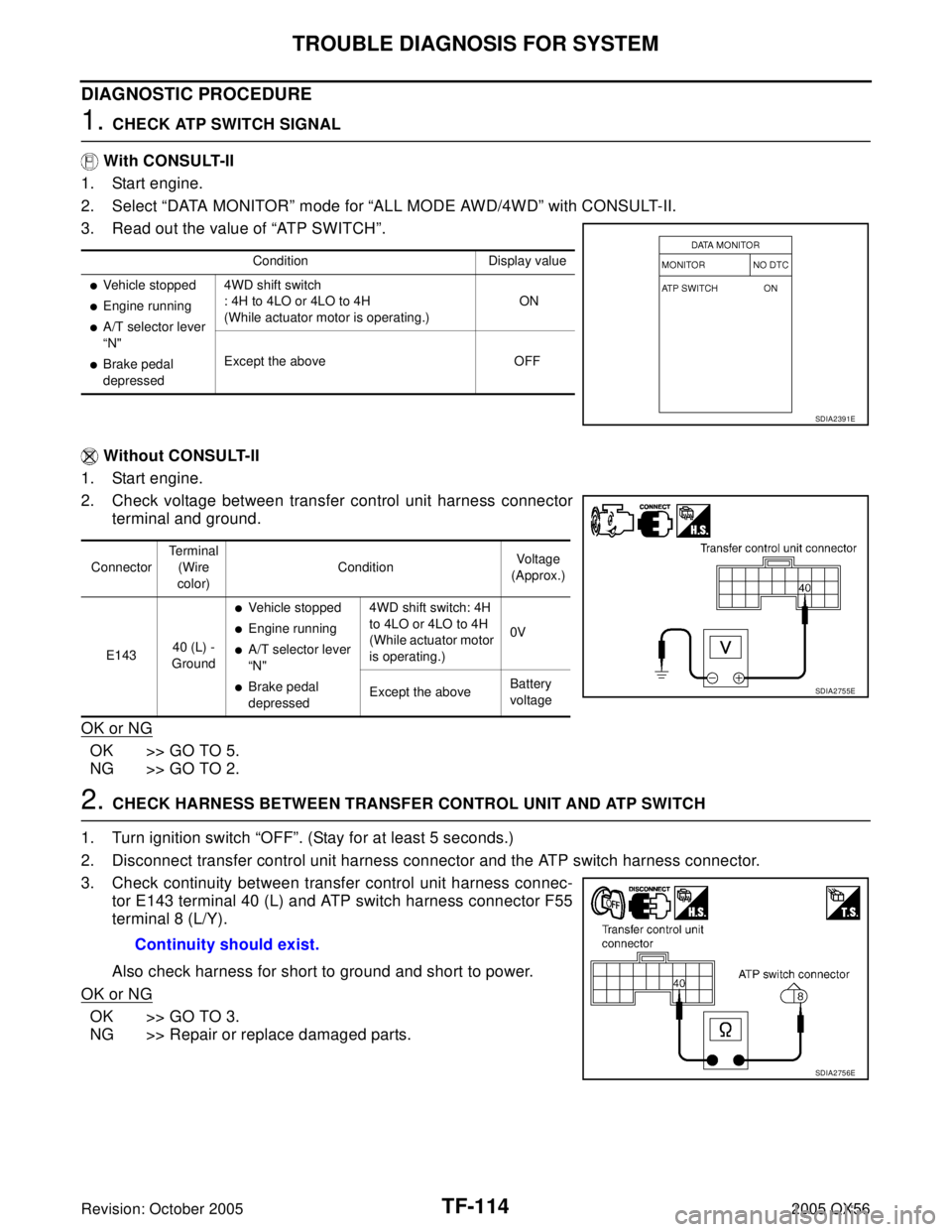

1. CHECK ATP SWITCH SIGNAL
With CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode for “ALL MODE

Page 3258 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
TF-115
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: October 20052005 QX56

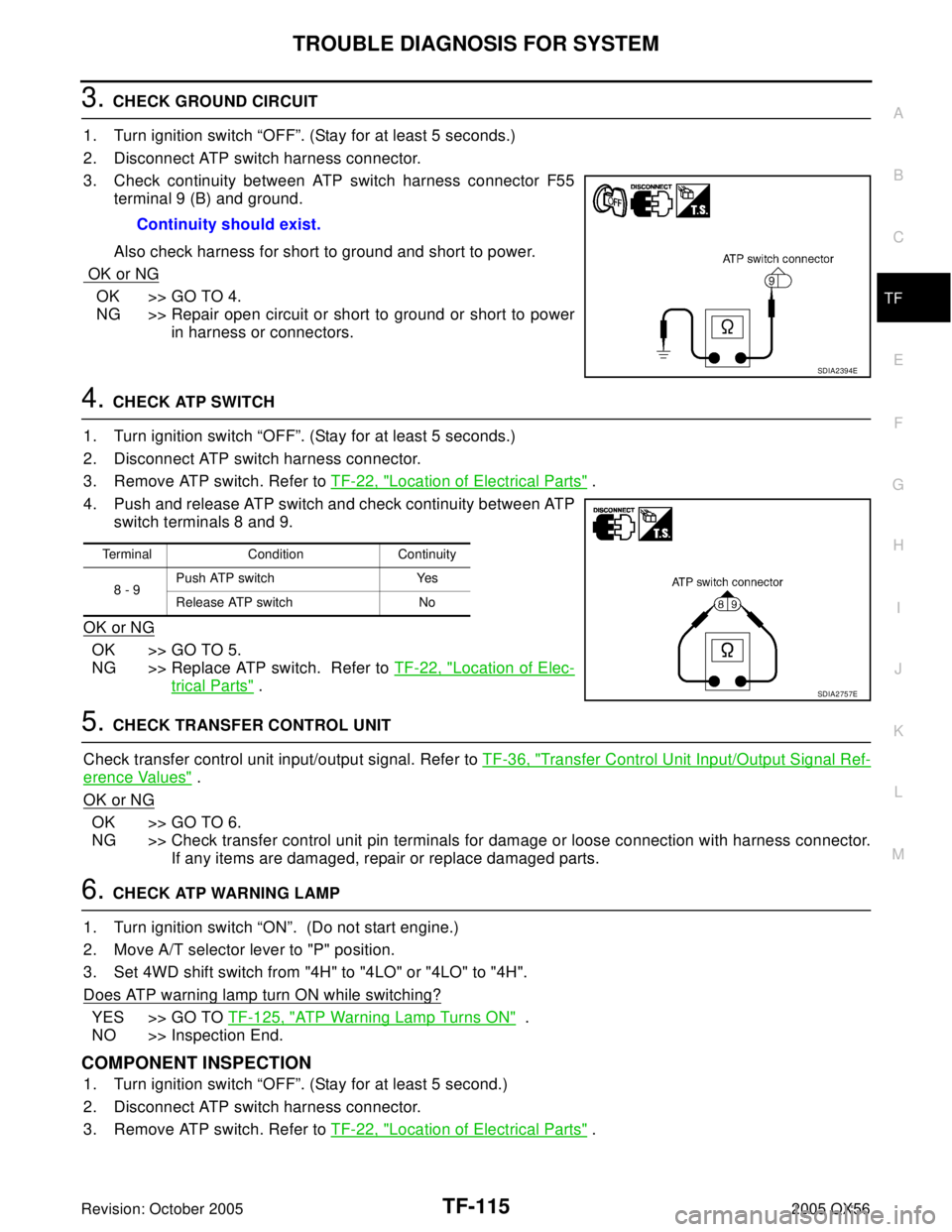

3. CHECK GROUND CIRCUIT
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect AT

Page 3259 of 3419

INFINITI QX4 2005 Factory Service Manual TF-116
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: October 20052005 QX56
4. Push and release ATP switch and check continuity between ATP
switch terminals 8 and 9.
5. If NG, replace the ATP switch. Refer t

Page 3260 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
TF-117
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: October 20052005 QX56
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
4WD Shift Indicator Lamp and 4LO Indicator Lamp Do Not Turn ONED

TROUBLE DIAGNOSIS FOR SYMPTOMS
TF-117
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: October 20052005 QX56
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
4WD Shift Indicator Lamp and 4LO Indicator Lamp Do Not Turn ONEDS002HM
SYMPTOM:
4WD shift indicator lamp and 4LO indicator lamp do not turn ON for approx. 1 second when turning
ignition switch to “ON”.
DIAGNOSTIC PROCEDURE

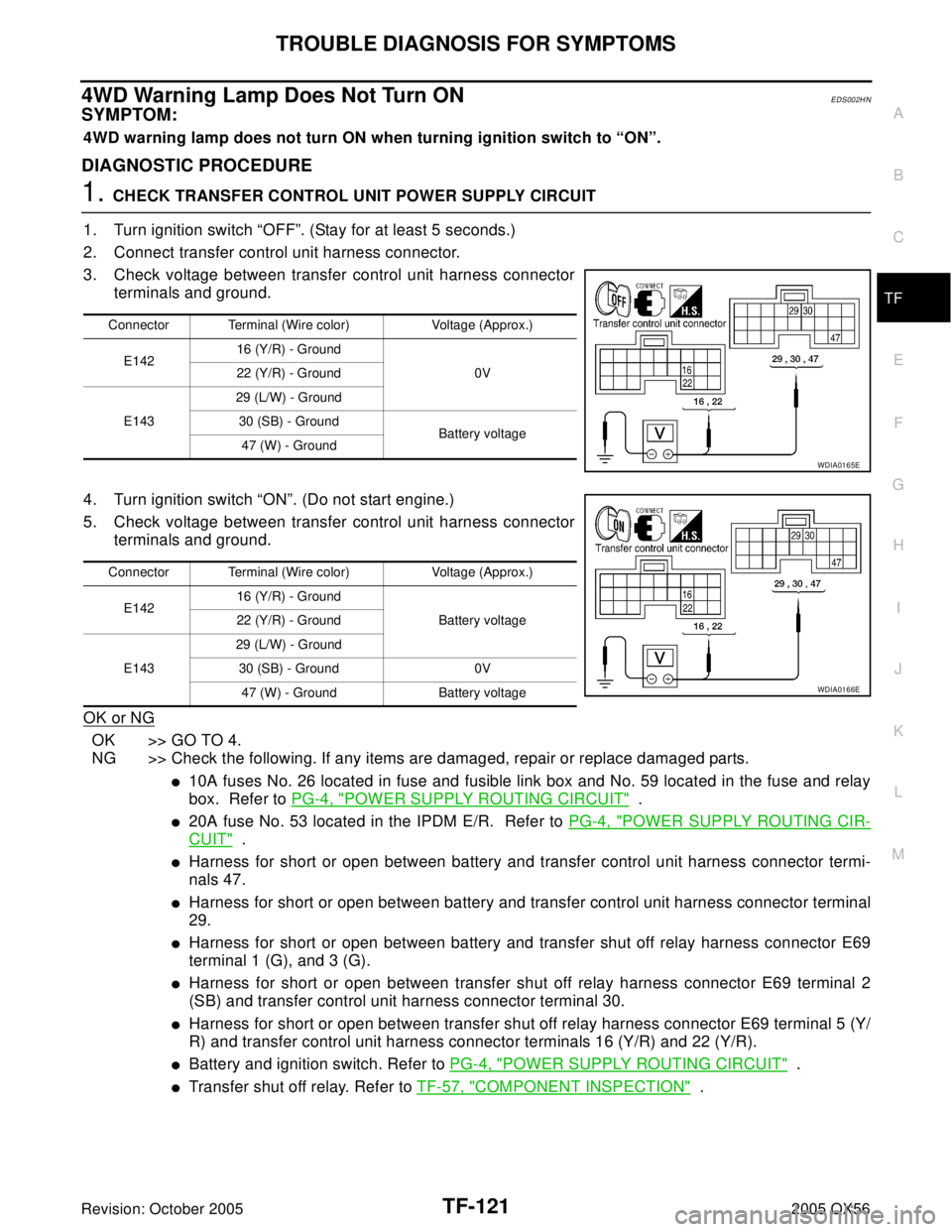

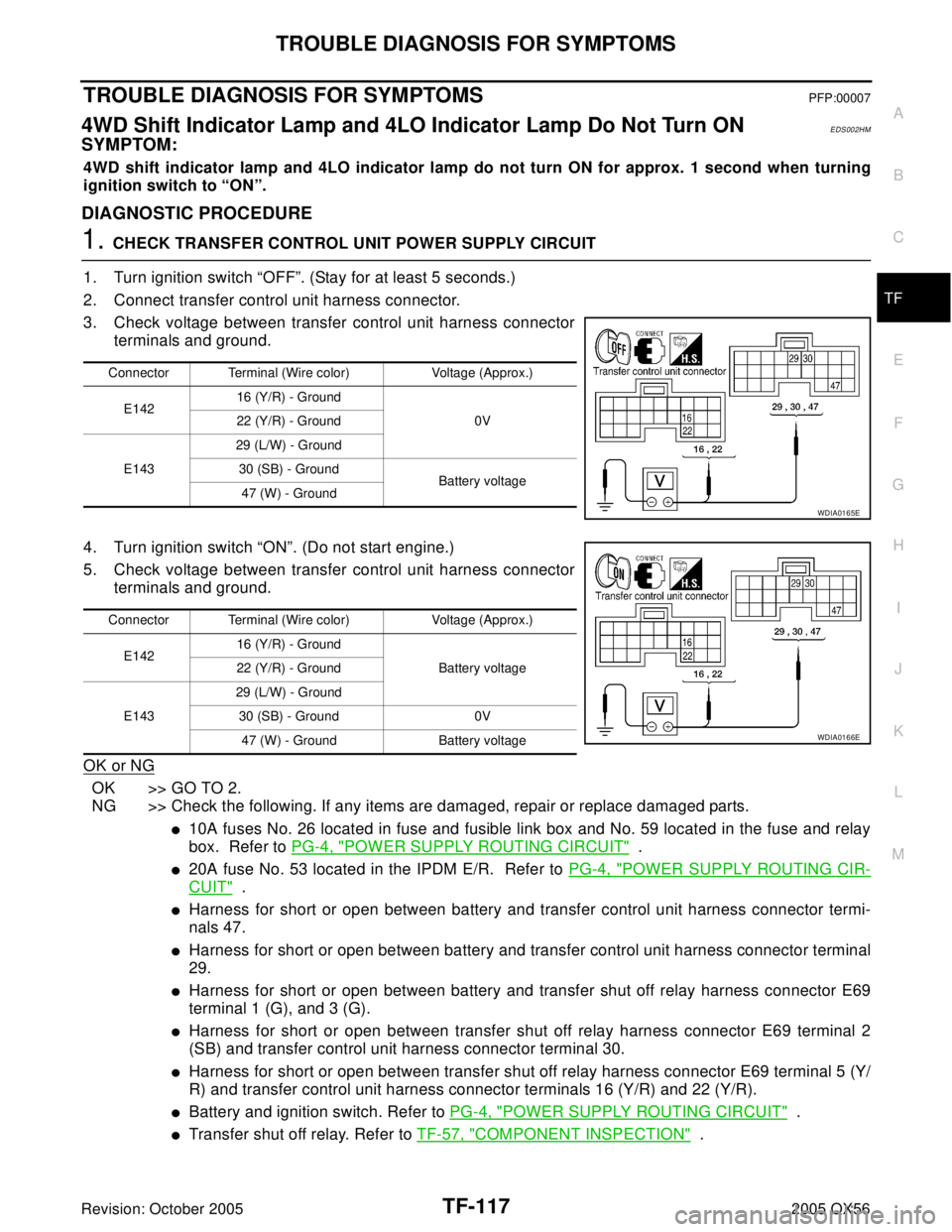

1. CHECK TRANSFER CONTROL UNIT POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Connect transfer control unit harness connector.
3. Check voltage between transfer control unit harness connector
terminals and ground.
4. Turn ignition switch “ON”. (Do not start engine.)
5. Check voltage between transfer control unit harness connector
terminals and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following. If any items are damaged, repair or replace damaged parts.
10A fuses No. 26 located in fuse and fusible link box and No. 59 located in the fuse and relay
box. Refer to PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
20A fuse No. 53 located in the IPDM E/R. Refer to PG-4, "POWER SUPPLY ROUTING CIR-
CUIT" .
Harness for short or open between battery and transfer control unit harness connector termi-
nals 47.
Harness for short or open between battery and transfer control unit harness connector terminal
29.
Harness for short or open between battery and transfer shut off relay harness connector E69
terminal 1 (G), and 3 (G).
Harness for short or open between transfer shut off relay harness connector E69 terminal 2
(SB) and transfer control unit harness connector terminal 30.
Harness for short or open between transfer shut off relay harness connector E69 terminal 5 (Y/
R) and transfer control unit harness connector terminals 16 (Y/R) and 22 (Y/R).
Battery and ignition switch. Refer to PG-4, "POWER SUPPLY ROUTING CIRCUIT" .
Transfer shut off relay. Refer to TF-57, "COMPONENT INSPECTION" .
Connector Terminal (Wire color) Voltage (Approx.)
E14216 (Y/R) - Ground
0V 22 (Y/R) - Ground
E14329 (L/W) - Ground
30 (SB) - Ground
Battery voltage
47 (W) - Ground
WDIA0165E
Connector Terminal (Wire color) Voltage (Approx.)
E14216 (Y/R) - Ground
Battery voltage 22 (Y/R) - Ground
E14329 (L/W) - Ground
30 (SB) - Ground 0V
47 (W) - Ground Battery voltage
WDIA0166E

Page 3261 of 3419

INFINITI QX4 2005 Factory Service Manual TF-118
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: October 20052005 QX56
2. CHECK TRANSFER CONTROL UNIT GROUND CIRCUIT
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect tran

Page 3262 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
TF-119
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: October 20052005 QX56

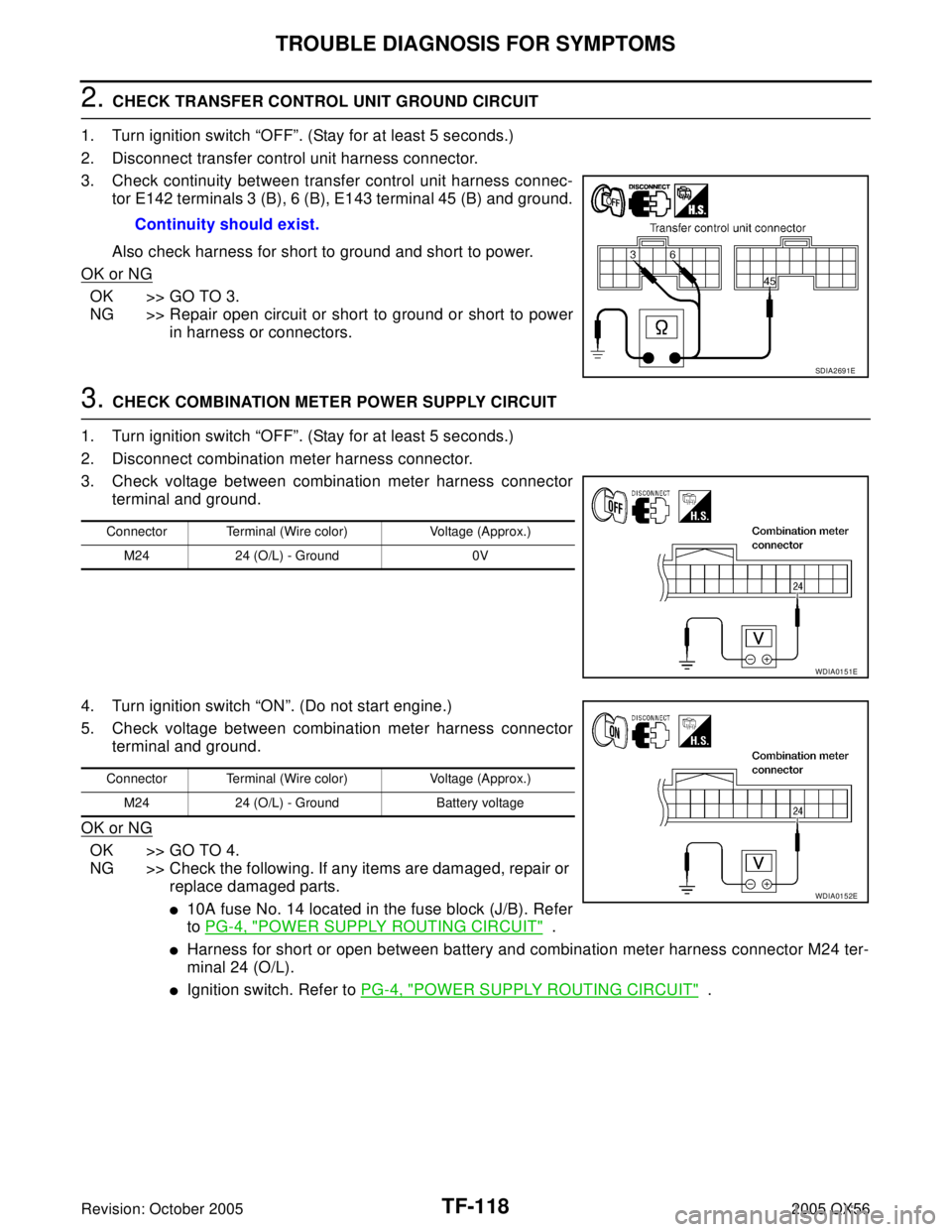

4. CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND COMBINATION METER
1. Turn ignition switch “OFF”.

Page 3263 of 3419

INFINITI QX4 2005 Factory Service Manual TF-120
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: October 20052005 QX56
7. CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to TF-36, "
Transfer Control Unit Input/Outp

Page 3264 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
TF-121
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: October 20052005 QX56
4WD Warning Lamp Does Not Turn ONEDS002HN
SYMPTOM:
4WD warning lamp does not turn ON when turning igniti

TROUBLE DIAGNOSIS FOR SYMPTOMS
TF-121
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: October 20052005 QX56
4WD Warning Lamp Does Not Turn ONEDS002HN
SYMPTOM:
4WD warning lamp does not turn ON when turning ignition switch to “ON”.
DIAGNOSTIC PROCEDURE
1. CHECK TRANSFER CONTROL UNIT POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Connect transfer control unit harness connector.
3. Check voltage between transfer control unit harness connector
terminals and ground.
4. Turn ignition switch “ON”. (Do not start engine.)
5. Check voltage between transfer control unit harness connector
terminals and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following. If any items are damaged, repair or replace damaged parts.
10A fuses No. 26 located in fuse and fusible link box and No. 59 located in the fuse and relay
box. Refer to PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
20A fuse No. 53 located in the IPDM E/R. Refer to PG-4, "POWER SUPPLY ROUTING CIR-
CUIT" .
Harness for short or open between battery and transfer control unit harness connector termi-
nals 47.
Harness for short or open between battery and transfer control unit harness connector terminal
29.
Harness for short or open between battery and transfer shut off relay harness connector E69
terminal 1 (G), and 3 (G).
Harness for short or open between transfer shut off relay harness connector E69 terminal 2
(SB) and transfer control unit harness connector terminal 30.
Harness for short or open between transfer shut off relay harness connector E69 terminal 5 (Y/
R) and transfer control unit harness connector terminals 16 (Y/R) and 22 (Y/R).
Battery and ignition switch. Refer to PG-4, "POWER SUPPLY ROUTING CIRCUIT" .
Transfer shut off relay. Refer to TF-57, "COMPONENT INSPECTION" .
Connector Terminal (Wire color) Voltage (Approx.)
E14216 (Y/R) - Ground
0V 22 (Y/R) - Ground
E14329 (L/W) - Ground
30 (SB) - Ground
Battery voltage
47 (W) - Ground
WDIA0165E
Connector Terminal (Wire color) Voltage (Approx.)
E14216 (Y/R) - Ground
Battery voltage 22 (Y/R) - Ground
E14329 (L/W) - Ground
30 (SB) - Ground 0V
47 (W) - Ground Battery voltage
WDIA0166E
