INFINITI QX4 2005 Factory Service Manual WW-2Revision: October 20052005 QX56 BCM WIPER SWITCH READING FUNCTION .... 38
Wiring Diagram — WIP/R — .................................. 39
Terminals and Reference Values for BCM ..............

WW-2Revision: October 20052005 QX56 BCM WIPER SWITCH READING FUNCTION .... 38
Wiring Diagram — WIP/R — .................................. 39
Terminals and Reference Values for BCM .............. 41
How to Proceed With Trouble Diagnosis ................ 43
Preliminary Inspection ............................................ 43
INSPECTION FOR POWER SUPPLY AND
GROUND CIRCUIT ............................................. 43
CONSULT-II Function (BCM) .................................. 45
CONSULT-II OPERATION ................................... 45
DATA MONITOR .................................................. 46
ACTIVE TEST ..................................................... 46
Rear Wiper Does Not Operate ............................... 47
Rear Wiper Stop Position Is Incorrect ..................... 49
Only Rear Wiper Does Not Operate ....................... 50
Only Rear Wiper Intermittent Does Not Operate .... 51
Wiper Does Not Wipe When Rear Washer Operates ... 51
Removal and Installation of Rear Wiper Arm, Adjust-
ment of Rear Wiper Arm Stop Location .................. 52
REMOVAL ........................................................... 52
INSTALLATION .................................................... 52
Removal and Installation of Rear Wiper Motor ....... 53
REMOVAL ........................................................... 53INSTALLATION ....................................................53
Rear Washer Nozzle Adjustment ............................54
Rear Washer Tube Layout ......................................54
Removal and Installation of Rear Washer Nozzle ...54
REMOVAL ............................................................54
INSTALLATION ....................................................54
Check Valve ............................................................55
Removal and Installation of Rear Wiper and Washer
Switch .....................................................................55
Removal and Installation of Washer Tank ...............55
Removal and Installation of Washer Motor .............55
POWER SOCKET .....................................................56
Wiring Diagram — P/SCKT — ................................56
Removal and Installation of Power Sockets ............57
REMOVAL ............................................................57
INSTALLATION ....................................................57
HORN ........................................................................58
Wiring Diagram — HORN — ..................................58
Removal and Installation .........................................59
REMOVAL ............................................................59
INSTALLATION ....................................................59

Page 3362 of 3419

INFINITI QX4 2005 Factory Service Manual PRECAUTION
WW-3
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
PRECAUTION PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS0

Page 3363 of 3419

INFINITI QX4 2005 Factory Service Manual WW-4
FRONT WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56
FRONT WIPER AND WASHER SYSTEMPFP:28810

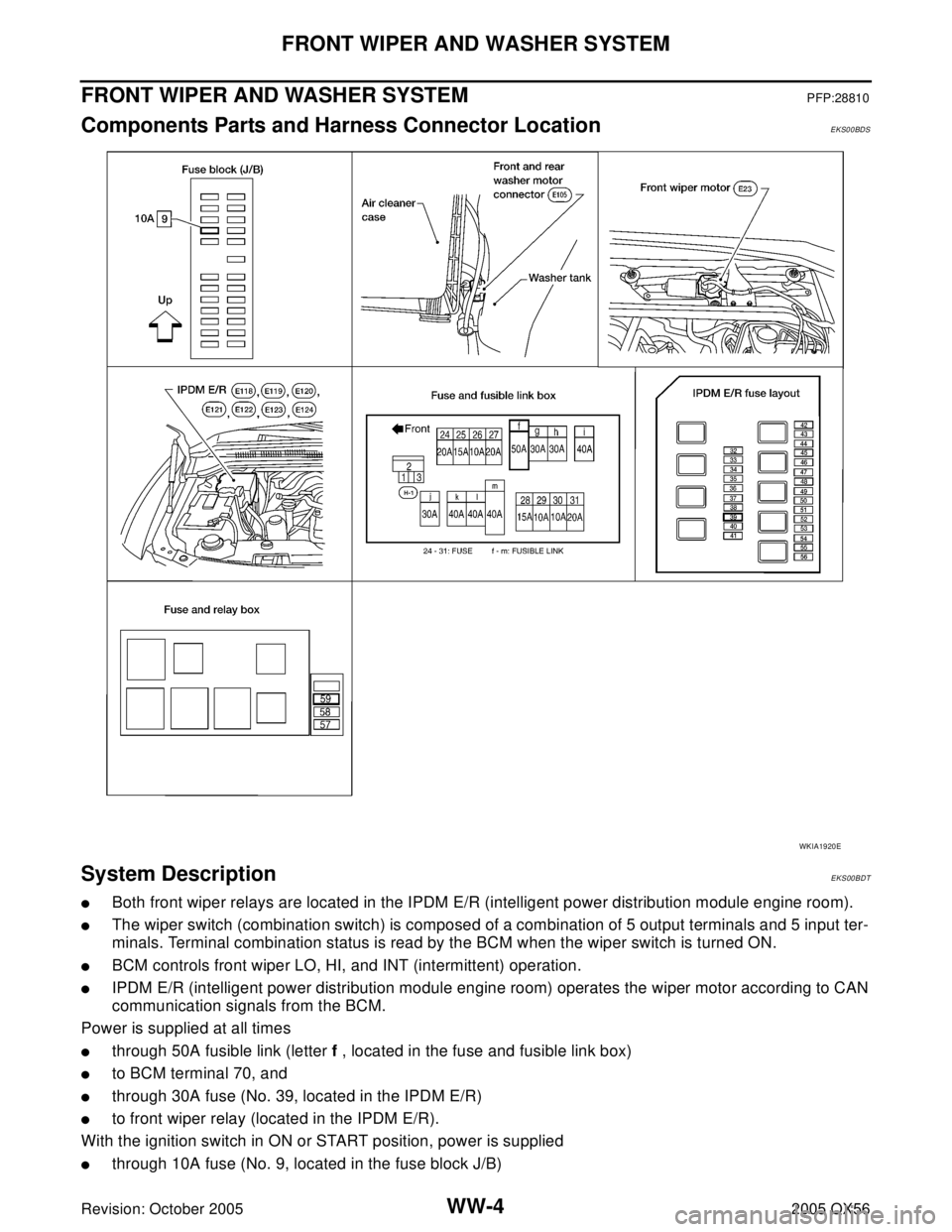

Components Parts and Harness Connector LocationEKS00BDS
System DescriptionEKS00BDT
Both front

Page 3364 of 3419

INFINITI QX4 2005 Factory Service Manual FRONT WIPER AND WASHER SYSTEM
WW-5
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
to combination switch terminal 14, and
through 10A fuse (No. 59 located in the fuse and relay box)
to BC

FRONT WIPER AND WASHER SYSTEM
WW-5
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56
to combination switch terminal 14, and
through 10A fuse (No. 59 located in the fuse and relay box)
to BCM terminal 38.
Ground is supplied
to BCM terminal 67 and
to combination switch terminal 12
through grounds M57, M61 and M79, and
to IPDM E/R terminals 38 and 59 and
to front wiper motor terminal 1
through grounds E9, E15, and E24.
LOW SPEED WIPER OPERATION
When the ignition switch is in the ON or START position, and the front wiper switch is turned to the low posi-
tion, the BCM detects a low speed wiper ON request through the combination switch (wiper switch) reading
function. The BCM then sends a front wiper (low) request signal over CAN communication lines
from BCM terminals 39 and 40
to IPDM E/R terminals 39 and 40.
When IPDM E/R receives front wiper (low) request signal, it supplies ground to energize the front wiper relay.
With the front wiper relay energized, power is supplied
through front wiper relay
to front wiper high relay
through IPDM E/R terminal 32
to front wiper motor terminal 3.
With power and ground supplied, the front wiper motor operates at low speed.
HI SPEED WIPER OPERATION
When the ignition switch is in the ON or START position, and the front wiper switch is turned to the high posi-
tion, the BCM detects a high speed wiper ON request through the combination switch (wiper switch) reading
function. The BCM then sends a front wiper (high) request signal over CAN communication lines
from BCM terminals 39 and 40
to IPDM E/R terminals 39 and 40.
When the IPDM E/R receives a front wiper (high) request signal, it supplies ground to energize the front wiper
and the front wiper high relays.
With the front wiper and the front wiper high relays energized, power is supplied
through front wiper relay
to front wiper high relay
through IPDM E/R terminal 35
to front wiper motor terminal 2.
With power and ground supplied, the front wiper motor operates at high speed.
INTERMITTENT OPERATION
Wiper intermittent operation delay interval is determined from the combination of the intermittent wiper dial
position inputs and vehicle speed. During each intermittent operation delay interval, the BCM sends a front
wiper request signal to the IPDM E/R to operate the wipers.
When the ignition switch is in the ON or START position, and the front wiper switch is turned to an intermittent
position, the BCM detects a front wiper (intermittent) ON request through the combination switch (wiper
switch) reading function.
The BCM then sends a front wiper (intermittent) request signal over CAN communication lines
from BCM terminals 39 and 40
to IPDM E/R terminals 39 and 40.
When the BCM determines that combination switch status is front wiper intermittent ON, it performs the follow-
ing operations.
BCM detects ON/OFF status of intermittent wiper dial position.

Page 3365 of 3419

INFINITI QX4 2005 Factory Service Manual WW-6
FRONT WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56
BCM calculates operation interval from wiper dial position and vehicle speed signal received through CAN
communications.
BCM sends

WW-6
FRONT WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56
BCM calculates operation interval from wiper dial position and vehicle speed signal received through CAN
communications.
BCM sends front wiper request signal (INT) to IPDM E/R at calculated operation interval.
When the IPDM E/R receives a front wiper request signal (INT), it supplies ground to energize the front wiper
relay. It then sends an auto-stop signal to the BCM, and conducts intermittent front wiper motor operation.
AUTO STOP OPERATION
When the wiper arms are not located at the base of the windshield, and the wiper switch is turned OFF, the
wiper motor will continue to operate until the wiper arms reach the windshield base. When the wiper arms
reach the base of windshield, front wiper motor terminals 6 and 1 are connected.
Ground is supplied
to IPDM E/R terminal 43
through front wiper motor terminal 6
through front wiper motor terminal 1
through grounds E9, E15, and E24.
The IPDM E/R sends an auto stop operation signal to the BCM through CAN communication lines.
When the BCM receives an auto stop operation signal, the BCM sends wiper stop signal to the IPDM E/R over
CAN communication lines. The IPDM E/R then de-energizes the front wiper relay.
The wiper motor will then stop the wiper arms at the STOP position.
FRONT WASHER OPERATION
When the ignition switch is in the ON or START position, and the front and rear washer switches are OFF, the
front and rear washer motor is supplied power
through 10A fuse (No. 9, located in the fuse block J/B)
through combination switch (wiper switch) terminal 14
through combination switch (wiper switch) terminal 13
to front and rear washer motor terminal 1, and
through combination switch (wiper switch) terminal 11
to front and rear washer motor terminal 2.
When the front wiper switch is in the front washer position, the BCM detects a front washer signal request
through the combination switch (wiper switch) reading function.
Combination switch ground is supplied
to front and rear washer motor terminal 2
through combination switch (wiper switch) terminal 11
through combination switch (wiper switch) terminal 12
through grounds M57, M61 and M79.
With ground supplied, the front and rear washer motor is operated in the front direction.
When the BCM detects that front washer motor has operated for 0.4 seconds or longer, the BCM uses CAN
communication and sends a wiper request signal to the IPDM E/R for low speed operation of wipers.
When the BCM detects that the washer switch is OFF, low speed operation cycles approximately 3 times and
then stops.
MIST OPERATION
When the wiper switch is temporarily placed in the mist position, wiper low speed operation cycles once and
then stops. For additional information about wiper operation under this condition, refer to WW-5, "
LOW
SPEED WIPER OPERATION" .
If the switch is held in the mist position, low speed operation continues.
FAIL -S AFE F UN CTI ON
The BCM includes fail-safe function to prevent malfunction of electrical components controlled by CAN com-
munications if a malfunction in CAN communications occurs.
The BCM uses CAN communications to stop output of electrical components it controls.
Until the ignition switch is turned off, the front wiper system remains in same status as just before fail-safe con-
trol was initiated. (If wiper was in low speed operation just before fail-safe, it continues low speed operation
until ignition switch is turned OFF.)
When fail-safe status is initiated, the BCM remains in standby until normal signals are received.
When normal signals are received, fail-safe status is canceled.

Page 3366 of 3419

INFINITI QX4 2005 Factory Service Manual FRONT WIPER AND WASHER SYSTEM
WW-7
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56

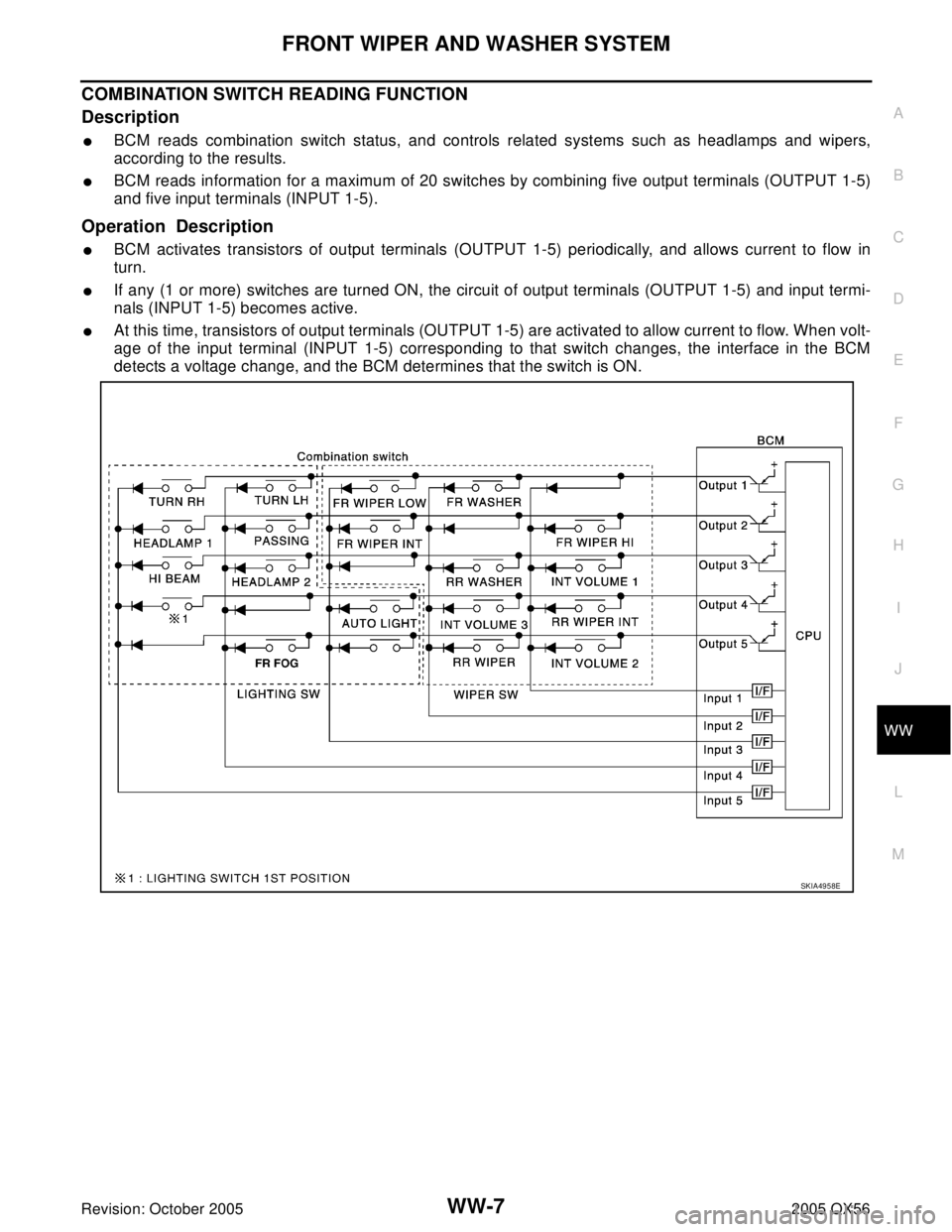

COMBINATION SWITCH READING FUNCTION
Description
BCM reads combination switch status, and controls related

Page 3367 of 3419

INFINITI QX4 2005 Factory Service Manual WW-8
FRONT WIPER AND WASHER SYSTEM
Revision: October 20052005 QX56

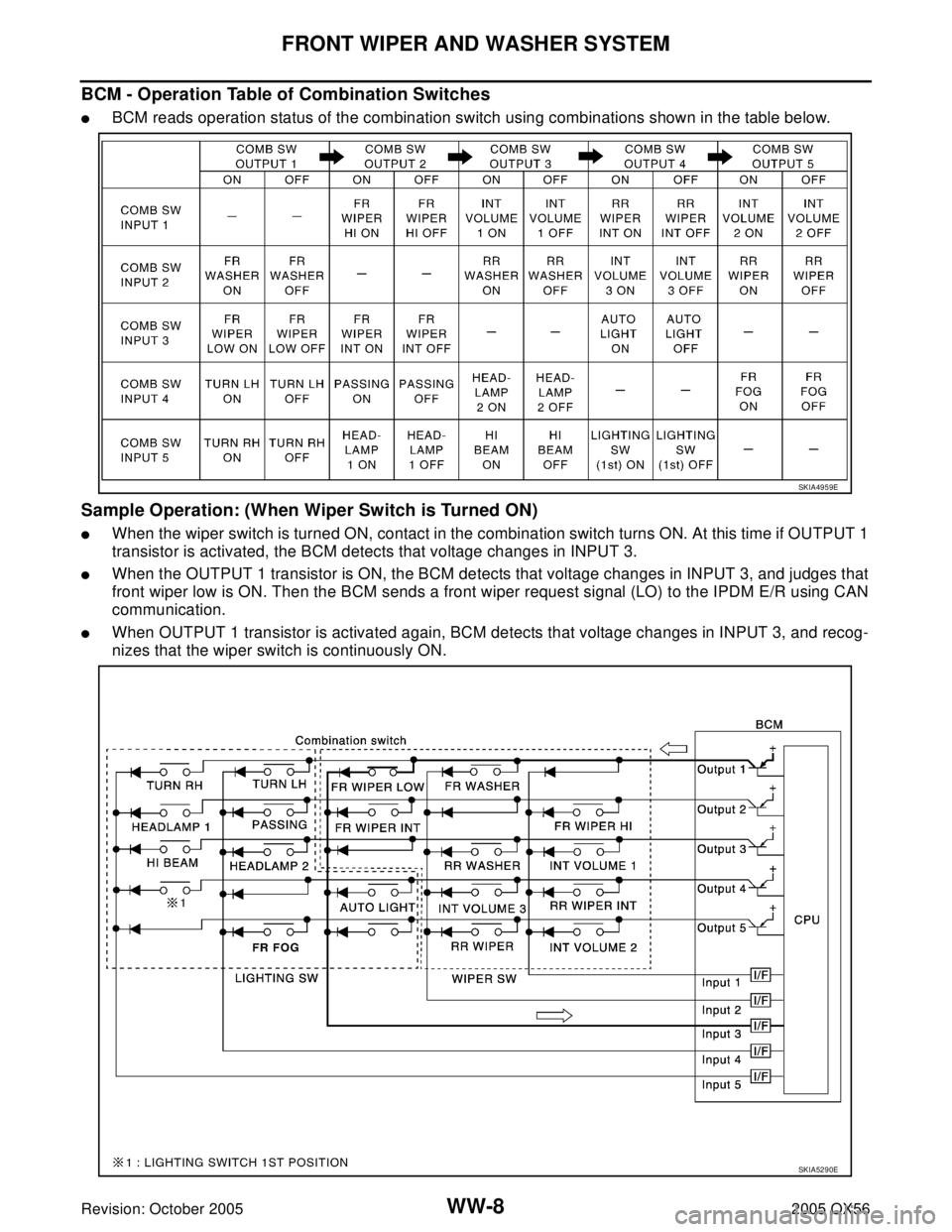

BCM - Operation Table of Combination Switches
BCM reads operation status of the combination switch using combinations shown in the t

Page 3368 of 3419

INFINITI QX4 2005 Factory Service Manual FRONT WIPER AND WASHER SYSTEM
WW-9
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: October 20052005 QX56

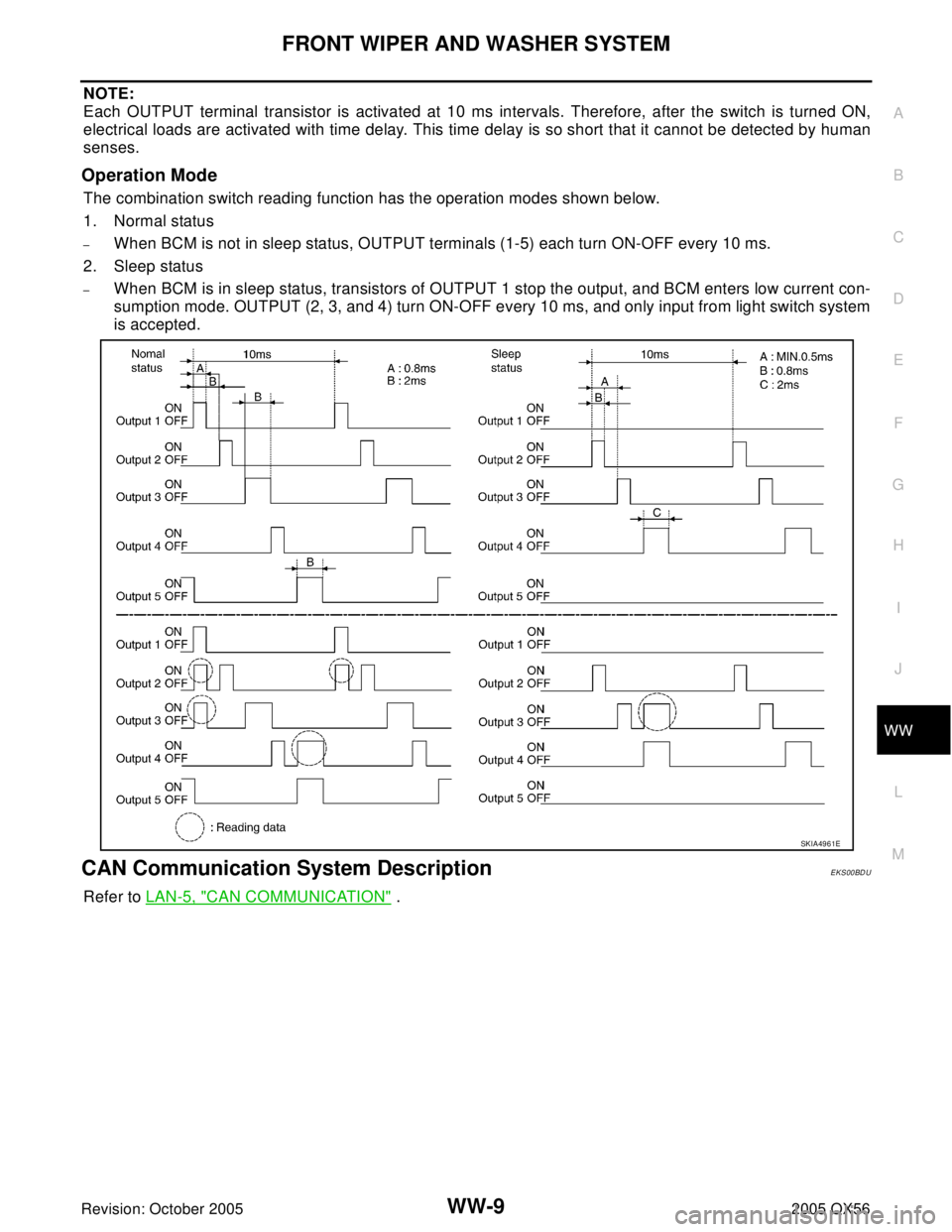

NOTE:
Each OUTPUT terminal transistor is activated at 10 ms intervals. Therefore, after the switch is turne
