Page 2545 of 3419

INFINITI QX4 2005 Factory Service Manual LT-98
COMBINATION SWITCH
Revision: October 20052005 QX56
Combination Switch Reading FunctionEKS00BA8
For details, refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
CONSULT-II Function (BCM)EKS00

Page 2546 of 3419

INFINITI QX4 2005 Factory Service Manual COMBINATION SWITCH
LT-99
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
4. Touch "COMB SW" on "SELECT TEST ITEM" screen.
DATA MONITOR
Operation Procedure
1. Touch "COMB SW" on "SELECT TEST

COMBINATION SWITCH
LT-99
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
4. Touch "COMB SW" on "SELECT TEST ITEM" screen.
DATA MONITOR
Operation Procedure
1. Touch "COMB SW" on "SELECT TEST ITEM" screen.
2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on "SELECT MONITOR ITEM" screen.
4. Touch "START".
5. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is
selected, all the signals will be monitored.
6. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch "STOP".
Display Item List
LKIA0183E
ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects and monitors individual signal.
Monitor item name
"OPERATION OR UNIT"Contents
TURN SIGNAL R "ON/OFF" Displays "Turn Right (ON)/Other (OFF)" status, determined from lighting switch signal.
TURN SIGNAL L "ON/OFF" Displays "Turn Left (ON)/Other (OFF)" status, determined from lighting switch signal.
HI BEAM SW "ON/OFF"Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from lighting
switch signal.
HEAD LAMP SW 1 "ON/OFF" Displays "Headlamp switch 1 (ON)/Other (OFF)" status, determined from lighting switch signal.
HEAD LAMP SW 2 "ON/OFF"Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from lighting
switch signal.
LIGHT SW 1ST "ON/OFF"Displays status (lighting switch 1st position: ON/Others: OFF) of lighting switch judged from lighting
switch signal.
PASSING SW "ON/OFF"Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from lighting
switch signal.
AUTO LIGHT SW "ON/OFF" Displays "Auto light switch (ON)/Other (OFF)" status, determined from lighting switch signal.
FR FOG SW "ON/OFF" Displays "Front fog lamp switch (ON)/Other (OFF)" status, determined from lighting switch signal.
FR WIPER HI "ON/OFF" Displays "Front Wiper HI (ON)/Other (OFF)" status, determined from wiper switch signal.
FR WIPER LOW "ON/OFF" Displays "Front Wiper LOW (ON)/Other (OFF)" status, determined from wiper switch signal.
FR WIPER INT "ON/OFF" Displays "Front Wiper INT (ON)/Other (OFF)" status, determined from wiper switch signal.
FR WASHER SW "ON/OFF" Displays "Front Washer Switch (ON)/Other (OFF)" status, determined from wiper switch signal.
INT VOLUME [1 - 7] Displays intermittent operation knob setting (1 - 7), determined from wiper switch signal.
RR WIPER ON "ON/OFF" Displays "Rear Wiper (ON)/(OFF)" status, determined from wiper switch signal.
RR WIPER INT "ON/OFF" Displays "Rear Wiper INT (ON)/(OFF)" status, determined from wiper switch signal.
RR WASHER SW "ON/OFF" Displays "Rear Washer (ON)/(OFF)" status, determined from wiper switch signal.

Page 2547 of 3419

INFINITI QX4 2005 Factory Service Manual LT-100
COMBINATION SWITCH
Revision: October 20052005 QX56
Combination Switch InspectionEKS00BAA
1. SYSTEM CHECK
1. Referring to table below, check which system the malfunctioning switch belongs.
>> GO

Page 2548 of 3419

INFINITI QX4 2005 Factory Service Manual COMBINATION SWITCH
LT-101
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
3. HARNESS INSPECTION
1. Turn ignition switch OFF.
2. Disconnect BCM and combination switch connectors.
3. Check for

Page 2549 of 3419

INFINITI QX4 2005 Factory Service Manual LT-102
COMBINATION SWITCH
Revision: October 20052005 QX56
4. BCM OUTPUT TERMINAL INSPECTION
1. Turn lighting switch and wiper switch to OFF.
2. Set wiper dial to position 4.
3. Connect BCM and combina

Page 2550 of 3419

INFINITI QX4 2005 Factory Service Manual STOP LAMP
LT-103
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
STOP LAMPPFP:26550
System DescriptionEKS00BAD
Power is supplied at all times
through 10A fuse [No. 20, located in fuse block

Page 2551 of 3419

INFINITI QX4 2005 Factory Service Manual LT-104
STOP LAMP
Revision: October 20052005 QX56

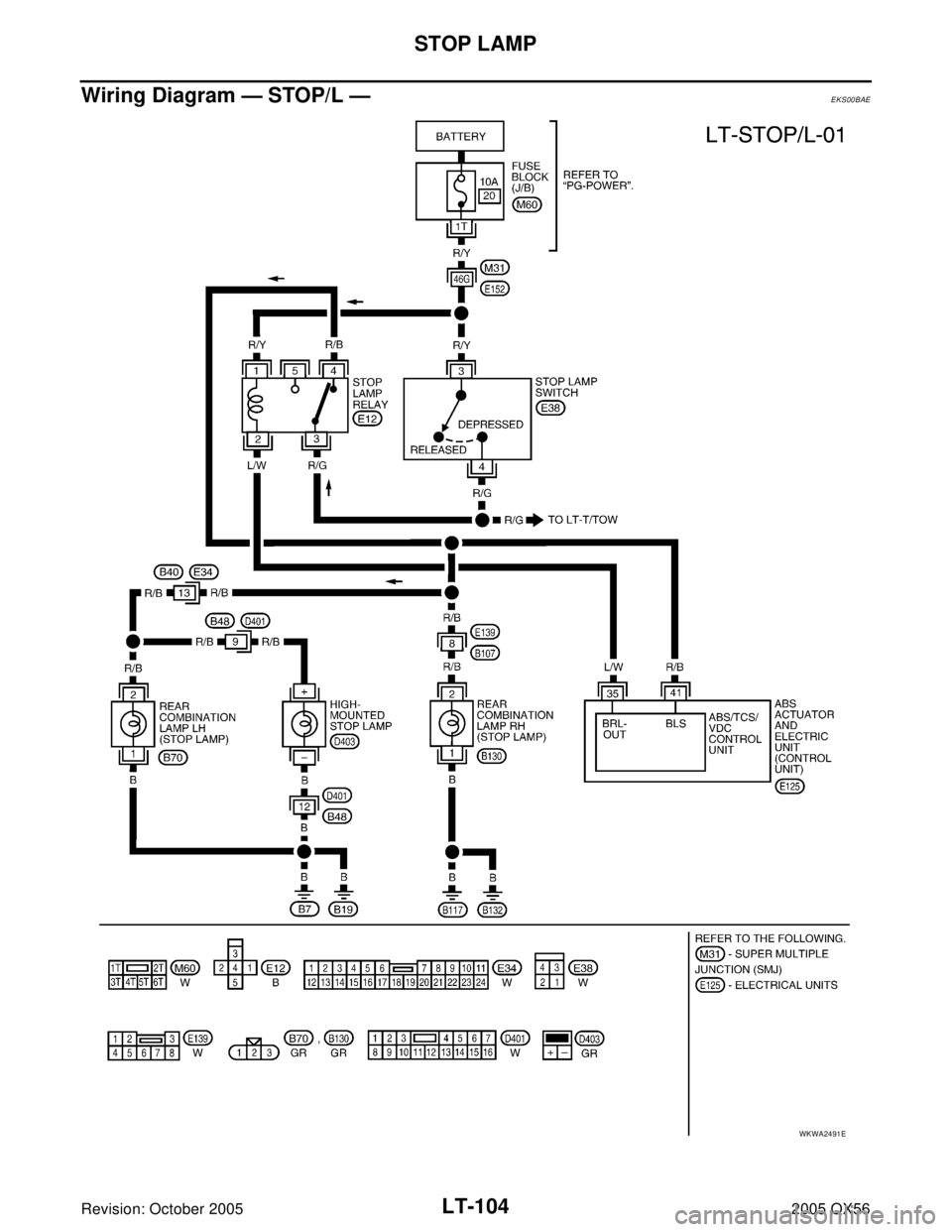

Wiring Diagram — STOP/L —EKS00BAE
WKWA2491E

Page 2552 of 3419

INFINITI QX4 2005 Factory Service Manual STOP LAMP
LT-105
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
High-Mounted Stop LampEKS00BAF
BULB REPLACEMENT
The high-mounted stop lamp bulbs are not serviceable.
REMOVAL AND INSTALLATIO
