INFINITI QX4 2005 Factory Service Manual MA-8
PERIODIC MAINTENANCE
Revision: October 20052005 QX56
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 months. Replace drive belts if damaged.
(2) If

MA-8
PERIODIC MAINTENANCE
Revision: October 20052005 QX56
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 months. Replace drive belts if damaged.
(2) If operating mainly in dusty conditions, more frequent maintenance may be required.
(3) Maintenance-free item. For service procedures, go to the FL section.
(4) After 60,000 miles (96,000 km) or 48 months, replace every 30,000 miles (48,000 km) or 24 months.
(5) If valve noise increases, inspect valve clearance.
* Maintenance items and intervals with “*” are recommended by NISSAN for reliable vehicle operation. The owner need not perform
such maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are
required.
CHASSIS AND BODY MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. L = Lubricate. [ ]: At the mileage intervals only. MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title Perform at number of miles, kilo-
meters or months, whichever
comes first.Miles x 1,000
(km x 1,000)
Months33.75
(54)
2737.5
(60)
3041.25
(66)
3345
(72)
3648.75
(78)
3952.5
(84)
4256.25
(90)
4560
(96)
48
Drive belts NOTE (1) I*MA-13
Air cleaner filter NOTE (2) [R]MA-16
EVAP vapor linesI*MA-20
Fuel linesI*MA-16
Fuel filter NOTE (3)—
Engine coolant NOTE (4) R*MA-13
Engine oil R R R R R R R RMA-17
Engine oil filter R R R R R R R RMA-17
Spark plugs (double PLATINUM-
TIPPED type)Replace every 105,000 miles (169,000 km).MA-18
Intake and exhaust valve clear-
ance*NOTE (5)EM-51
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section
- Page
or
- Content
Title Perform at number of miles, kilometers or
months, whichever comes first.Miles x
1,000
(km x
1,000)
Months3.75
(6)
37.5
(12)
611 . 2 5
(18)
915
(24)
1218.75
(30)
1522.5
(36)
1826.25
(42)
2130
(48)
24
Brake lines and cables I IMA-28
Brake pads and rotors I I I IMA-28
Automatic transmission fluid NOTE (1) I I MA-22
Transfer fluid and front final drive oil NOTE (1) I IMA-25,
MA-25
Rear final drive oil NOTE (1) I IMA-25,
MA-25
Steering gear, linkage, axle, and suspension
partsII I IMA-29,
MA-30
Tire Rotation NOTE (2)MA-28
Drive shaft boots and propeller shaft (4WD) I I I IMA-25
Exhaust system I I I IMA-22
In-cabin microfilter R RMA-21

Page 2642 of 3419

INFINITI QX4 2005 Factory Service Manual PERIODIC MAINTENANCE
MA-9
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: October 20052005 QX56
(1) If towing a trailer, or using a car-top carrier, or driving on rough or muddy roads, change (not just inspect) o

PERIODIC MAINTENANCE
MA-9
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: October 20052005 QX56
(1) If towing a trailer, or using a car-top carrier, or driving on rough or muddy roads, change (not just inspect) oil at every 30,000 miles
(48,000 km) or 24 months.
(2) Refer to “Tire rotation” under the “General maintenance” heading earlier in this section.
Schedule 2ELS001BM
EMISSION CONTROL SYSTEM MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. [ ]: At the mileage intervals only
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 months. Replace drive belts if damaged.
(2) Maintenance-free item. For service procedures, go to FL section.
(3) After 60,000 miles (96,000 km) or 48 months, replace every 30,000 miles (48,000 km) or 24 months.
(4) If valve noise increases, inspect valve clearance.
* Maintenance items and intervals with “*” are recommended by NISSAN for reliable vehicle operation. The owner need not perform
such maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are
required. MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section
- Page
or
- Content
Title Perform at number of miles, kilometers or
months, whichever comes first.Miles x
1,000
(km x
1,000)
Months33.75
(54)
2737.5
(60)
3041.25
(66)
3345
(72)
3648.75
(78)
3952.5
(84)
4256.25
(90)
4560
(96)
48
Brake lines and cables I IMA-28
Brake pads and rotors I I I IMA-28
Automatic transmission fluid NOTE (1) I IMA-22
Transfer fluid and front final drive oil NOTE (1) I IMA-25,
MA-25
Rear final drive oil NOTE (1) I IMA-25,
MA-25
Steering gear, linkage, axle, and suspension
partsIIIIMA-29,
MA-30
Tire Rotation NOTE (2)MA-28
Drive shaft boots and propeller shaft (4WD) I I I IMA-25
Exhaust system I I I IMA-22
In-cabin microfilter R RMA-21
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section - Page
or - Content
Title Perform at number of miles, kilome-
ters or months, whichever comes first.Miles x 1,000
(km x 1,000)
Months7.5
(12)
615
(24)
1222.5
(36)
1830
(48)
2437.5
(60)
3045
(72)
3652.5
(84)
4260
(96)
48
Drive belts NOTE (1) I*MA-13
Air cleaner filter [R] [R]MA-16
EVAP vapor lines I* I*MA-20
Fuel lines I* I*MA-16
Fuel filter NOTE (2)—
Engine coolant NOTE (3) R*MA-13
Engine oil R R R R R R R RMA-17
Engine oil filter R R R R R R R RMA-17
Spark plugs (PLATINUM-TIPPED
type)Replace every 105,000 miles (169,000 km).MA-18
Intake and exhaust valve clearance* NOTE (4)EM-51

Page 2643 of 3419

INFINITI QX4 2005 Factory Service Manual MA-10
PERIODIC MAINTENANCE
Revision: October 20052005 QX56
CHASSIS AND BODY MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. L = Lubricate. [ ]: At the mileage int

Page 2644 of 3419

INFINITI QX4 2005 Factory Service Manual RECOMMENDED FLUIDS AND LUBRICANTS
MA-11
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: October 20052005 QX56
RECOMMENDED FLUIDS AND LUBRICANTSPFP:00000
Fluids and LubricantsELS001BN
*1: For further details, refe

RECOMMENDED FLUIDS AND LUBRICANTS
MA-11
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: October 20052005 QX56
RECOMMENDED FLUIDS AND LUBRICANTSPFP:00000
Fluids and LubricantsELS001BN
*1: For further details, refer to MA-12, "SAE Viscosity Number" .
*2: Using automatic transmission fluid other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and automatic
transmission durability, and may damage the automatic transmission, which is not covered by the NISSAN new vehicle limited warran ty.
*3: For Canada, NISSAN Automatic Transmission Fluid (ATF), DEXRON
TM III or MERCONTM or equivalent ATF may also be used.
*4: Available in mainland U.S.A. through your NISSAN dealer.
*5: For further details, see “Air conditioner specification label”.
*6: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 0° C (32° F).
*7: DEXRON
TM III, MERCONTM or equivalent may also be used. Outside the continental United States and Alaska contact a NISSAN
dealership for more information regarding suitable fluids, including recommended brand(s) of DEXRONTM III or MERCONTM Automatic
Transmission Fluid.
*8: For further details, refer to GI-5, "
Precautions for Fuel (Unleaded Regular Gasoline Recommended)" . DescriptionCapacity (Approximate)
Recommended Fluids/Lubricants
Metric US measure Imp measure
Fuel
105.8 28 US gal 23 1/4 Imp galUnleaded gasoline with octane rating of
at least 91 AKI (RON 96) *8
Engine oil
Drain and refillWith oil filter
change6.2 6 1/2 qt 5 1/2 qt
API Certification Mark *1
API grade SL, Energy Conserving *1
ILSAC grade GF-III *1 Without oil filter
change5.9 6 1/4 qt 5 1/4 qt
Dry engine (engine overhaul)
7.6 8 qt 6 3/4 qt
Cooling systemWith reservoir
at MAX level14.4 3 3/4 gal 3 1/8 galGenuine NISSAN Long Life Anti-freeze
coolant or equivalent
Automatic transmission fluid (ATF)
10.6 11 1/4 qt 9 3/8 qt Genuine NISSAN Matic J ATF *2
Rear final drive oil
1.75 3 3/4 pt 3 1/8 pt API GL-5 Viscosity SAE 80W-90 *6
Transfer fluid
3.0 3 1/8 qt 2 5/8 qtGenuine NISSAN Matic D ATF (Conti-
nental U.S and Alaska) or Canada NIS-
SAN Automatic Transmission Fluid *7
Front final drive oil
1.6 3 3/8 pt 2 7/8 pt API GL-5 Viscosity SAE 80W-90 *6
Power steering fluid (PSF)
1.0 2 1/8 pt 1 3/4 pt Genuine NISSAN PSF or equivalent *3
Brake fluid — — —Genuine NISSAN Super Heavy Duty
Brake Fluid or equivalent,
DOT 3 (US FMVSS No. 116) *4
Brake grease — — —PBC (poly butyl cuprysil) grease or
equivalent
Multi-purpose grease — — — NLGI No. 2 (lithium soap base)
Windshield washer fluid
4.5 1 1/4 gal 1 galGenuine NISSAN Windshield Washer
Concentrate Cleaner & Anti-freeze or
equivalent
Air conditioning system refrigerant 1.08 ± 0.05 kg 2.38 ± 0.11 lb 2.38 ± 0.11 lb HFC-134a (R-134a) *5
Air conditioning system lubricants
290 m9.8 fl oz 10.2 fl ozNISSAN A/C System Lubricant Type S or
equivalent *5

Page 2645 of 3419

INFINITI QX4 2005 Factory Service Manual MA-12
RECOMMENDED FLUIDS AND LUBRICANTS
Revision: October 20052005 QX56
SAE Viscosity NumberELS001BO
GASOLINE ENGINE OIL
SAE 5W-30 viscosity oil is preferred for all temperatures. SAE
10W-30 or 10W-4

Page 2646 of 3419

INFINITI QX4 2005 Factory Service Manual ENGINE MAINTENANCE
MA-13
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: October 20052005 QX56
ENGINE MAINTENANCEPFP:00000

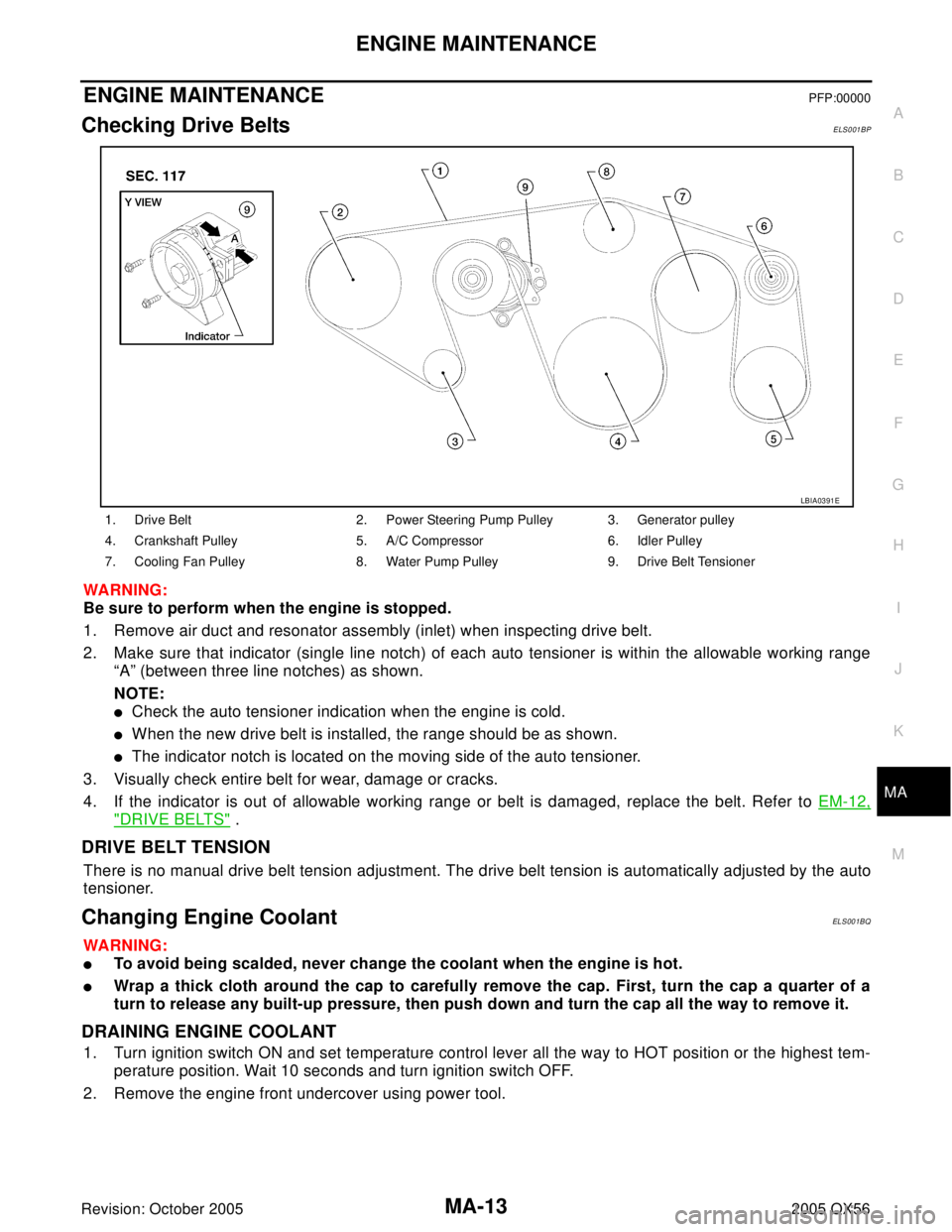

Checking Drive BeltsELS001BP
WA RN ING:
Be sure to perform when the engine is stopped.
1.

Page 2647 of 3419

INFINITI QX4 2005 Factory Service Manual MA-14
ENGINE MAINTENANCE
Revision: October 20052005 QX56

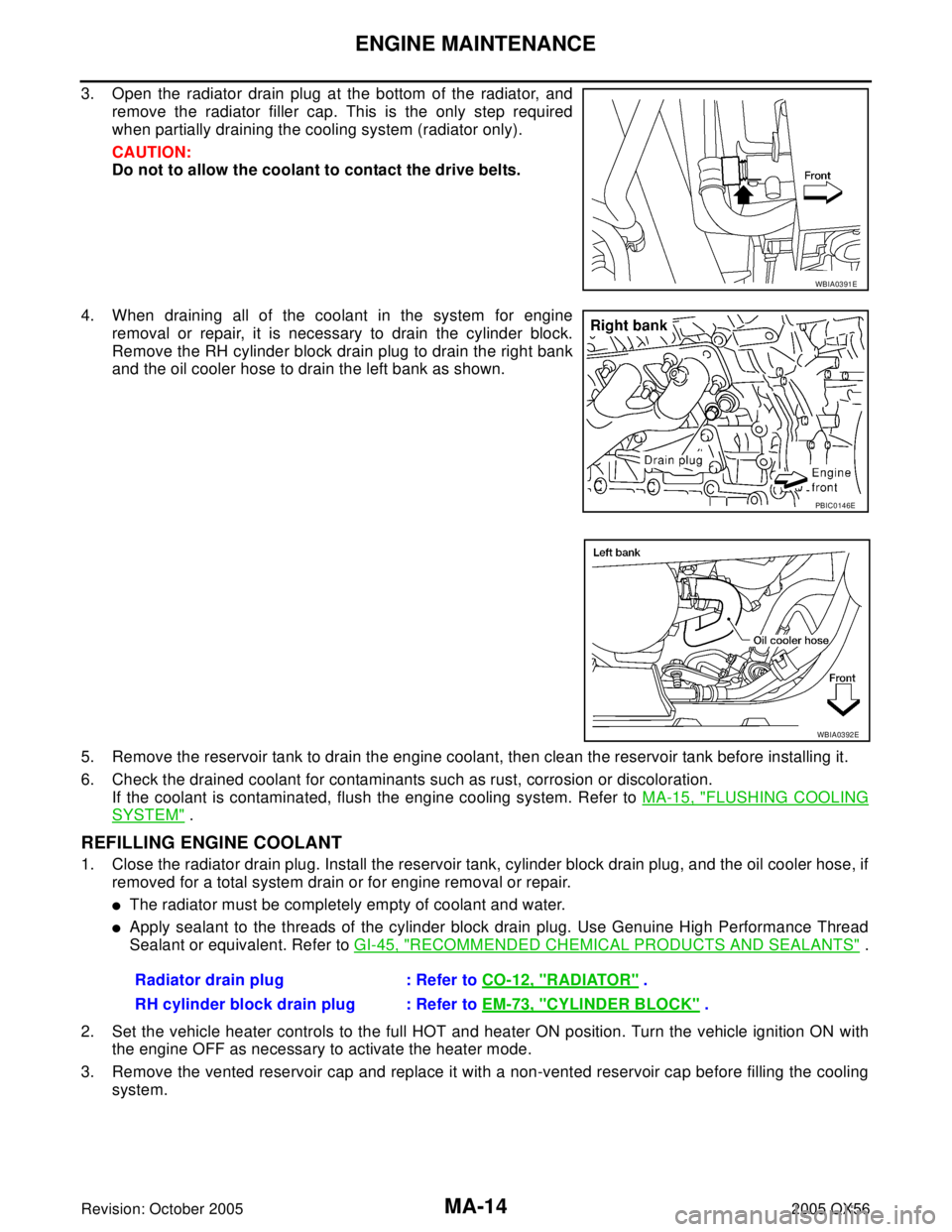

3. Open the radiator drain plug at the bottom of the radiator, and
remove the radiator filler cap. This is the only step required
when partiall

Page 2648 of 3419

INFINITI QX4 2005 Factory Service Manual ENGINE MAINTENANCE
MA-15
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: October 20052005 QX56

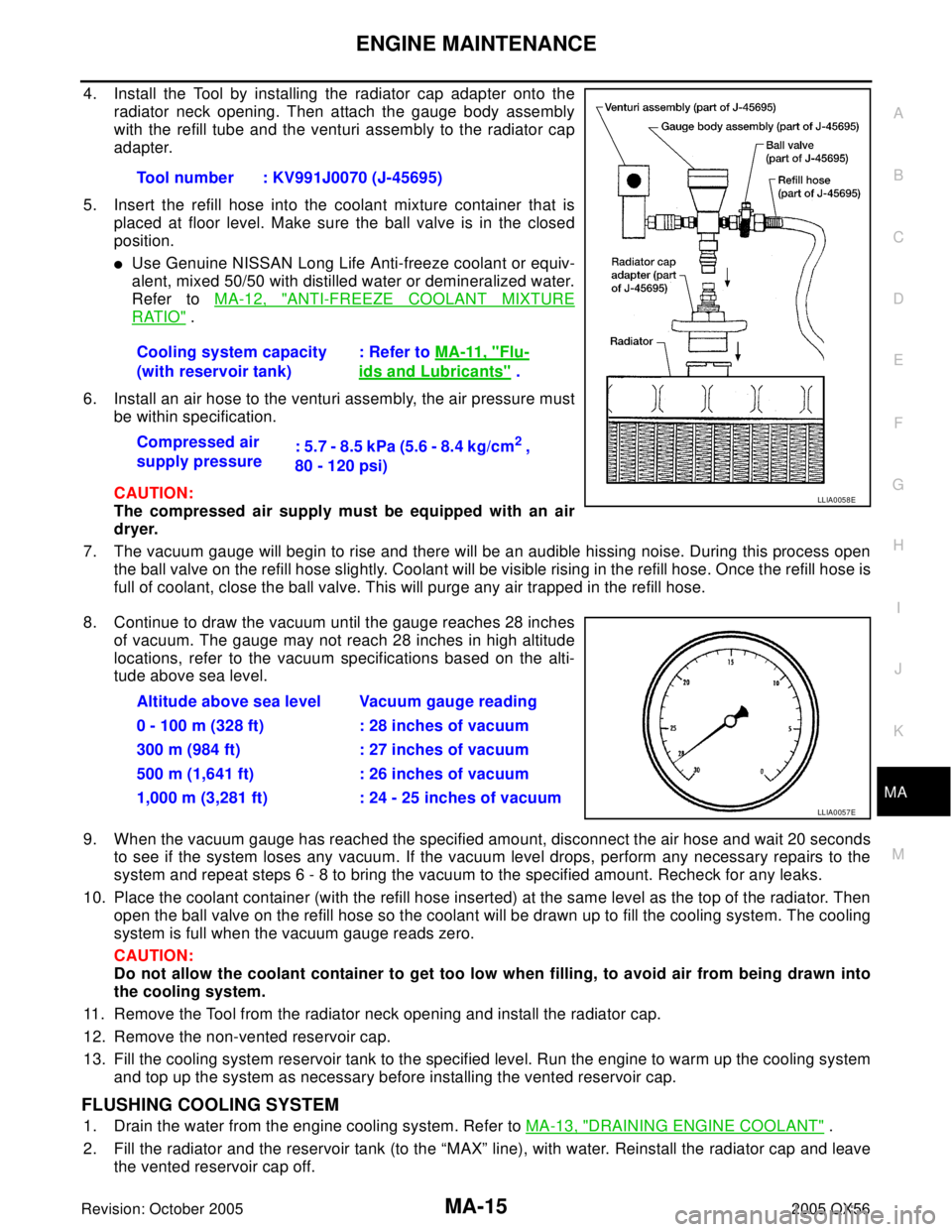

4. Install the Tool by installing the radiator cap adapter onto the
radiator neck opening. Then attach the gauge body

ENGINE MAINTENANCE
MA-15
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: October 20052005 QX56
4. Install the Tool by installing the radiator cap adapter onto the
radiator neck opening. Then attach the gauge body assembly
with the refill tube and the venturi assembly to the radiator cap
adapter.
5. Insert the refill hose into the coolant mixture container that is
placed at floor level. Make sure the ball valve is in the closed
position.
Use Genuine NISSAN Long Life Anti-freeze coolant or equiv-
alent, mixed 50/50 with distilled water or demineralized water.
Refer to MA-12, "
ANTI-FREEZE COOLANT MIXTURE
RATIO" .
6. Install an air hose to the venturi assembly, the air pressure must
be within specification.
CAUTION:
The compressed air supply must be equipped with an air
dryer.
7. The vacuum gauge will begin to rise and there will be an audible hissing noise. During this process open
the ball valve on the refill hose slightly. Coolant will be visible rising in the refill hose. Once the refill hose is
full of coolant, close the ball valve. This will purge any air trapped in the refill hose.
8. Continue to draw the vacuum until the gauge reaches 28 inches
of vacuum. The gauge may not reach 28 inches in high altitude
locations, refer to the vacuum specifications based on the alti-
tude above sea level.
9. When the vacuum gauge has reached the specified amount, disconnect the air hose and wait 20 seconds
to see if the system loses any vacuum. If the vacuum level drops, perform any necessary repairs to the
system and repeat steps 6 - 8 to bring the vacuum to the specified amount. Recheck for any leaks.
10. Place the coolant container (with the refill hose inserted) at the same level as the top of the radiator. Then
open the ball valve on the refill hose so the coolant will be drawn up to fill the cooling system. The cooling
system is full when the vacuum gauge reads zero.
CAUTION:
Do not allow the coolant container to get too low when filling, to avoid air from being drawn into
the cooling system.
11. Remove the Tool from the radiator neck opening and install the radiator cap.
12. Remove the non-vented reservoir cap.
13. Fill the cooling system reservoir tank to the specified level. Run the engine to warm up the cooling system
and top up the system as necessary before installing the vented reservoir cap.
FLUSHING COOLING SYSTEM
1. Drain the water from the engine cooling system. Refer to MA-13, "DRAINING ENGINE COOLANT" .
2. Fill the radiator and the reservoir tank (to the “MAX” line), with water. Reinstall the radiator cap and leave
the vented reservoir cap off.Tool number : KV991J0070 (J-45695)
Cooling system capacity
(with reservoir tank): Refer to MA-11, "
Flu-
ids and Lubricants" .
Compressed air
supply pressure: 5.7 - 8.5 kPa (5.6 - 8.4 kg/cm
2 ,
80 - 120 psi)
LLIA0058E
Altitude above sea level Vacuum gauge reading
0 - 100 m (328 ft) : 28 inches of vacuum
300 m (984 ft) : 27 inches of vacuum
500 m (1,641 ft) : 26 inches of vacuum
1,000 m (3,281 ft) : 24 - 25 inches of vacuum
LLIA0057E

Load next 8 pages

Page: < prev 1-10 ... 2609-2616 2617-2624 2625-2632 2633-2640 2641-2648 2649-2656 2657-2664 2665-2672 2673-2680 ... 3424 next >

buttons ignition steering windshield wipers spare wheel transmission oil
