Page 2345 of 3419

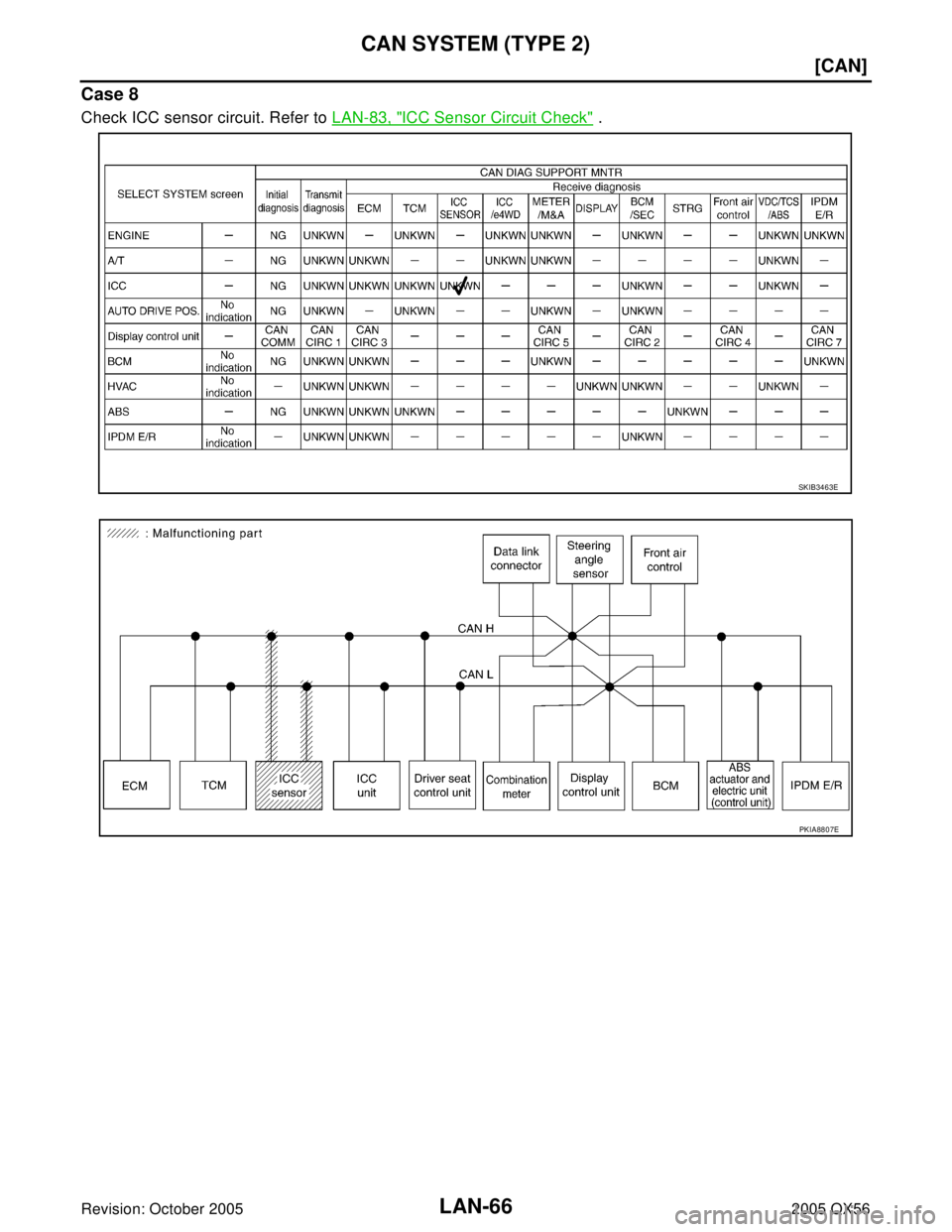

INFINITI QX4 2005 Factory Service Manual LAN-66 [CAN] CAN SYSTEM (TYPE 2) Revision: October 20052005 QX56 Case 8 Check ICC sensor circuit. Refer to LAN-83, "ICC Sensor Circuit Check" . SKIB3463E PKIA8807E

Page 2346 of 3419

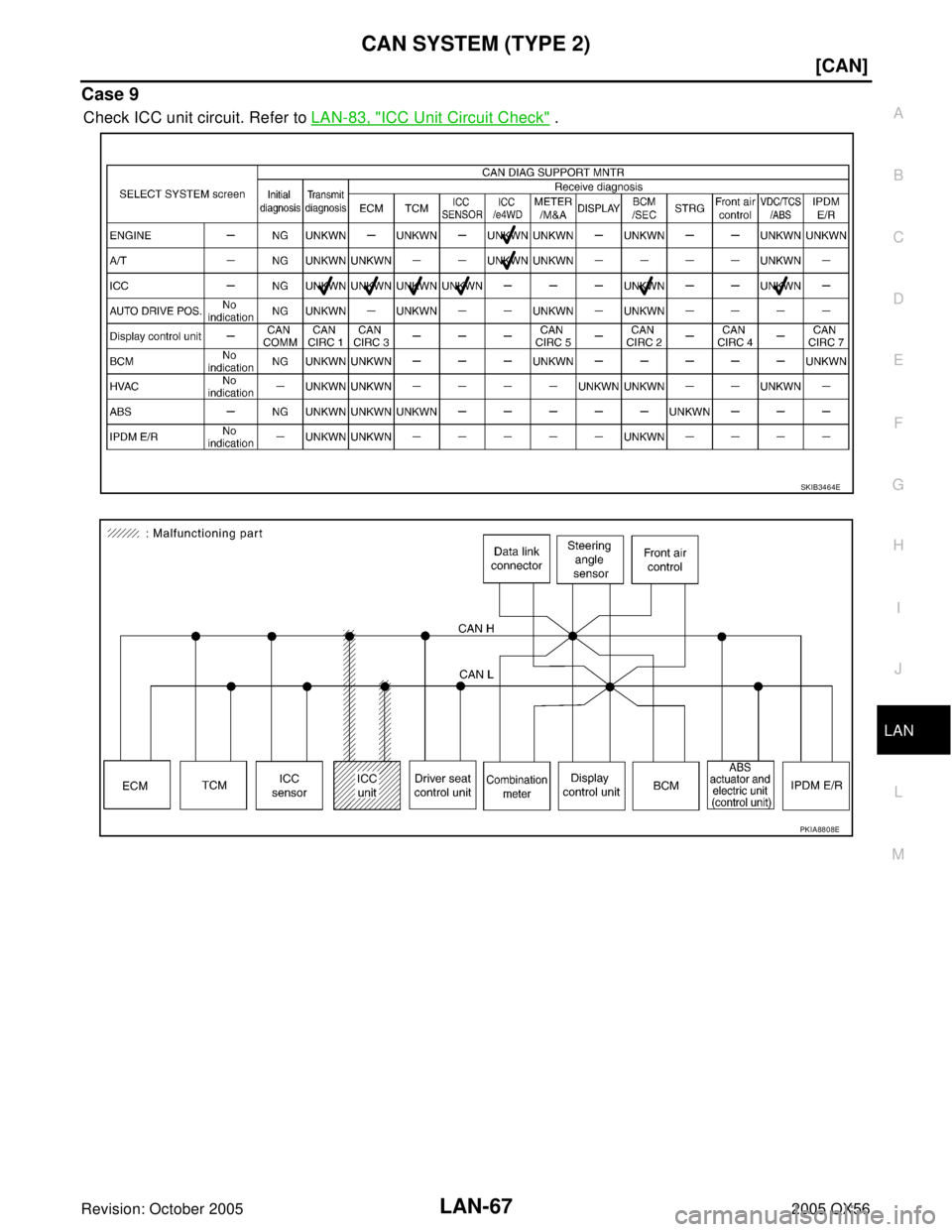

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-67 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 9 Check ICC unit circuit. Refer to LAN-83, "ICC Unit Circuit Check" . SKIB3464E PKIA8808E

Page 2347 of 3419

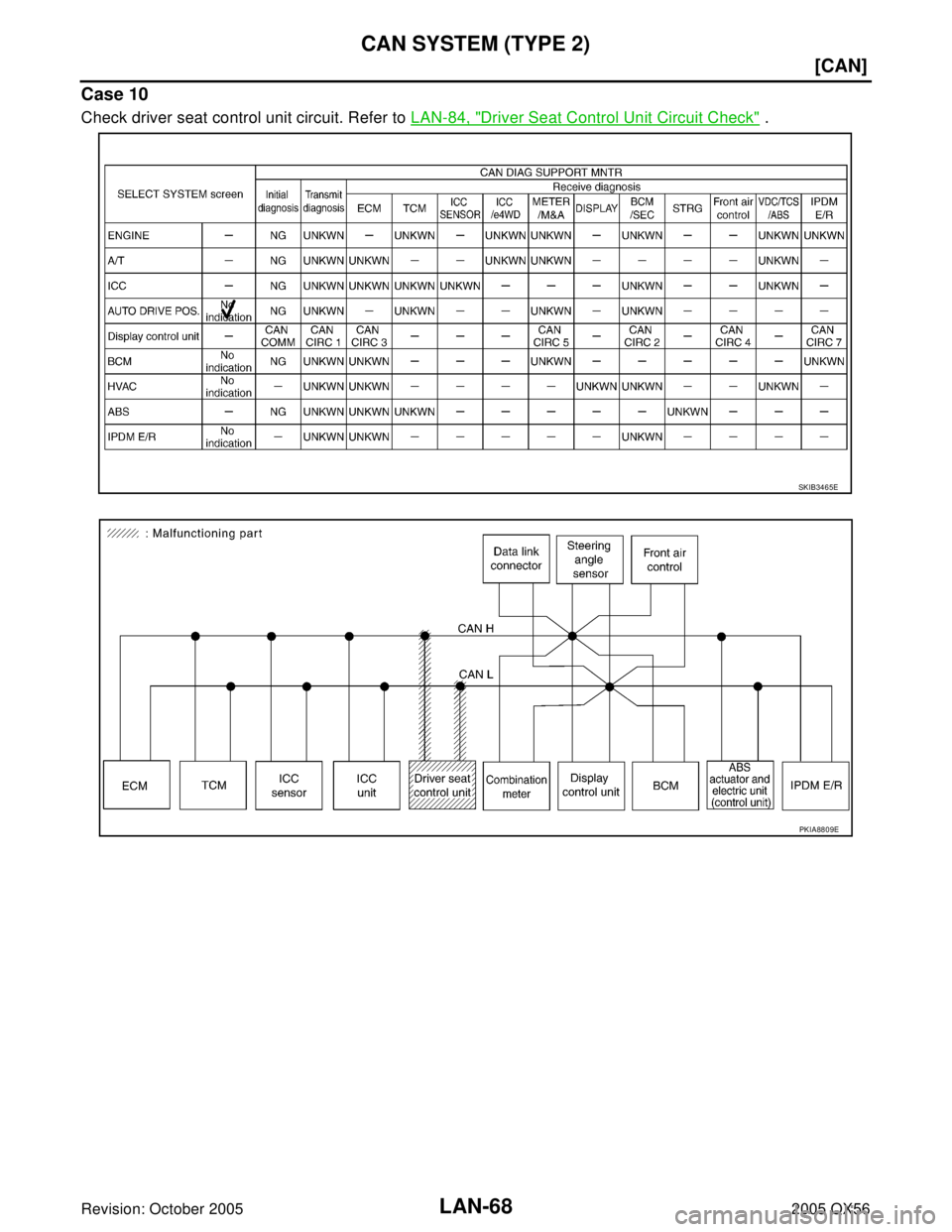

INFINITI QX4 2005 Factory Service Manual LAN-68 [CAN] CAN SYSTEM (TYPE 2) Revision: October 20052005 QX56 Case 10 Check driver seat control unit circuit. Refer to LAN-84, "Driver Seat Control Unit Circuit Check" . SKIB3465E PKIA8809E

Page 2348 of 3419

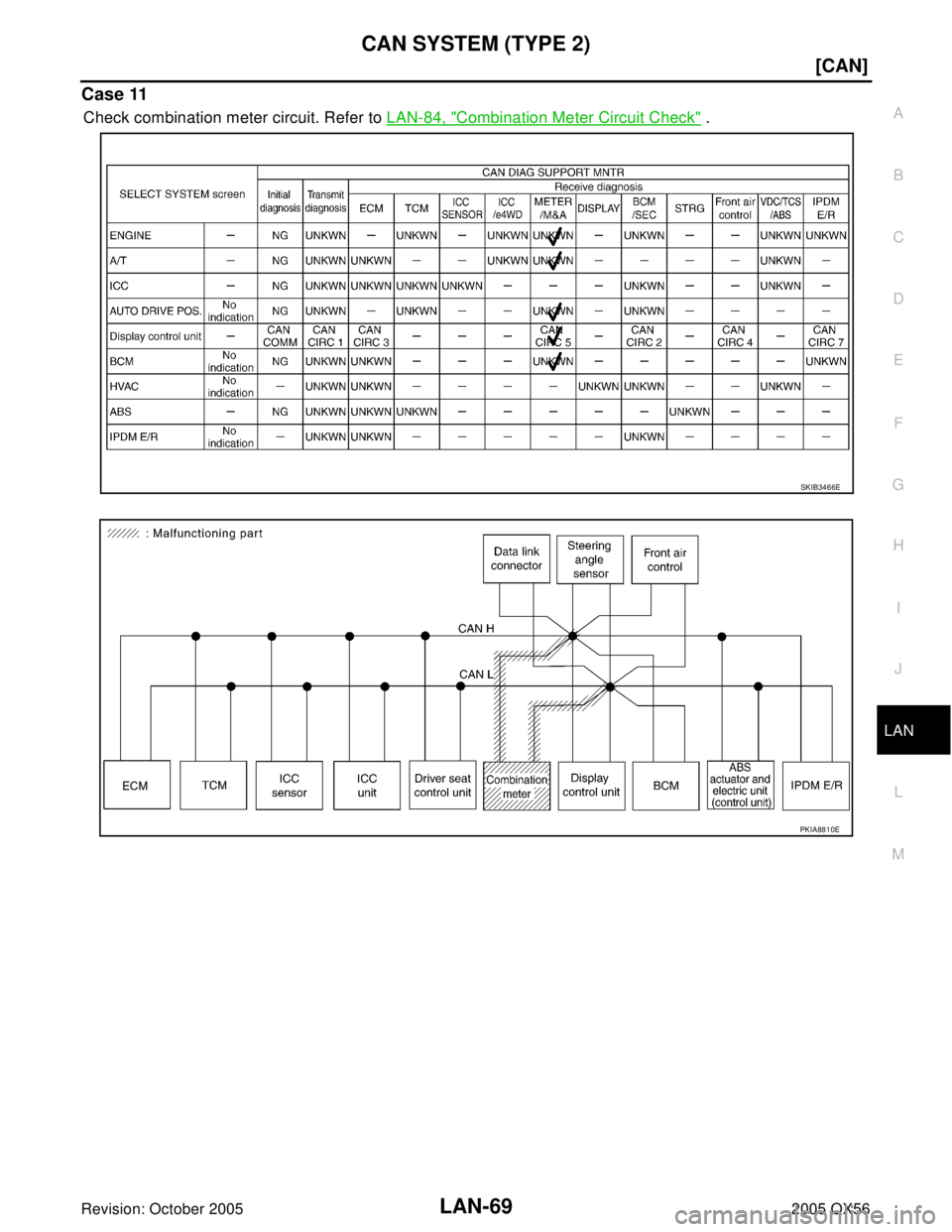

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-69 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 11 Check combination meter circuit. Refer to LAN-84, "Combination Meter Circuit Check" . SKIB3466E PKIA

Page 2349 of 3419

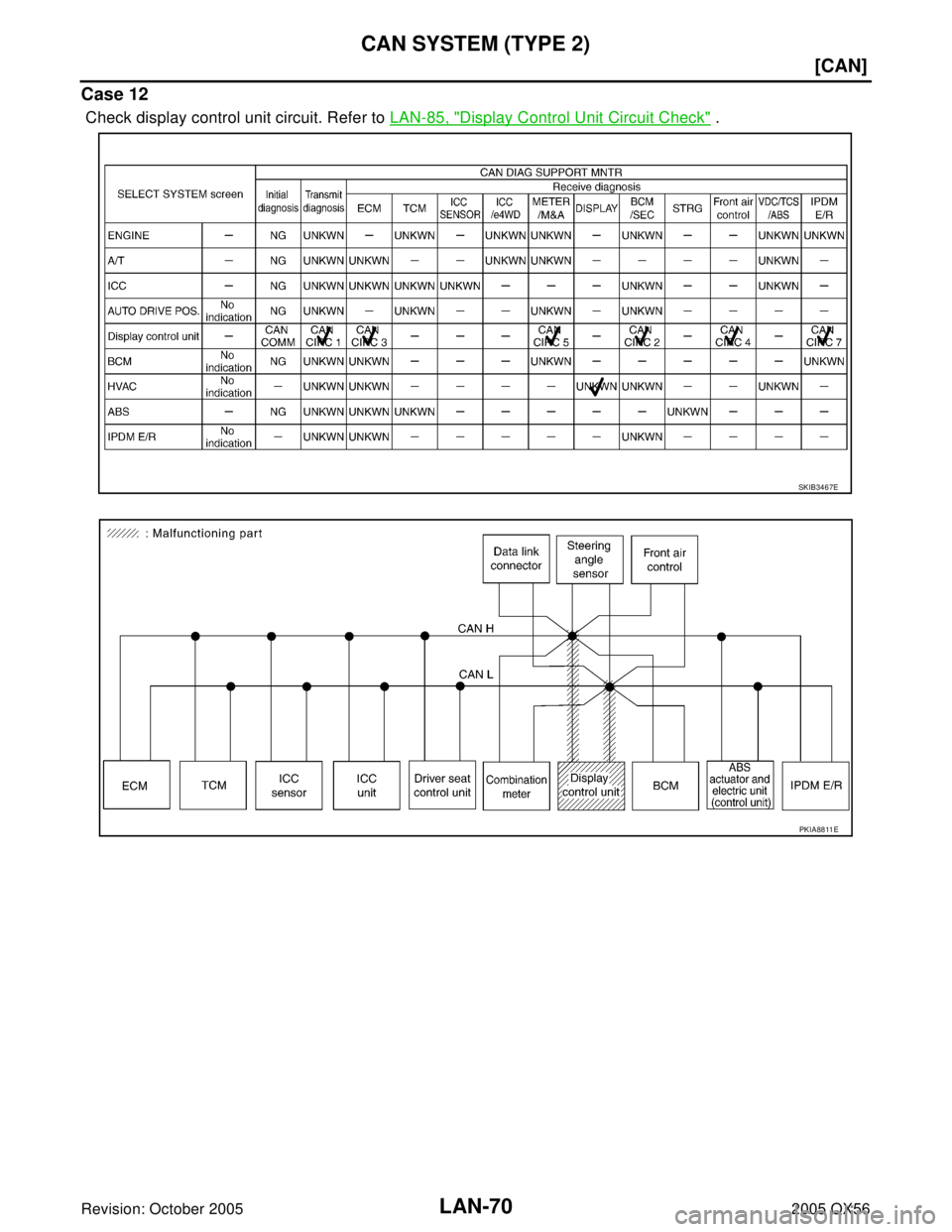

INFINITI QX4 2005 Factory Service Manual LAN-70 [CAN] CAN SYSTEM (TYPE 2) Revision: October 20052005 QX56 Case 12 Check display control unit circuit. Refer to LAN-85, "Display Control Unit Circuit Check" . SKIB3467E PKIA88 11 E

Page 2350 of 3419

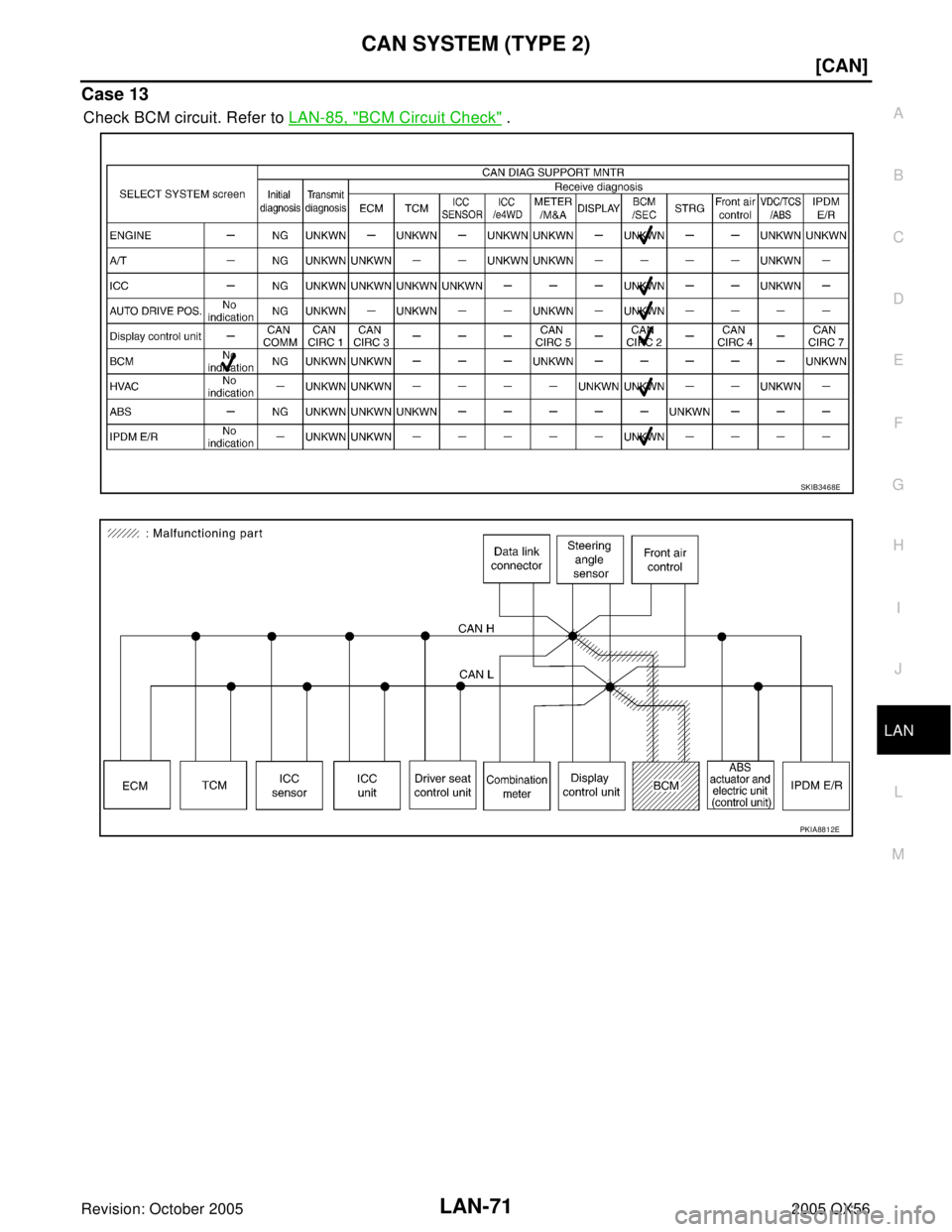

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-71 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 13 Check BCM circuit. Refer to LAN-85, "BCM Circuit Check" . SKIB3468E PKIA8812E

Page 2351 of 3419

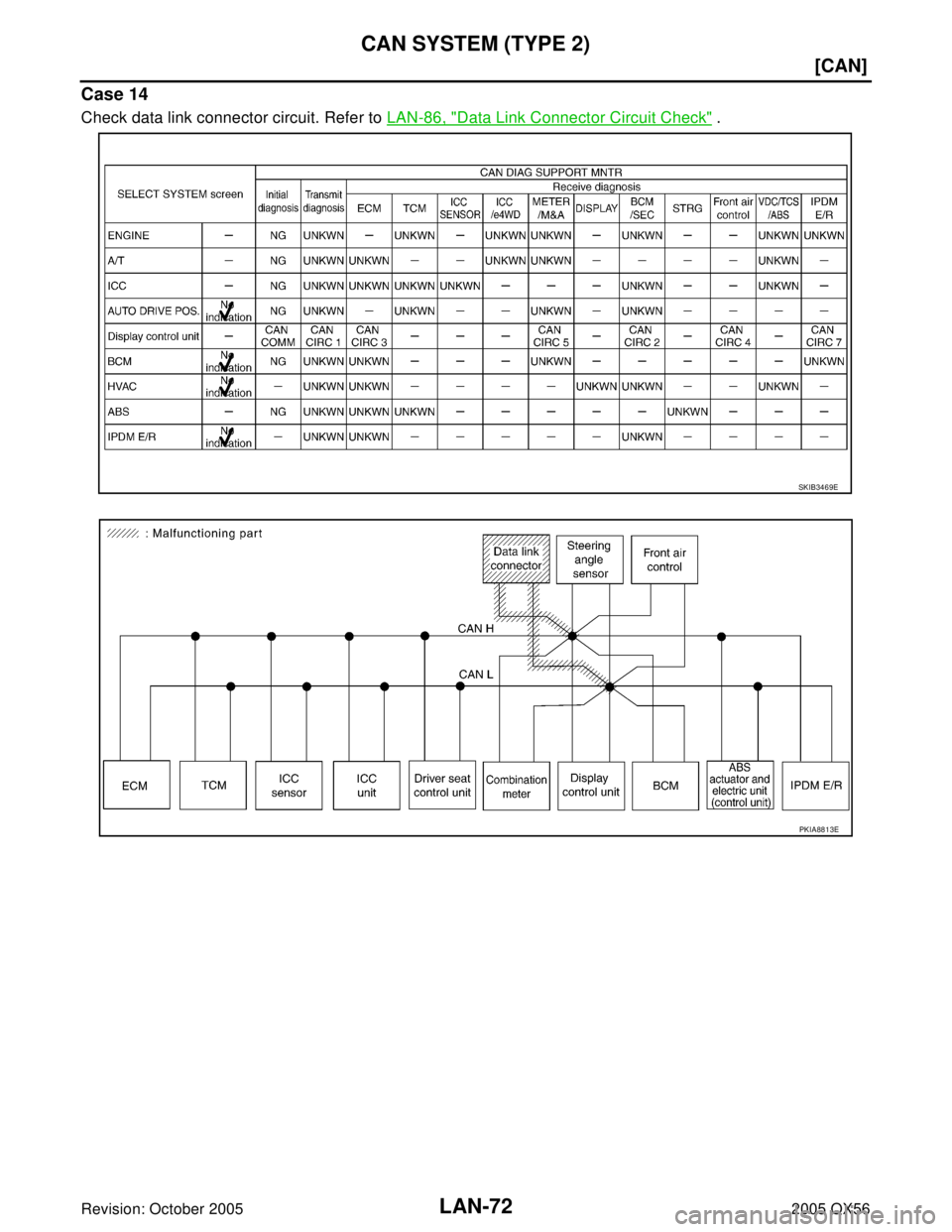

INFINITI QX4 2005 Factory Service Manual LAN-72 [CAN] CAN SYSTEM (TYPE 2) Revision: October 20052005 QX56 Case 14 Check data link connector circuit. Refer to LAN-86, "Data Link Connector Circuit Check" . SKIB3469E PKIA8813E

Page 2352 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-73 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 15 Check steering angle sensor circuit. Refer to LAN-86, "Steering Angle Sensor Circuit Check" . SKIB34
