Page 561 of 3419
ATC-166
AIR MIX DOOR MOTOR
Revision: October 20052005 QX56
AIR MIX DOOR MOTOR PFP:27732
ComponentsEJS003YL
Air Mix Door Motors - Front Heater and Cooling Unit Assembly
Removal and InstallationEJS003YM
FRONT AIR MIX DOOR MOTOR (DRIVER)
Removal
1. Remove the center console lower cover LH. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Disconnect the air mix door motor electrical connector.
3. Remove the three screws and remove the air mix door motor.
Installation
Installation is in the reverse order of removal.
LJIA0139E
1. Front heater and cooling unit assembly 2. Intake door motor 3. Air mix door motor (passenger)
4. Variable blower control 5. Air mix door motor (driver) 6. Mode door motor
7. Defroster door motor
Page 562 of 3419
AIR MIX DOOR MOTOR
ATC-167
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: October 20052005 QX56
FRONT AIR MIX DOOR MOTOR (PASSENGER)
Removal
1. Remove the front heater and cooling unit assembly. Refer to ATC-157, "FRONT HEATER AND COOLING
UNIT ASSEMBLY" .
2. Remove the steering member from the front heater and cooling unit assembly.
3. Disconnect the air mix door motor electrical connector.
4. Remove the three screws and remove the air mix door motor.
Installation
Installation is in the reverse order of removal.
REAR AIR MIX DOOR MOTOR
Removal
1. Remove the RH rear interior trim panel. Refer to EI-35, "BODY SIDE TRIM" .
2. Disconnect the rear air mix door motor electrical connector.
3. Remove the three screws and remove the rear air mix door
motor.
Installation
Installation is in the reverse order of removal.
LJIA0021E
Page 563 of 3419
ATC-168
VARIABLE BLOWER CONTROL
Revision: October 20052005 QX56
VARIABLE BLOWER CONTROLPFP:27200
Removal and InstallationEJS003YN
Variable Blower Control - Front Heater and Cooling Unit Assembly
REMOVAL
1. Remove the glove box assembly. Refer to IP-14, "Instrument Lower Cover RH and Glove Box" .
2. Disconnect the variable blower control electrical connector.
3. Remove the two screws and remove the variable blower control.
INSTALLATION
Installation is in the reverse order of removal.
LJIA0139E
1. Front heater and cooling unit assembly 2. Intake door motor 3. Air mix door motor (passenger)
4. Variable blower control 5. Air mix door motor (driver) 6. Mode door motor
7. Defroster door motor
Page 564 of 3419
REAR BLOWER MOTOR RESISTOR
ATC-169
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: October 20052005 QX56
REAR BLOWER MOTOR RESISTORPFP:27150
Removal and InstallationEJS003YO
Rear Blower Motor Resistor
REMOVAL
1. Remove the rear RH interior trim panel. Refer to EI-35, "BODY SIDE TRIM" .
2. Disconnect the rear blower motor resistor electrical connector.
3. Remove the two screws and remove the rear blower motor resistor.
INSTALLATION
Installation is in the reverse order of removal.
LJIA0055E
1. Rear blower motor 2. Rear blower motor case 3. Rear blower motor resistor
Page 565 of 3419
ATC-170
DUCTS AND GRILLES
Revision: October 20052005 QX56
DUCTS AND GRILLESPFP:27860
ComponentsEJS003YP
Ducts - Front Heater and Cooling Unit Assembly
WJIA0956E
Page 566 of 3419
DUCTS AND GRILLES
ATC-171
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: October 20052005 QX56
Ducts - Rear Heater and Cooling Unit Assembly
1. Defroster nozzle 2. LH side demister duct 3. LH ventilator duct
4. RH side demister duct 5. RH ventilator duct 6. Center ventilator duct
7. Front heater and cooling unit assembly 8. Floor duct 9. Clips
10. Heat duct
LJIA0142E
1. Rear floor duct 2. Rear heater and cooling unit assembly 3. Rear lower overhead duct
4. Rear upper overhead duct
Page 567 of 3419
ATC-172
DUCTS AND GRILLES
Revision: October 20052005 QX56

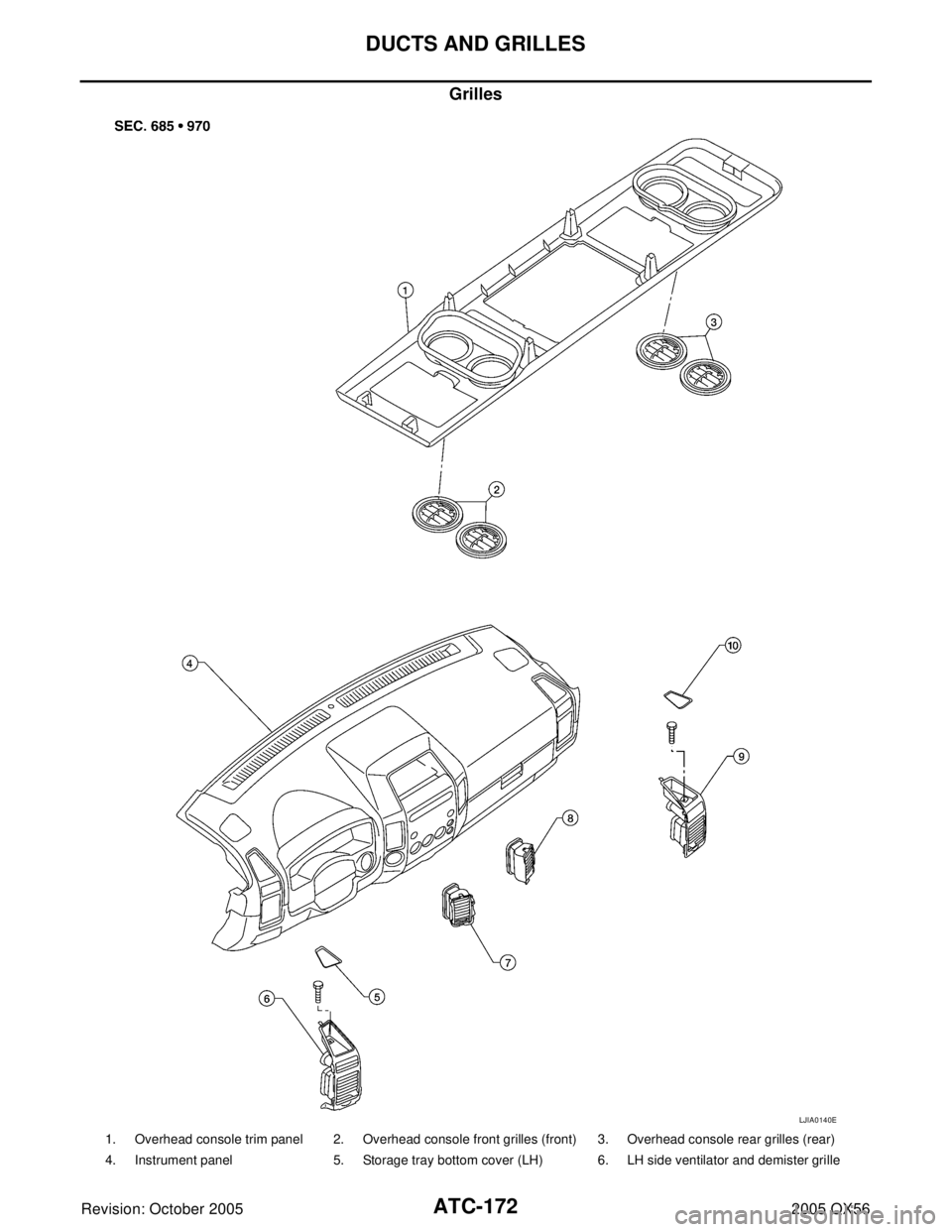

Grilles
LJIA0140E
1. Overhead console trim panel 2. Overhead console front grilles (front) 3. Overhead console rear grilles (rear)
4. Instrument panel 5. Storage tray bottom cover (LH) 6. LH side ventilator and demister grille
Page 568 of 3419

DUCTS AND GRILLES
ATC-173
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: October 20052005 QX56
Removal and InstallationEJS003YQ
CENTER CONSOLE HEAT DUCT AND REAR FINISHER ASSEMBLY GRILLE
Removal
The center console must be removed and disassembled to remove the heat duct and rear finisher assembly
grille. Refer to IP-15, "
Center Console" .
Installation
Installation is in the reverse order of removal.
DEFROSTER NOZZLE
Removal
1. Remove the instrument panel trim. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove the defroster nozzle.
Installation
Installation is in the reverse order of removal.
RH AND LH SIDE DEMISTER DUCT
Removal
1. Remove the instrument panel trim. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove the RH or LH side demister duct.
Installation
Installation is in the reverse order of removal.
RH AND LH VENTILATOR DUCT
Removal
1. Remove the instrument panel trim. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove the RH or LH ventilator duct.
Installation
Installation is in the reverse order of removal.
CENTER VENTILATOR DUCT
Removal
1. Remove the instrument panel trim. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove the defroster nozzle.
3. Remove the RH and LH side demister ducts.
4. Remove the RH and LH ventilator ducts.
5. Remove the center ventilator duct.
Installation
Installation is in the reverse order of removal.
FLOOR DUCT
Removal
1. Remove the floor carpet. Refer to EI-37, "FLOOR TRIM" .
2. Remove the two clips and remove the floor duct.
Installation
Installation is in the reverse order of removal.
REAR OVERHEAD DUCTS
Removal
1. Remove the rear RH interior trim panel. Refer to EI-35, "BODY SIDE TRIM" .
2. Remove the headliner. Refer to EI-38, "
HEADLINING" .
7. LH ventilator grille 8. RH ventilator grille 9. RH side ventilator and demister grille
10. Storage tray bottom cover (RH)
