ROCKER COVER
2005 QX56
INSTALLATION
1. Apply liquid gasket to the joint part of the cylinder head and
camshaft bracket following the steps below.
NOTE:
Illustration shows an example of left bank side (zoomed in
shows No.1 camshaft bracket).
a. Refer to illustration “a” to apply liquid gasket to the joint part of
No.1 camshaft bracket and cylinder head.
b. Refer to illustration “b” to apply liquid gasket 90° to illustration
“a”.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-45, "
Recommended Chemical Products and Sealants" .
2. Install the rocker cover.
Make sure the new rocker cover gasket is installed in the groove of the rocker cover.
Tighten the bolts in two steps in the numerical order shown.
CAUTION:
Do not hold the rocker cover by the oil filler neck (right
bank).
3. Install the PCV hose.
NOTE:
Remove foreign materials from inside the hose using com-
pressed air.
The inserted length is within 25 - 30 mm (0.98 - 1.18 in) [Target: 25 mm (0.98 in)].
4. Installation of the remaining components is in the reverse order of removal.
KBIA2510E
1st step : 2.0 N·m (0.2 kg-m, 18 in-lb)
2nd step : 8.3 N·m (0.85 kg-m, 73 in-lb)
KBIA2509E
Page 1938 of 3419
TIMING CHAIN
EM-35
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
TIMING CHAINPFP:13028
Removal and InstallationEBS00LM8
KBIA25 11 E
Page 1939 of 3419

EM-36Revision: October 2005
TIMING CHAIN
2005 QX56
NOTE:
To remove timing chain and associated parts, start with those on the left bank. The procedure for remov-
ing parts on the right bank is omitted because it is the same as that for removal on the left bank.
To install timing chain and associated parts, start with those on the right bank. The procedure for installing
parts on the left bank is omitted because it is the same as that for installation on the right bank.
REMOVAL
1. Remove the engine assembly from the vehicle. Refer to EM-69, "REMOVAL" .
2. Remove the following components and related parts:
Drive belt auto tensioner and idler pulley. Refer to EM-12, "DRIVE BELTS" .
Thermostat housing and water hose. Refer to CO-19, "Removal of Thermostat Housing, Water Outlet
and Heater Pipe" .
Power steering pump bracket. Refer to PS-26, "REMOVAL" .
Oil pan (lower), (upper) and oil strainer. Refer to EM-22, "OIL PAN AND OIL STRAINER" .
Ignition coil. Refer to EM-26, "IGNITION COIL" .
Rocker cover. Refer to EM-33, "ROCKER COVER" .
3. Remove the chain case cover (right bank) and (left bank).
a. Loosen and remove the bolts in the reverse of order shown.
b. Cut the liquid gasket and remove the covers using Tool.
CAUTION:
Do not damage mating surfaces.
4. Obtain compression TDC of No. 1 cylinder as follows:

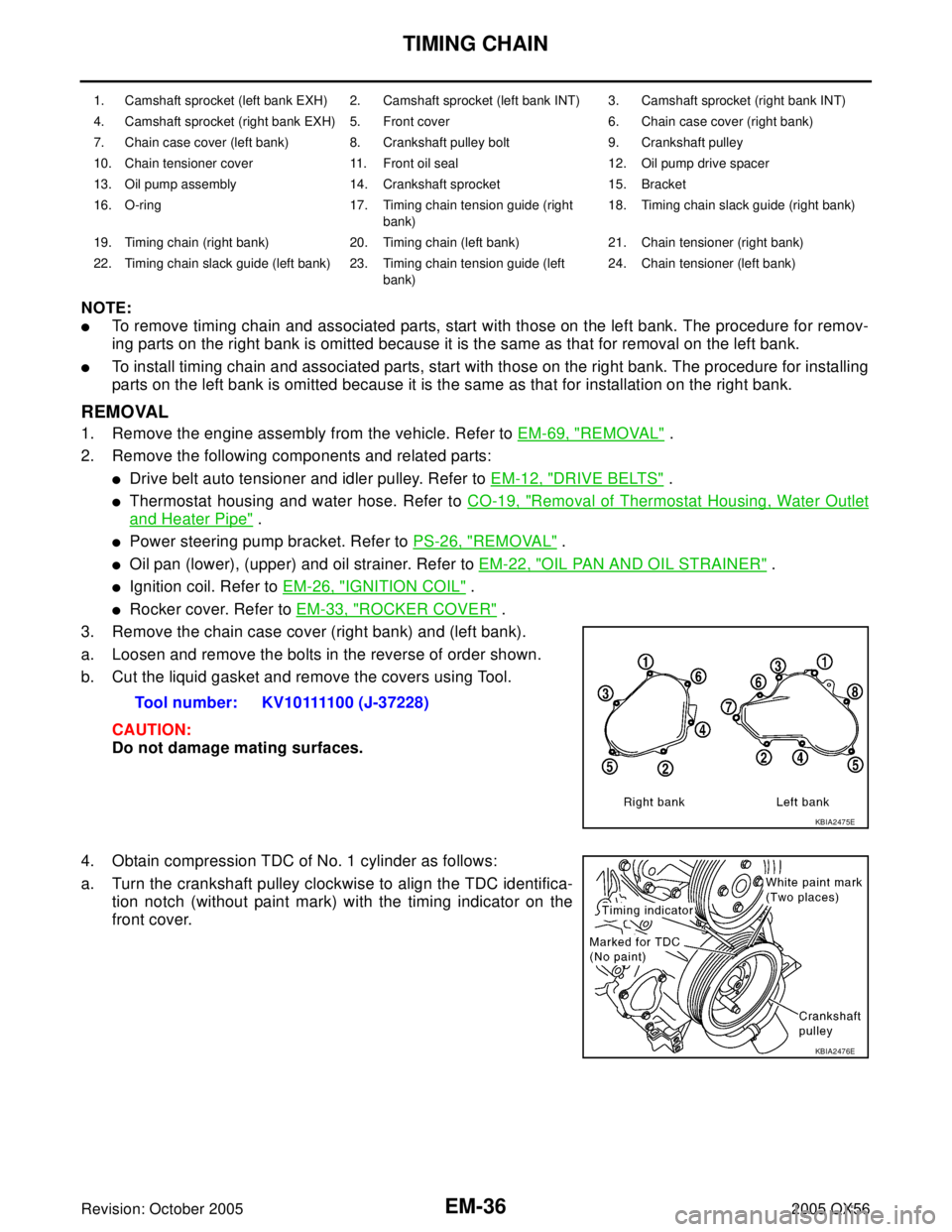

a. Turn the crankshaft pulley clockwise to align the TDC identifica-
tion notch (without paint mark) with the timing indicator on the
front cover.

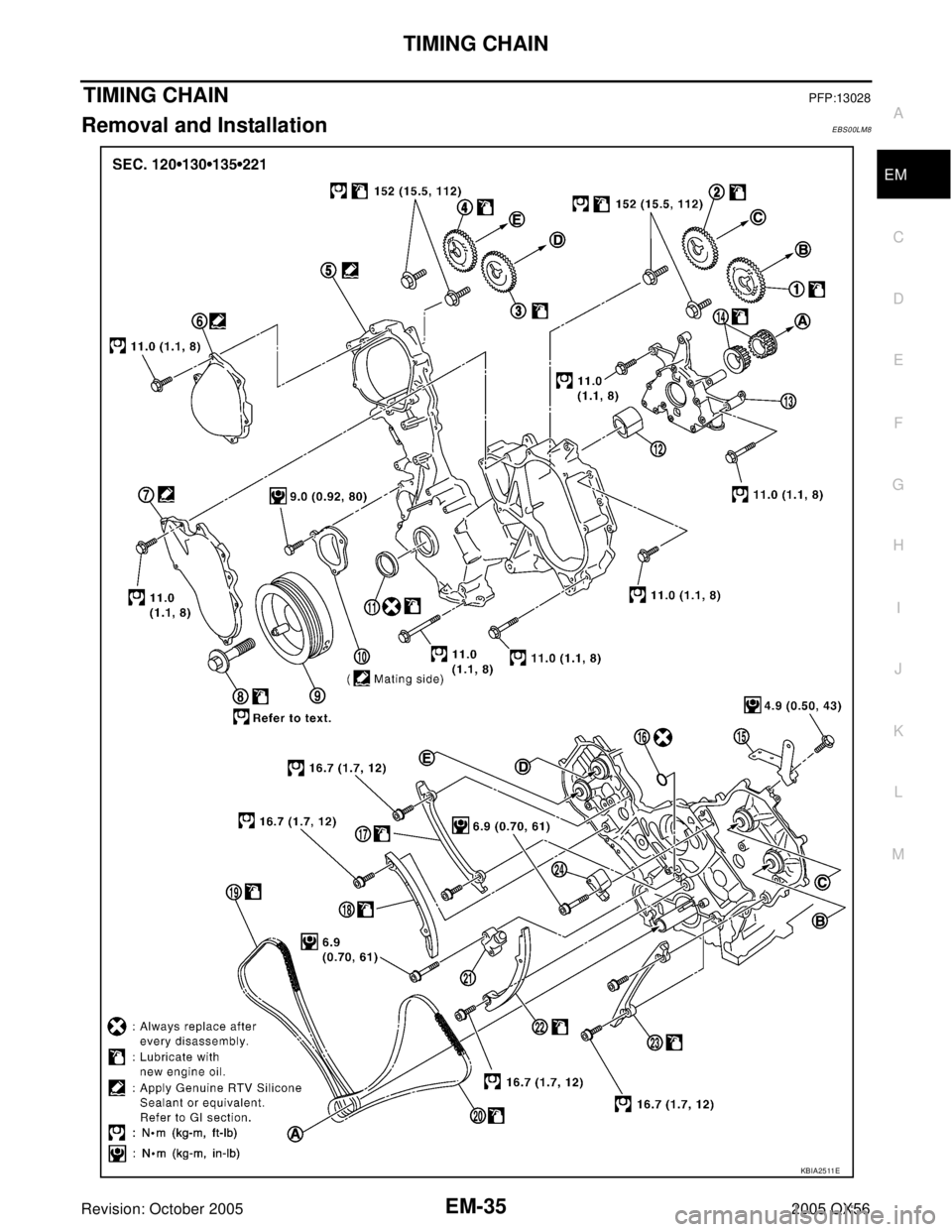

1. Camshaft sprocket (left bank EXH) 2. Camshaft sprocket (left bank INT) 3. Camshaft sprocket (right bank INT)
