PREPARATIONPFP:00002
Commercial Service ToolEKS00BI6
Tool nameDescription
Power toolLoosening bolts and nuts
PBIC0191E
Page 595 of 3419
AV-6
AUDIO
Revision: October 20052005 QX56
AUDIOP F P : 2 8 111
Component Parts and Harness Connector LocationEKS00BI7
WKIA3548E
Page 596 of 3419

AUDIO
AV-7
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: October 20052005 QX56
System DescriptionEKS00BI8
Refer to Owner's Manual for audio system operating instructions.
Power is supplied at all times
through 15A fuse [No. 17, located in the fuse block (J/B)]
to subwoofer terminal 6
through 20A fuse [No. 31, located in the fuse and fusible link box]
to audio unit terminal 6
to BOSE speaker amp. terminal 1
to AV switch terminal 1 and
to display control unit terminal 1.
With the ignition switch in the ACC or ON position, power is supplied
through 10A fuse [No. 4, located in the fuse block (J/B)]
to audio unit terminal 10 and
to AV switch terminal 2 and
to display control unit terminal 10.
With the ignition switch in the ON or START position, power is supplied
through 10A fuse [No. 12, located in the fuse block (J/B)]
to display control unit terminal 12.
Ground is supplied through the case of the audio unit.
Ground is also supplied
to subwoofer terminal 5
through body grounds B7 and B19 and
to BOSE speaker amp. terminal 17
to AV switch terminal 5 and
to display unit terminal 1 and
to display control unit terminal 3
through body grounds M57, M61 and M79.
Then audio signals are supplied
through audio unit terminals 1, 2, 3, 4, 13, 14, 15 and 16
to BOSE speaker amp. terminals 23, 24, 25, 26, 27, 28, 29 and 30.
Audio signals are amplified by the BOSE speaker amp.
The amplified audio signals are supplied
through BOSE speaker amp. terminals 2, 3, 9,10,11,12, 13, 14, 15, 16, 18 and 19
to terminals + and - of front door speaker LH and RH and
to terminals + and - of front tweeter LH and RH and
to terminals + and - of center speaker and
to terminals + and - of rear door speaker LH and RH and
to terminals + and - of rear door tweeter LH and RH and
to terminals 1 and 2 of subwoofer.
When one of steering wheel audio control switches is pushed, the resistance in steering switch circuit changes
depending on which button is pushed.
REAR AUDIO REMOTE CONTROL UNIT
Power is supplied
from audio unit terminal 32
to rear audio remote control unit terminal 13.
Ground is supplied
to rear audio remote control unit terminal 15
through body grounds B117 and B132.
Audio signals are supplied
Page 597 of 3419

AV-8
AUDIO
Revision: October 20052005 QX56
through audio unit terminals 26, 27, 28 and 29
to terminals 1, 2, 3, and 4 of rear audio remote control unit.
SATELLITE RADIO TUNER (PRE-WIRING)
The satellite radio tuner pre-wiring allows connection of a satellite radio tuner.
Power is supplied at all times
through 20A fuse [No. 31, located in the fuse and fusible link box]
to satellite radio tuner pre-wiring terminal 32.
With the ignition switch in the ACC or ON position, power is supplied
through 10A fuse [No. 4, located in the fuse block (J/B)]
to satellite radio tuner pre-wiring terminal 36.
Ground is supplied through the case of the satellite radio tuner.
Then audio signals are supplied
through satellite radio tuner pre-wiring terminals 21, 22, 23 and 24
to audio unit terminals 41, 42, 43 and 44.
SPEED SENSITIVE VOLUME SYSTEM
Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control
level can be selected by the customer. Refer to Owner's Manual for operating instructions.
Page 598 of 3419
AUDIO
AV-9
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: October 20052005 QX56

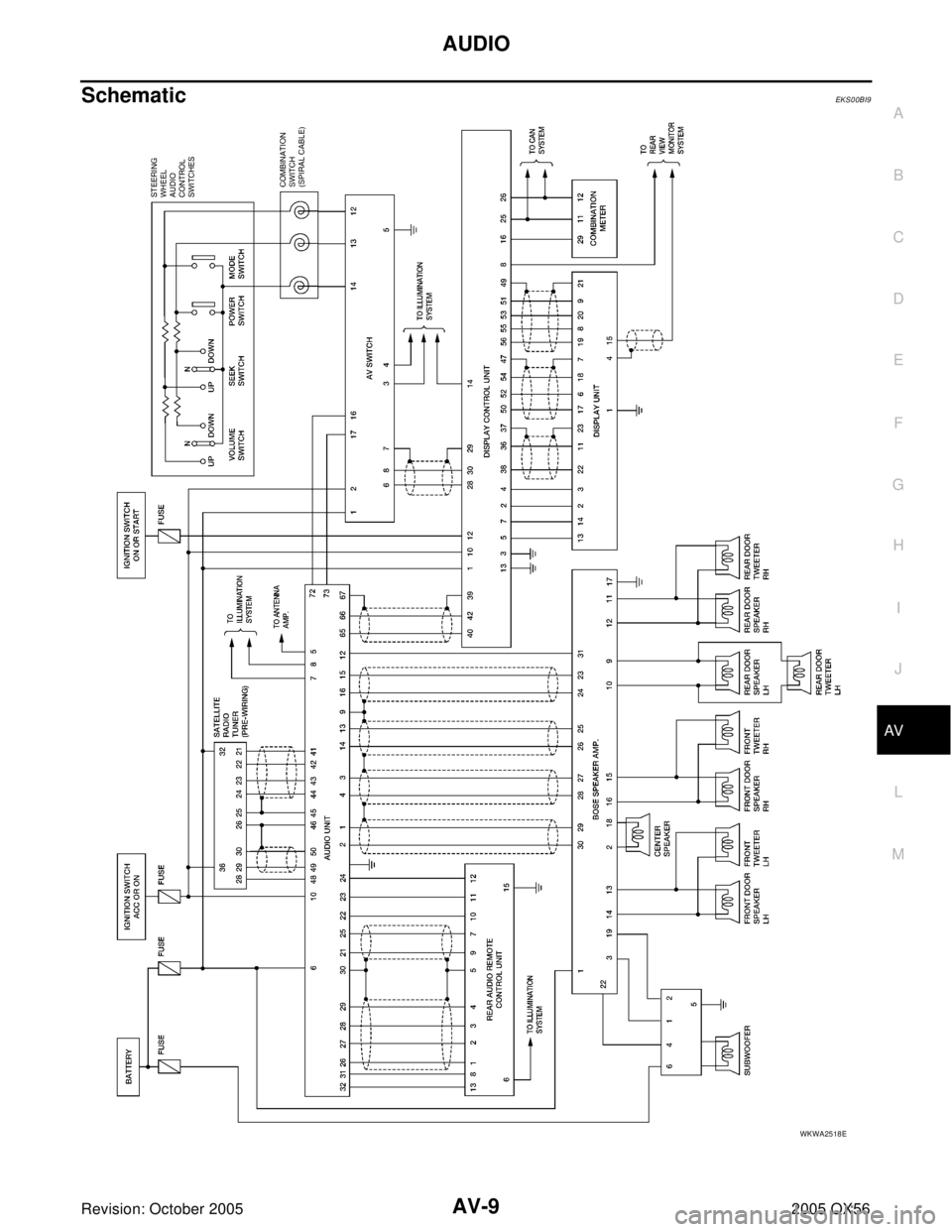

SchematicEKS00BI9
WKWA2518E
Page 599 of 3419
AV-10
AUDIO
Revision: October 20052005 QX56
Wiring Diagram — AUDIO —EKS00BIA
WKWA1235E
Page 600 of 3419
AUDIO
AV-11
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: October 20052005 QX56
WKWA1236E
