Page 3057 of 3419

INFINITI QX4 2005 Factory Service Manual SE-92 HEATED SEAT Revision: October 20052005 QX56 Wiring Diagram — HSEAT —EIS004YR WIWA0587E

Page 3058 of 3419

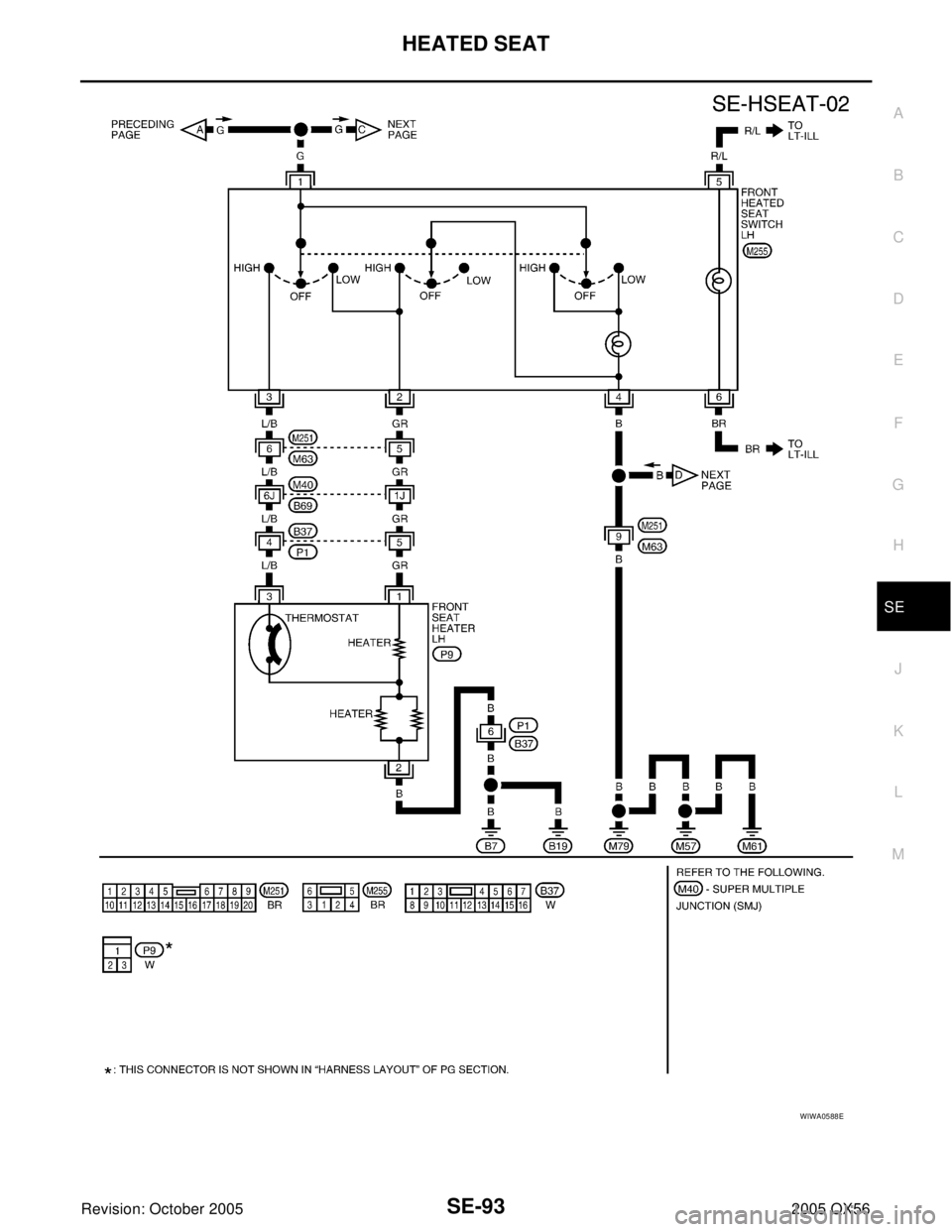

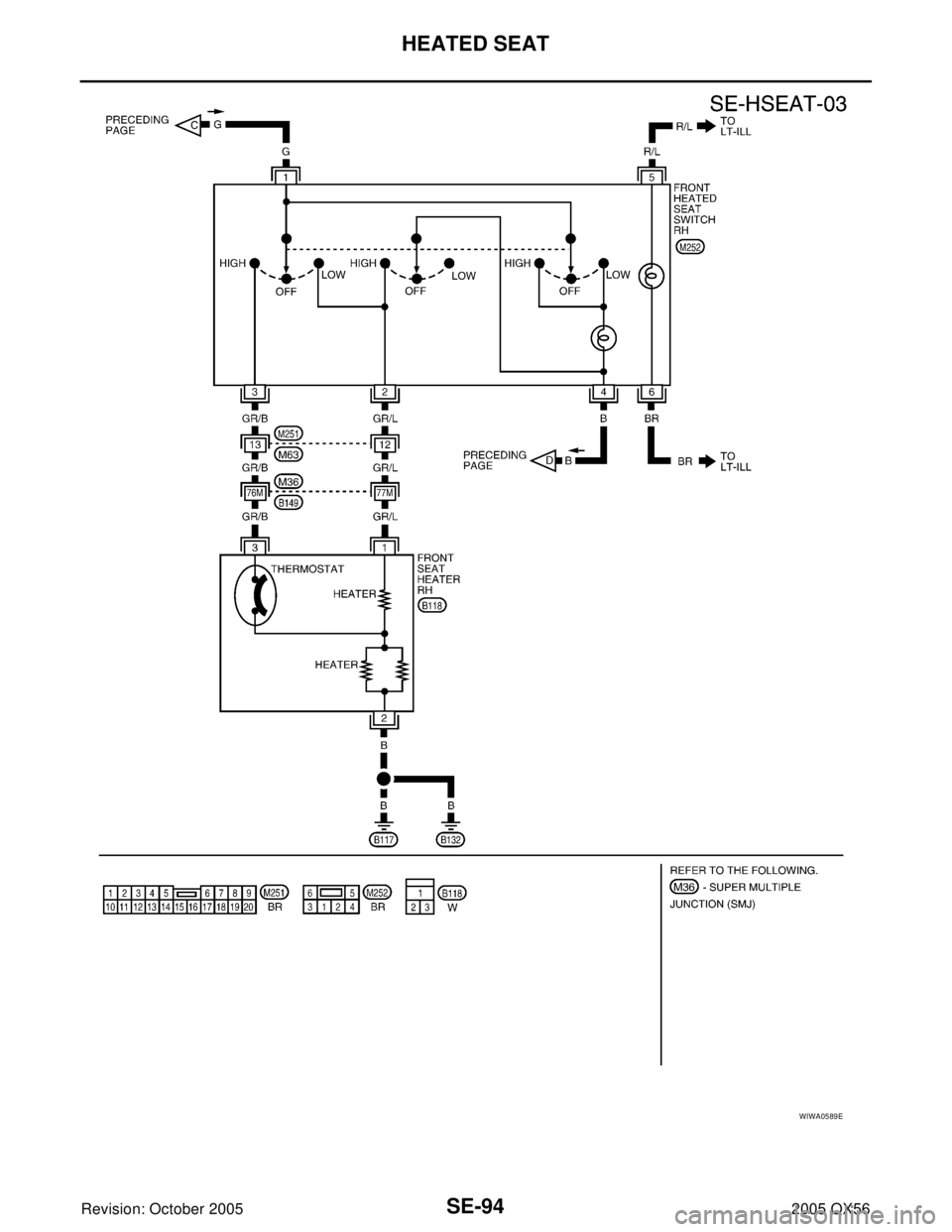

INFINITI QX4 2005 Factory Service Manual HEATED SEAT SE-93 C D E F G H J K L MA B SE Revision: October 20052005 QX56 WIWA0588E

Page 3059 of 3419

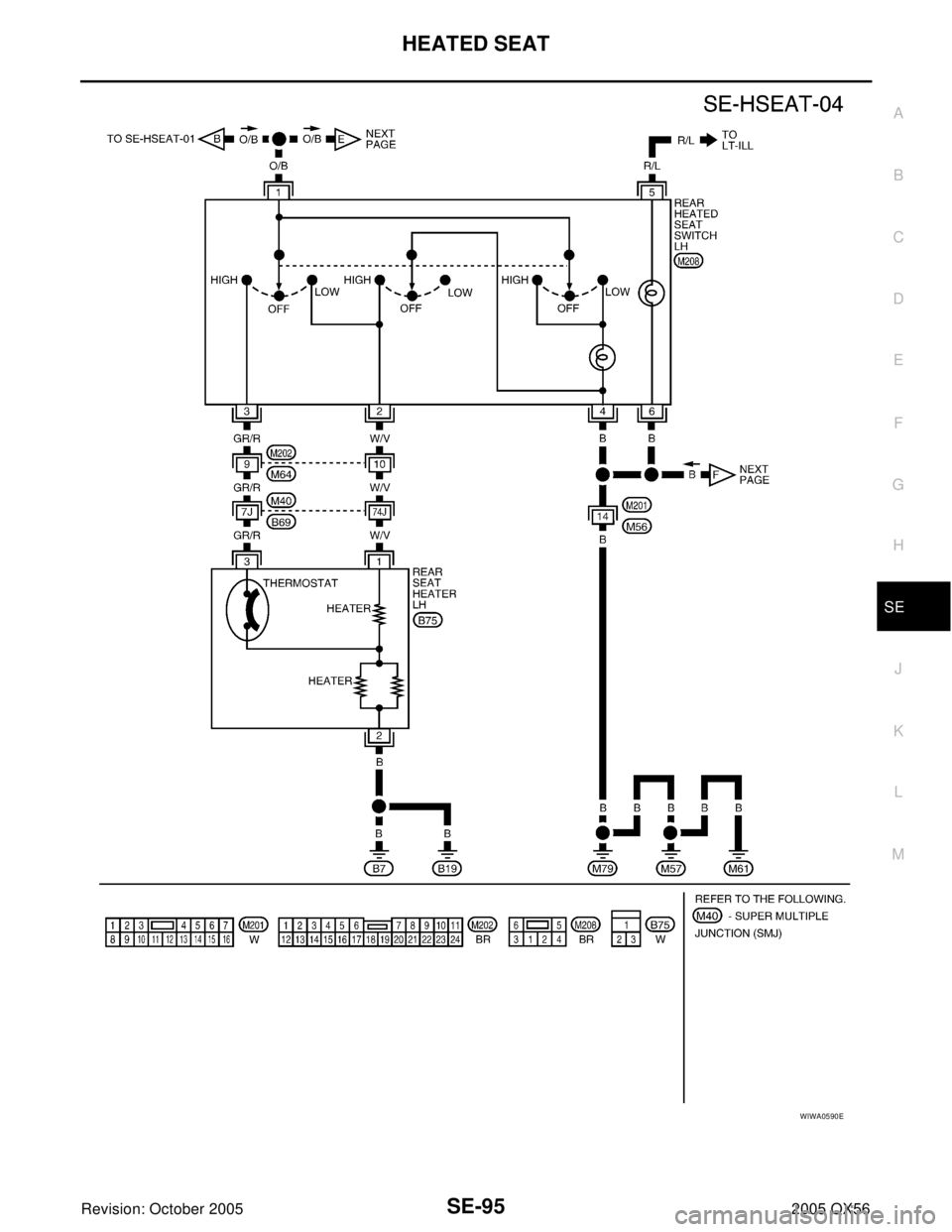

INFINITI QX4 2005 Factory Service Manual SE-94 HEATED SEAT Revision: October 20052005 QX56 WIWA0589E

Page 3060 of 3419

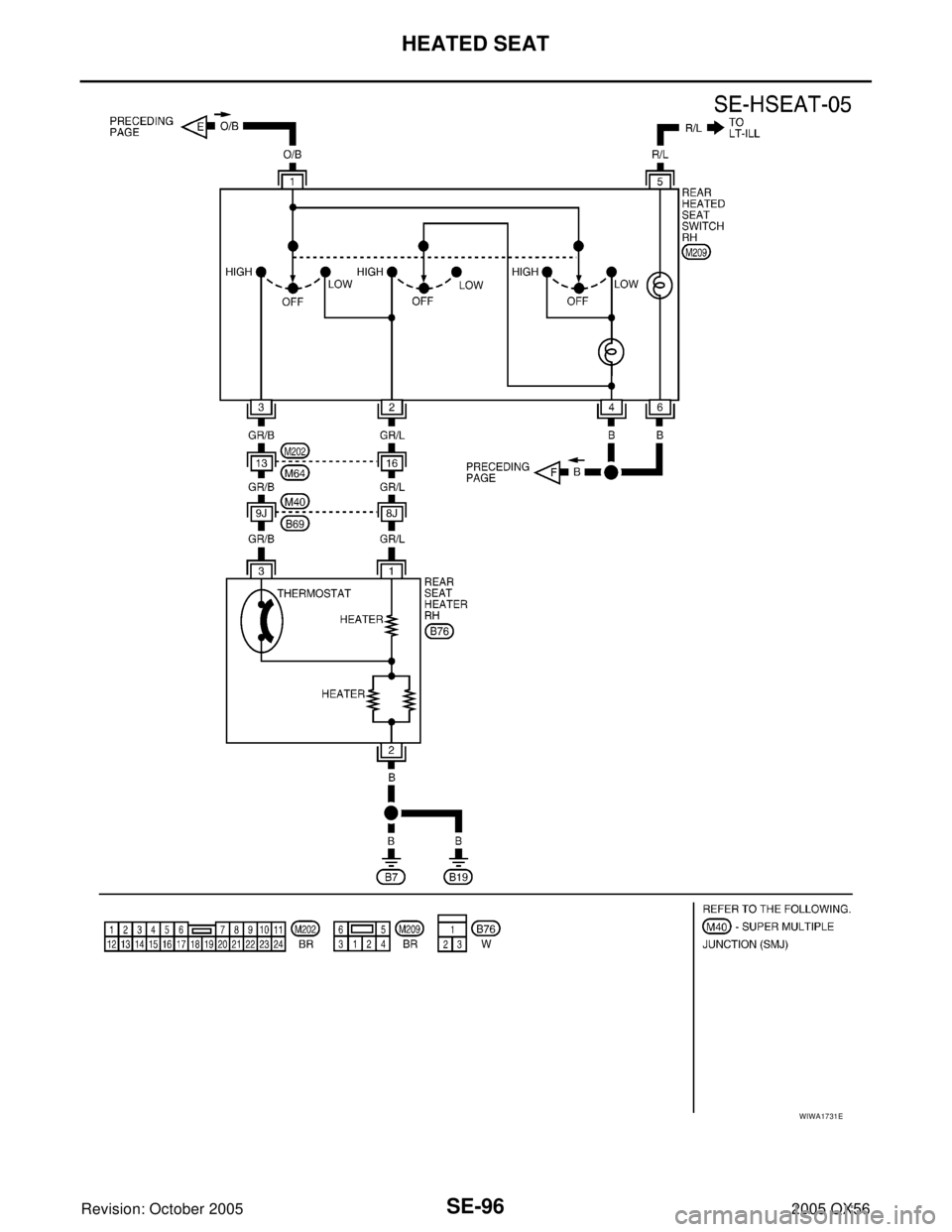

INFINITI QX4 2005 Factory Service Manual HEATED SEAT SE-95 C D E F G H J K L MA B SE Revision: October 20052005 QX56 WIWA0590E

Page 3061 of 3419

INFINITI QX4 2005 Factory Service Manual SE-96 HEATED SEAT Revision: October 20052005 QX56 WIWA1731E

Page 3062 of 3419

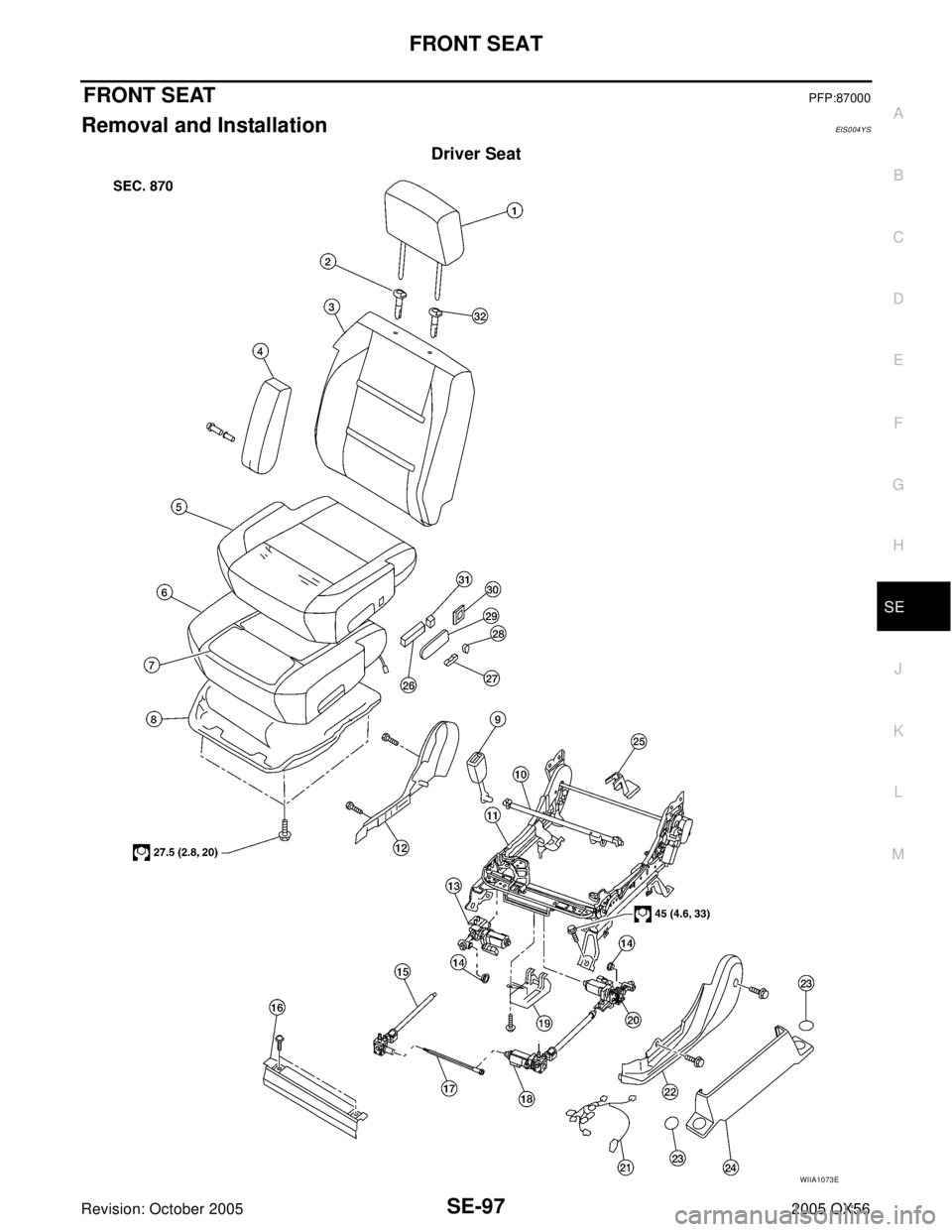

INFINITI QX4 2005 Factory Service Manual FRONT SEAT SE-97 C D E F G H J K L MA B SE Revision: October 20052005 QX56 FRONT SEATPFP:87000 Removal and Installation EIS004YS Driver Seat WIIA1073E

Page 3063 of 3419

INFINITI QX4 2005 Factory Service Manual SE-98 FRONT SEAT Revision: October 20052005 QX56 1. Headrest 2. Headrest holder 3. Seatback assembly 4. Armrest assembly 5. Seat cushion trim cover 6. Seat cushion pad 7. Seat cushion heating element

Page 3064 of 3419

INFINITI QX4 2005 Factory Service Manual FRONT SEAT SE-99 C D E F G H J K L MA B SE Revision: October 20052005 QX56 Passenger Seat WIIA0476E 1. Headrest 2. Headrest holder with multi-position lock 3. Seatback board 4. Armrest assembly 5. L
