Page 2393 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-114 [CAN] CAN SYSTEM (TYPE 3) Revision: October 20052005 QX56 Case 16 Check CAN communication circuit. Refer to LAN-124, "CAN Communication Circuit Check" . Case 17 Check IPDM E/R ignition relay c

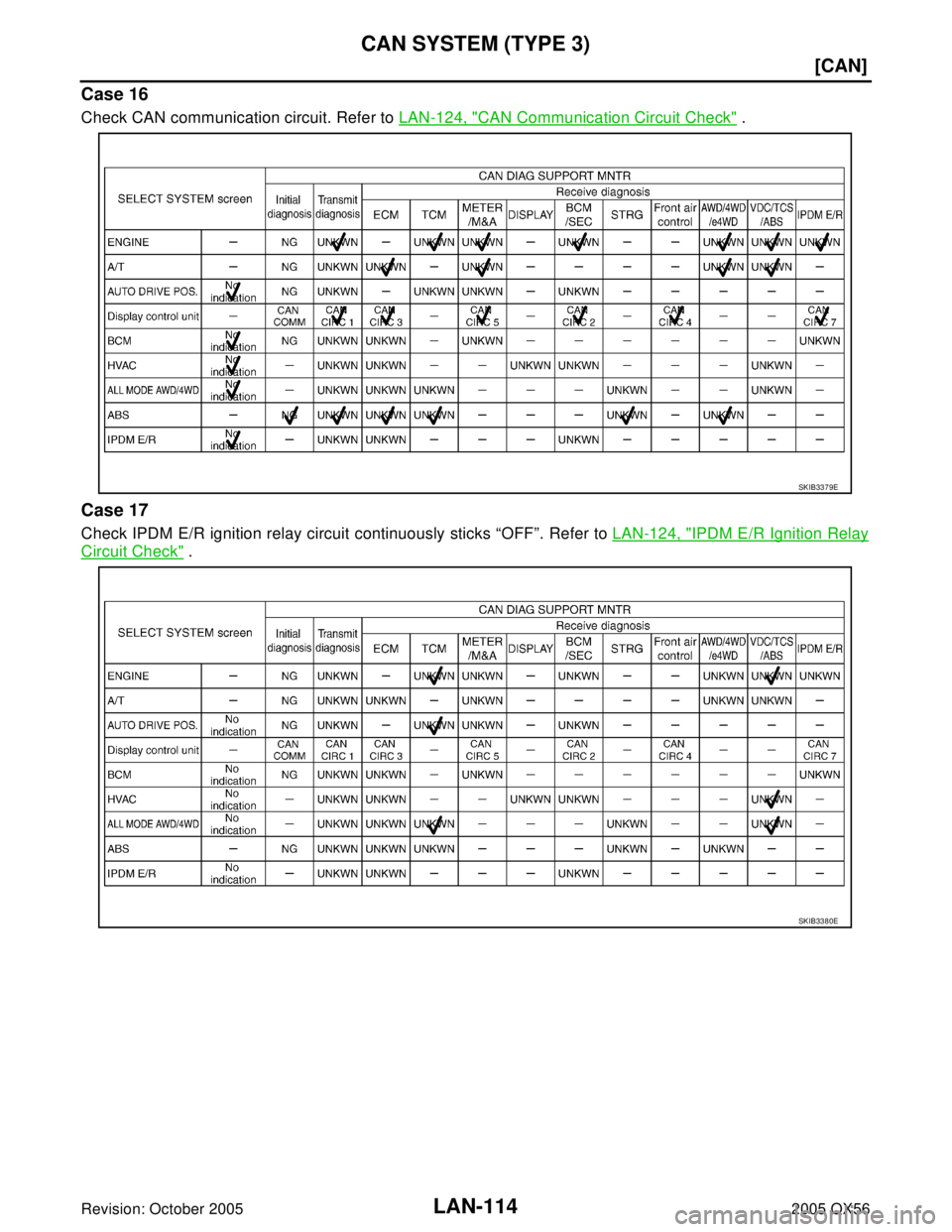

Page 2394 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-115 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 18 Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-124, "IPDM E/R Ign

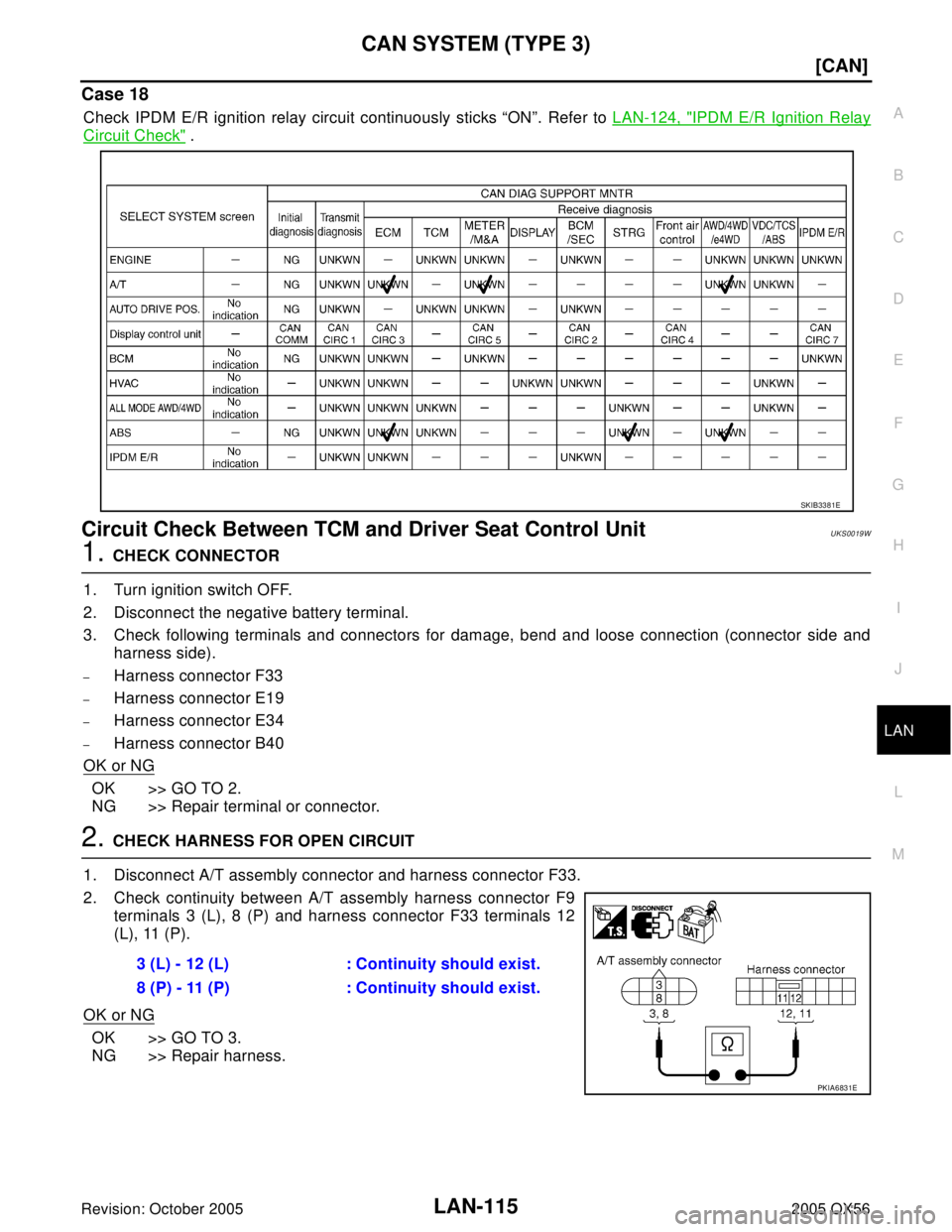

Page 2395 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-116 [CAN] CAN SYSTEM (TYPE 3) Revision: October 20052005 QX56 3. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect harness connector E34. 2. Check continuity between harness connector E19 terminals 12

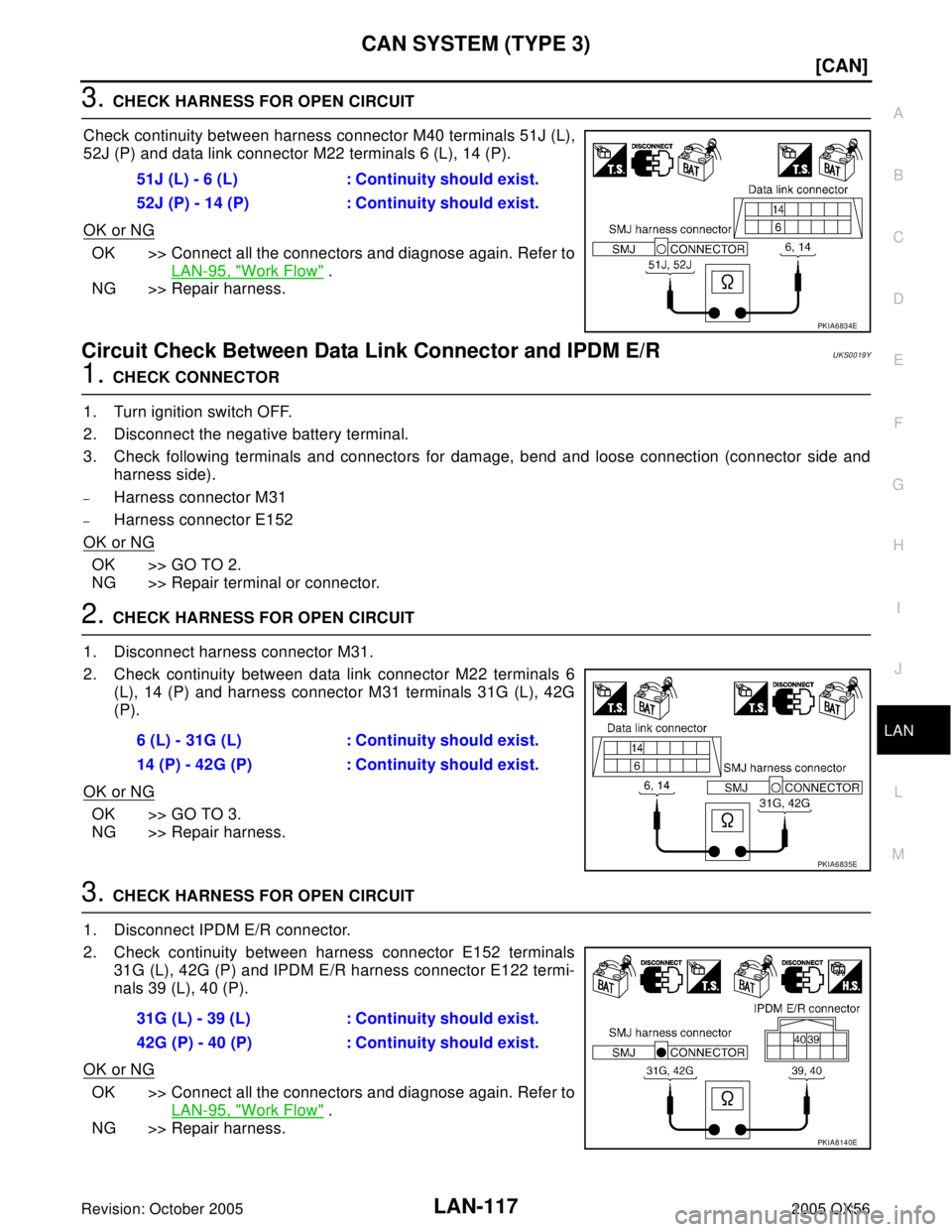

Page 2396 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-117 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 3. CHECK HARNESS FOR OPEN CIRCUIT Check continuity between harness connector M40 terminals 51J (L), 52J (P)

Page 2397 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-118 [CAN] CAN SYSTEM (TYPE 3) Revision: October 20052005 QX56 ECM Circuit CheckUKS0019Z 1. CHECK CONNECTOR 1. Turn ignition switch OFF. 2. Disconnect the negative battery terminal. 3. Check follow

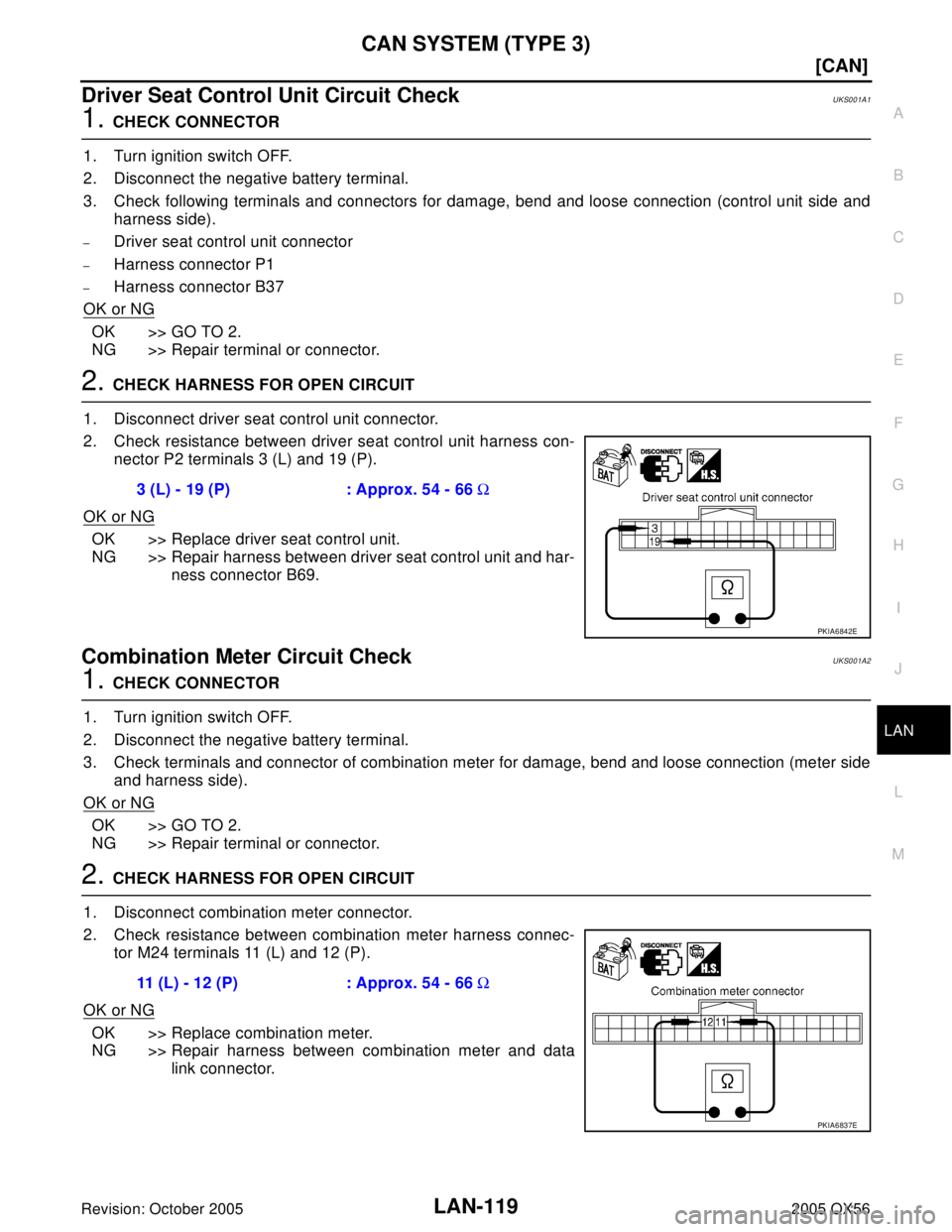

Page 2398 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-119 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Driver Seat Control Unit Circuit CheckUKS001A1 1. CHECK CONNECTOR 1. Turn ignition switch OFF. 2. Disconnec

Page 2399 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-120 [CAN] CAN SYSTEM (TYPE 3) Revision: October 20052005 QX56 Display Control Unit Circuit CheckUKS001A3 1. CHECK CONNECTOR 1. Turn ignition switch OFF. 2. Disconnect the negative battery terminal

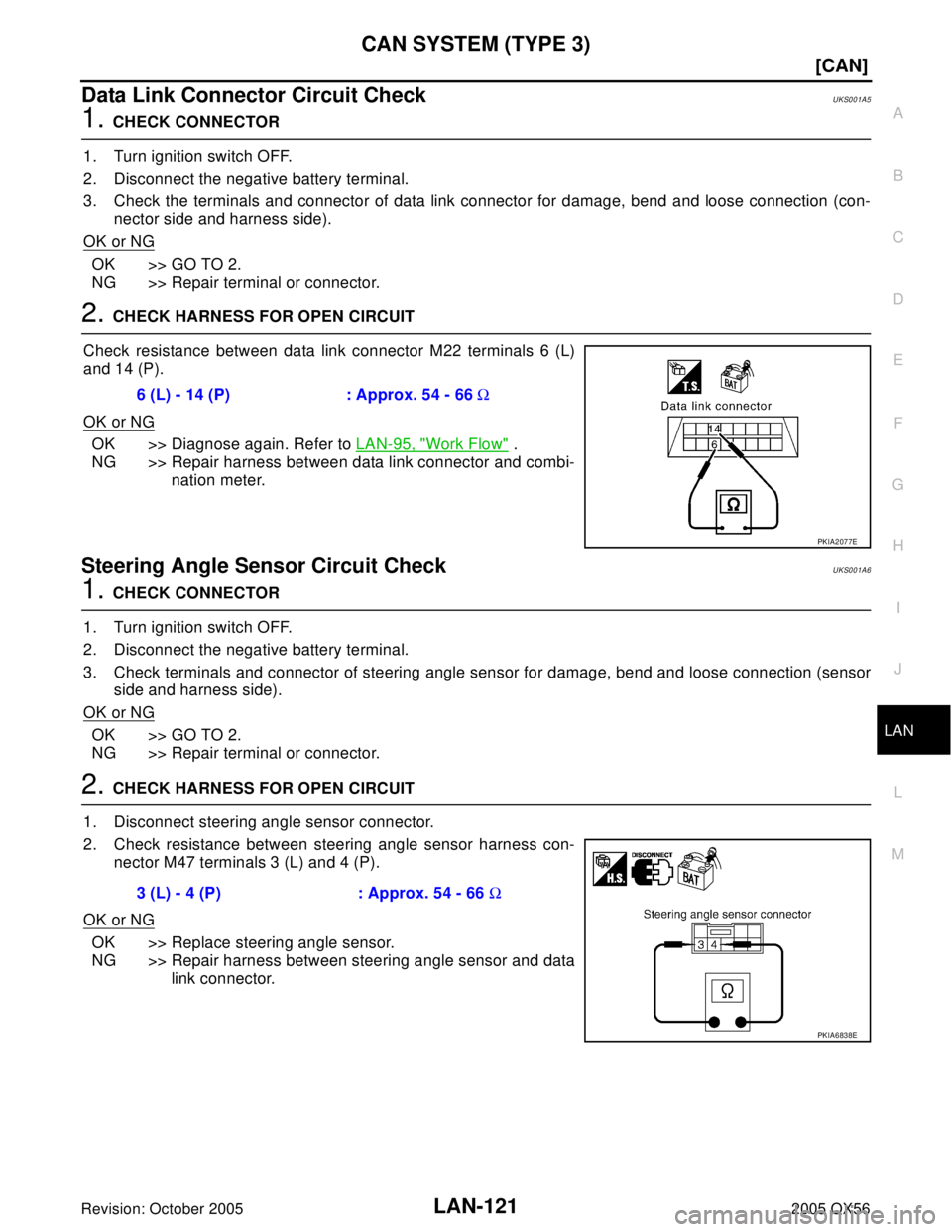

Page 2400 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-121 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Data Link Connector Circuit CheckUKS001A5 1. CHECK CONNECTOR 1. Turn ignition switch OFF. 2. Disconnect the
