Page 2073 of 3419

INFINITI QX4 2005 Factory Service Manual FL-8Revision: October 2005
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
2005 QX56

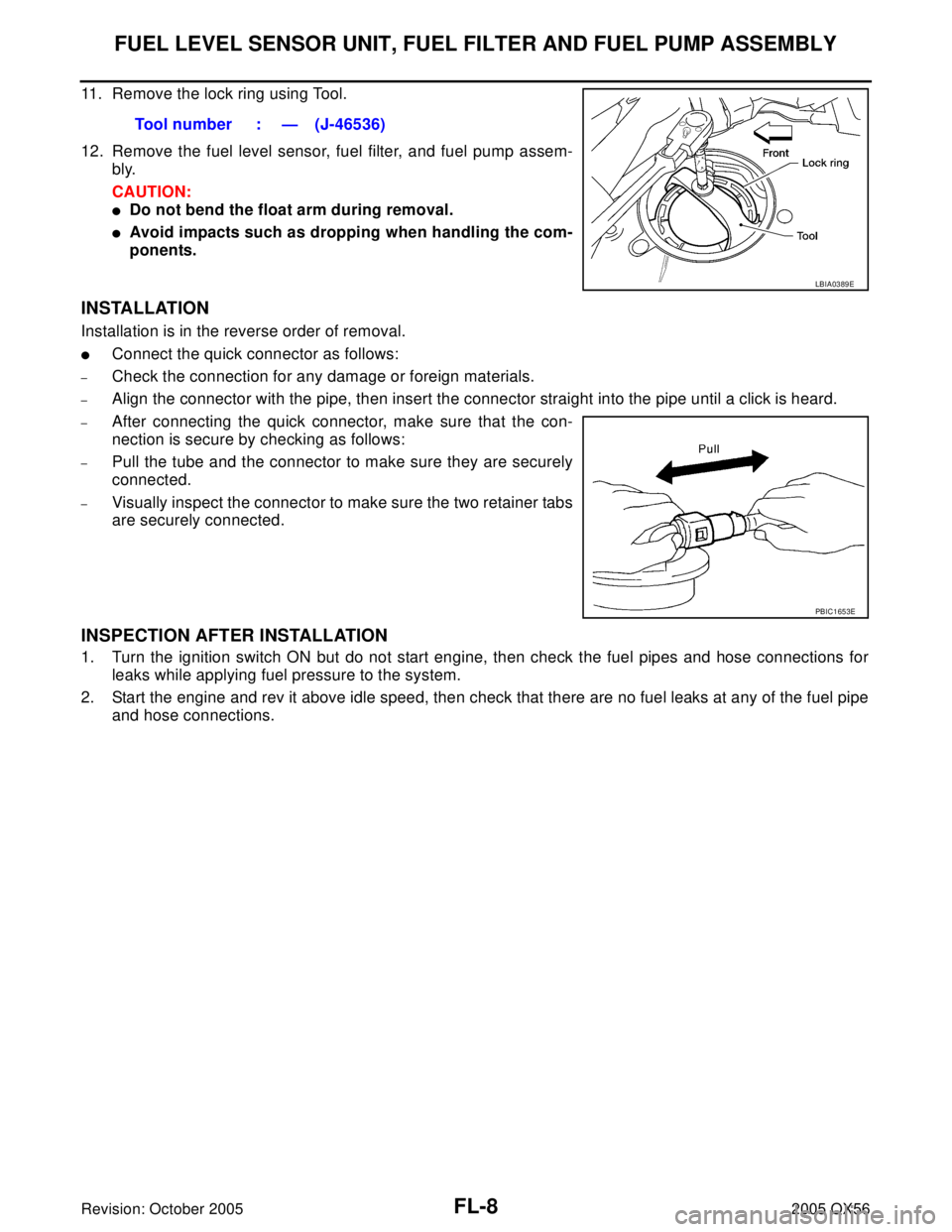

11. Remove the lock ring using Tool.
12. Remove the fuel level sensor, fuel filter, and fuel pump assem-

Page 2074 of 3419

INFINITI QX4 2005 Factory Service Manual FUEL TANK
FL-9
C
D
E
F
G
H
I
J
K
L
MA
FL
Revision: October 20052005 QX56

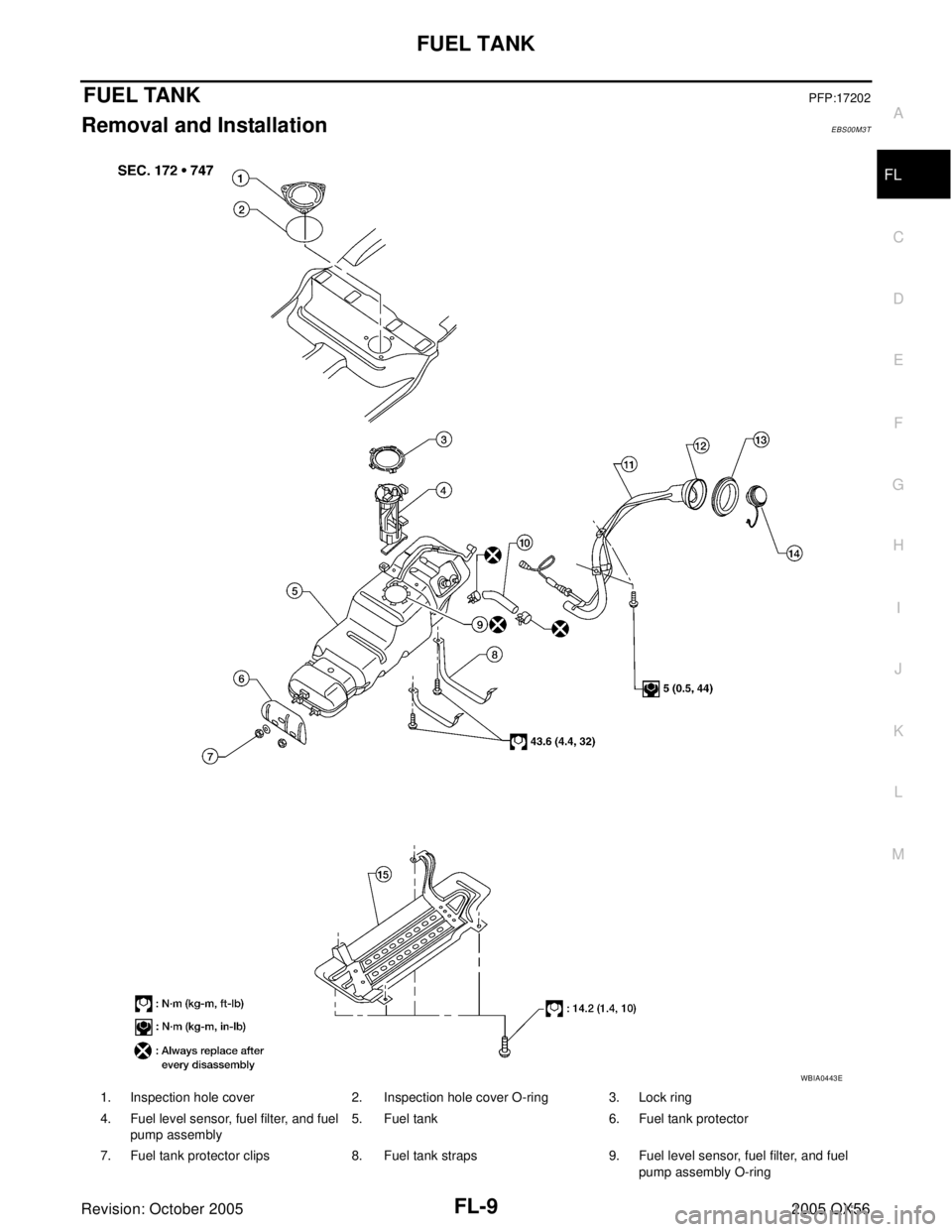

FUEL TANKPFP:17202
Removal and InstallationEBS00M3T
1. Inspection hole cover 2. Inspection hole cover O-ring 3. Lock ring
4. Fu

Page 2075 of 3419

INFINITI QX4 2005 Factory Service Manual FL-10Revision: October 2005
FUEL TANK
2005 QX56
REMOVAL
WAR NIN G:
Follow the “General Precautions” before working on the fuel system. Refer to FL-3, "
General Precau-
tions" .
1. Drain the fuel f

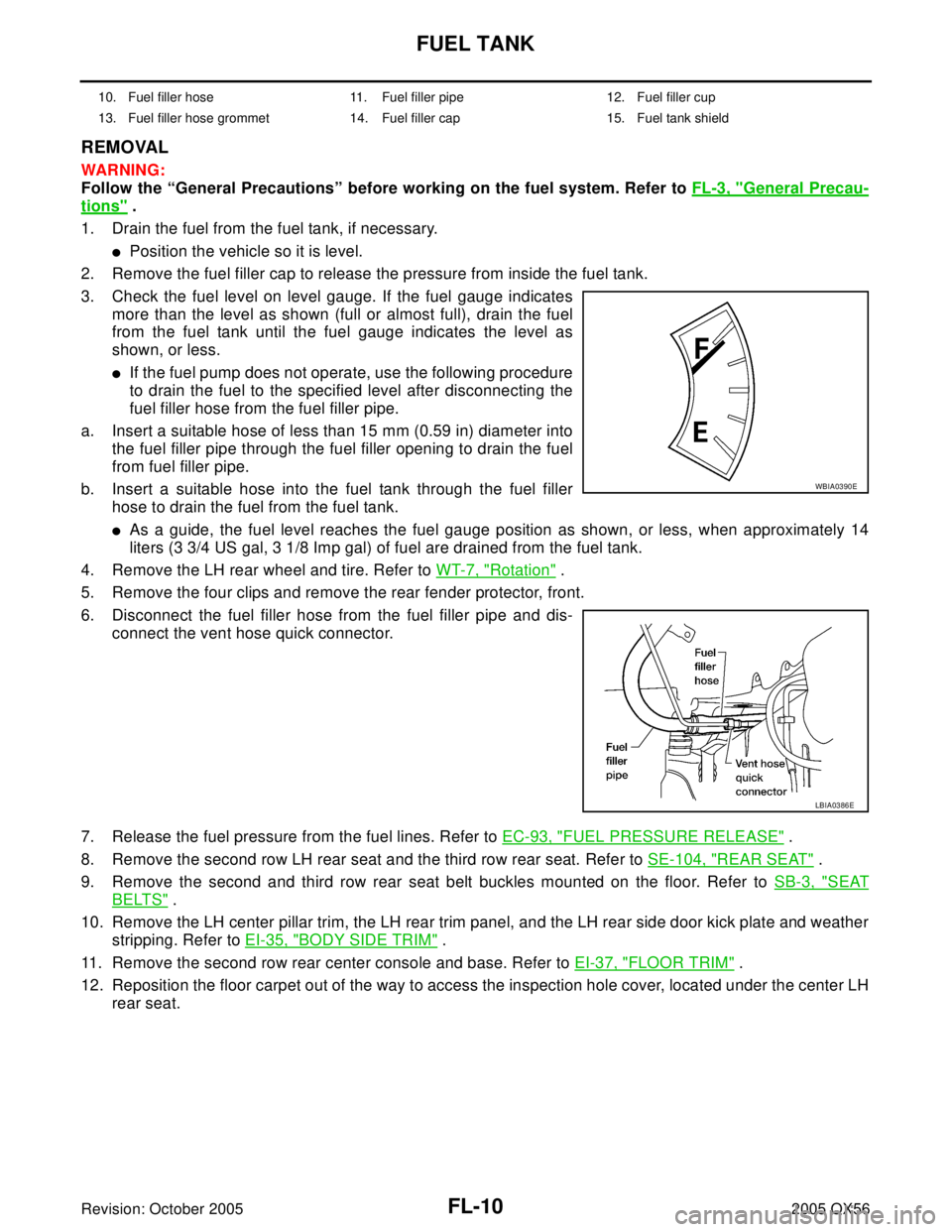

FL-10Revision: October 2005
FUEL TANK
2005 QX56
REMOVAL
WAR NIN G:
Follow the “General Precautions” before working on the fuel system. Refer to FL-3, "
General Precau-
tions" .
1. Drain the fuel from the fuel tank, if necessary.
Position the vehicle so it is level.
2. Remove the fuel filler cap to release the pressure from inside the fuel tank.
3. Check the fuel level on level gauge. If the fuel gauge indicates
more than the level as shown (full or almost full), drain the fuel
from the fuel tank until the fuel gauge indicates the level as
shown, or less.
If the fuel pump does not operate, use the following procedure
to drain the fuel to the specified level after disconnecting the
fuel filler hose from the fuel filler pipe.
a. Insert a suitable hose of less than 15 mm (0.59 in) diameter into
the fuel filler pipe through the fuel filler opening to drain the fuel
from fuel filler pipe.
b. Insert a suitable hose into the fuel tank through the fuel filler
hose to drain the fuel from the fuel tank.
As a guide, the fuel level reaches the fuel gauge position as shown, or less, when approximately 14
liters (3 3/4 US gal, 3 1/8 Imp gal) of fuel are drained from the fuel tank.
4. Remove the LH rear wheel and tire. Refer to WT-7, "
Rotation" .
5. Remove the four clips and remove the rear fender protector, front.
6. Disconnect the fuel filler hose from the fuel filler pipe and dis-
connect the vent hose quick connector.
7. Release the fuel pressure from the fuel lines. Refer to EC-93, "
FUEL PRESSURE RELEASE" .
8. Remove the second row LH rear seat and the third row rear seat. Refer to SE-104, "
REAR SEAT" .
9. Remove the second and third row rear seat belt buckles mounted on the floor. Refer to SB-3, "
SEAT
BELTS" .
10. Remove the LH center pillar trim, the LH rear trim panel, and the LH rear side door kick plate and weather
stripping. Refer to EI-35, "
BODY SIDE TRIM" .
11. Remove the second row rear center console and base. Refer to EI-37, "
FLOOR TRIM" .
12. Reposition the floor carpet out of the way to access the inspection hole cover, located under the center LH
rear seat.
10. Fuel filler hose 11. Fuel filler pipe 12. Fuel filler cup
13. Fuel filler hose grommet 14. Fuel filler cap 15. Fuel tank shield
WBIA0390E
LBIA0386E

Page 2076 of 3419

INFINITI QX4 2005 Factory Service Manual FUEL TANK
FL-11
C
D
E
F
G
H
I
J
K
L
MA
FL
Revision: October 20052005 QX56

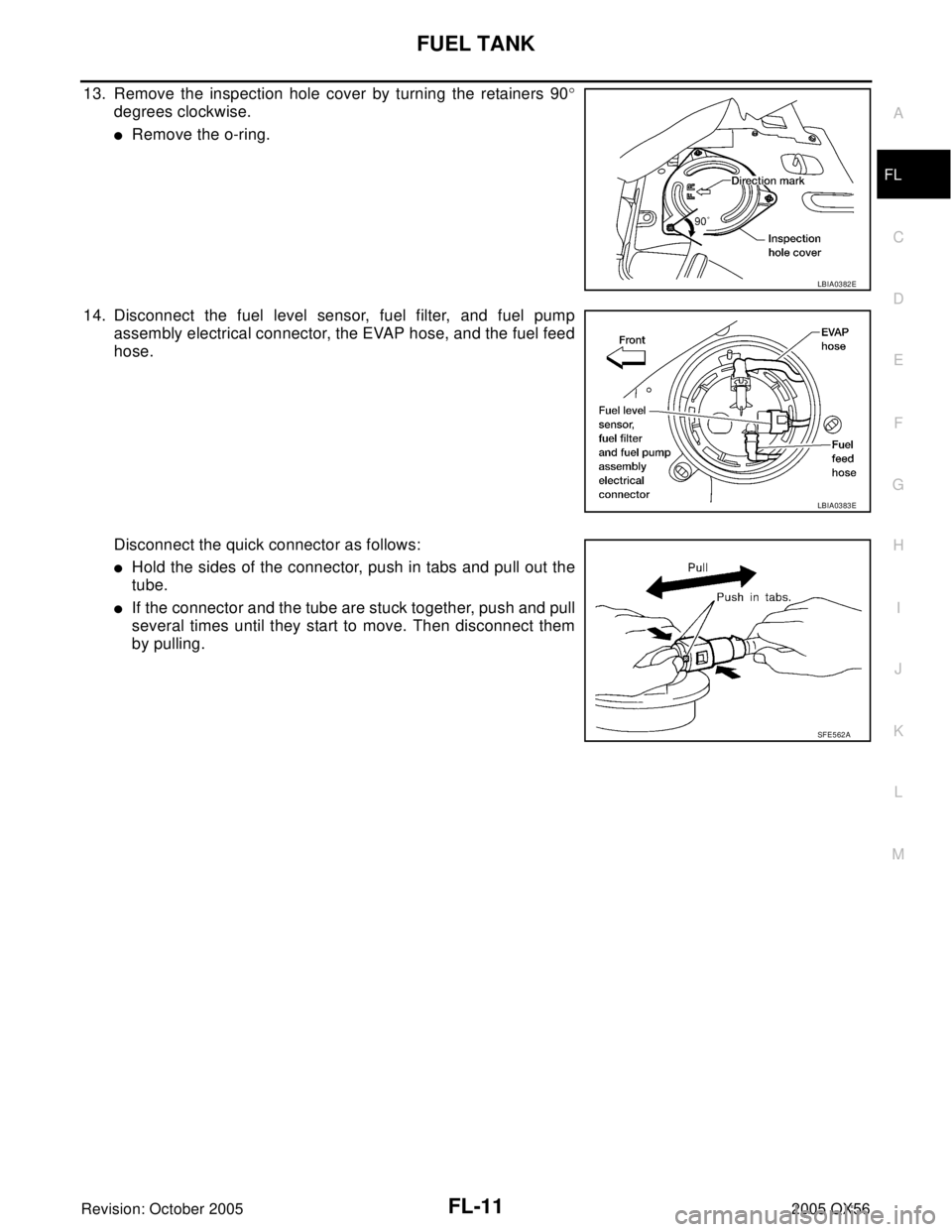

13. Remove the inspection hole cover by turning the retainers 90°
degrees clockwise.
Remove the o-ring.
14. Disconnect the f

Page 2077 of 3419

INFINITI QX4 2005 Factory Service Manual FL-12Revision: October 2005
FUEL TANK
2005 QX56

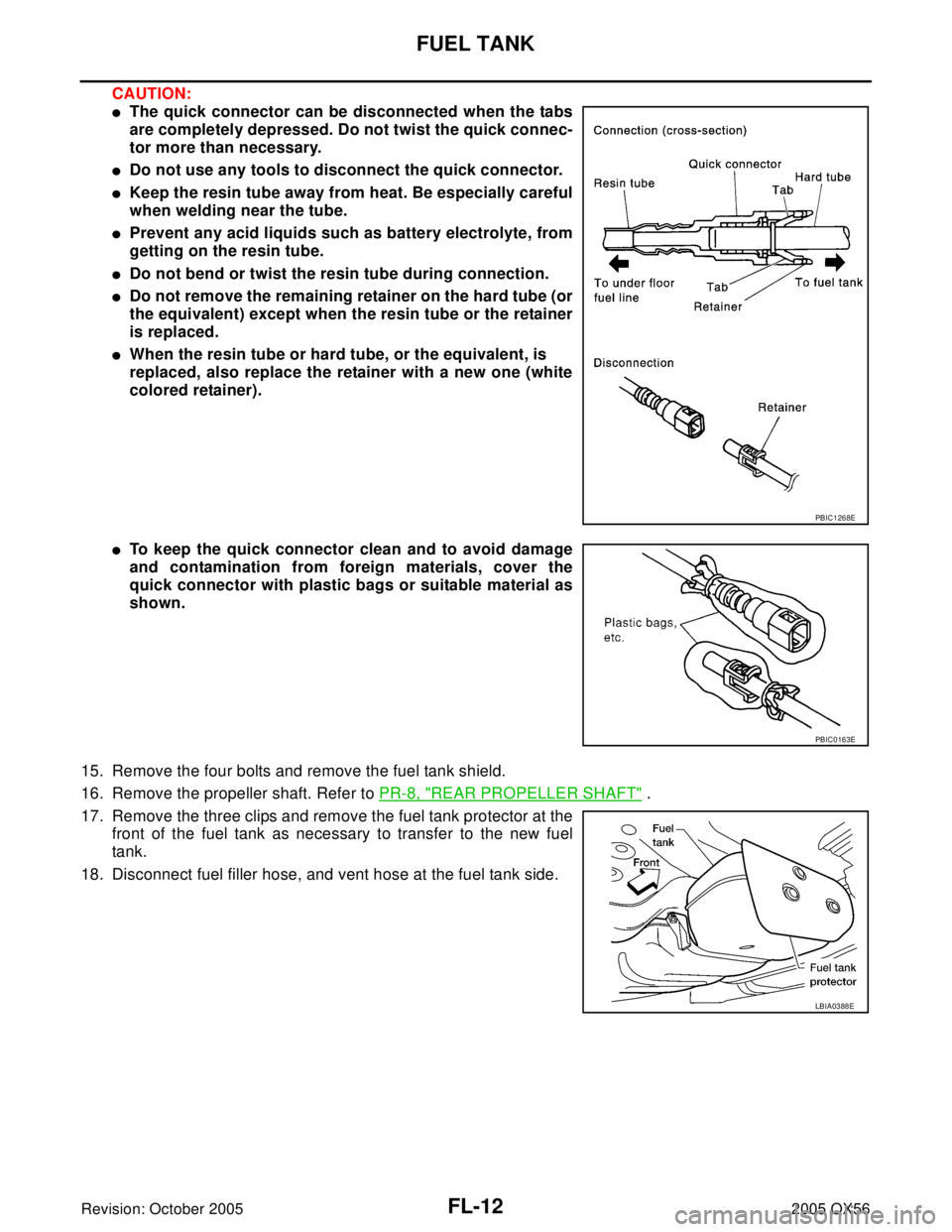

CAUTION:
The quick connector can be disconnected when the tabs
are completely depressed. Do not twist the quick connec-
tor more than necessary.
Do no

Page 2078 of 3419

INFINITI QX4 2005 Factory Service Manual FUEL TANK
FL-13
C
D
E
F
G
H
I
J
K
L
MA
FL
Revision: October 20052005 QX56
19. Remove the fuel tank strap bolts while supporting the fuel tank
with a suitable lift jack.
20. Disconnect the EVAP hose fr

Page 2079 of 3419

INFINITI QX4 2005 Factory Service Manual FL-14Revision: October 2005
SERVICE DATA AND SPECIFICATIONS (SDS)
2005 QX56
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00M3U
Fuel tank capacity
105.8 (28 US gal, 23 1/4 Imp

Page 2080 of 3419

INFINITI QX4 2005 Factory Service Manual FSU-1
FRONT SUSPENSION
E SUSPENSION
CONTENTS
C
D
F
G
H
I
J
K
L
M
SECTION FSU
A
B
FSU
Revision: October 20052005 QX56 PRECAUTIONS .......................................................... 2
Precautio

FSU-1
FRONT SUSPENSION
E SUSPENSION
CONTENTS
C
D
F
G
H
I
J
K
L
M
SECTION FSU
A
B
FSU
Revision: October 20052005 QX56 PRECAUTIONS .......................................................... 2
Precautions .............................................................. 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 3
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 4
NVH Troubleshooting Chart ..................................... 4
FRONT SUSPENSION ASSEMBLY ........................... 5
Components ............................................................. 5
ON-VEHICLE SERVICE ............................................. 6
Front Suspension Parts ............................................ 6
Front Wheel Alignment ............................................. 6
PRELIMINARY INSPECTION ............................... 6
GENERAL INFORMATION AND RECOMMEN-
DATIONS .............................................................. 6
THE ALIGNMENT PROCESS .............................. 7
CAMBER AND CASTER ....................................... 7
TOE-IN .................................................................. 7
FRONT WHEEL TURNING ANGLE ..................... 8
COIL SPRING AND SHOCK ABSORBER ............... 10
Removal and Installation ........................................ 10
REMOVAL ........................................................... 10
INSTALLATION ................................................... 10
Disassembly and Assembly ................................... 10
DISASSEMBLY ................................................... 10
INSPECTION AFTER DISASSEMBLY ............... 10
ASSEMBLY ..........................................................11STABILIZER BAR ..................................................... 12
Removal and Installation ........................................ 12
REMOVAL ........................................................... 12
INSPECTION AFTER REMOVAL ....................... 12
INSTALLATION ................................................... 12
UPPER LINK ............................................................. 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSPECTION AFTER REMOVAL ....................... 13
INSTALLATION ................................................... 13
LOWER LINK ............................................................ 14
Removal and Installation ........................................ 14
REMOVAL ........................................................... 14
INSPECTION AFTER REMOVAL ....................... 14
INSTALLATION ................................................... 14
UPPER BALL JOINT AND LOWER BALL JOINT ... 15
Removal and Installation ........................................ 15
Inspection ............................................................... 15
SWINGING FORCE ............................................ 15
TURNING FORCE ............................................... 15
VERTICAL END PLAY ........................................ 16
KNUCKLE ................................................................. 17
On-Vehicle Inspection and Service ......................... 17
Removal and Installation ........................................ 17
REMOVAL ........................................................... 17
INSPECTION AFTER REMOVAL ....................... 18
INSTALLATION ................................................... 19
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 20
General Specifications (Front) ................................ 20
Wheel Alignment (Unladen
*1 )*6 ............................. 20
Ball Joint ................................................................. 21
Wheelarch Height (Unladen*
1 ) .............................. 21
