Page 1641 of 3419

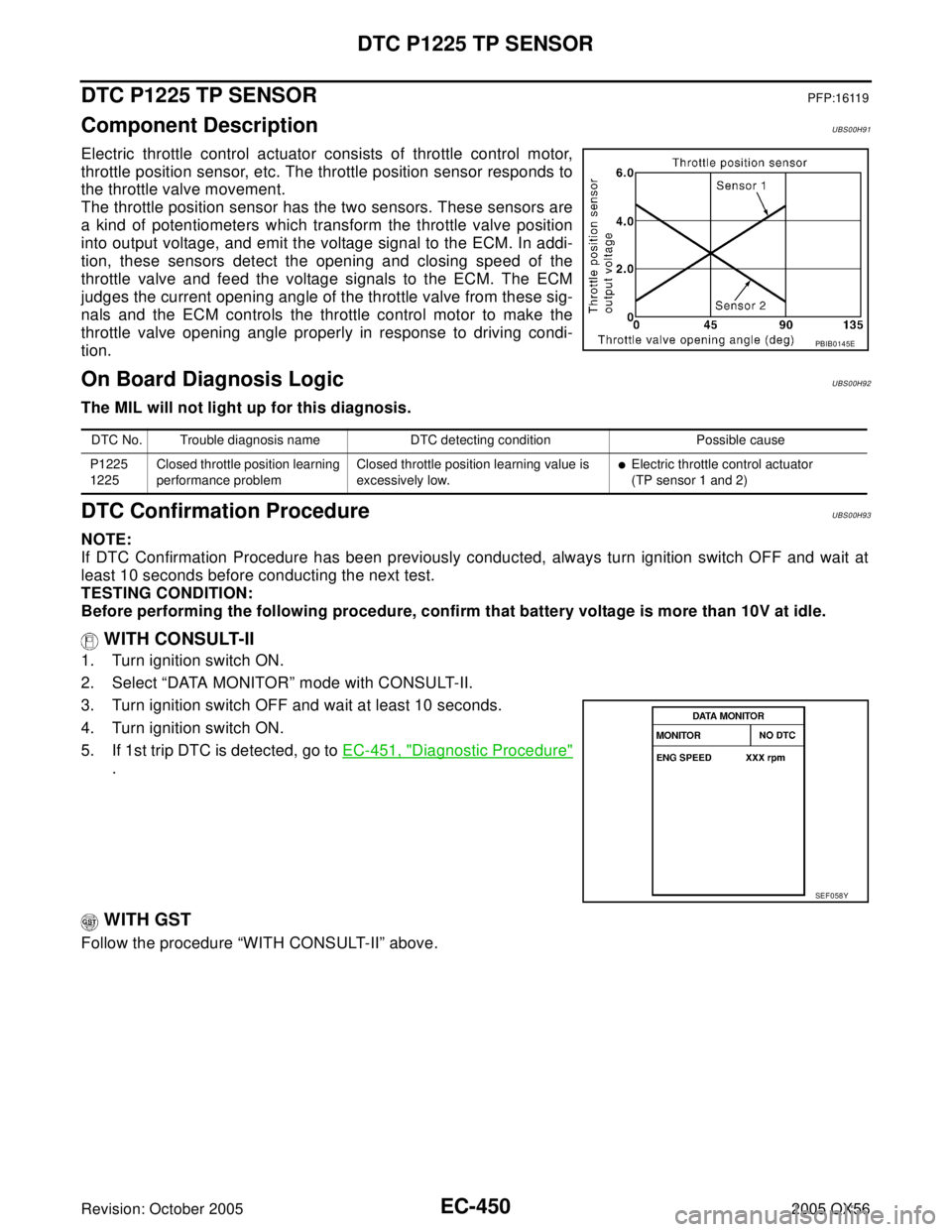

INFINITI QX4 2005 Factory Service Manual EC-450Revision: October 2005 DTC P1225 TP SENSOR 2005 QX56 DTC P1225 TP SENSORPFP:16119 Component DescriptionUBS00H91 Electric throttle control actuator consists of throttle control motor, throttle po

Page 1642 of 3419

INFINITI QX4 2005 Factory Service Manual DTC P1225 TP SENSOR EC-451 C D E F G H I J K L MA EC Revision: October 20052005 QX56 Diagnostic ProcedureUBS00H94 1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY 1. Turn ignition switch OFF. 2. R

Page 1643 of 3419

INFINITI QX4 2005 Factory Service Manual EC-452Revision: October 2005 DTC P1226 TP SENSOR 2005 QX56 DTC P1226 TP SENSORPFP:16119 Component DescriptionUBS00H96 Electric throttle control actuator consists of throttle control motor, throttle po

Page 1644 of 3419

INFINITI QX4 2005 Factory Service Manual DTC P1226 TP SENSOR EC-453 C D E F G H I J K L MA EC Revision: October 20052005 QX56 Diagnostic ProcedureUBS00H99 1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY 1. Turn ignition switch OFF. 2. R

Page 1645 of 3419

INFINITI QX4 2005 Factory Service Manual EC-454Revision: October 2005 DTC P1229 SENSOR POWER SUPPLY 2005 QX56 DTC P1229 SENSOR POWER SUPPLYPFP:16119 On Board Diagnosis LogicUBS00H9B This self-diagnosis has the one trip detection logic. FAIL

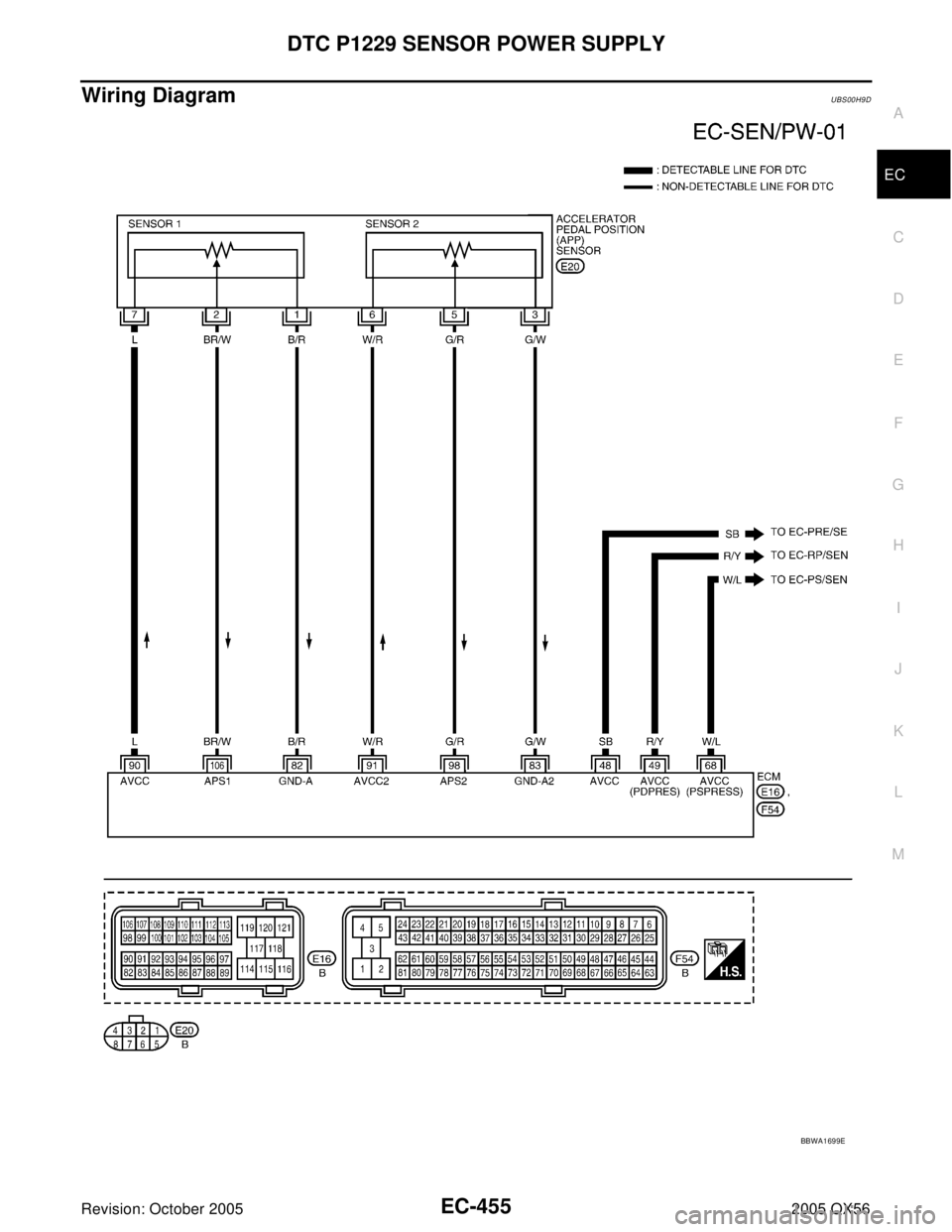

Page 1646 of 3419

INFINITI QX4 2005 Factory Service Manual DTC P1229 SENSOR POWER SUPPLY EC-455 C D E F G H I J K L MA EC Revision: October 20052005 QX56 Wiring DiagramUBS00H9D BBWA1699E

Page 1647 of 3419

INFINITI QX4 2005 Factory Service Manual EC-456Revision: October 2005 DTC P1229 SENSOR POWER SUPPLY 2005 QX56 Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals

Page 1648 of 3419

INFINITI QX4 2005 Factory Service Manual DTC P1229 SENSOR POWER SUPPLY EC-457 C D E F G H I J K L MA EC Revision: October 20052005 QX56 2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT 1. Disconnect accelerator pedal position (APP) sensor harness
