REAR COMBINATION LAMP
Revision: October 20052005 QX56
REAR COMBINATION LAMPPFP:26554
Bulb Replacement (Turn Signal)EKS00BAZ
NOTE:
The tail/stop lamp bulbs are LEDs and are not serviceable separately.
1. Remove rear combination lamp mounting bolts.
2. Pull rear combination lamp to remove from the vehicle.
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb.
Installation is in the reverse order of removal.
Removal and InstallationEKS00BB0
1. Remove rear combination lamp mounting bolts.
2. Pull rear combination lamp to remove from the vehicle.
3. Disconnect rear combination lamp connectors.
Installation is in the reverse order of removal.
WKIA1393E
Rear combination lamp
mounting bolts: 2.4 Nm (0.24 kg-m, 21 in-lb)
WKIA1393E
Page 2570 of 3419
TRAILER TOW
LT-123
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
TRAILER TOWPFP:93020

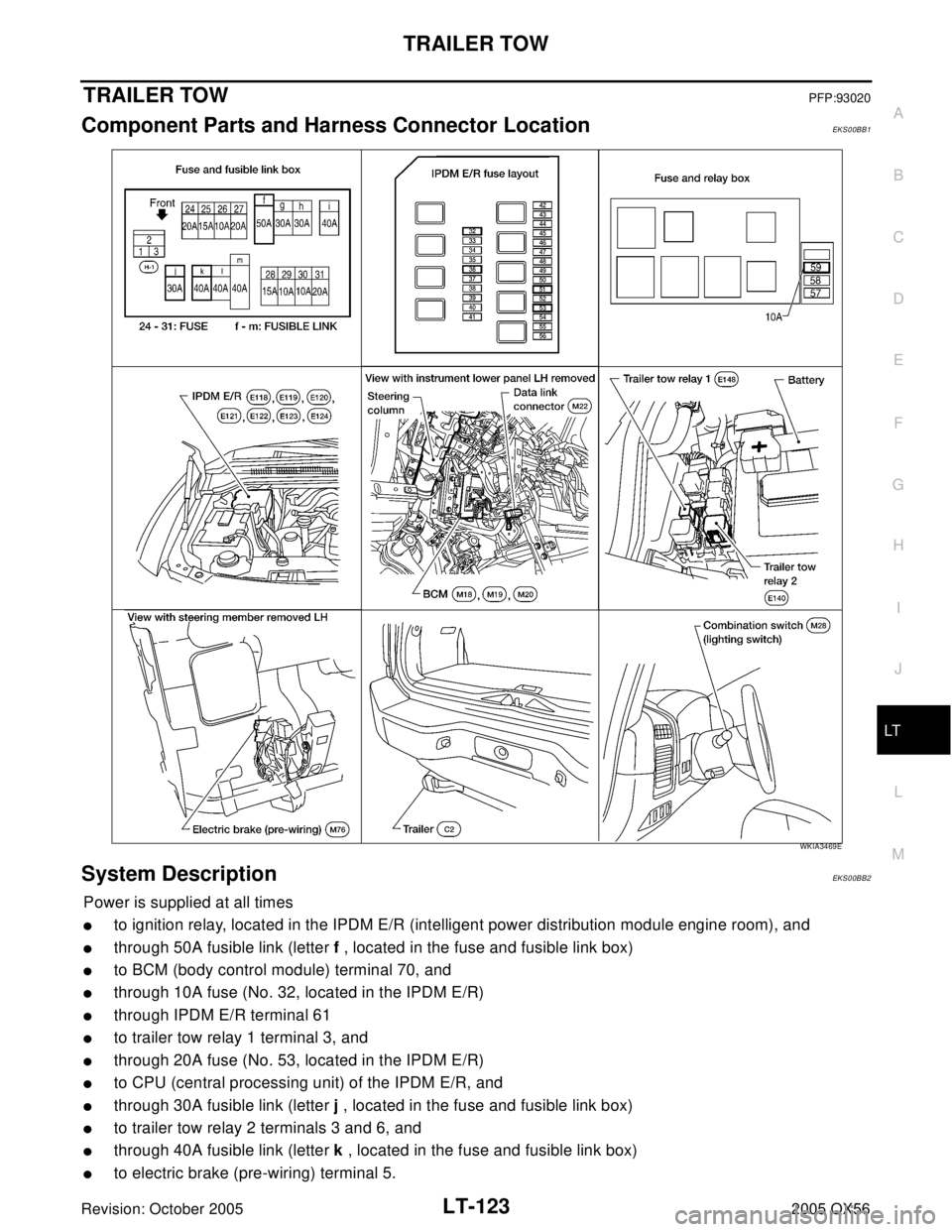

Component Parts and Harness Connector LocationEKS00BB1
System DescriptionEKS00BB2
Power is supplied at all times
to ignition relay, located in the IPDM E/R (intelligent power distribution module engine room), and
through 50A fusible link (letter f , located in the fuse and fusible link box)
to BCM (body control module) terminal 70, and
through 10A fuse (No. 32, located in the IPDM E/R)
through IPDM E/R terminal 61
to trailer tow relay 1 terminal 3, and
through 20A fuse (No. 53, located in the IPDM E/R)
to CPU (central processing unit) of the IPDM E/R, and
through 30A fusible link (letter j , located in the fuse and fusible link box)
to trailer tow relay 2 terminals 3 and 6, and
through 40A fusible link (letter k , located in the fuse and fusible link box)
to electric brake (pre-wiring) terminal 5.
WKIA3469E
Page 2571 of 3419

LT-124
TRAILER TOW
Revision: October 20052005 QX56
With the ignition switch in the ON or START position, power is supplied
to ignition relay, located in the IPDM E/R, and
through 10A fuse (No. 59, located in the fuse and relay box)
to BCM terminal 38, and
through 10A fuse (No. 51, located in the IPDM E/R)
to trailer tow relay 2 terminal 1.
Ground is supplied
to BCM terminal 67, and
to electric brake (pre-wiring) terminal 1
through grounds M57, M61 and M79, and
to IPDM E/R terminals 38 and 59
to trailer tow relay 1 terminal 2
to trailer tow relay 2 terminal 2, and
to trailer connector terminal 2
through grounds E9, E15 and E24.
TRAILER TAIL LAMP OPERATION
The trailer tail lamps are controlled by the trailer tow relay 1.
With the lighting switch in the parking and tail lamp ON (1ST) position, AUTO position (and the auto light sys-
tem is activated) or headlamp ON (2ND) position, power is supplied
through the tail lamp relay, located in the IPDM E/R
through 10A fuse (No. 36, located in the IPDM E/R)
through IPDM E/R terminal 49
to trailer tow relay 1 terminal 1.
When energized, trailer tow relay 1 supplies tail lamp power to trailer connector terminal 6.
TRAILER TURN SIGNAL AND HAZARD LAMP OPERATION
The trailer turn signal and hazard lamps are controlled by the BCM. If either turn signal or the hazard lamps
are turned on, the BCM supplies voltage to the trailer lamps to make them flash.
Left turn signal and hazard lamp output is supplied
through BCM terminal 52
to trailer connector terminal 1.
Right turn signal and hazard lamp output is supplied
through BCM terminal 51
to trailer connector terminal 4.
TRAILER STOP LAMP OPERATION
The trailer stop lamps are controlled by the electric brake. The electric brake receives stop lamp switch signal
when the brake pedal is pressed.
When the brake pedal is pressed, power is supplied
through electric brake (pre-wiring) terminal 3
to trailer connector terminal 3.
TRAILER POWER SUPPLY OPERATION
The trailer power supply is controlled by the trailer tow relay 2.
When the ignition switch is in the ON or START position, power is supplied
through 10A fuse (No. 51, located in the IPDM E/R)
through IPDM E/R terminal 16
to trailer tow relay 2 terminal 1.
When energized, the trailer tow relay 2 supplies power
through trailer tow relay 2 terminals 5 and 7
to trailer connector terminal 5.
Page 2572 of 3419
TRAILER TOW
LT-125
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
SchematicEKS00BB3

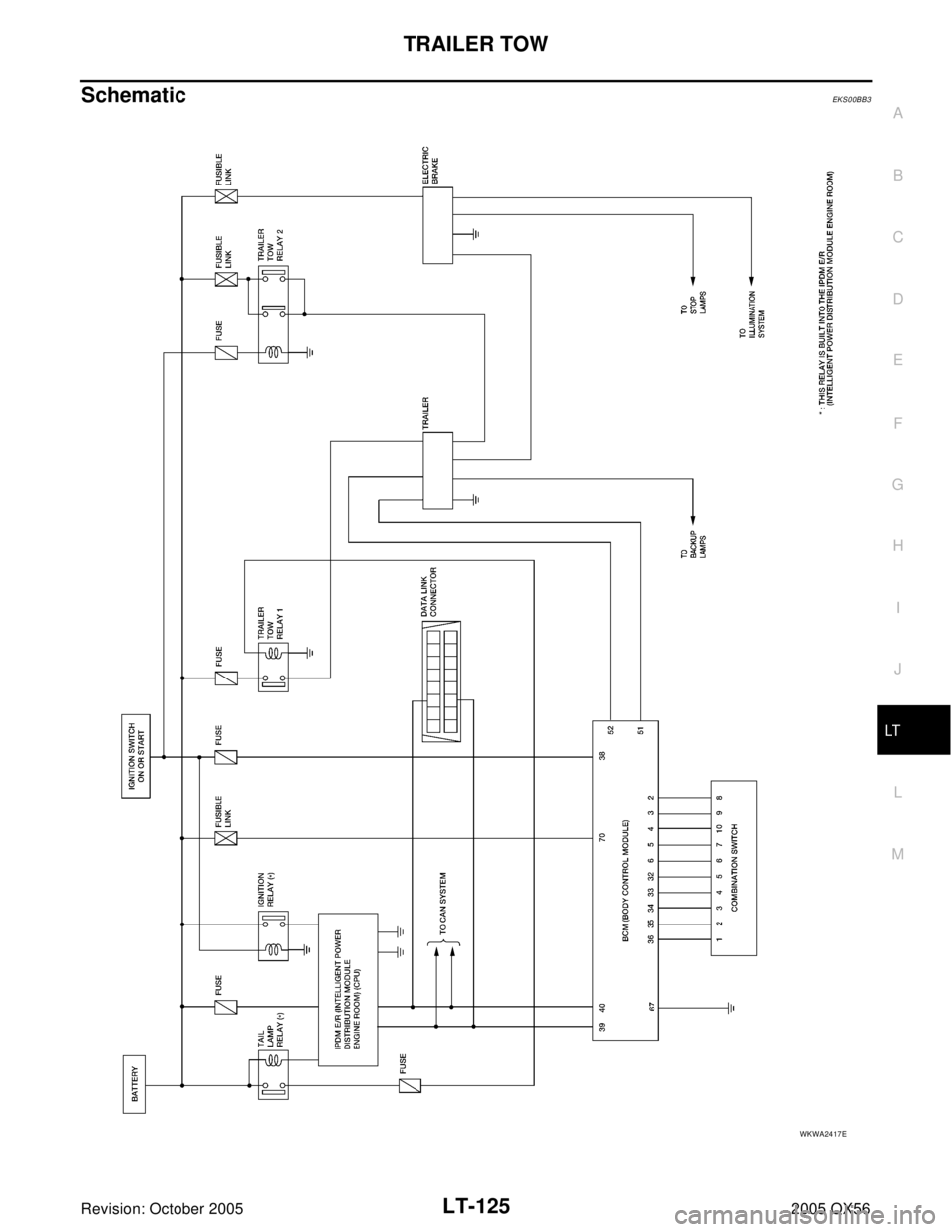

WKWA2417E
Page 2573 of 3419
LT-126
TRAILER TOW
Revision: October 20052005 QX56

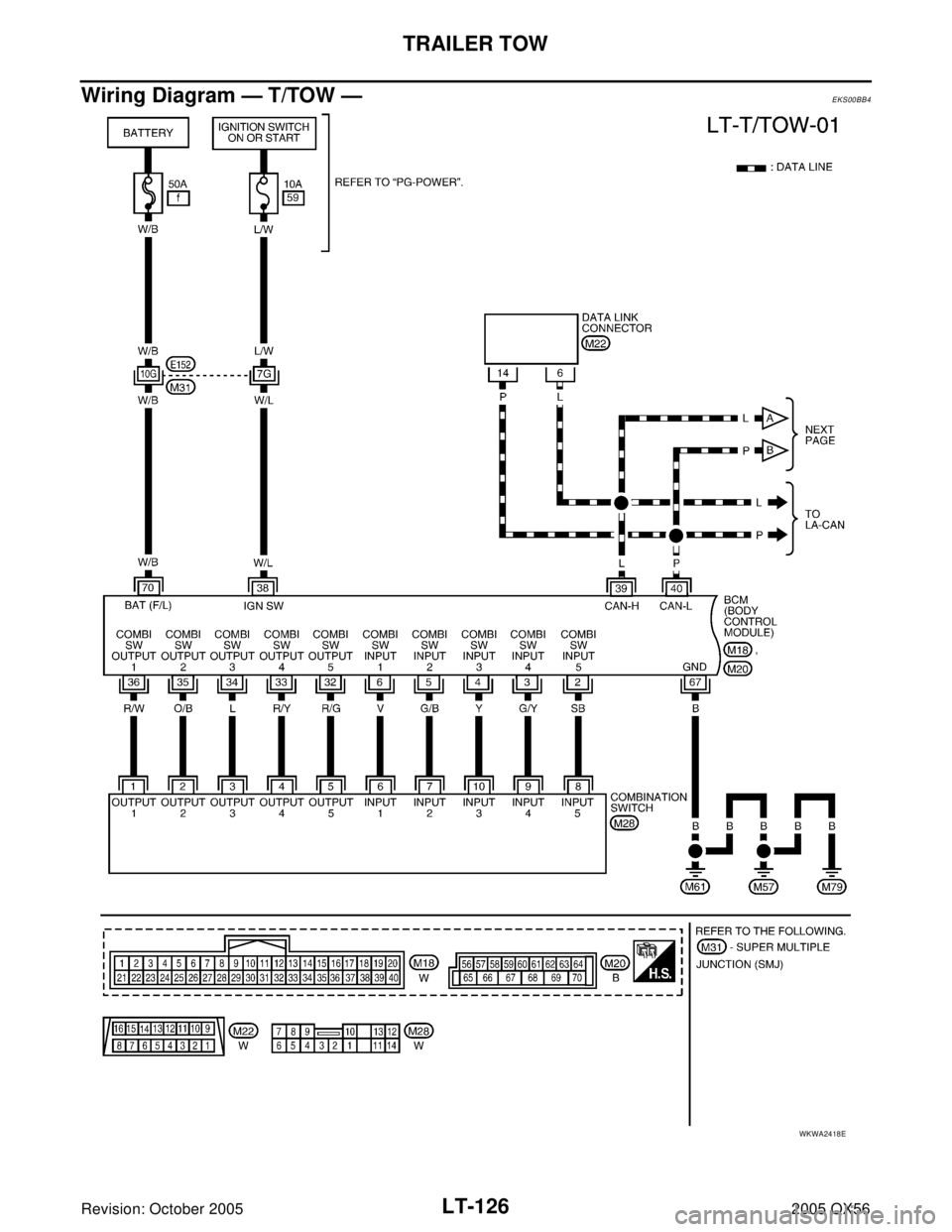

Wiring Diagram — T/TOW —EKS00BB4

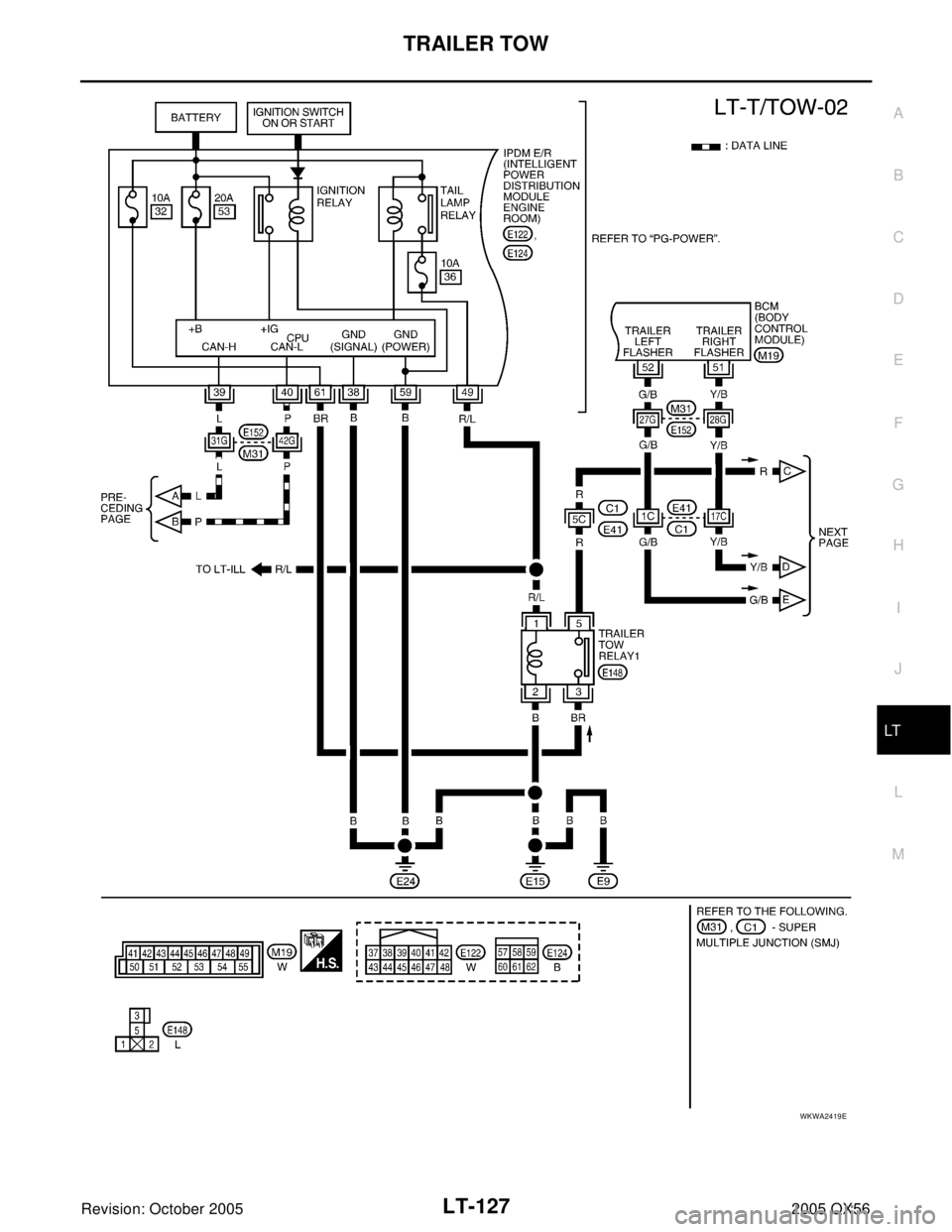

WKWA2418E
Page 2574 of 3419
TRAILER TOW
LT-127
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56

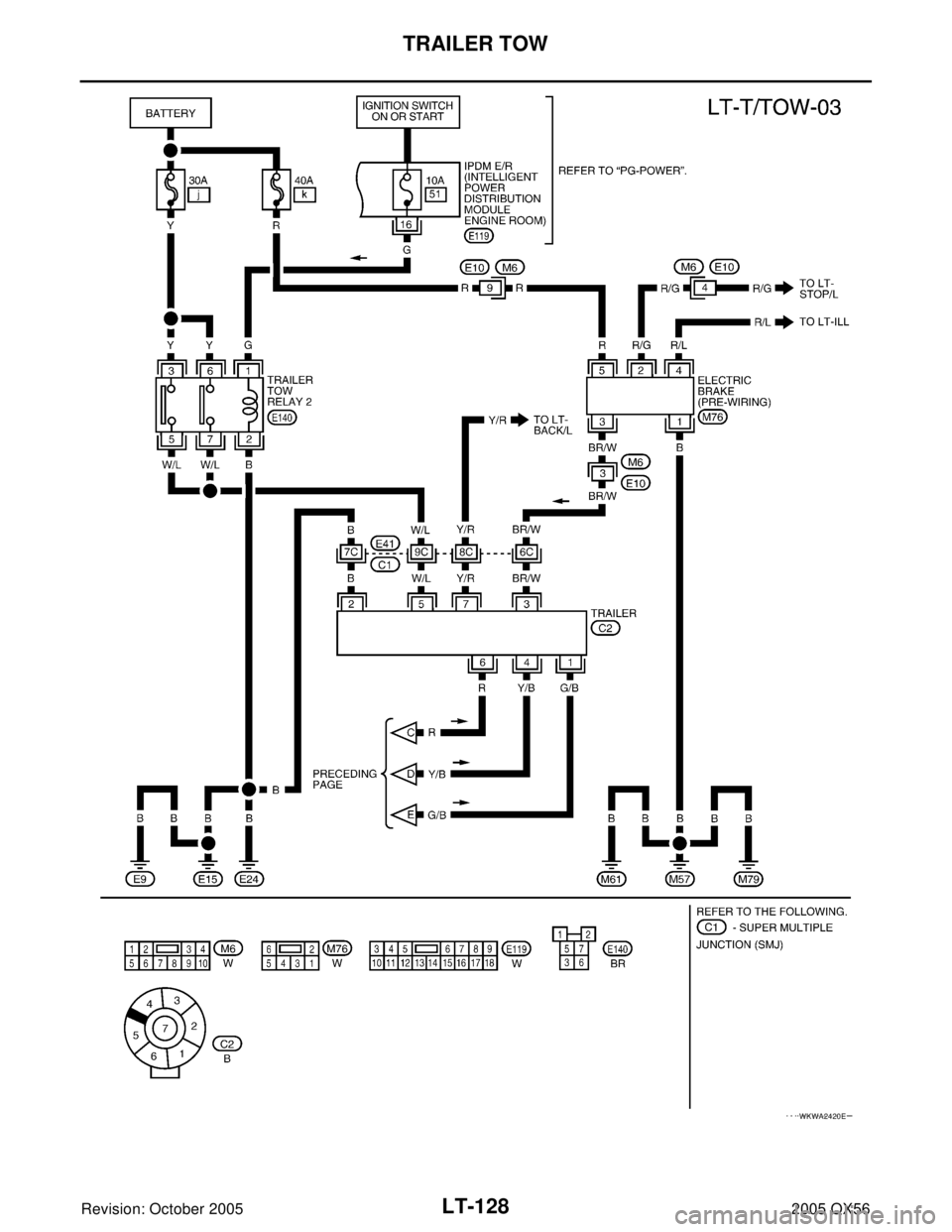

WKWA2419E
Page 2575 of 3419
LT-128
TRAILER TOW
Revision: October 20052005 QX56
WKWA2420E
Page 2576 of 3419
INTERIOR ROOM LAMP
LT-129
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
INTERIOR ROOM LAMPPFP:26410

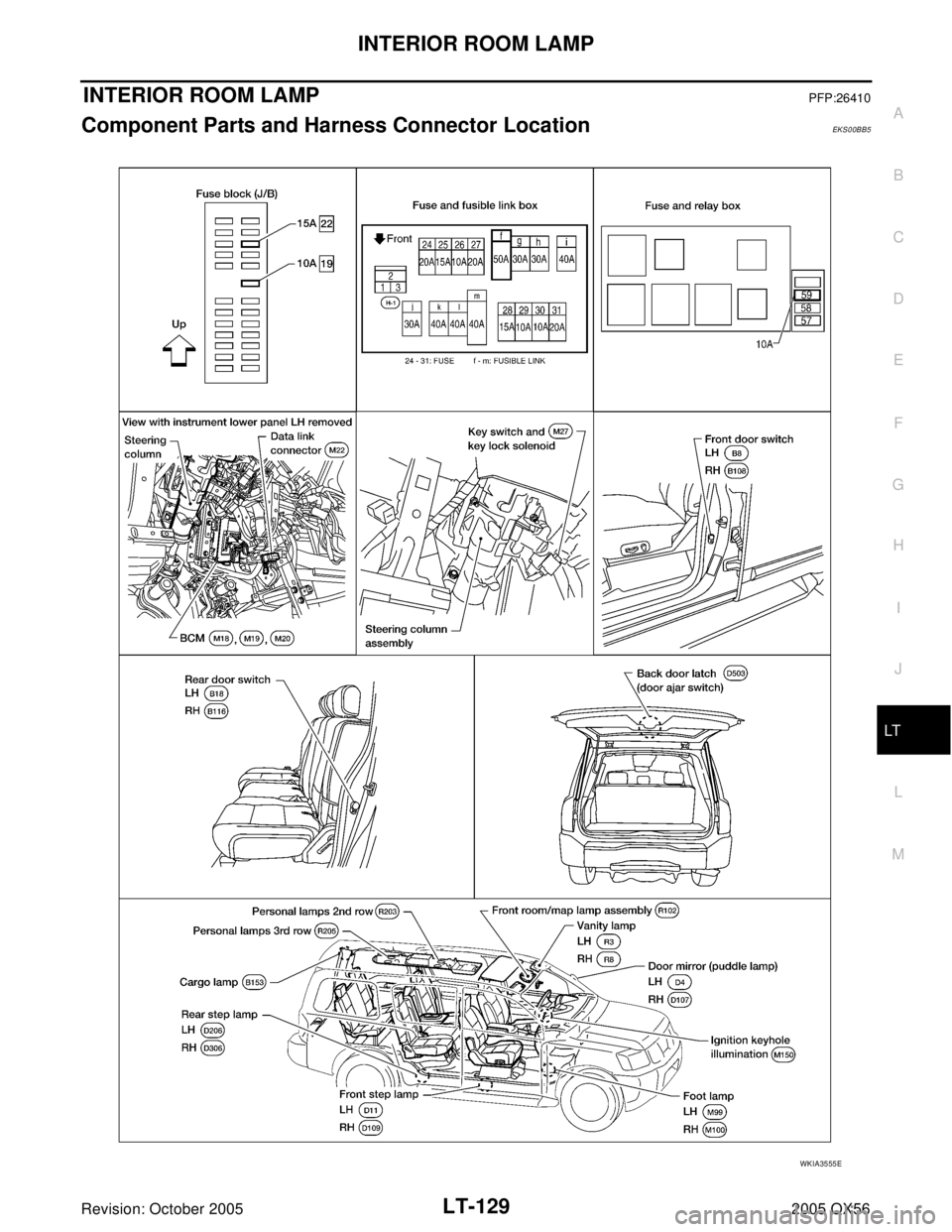

Component Parts and Harness Connector LocationEKS00BB5
WKIA3555E
