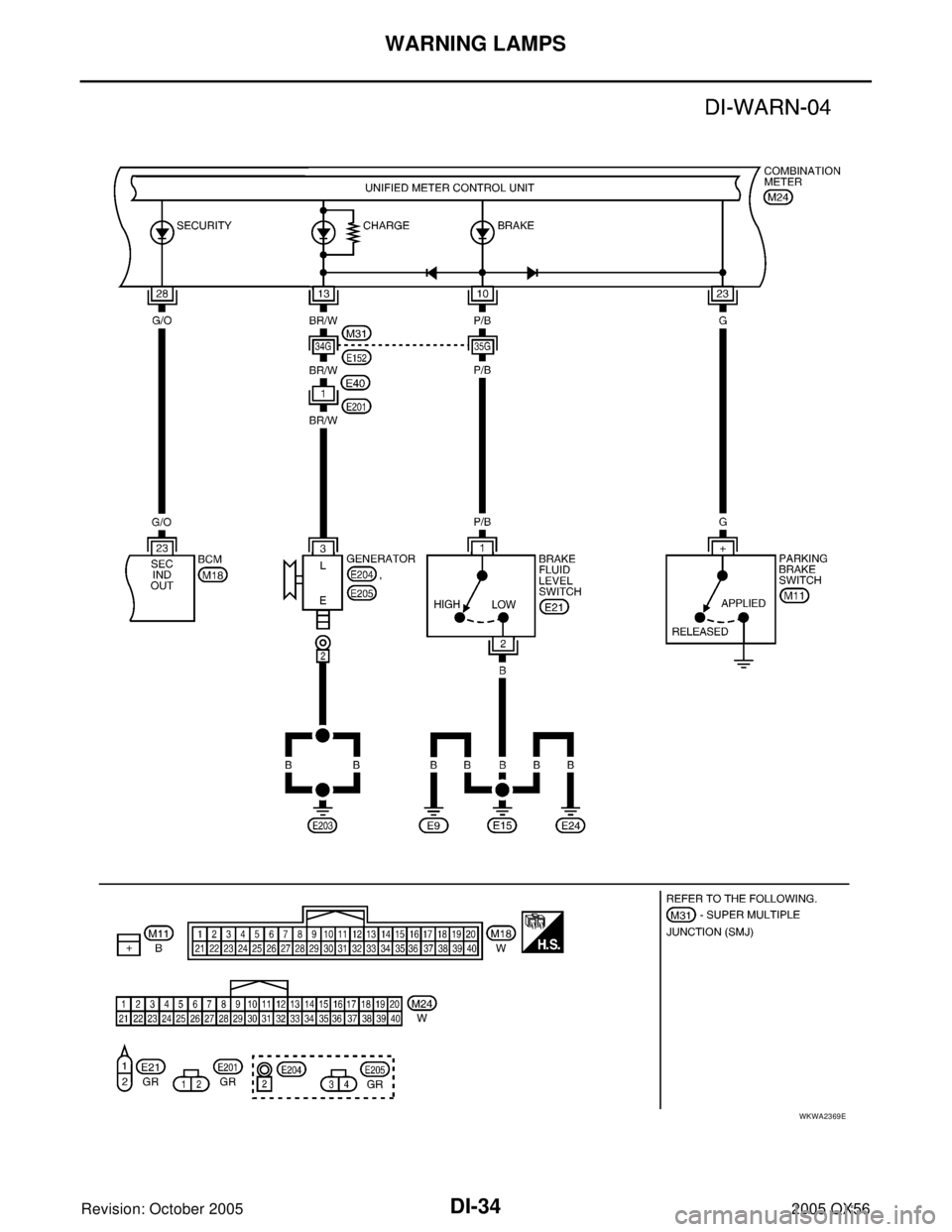

WARNING LAMPS
Revision: October 20052005 QX56

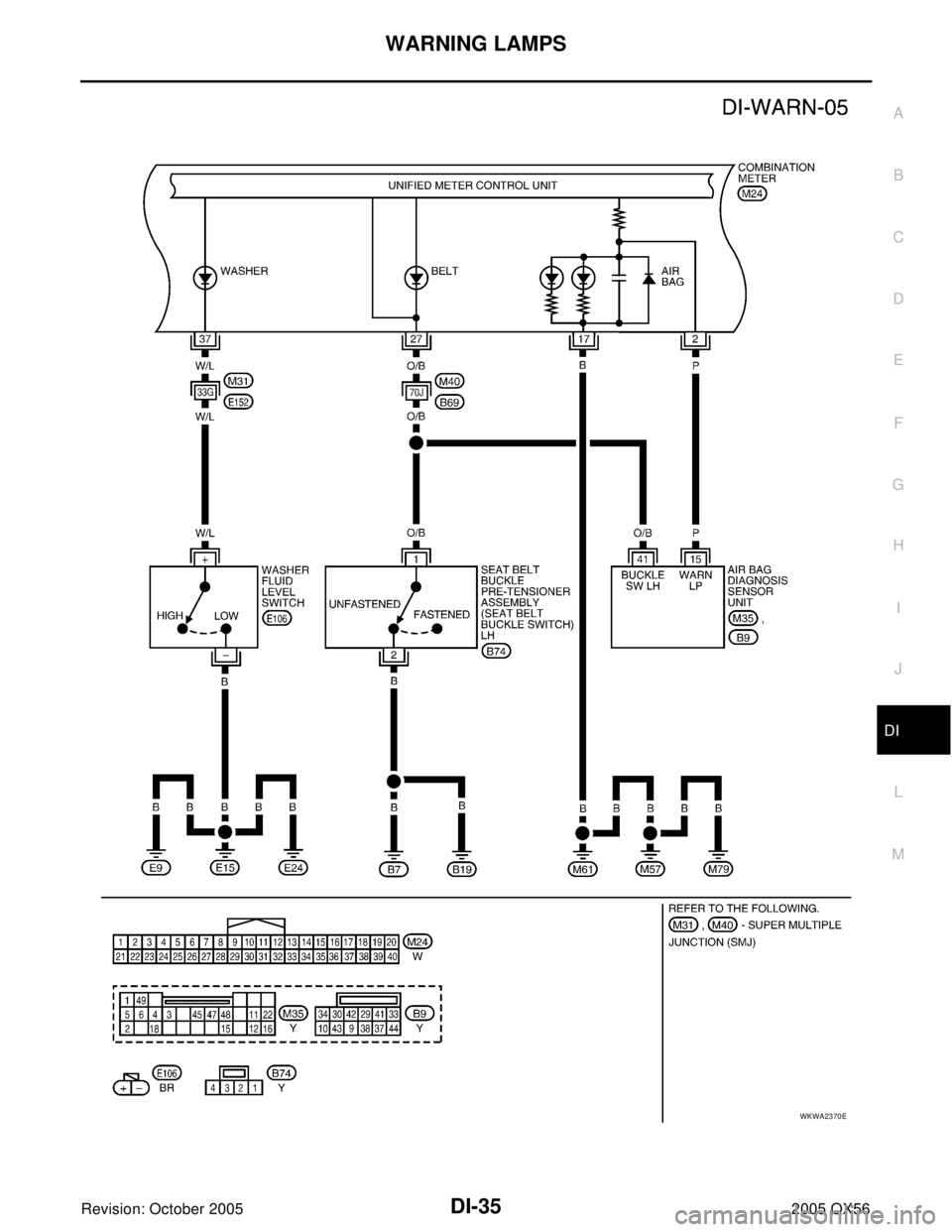

WKWA2369E
Page 1138 of 3419
WARNING LAMPS
DI-35
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
WKWA2370E
Page 1139 of 3419
DI-36
WARNING LAMPS
Revision: October 20052005 QX56
4WD Models
WKWA1172E
Page 1140 of 3419

WARNING LAMPS
DI-37
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
Oil Pressure Warning Lamp Stays Off (Ignition Switch ON)EKS00BCK
1. CHECK OIL PRESSURE SENSOR SIGNAL
1. Turn ignition switch ON.
2. Check voltage between combination meter harness connector
M24 terminal 20 (Y) and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK OIL PRESSURE SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector M24 and oil pressure
sensor connector F4.
3. Check continuity between combination meter harness connector
M24 terminal 16 (B/P) and oil pressure sensor harness connec-
tor F4 terminal 3 (B/P).
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "Combi-
nation Meter" .
NG >> Repair harness or connector.
3. CHECK OIL PRESSURE SENSOR REFERENCE VOLTAGE
1. Turn ignition switch OFF.
2. Disconnect oil pressure sensor connector F4.
3. Turn ignition switch ON.
4. Check voltage between combination meter harness connector
M24 terminal 22 (GR/L) and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace the combination meter. Refer to IP-13, "
Combi-
nation Meter" .
Te r m i n a l s
Condition Voltage (V) (+)
(–)
ConnectorTe r m i n a l
(Wire color)
M24 20 (Y) GroundWhen ignition switch is in ON
position. (Engine stopped)Ye s
Engine running. (Idle speed) Yes
WKIA1833E
Continuity should exist.
WKIA1837E
Voltage : Approx. 5V
WKIA1834E
Page 1141 of 3419

DI-38
WARNING LAMPS
Revision: October 20052005 QX56
4. CHECK OIL PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector M24.
3. Check continuity between combination meter harness connector M24 terminal 22 (GR/L) and oil pressure
sensor harness connector F4 terminal 1 (GR/L).
4. Check continuity between combination meter harness connector
M24 terminal 22 (GR/L) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK OIL PRESSURE SENSOR SIGNAL CIRCUIT
1. Check continuity between combination meter harness connector M24 terminal 20 (Y) and oil pressure
sensor harness connector F4 terminal 2 (Y).
2. Check continuity between combination meter harness connector
M24 terminal 20 (Y) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6. CHECK OIL PRESSURE SENSOR GROUND CIRCUIT
Check continuity between combination meter harness connector
M24 terminal 16 (B/P) and ground.
OK or NG
OK >> Replace oil pressure sensor.
NG >> Repair harness or connector.Continuity should exist.
Continuity should not exist.
WKIA1835E
Continuity should exist.
Continuity should not exist.
WKIA1836E
Continuity should not exist.
WKIA2685E
Page 1142 of 3419
WARNING LAMPS
DI-39
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
Oil Pressure Warning Lamp Does Not Turn Off (Oil Pressure Is Normal)EKS00BCL
NOTE:
For oil pressure inspection, refer to LU-7, "
OIL PRESSURE CHECK" .
1. CHECK ENGINE OIL PRESSURE GAUGE OPERATION
Observe operation of engine oil pressure gauge.
Does engine oil pressure gauge function properly?
YES >> Replace the combination meter. Refer to IP-13, "Combination Meter" .
NO >> Go to DI-19, "
Engine Oil Pressure Signal Inspection" .
Page 1143 of 3419
DI-40
A/T INDICATOR
Revision: October 20052005 QX56
A/T INDICATORPFP:24814
Wiring Diagram — AT/IND —EKS00BCM

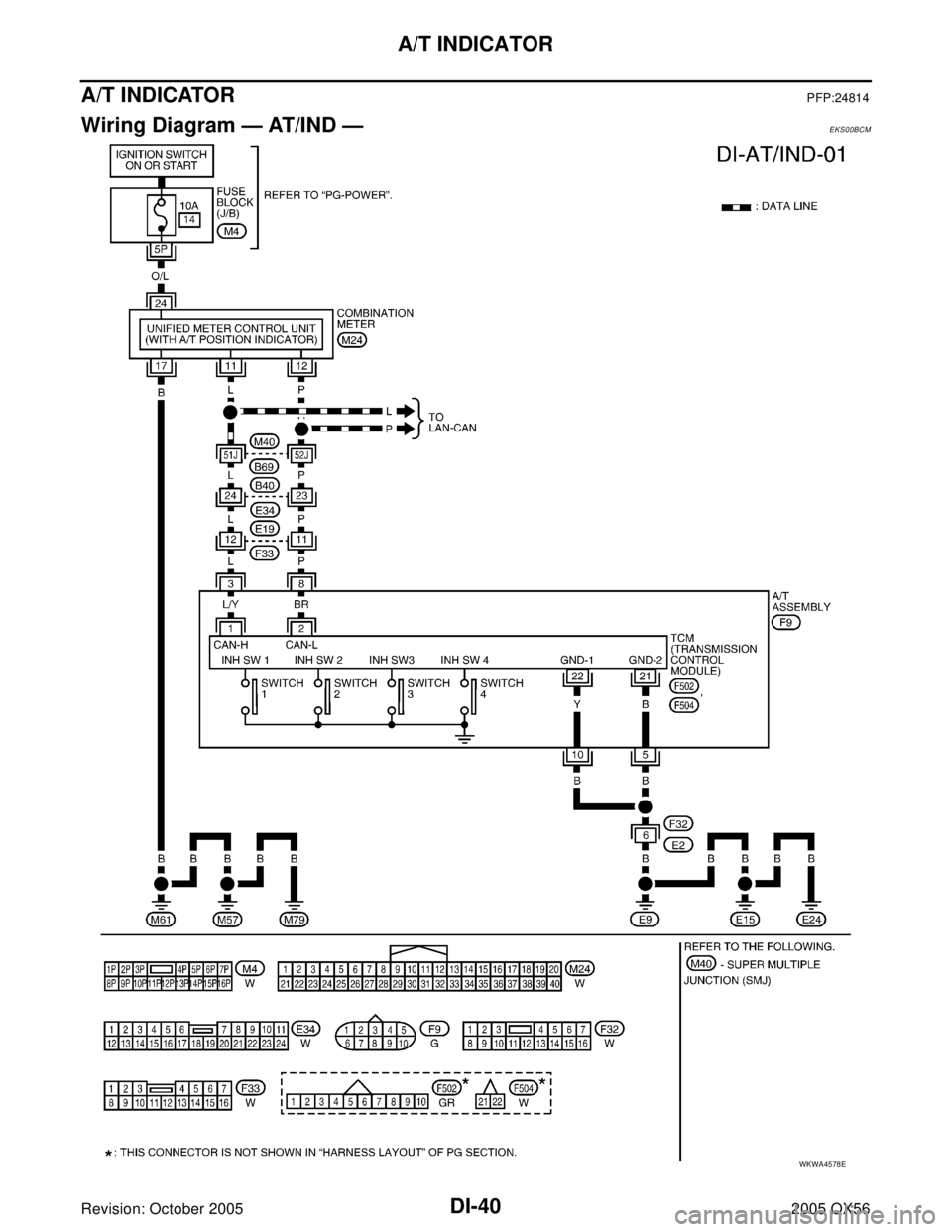

WKWA4578E
Page 1144 of 3419
A/T INDICATOR
DI-41
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
A/T Indicator Does Not IlluminateEKS00BCN
1. CHECK SELF-DIAGNOSIS OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to DI-13, "
SELF-DIAGNOSIS FUNCTION" .
OK or NG
OK >> GO TO 2.
NG >> Replace the combination meter. Refer to IP-13, "
Combination Meter" .
2. CHECK TCM
Perform self-diagnosis of TCM. Refer to AT-85, "
SELF-DIAGNOSTIC RESULT MODE" .
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "Combination Meter" .
NG >> Refer to DI-13, "
SELF-DIAGNOSIS FUNCTION" .
