INFINITI QX4 2005 Factory Service Manual PG-54
HARNESS
Revision: October 20052005 QX56

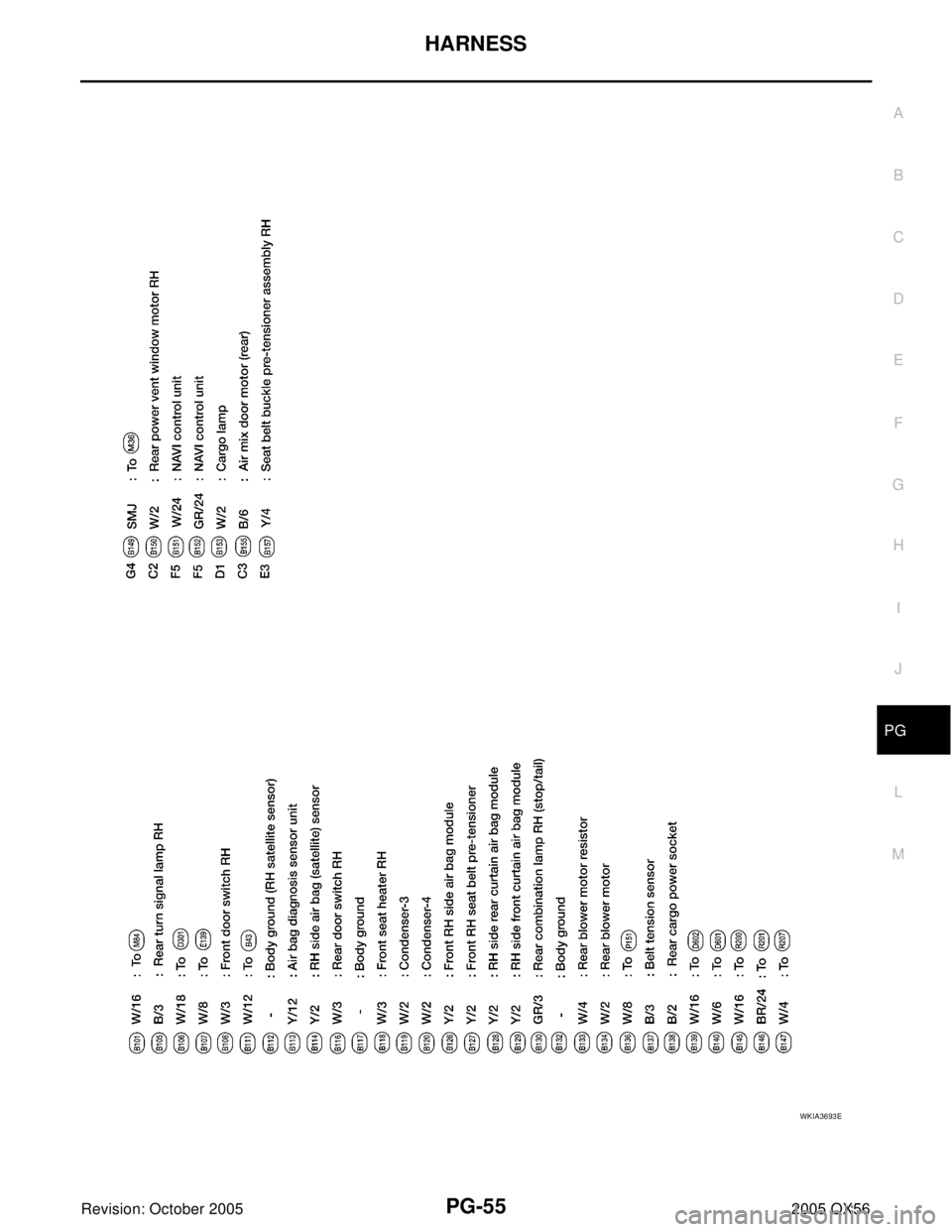

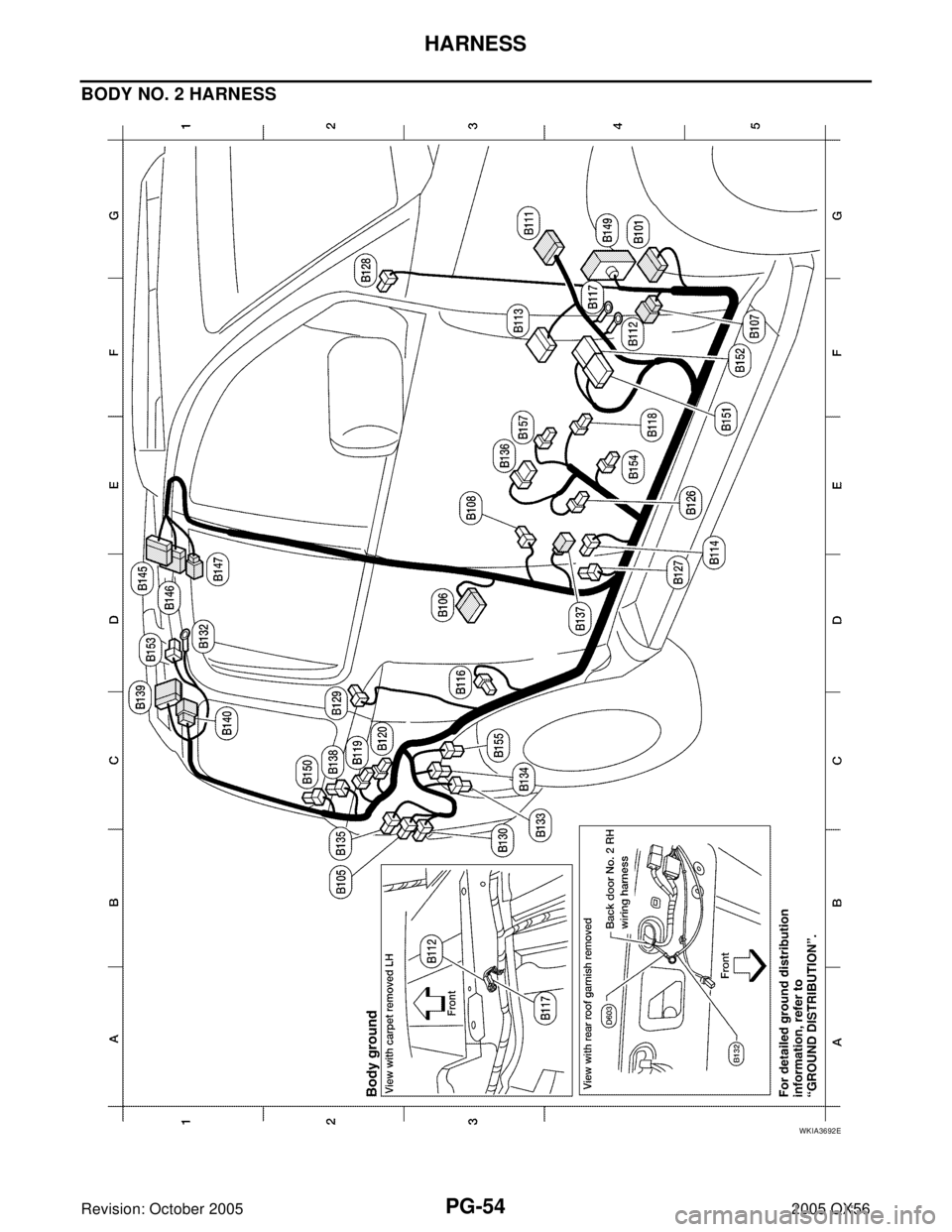

BODY NO. 2 HARNESS
WKIA3692E

Page 2730 of 3419

INFINITI QX4 2005 Factory Service Manual HARNESS
PG-55
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: October 20052005 QX56
WKIA3693E

Page 2731 of 3419

INFINITI QX4 2005 Factory Service Manual PG-56
HARNESS
Revision: October 20052005 QX56

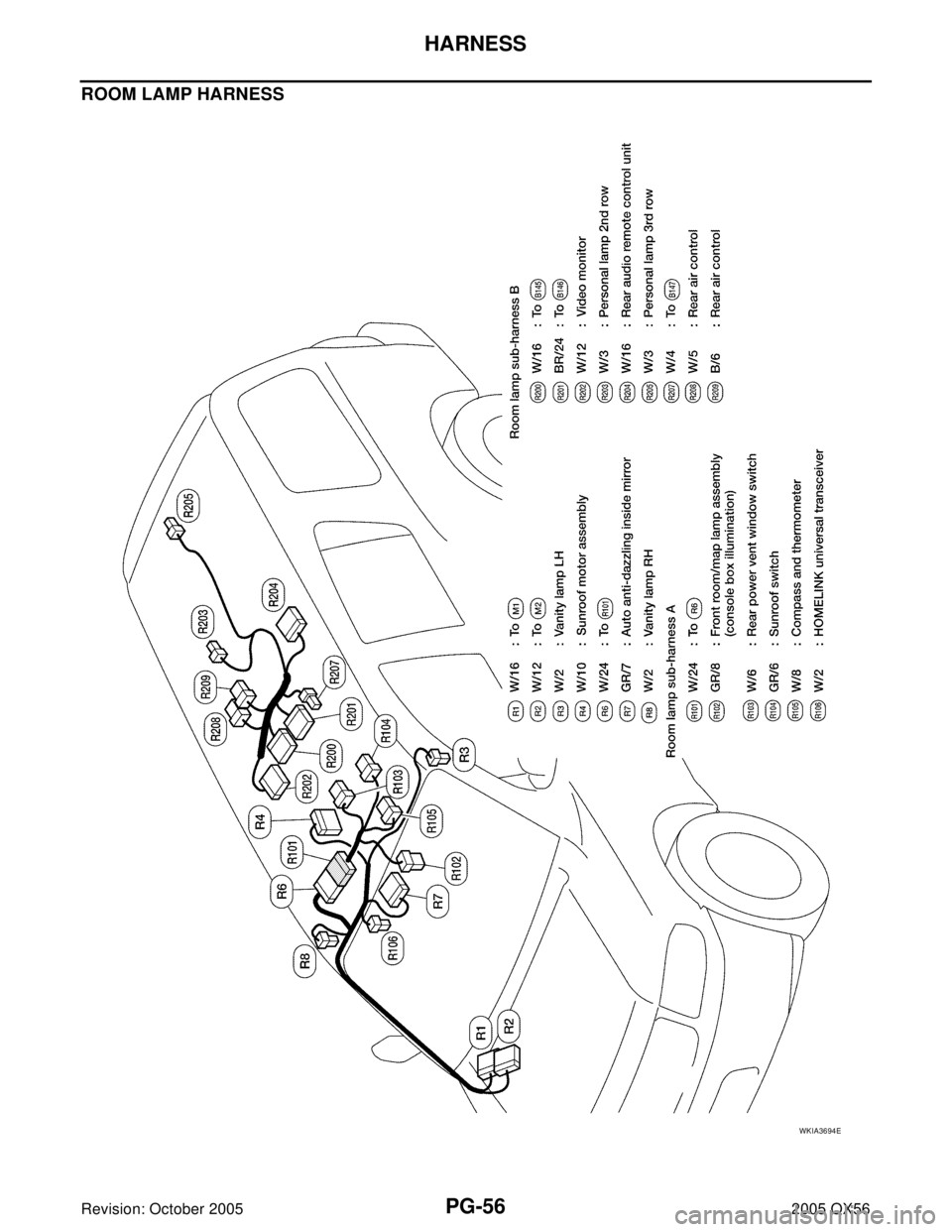

ROOM LAMP HARNESS
WKIA3694E

Page 2732 of 3419

INFINITI QX4 2005 Factory Service Manual HARNESS
PG-57
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: October 20052005 QX56

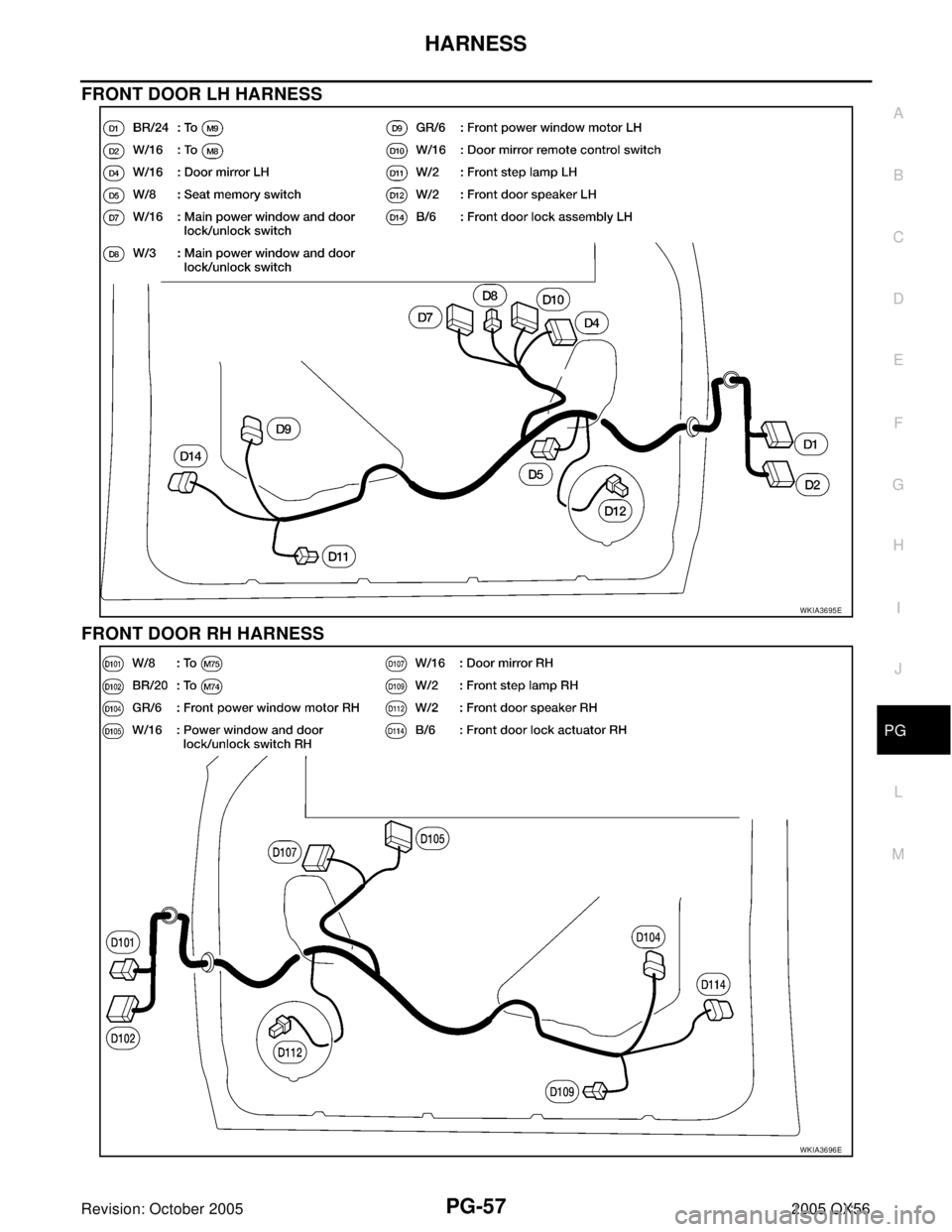

FRONT DOOR LH HARNESS
FRONT DOOR RH HARNESS
WKIA3695E
WKIA3696E

Page 2733 of 3419

INFINITI QX4 2005 Factory Service Manual PG-58
HARNESS
Revision: October 20052005 QX56

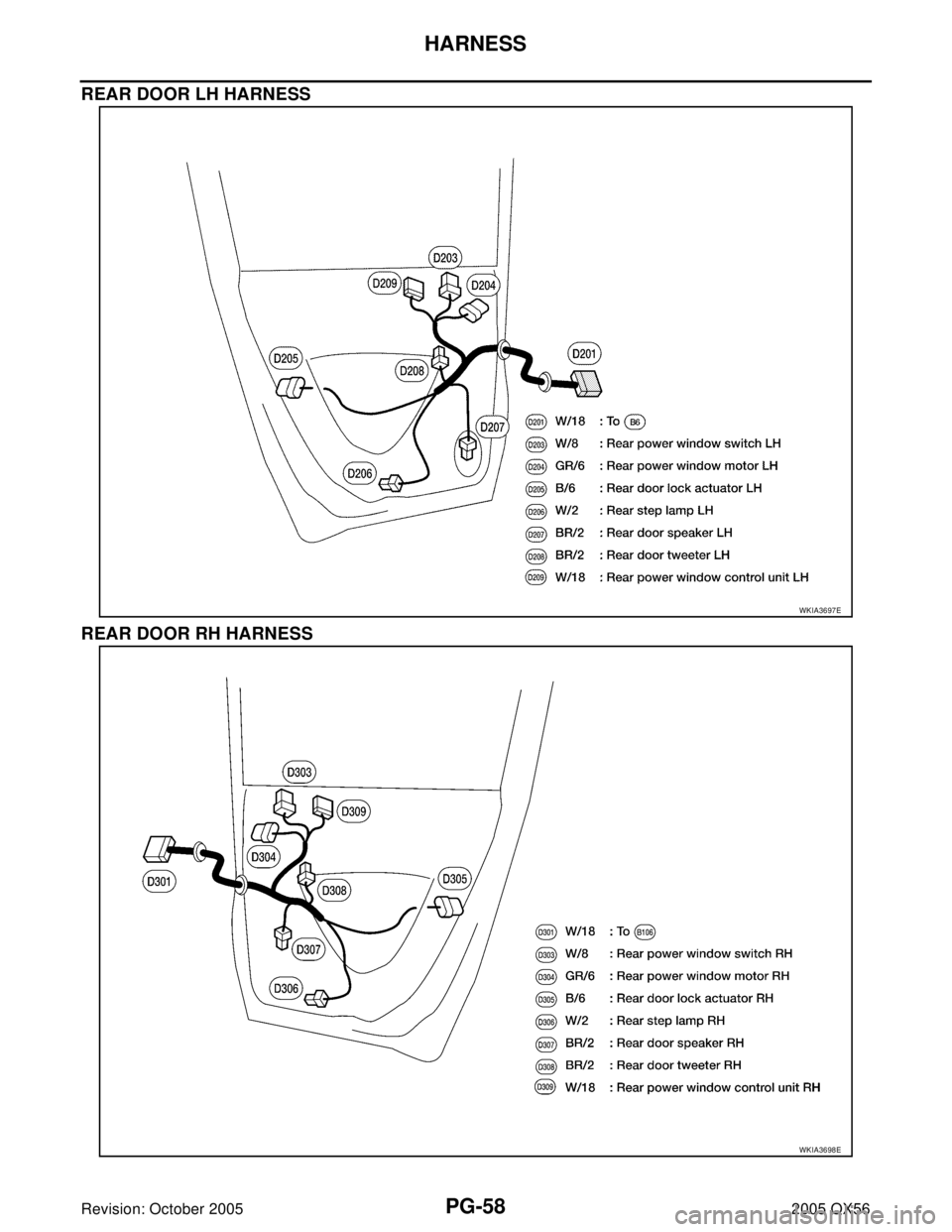

REAR DOOR LH HARNESS
REAR DOOR RH HARNESS
WKIA3697E
WKIA3698E

Page 2734 of 3419

INFINITI QX4 2005 Factory Service Manual HARNESS
PG-59
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: October 20052005 QX56

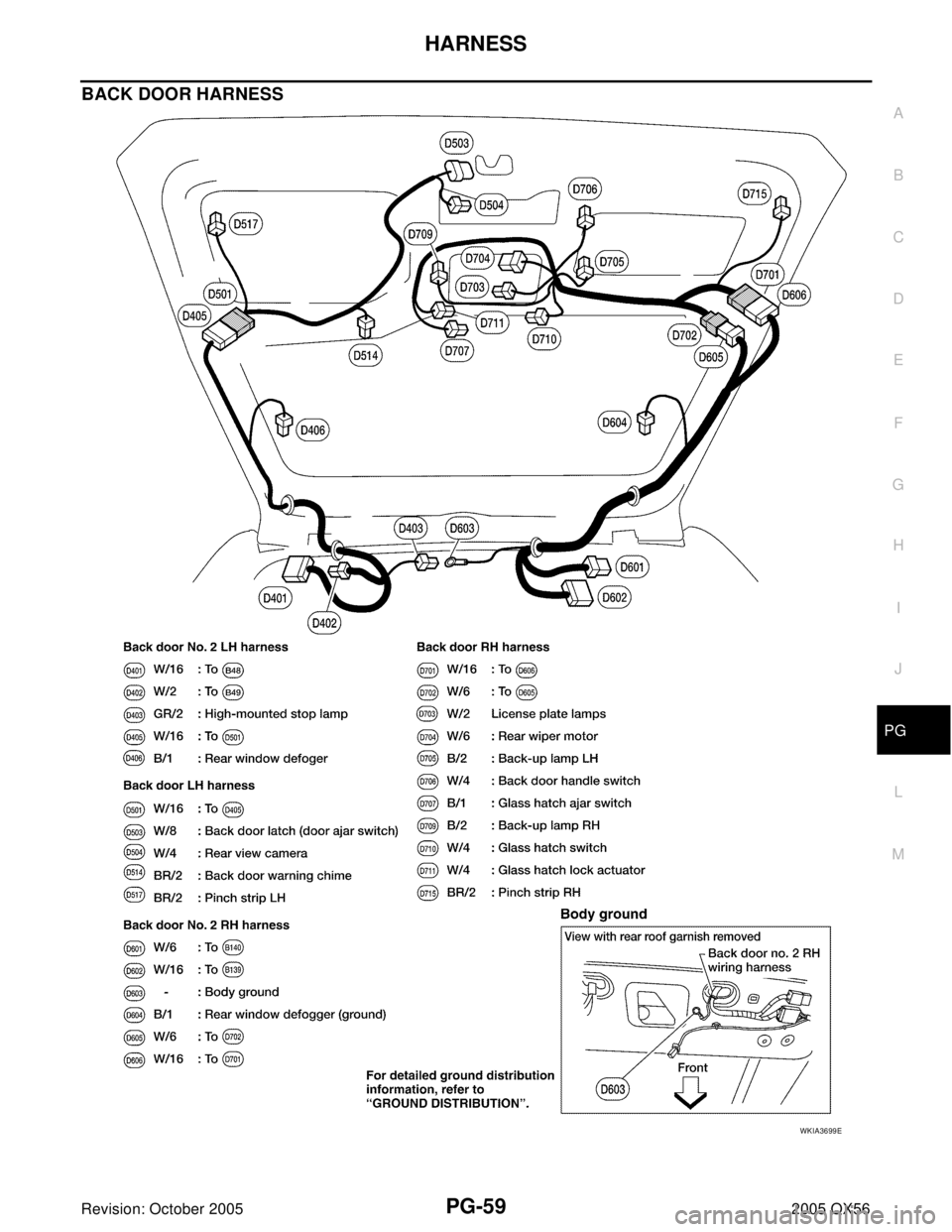

BACK DOOR HARNESS
WKIA3699E

Page 2735 of 3419

INFINITI QX4 2005 Factory Service Manual PG-60
HARNESS
Revision: October 20052005 QX56
Wiring Diagram Codes (Cell Codes)EKS00BNE
Use the chart below to find out what each wiring diagram code stands for.
Refer to the wiring diagram code in th

Page 2736 of 3419

INFINITI QX4 2005 Factory Service Manual HARNESS
PG-61
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: October 20052005 QX56
HSEAT SE Heated Seat
ICC ACS Intelligent Cruise Control
ICCBOF EC ICC Brake Switch
ICC/BS EC ICC Steering Switch
ICC/SW

HARNESS
PG-61
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: October 20052005 QX56
HSEAT SE Heated Seat
ICC ACS Intelligent Cruise Control
ICCBOF EC ICC Brake Switch
ICC/BS EC ICC Steering Switch
ICC/SW EC ICC Brake Switch
I/MIRR GW Inside Mirror (Auto Anti-Dazzling Mirror)
IATS EC Intake Air Temperature Sensor
IGNSYS EC Ignition System
ILL LT Illumination
INJECT EC Injector
INT/L LT Room/Map, Vanity, Cargo, Personal, Foot, Step, and Puddle Lamps
KEYLES BL Remote Keyless Entry System
KS EC Knock Sensor
MAFS EC Mass Air Flow Sensor
MAIN EC Main Power Supply and Ground Circuit
METER DI Speedometer, Tachometer, Temp. and Fuel Gauges
MIL/DL EC Malfunction Indicator Lamp
MIRROR GW Door Mirror
NATS BL Nissan Anti-Theft System
NAVI AV Navigation System
O2H2B1 EC Rear Heated Oxygen Sensor 2 Heater Bank 1
O2H2B2 EC Rear Heated Oxygen Sensor 2 Heater Bank 2
O2S2B1 EC Heated Oxygen Sensor 2 Bank 1
O2S2B2 EC Heated Oxygen Sensor 2 Bank 2
P/SCKT WW Power Socket
PGC/V EC EVAP Canister Purge Volume Control Solenoid Valve
PHASE EC Camshaft Position Sensor (PHASE) (Bank 1)
PNP/SW EC Park/Neutral Position Switch
POS EC Crankshaft Position Sensor (POS)
POWER PG Power Supply Routing
PRE/SE EC EVAP Control System Pressure Sensor
PS/SEN EC Power Steering Pressure Sensor
R/VIEW DI Rear View Monitor
RP/SEN EC Refrigerant Pressure Sensor
SEN/PW EC Sensor Power Supply
SHIFT AT A/T Shift Lock System
SONAR DI Rear Sonar System
SROOF RF Sunroof
SRS SRS Supplemental Restraint System
START SC Starting System
STOP/L LT Stop Lamp
T/TOW LT Trailer Tow
T/WARN WT Low Tire Pressure Warning System
TAIL/L LT Parking, License and Tail Lamps
T/F TF Transfer Case
TPS1 EC Throttle Position Sensor
TPS2 EC Throttle Position Sensor
TPS3 EC Throttle Position Sensor
TRNSCV BL HOMELINK® Universal Transceiver
TURN LT Turn Signal and Hazard Warning Lamps
VDC BRC Vehicle Dynamic Control System
VEHSEC BL Vehicle security (theft warning) system
